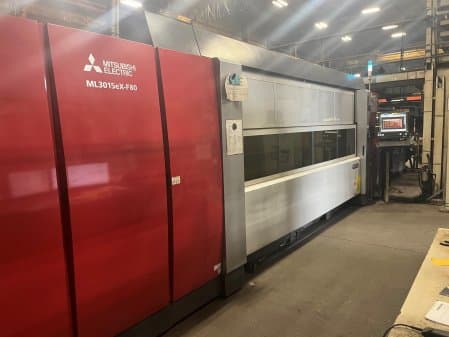

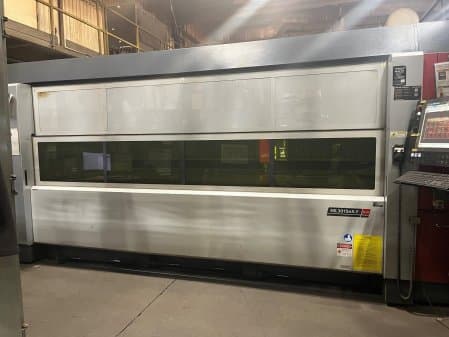

8000 WATT MITSUBISHI ML-3015 EX-F80 FIBER LASER, MFG:2019

Description

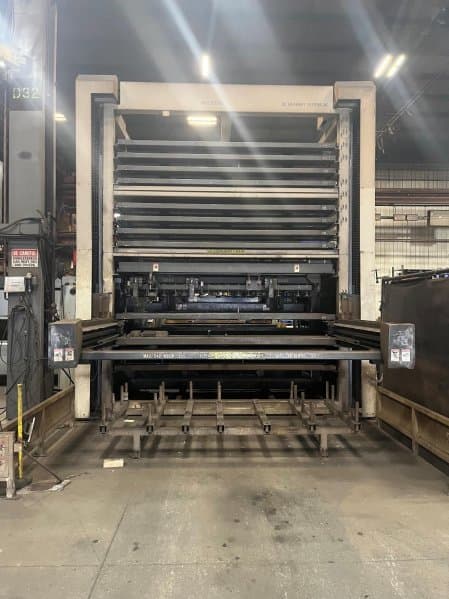

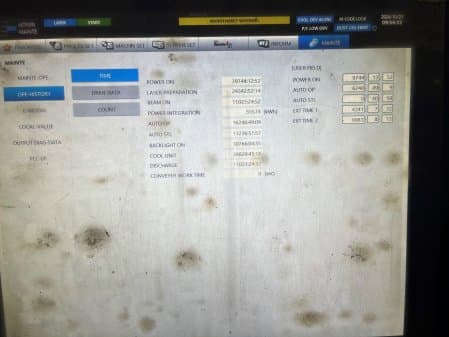

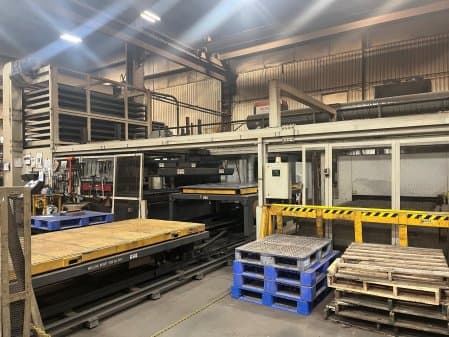

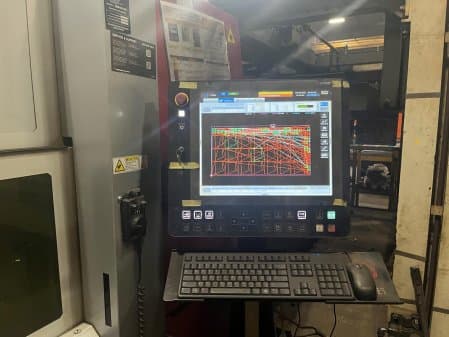

SpecificationsModel: 3015eX-F80Machine structure: X/Y Precision Rack & Pinion, Z=Precision ball screwTravel drive method: X-Y-Z simultaneous 3 axes (Z axis height control alsopossible)Maximum workpiece size: 120.1" x 60"Table pass height: 34.6"Processing access: Powered manual doorPallet changer: Provided (automation ready)X-axis stroke: 122"Y-axis stroke: 61"Z-axis stroke: 5.9"Rapid travel speed (X,Y): 3940 single axis, 5550 simultaneousMaximum processing federate: 3937 inches per minutePositioning precision: 0.0019/20Drive motor type: Intelligent AC servoMaximum workpiece weight: 2050 lbs.Machine unit dimensions: 408.3" Long x 88.6" High x 115.2" WideMachine system weight: 20,503 lbs.Features*Mitsubishi Electric's all-new ADVANCE 800 series control features a 19-inchtouchscreen and many updated features to increase cutting speeds andproductivity*The standard 19inch touch screen provides Smartphone like intuitive operation*Now has keyboard and mouse for added control*Multilanguage capability enhances ease of use for machine operators acrossthe shop floor*New Dashboard function and Remote diagnosis functionalities are available*Processing speeds up to 100m per min (up from 50)*Customizable Home Page and Status bar using Shortcut Icons. This means fewerbutton presses to perform the same process*On Button Safety Door operation*Expanded cutting condition library with more condition lines and piercingoptions. There are now 20 conditions lines.*Easy condition and program search*Updated production Schedule for standalone machines*Edit up to two programs at once.*Expanded Maintenance and Help Screens*Improved process time on small geometry intensive parts due to betteracceleration and deceleration*The Advanced Dross Reduction Control increases cutting speed in tightgeometry's and holes*New 5 color light tower. Shows operational status and part-time remaining*Windows 8e*The number of usable programs is now 1000. (was 400)*Double the Ram over the 700*The machine now has two 3.0 MPA high-pressure gas ports*New Height Sensing capability has significantly increased cutting speed inlighter gauge materials*Pierce detection is standard, which allows for the machine to change materialthicknesses without sacrificing cut quality and process time*Secure single action door -opening and closing and operator favoriteEquipped With8000-watt IPG fiber resonator/engineAdjustable M800 19" Smooth Operation ControlChillerDust Collector**Optional MCSIII Auto-FlexMS HP 2 Laser layout with 12-shelf tower isavailable at buyer's option, please inquire if interested **
