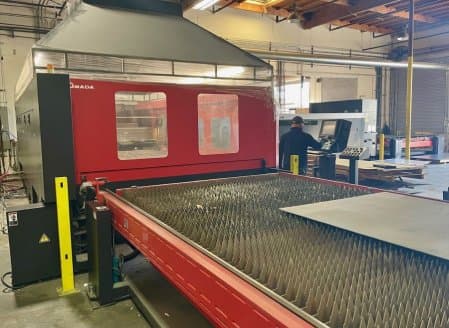

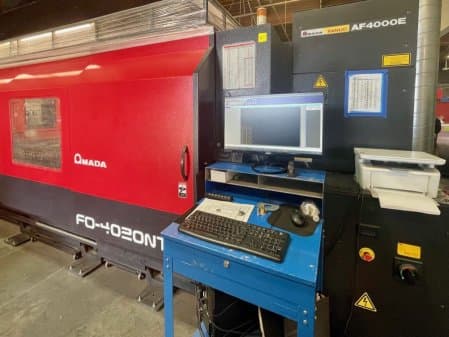

4000 WATT AMADA FO4020NT CO2 LASER,6' X 12',MFG: 2012,

Description

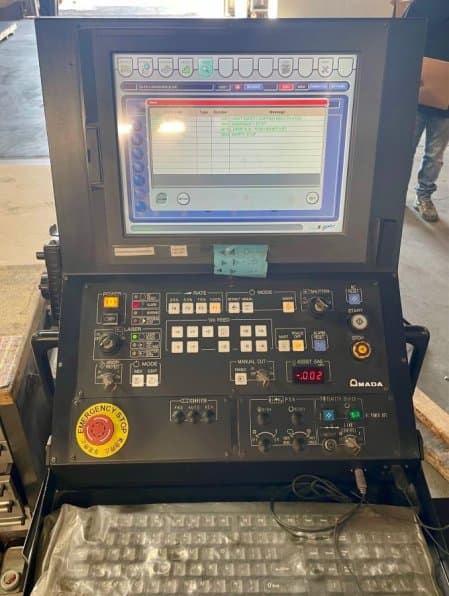

Technical Specifications1.1 Motion PackageTravel Method: Stationary table, X, Y and Z-axis movement for cutting headControl Method: X, Y and Z simultaneous 3 axis controlDrive Motors: Fanuc AC servo motorsMaximum Sheet Size: 78" (Y) x 156" (X)Maximum Axis Travel: 79" (Y) x 160" (X) x 7.87" (Z)Maximum Axis Positioning Speed: 3,150 inches per minute (80m/min) per axis(4,554 inches per minute 45 degree vector)Maximum Speed Z-Axis: 2,362 inches per minutePositioning Accuracy: 0.0004"/20"Maximum Material Weight: 3,454 lbs.Assist Gas: Automatic 4 ports with NC pressure ControlMachine Footprint: 483" x 124"Machine Weight: 31,060 lbsElectrical Requirements: 208V, 3 Phase, 60HzCNC ControllerModel AMNC-FDisplay: LCD Color Graphics DisplayControl Function: X, Y, Z-Axis Simultaneous and Focus Lens B-axis, AdaptiveOptic and Laser Power control (CW, Gated Pulse, Pierce Routines etc.).Data Input Method: Touch screen, Keyboard, Ethernet, Wireless, CD, USB, 3 1/2"Floppy diskMinimum Command Unit: 0.0001" (X, Y, Z)Minimum Travel Unit: 0.0001" (X, Y, Z)Standard Memory: 2 MBHard Drive: 10 GBOperating Modes: Automatic and ManualDisplay Modes: Program Contents, Position Information, Program Check,Settings, Parameters, Beam Diameter Compensation, Assist Gas Status, SelfDiagnosticsInterlock Displays: Cooling Water Status, Gas Pressure Status, Vacuum Status,Turbo Blower Malfunction, Shutter Status, Beam Power, Resonator Discharge,Door Open, WACS.Electrical requirements: See Motion PackageLaser Specifications:CW Power: 4000 WattsPeak Pulse Power: 5000 Watts
