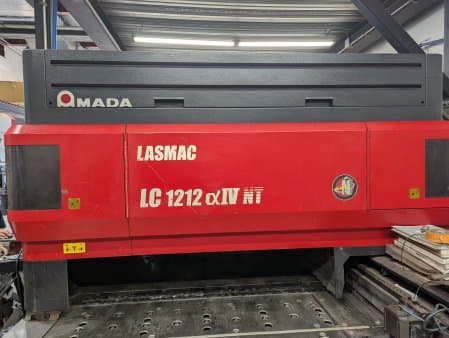

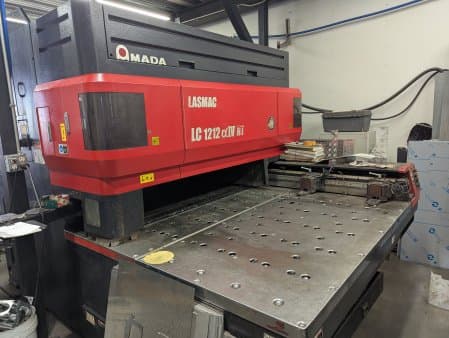

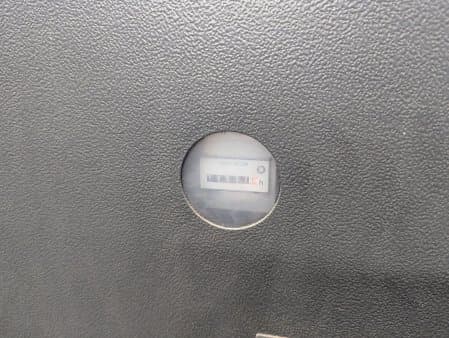

4000 WATT AMADA PULSAR 1212NT, MFG:2012,APPROX:18,700 HOURS

Description

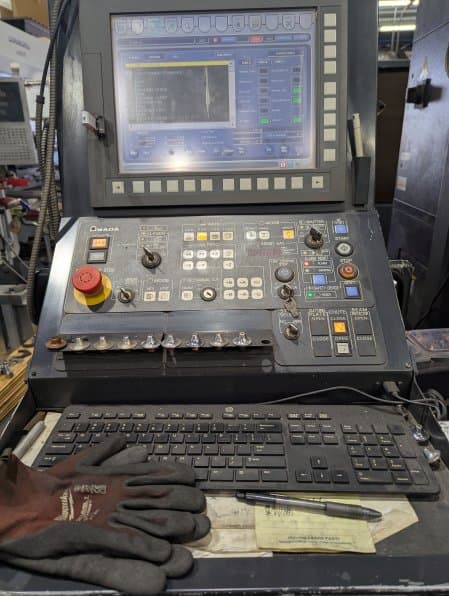

Pulsar 1212NT Standard FeaturesThe Pulsar 1212NT 4,000W Production Laser System continuesto combine the latest developments in machine, CNC and laser resonatortechnologies. In contrast to the traditional "jack-of-all-trades" laser-cutting machine, the Pulsar 1212NT is a specialist in high production of shortrun sheet metal parts.Synchronized stainless steel rollers and a high speed capacitive head providehigh throughput of scratch-free stainless and aluminum parts.Stealth clamps reduce dead zones and maximize material utilization.Full machine width work chute automatically unloads large parts and allowsflexibility in the location of the lead-in/lead-out points. The machineconfiguration allows several parts to be unloaded simultaneously, increasingthroughput.The high speed CNC incorporates a cutting data library and available networkinterface. The advanced, turbine driven, RF excited, fast axial flow CO2 laserautomatically calibrates itself at power-up, ensuring parameter repeatability.Requires less than half the floor space of previous generation ProductionLaser Systems, with the material moving in only one direction, the lasermounted on the frame and a pendant mount control systemTechnical SpecificationsMotion PackageTravel Method X axis for work piece movement, Y axis for cutting head movementControl Method X, Y & Z simultaneous 3 axis control and B axisDrive Motors FANUC AC Servo (X, Y, Z, and B)Maximum Sheet Size 50.0" (Y) x 100.0" (X) with one repositioning cycleMaximum Axis Travel 50.0" (Y) x 50.0" (X) x 11.8" (Z) x 0.78" (B)Maximum Cutting Speed 787 IPMMaximum Table Speed 3,149 IPM per axis (4,454 IPM 45 vector)Maximum Speed Z-Axis 2,362 IPMPositioning Accuracy 0.0004"/20"Repeatability 0.0004"Maximum Material Weight 484 lbs. (4' x 8' x 3/8" or 4' x 6' x 1/2")Number of Clamps 2Work Chute 58" (Y) x 21" (X)Assist Gas Automatic 4 ports with NC pressure ControlMachine Size 123.0" x 100.0" x 86.5"Machine Weight 12,232 lbs. including laser resonatorElectrical Requirements 208 VAC, 3 phase, 60 HzLaser Power 4000 wattsCNC ControllerModel AMNC-F
