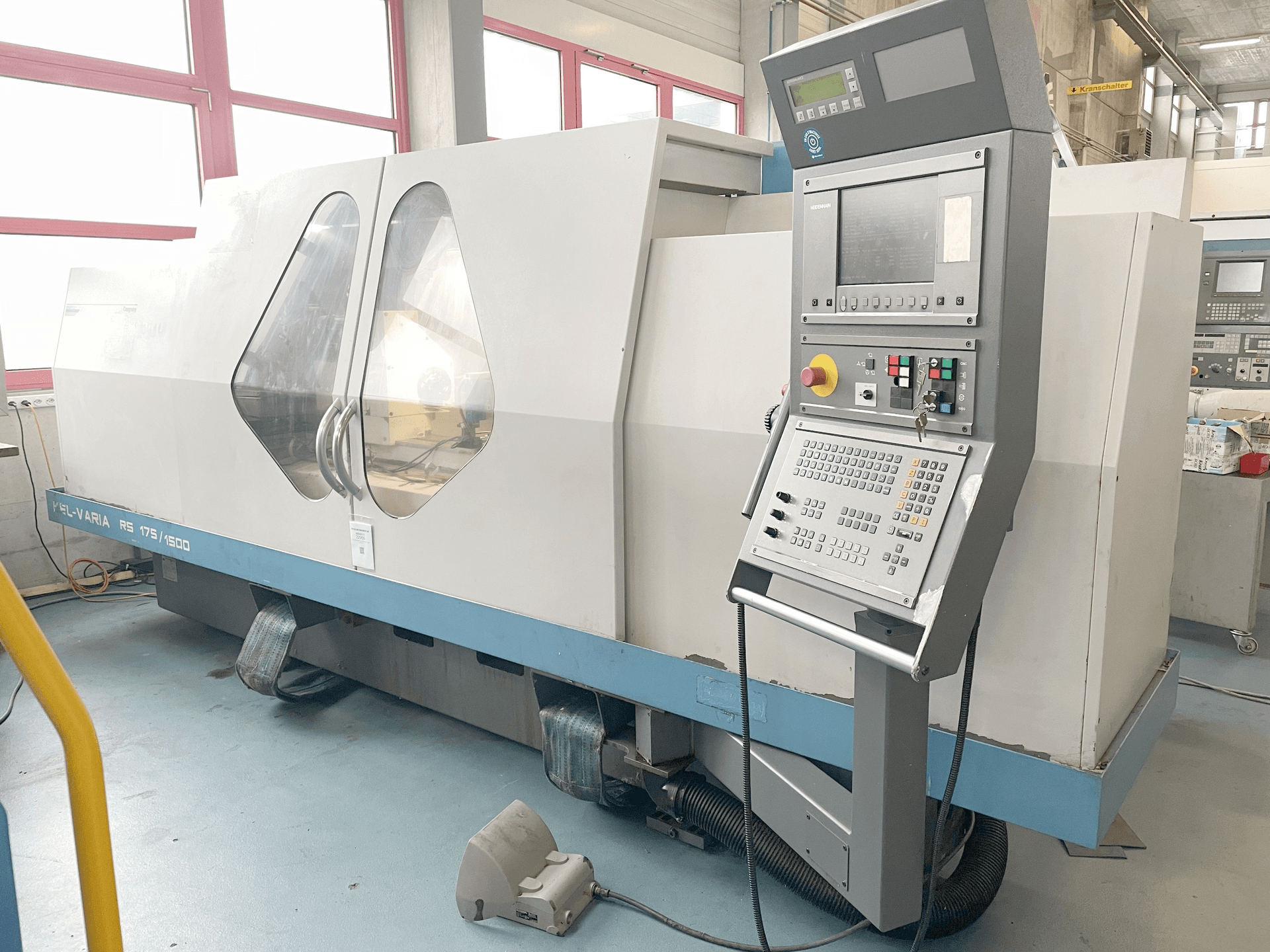

022955 - KELLENBERGER KEL-VARIA R175 x 1500

Description

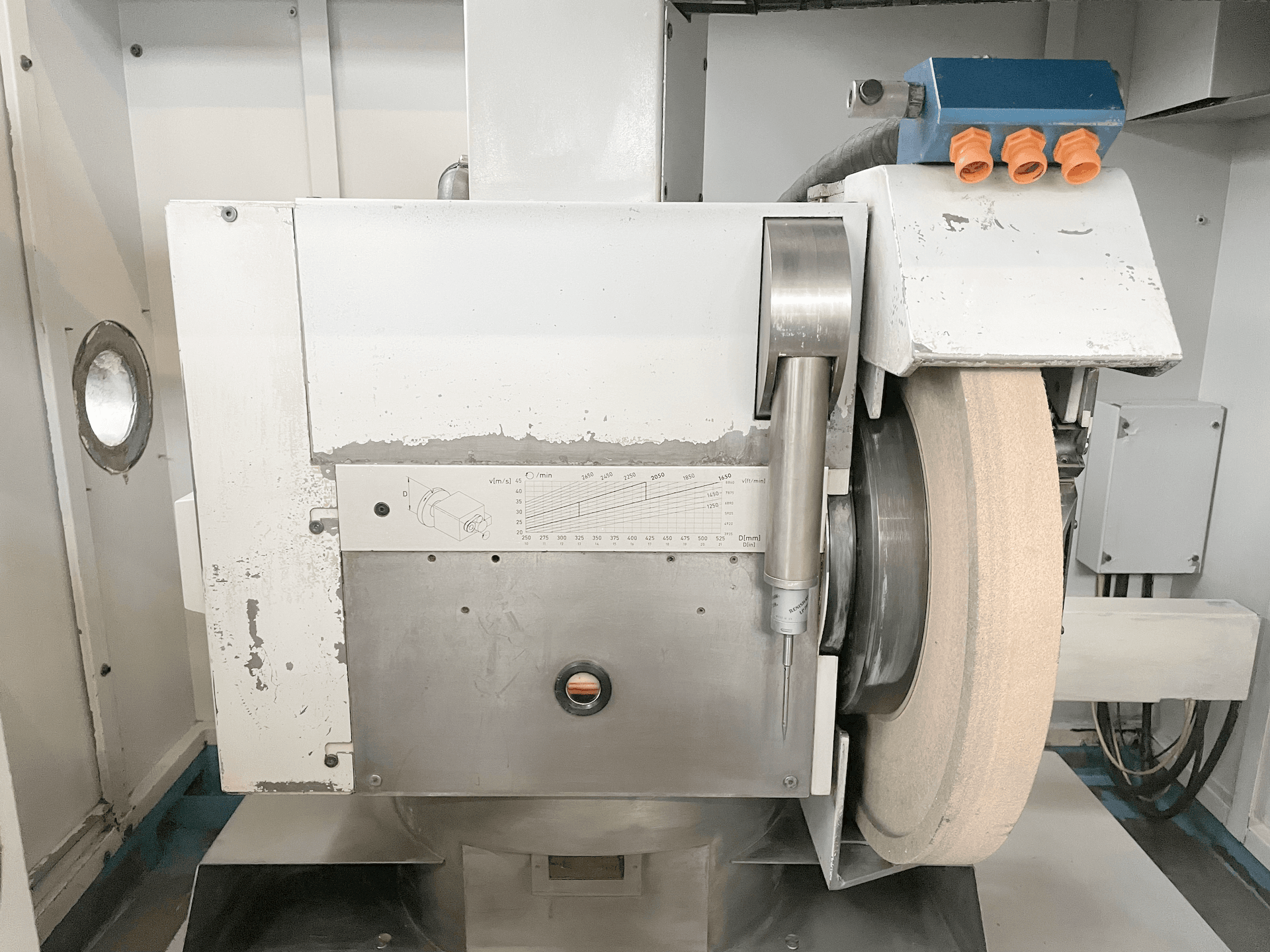

{"Centre height": "175 mm", "Distance between centres": "1500 mm", "Travels:": "", "Z axis": "1650 mm", "Workpiece weight on centres max.": "150 kg", "Grinding wheel:": "", "Diameter": "400 mm", "Width": "2300 mm", "Bore": "127 mm", "B axis resolution max.": "2.5 \u00b0", "Grinding wheel speeds:": "", "stepless": "", "from": "8 t/min", "up to": "800 t/min", "Rotatable grinding spindle head (b-axis)": "+30\u00b0 / -210 \u00b0", "Peripheral speed": "45 m/s", "Max. travel": "320 mm", "Feed range": "7500 mm/min", "Work piece spindle head:": "", "Swivelling range": "-10 / +100 \u00b0", "speeds:": "", "Internal mounting cone": "5 CM", "External short tapered mount": "DIN 55026 Gr. 5", "Permitted load capacity": "160 Nm", "Tailstock:": "", "Taper in tailstock:": "4 CM", "Tailstock travel of barrel": "50 mm", "Table speed:": "", "Rapid motion": "15 m/min", "Max. table angular displacement": "7 \u00b0", "Air connect": "6 bar", "Voltage 50 Hz 3x": "400 Volt", "Grinding spindle motor": "7.5 kW", "Workpiece spindle motor": "2 kW", "Machine's weight about": "6000 kg", "Overall dimensions machine:": "", "Length": "4700 mm", "Height": "2000 mm", "Various accessories:": "", "Paper filtration system": "", "Coolant filter system": "", "C axis": "", "Measuring device": "MOVOMATIC", "Feeler Renishaw": "LP2H", "Lamp": "", "Status light": "", "Grinding-wheel flange extractor": "", "Electronic hand held remote control": "", "MPM dynamic balancing system": ""}
