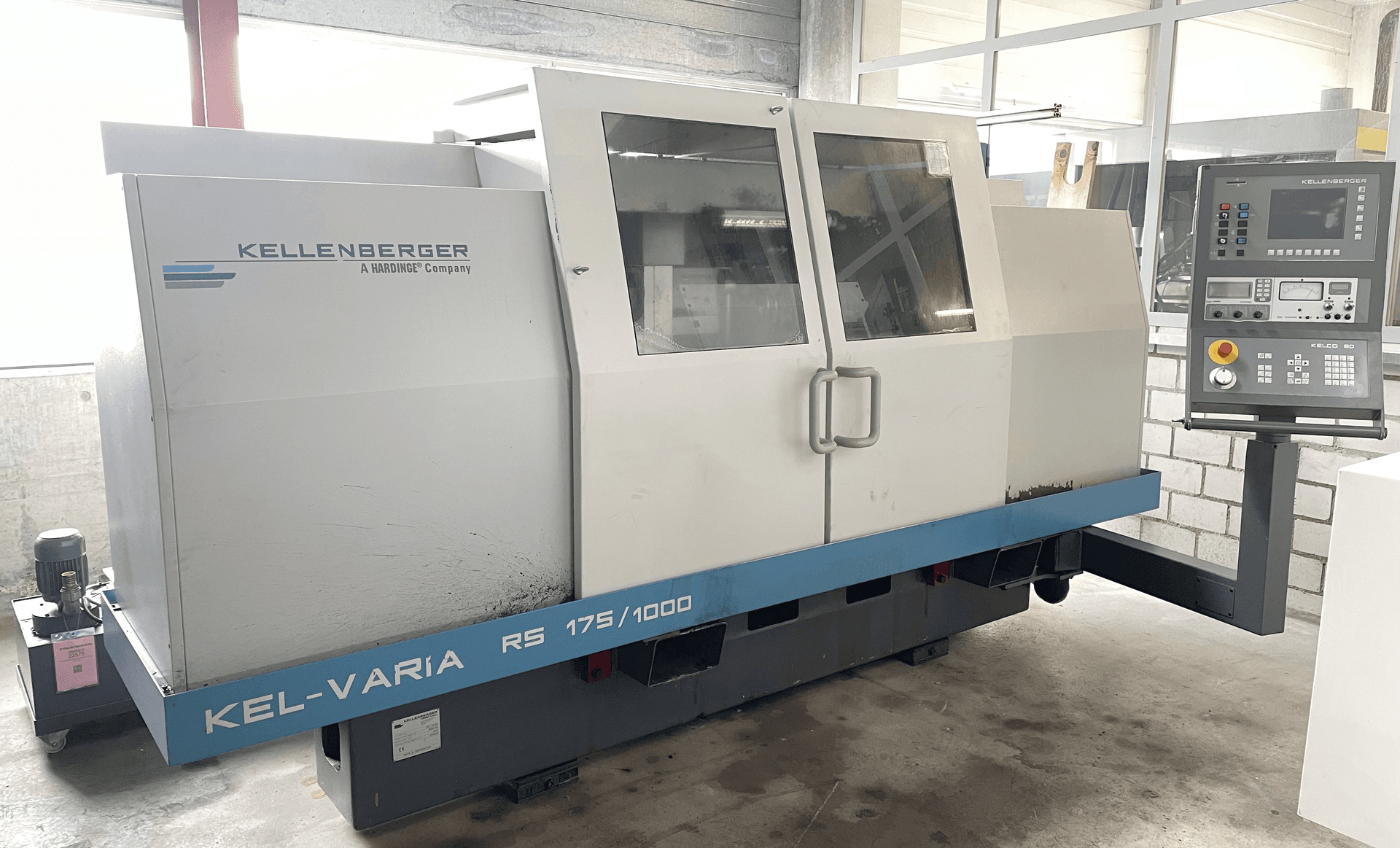

022575 - KELLENBERGER KEL-VARIA RS 175 / 1000

Description

{"Centre height": "175 mm", "Distance between centres": "1000 mm", "Max. grinding diameter": "349 mm", "Travels:": "", "Z axis": "1150 mm", "X axis": "320 mm", "Workpiece weight on centres max.": "150 kg", "Grinding wheel right side:": "", "Diameter": "500 mm", "Width": "2000 mm", "Bore": "127 mm", "Grinding wheel speeds:": "", "from": "m/min", "up to": "8 m/min", "Resolution": "", "Rotatable grinding spindle head (b-axis)": "240 \u00b0", "Peripheral speed": "32 m/s", "Indexing automatic": "0.1 \u00b0", "Rapid feed motion": "10 m/min", "Work piece spindle head:": "", "speeds:": "", "stepless": "", "Holding taper:": "5 CM", "rotatable": "-30 / +120 \u00b0", "Taper in tailstock:": "4 CM", "Spindle stroke": "50 mm", "Table speed:": "", "Max. table angular displacement": "9 \u00b0", "Air connect": "4 bar", "Voltage 50 Hz 3x": "380 Volt", "Grinding spindle motor": "7.5 kW", "Workpiece spindle motor": "3 kW", "Machine's weight about": "6000 kg", "Overall dimensions machine:": "", "Length": "3600 mm", "Various accessories:": "", "Coolant system": "", "Touch probe MARPOSS": "", "Measuring head MARPOSS": "", "Positionar Passiv": "", "Grinding wheel with flange": "", "Lamp": "", "Tailstock with fine adjustement": ""}
