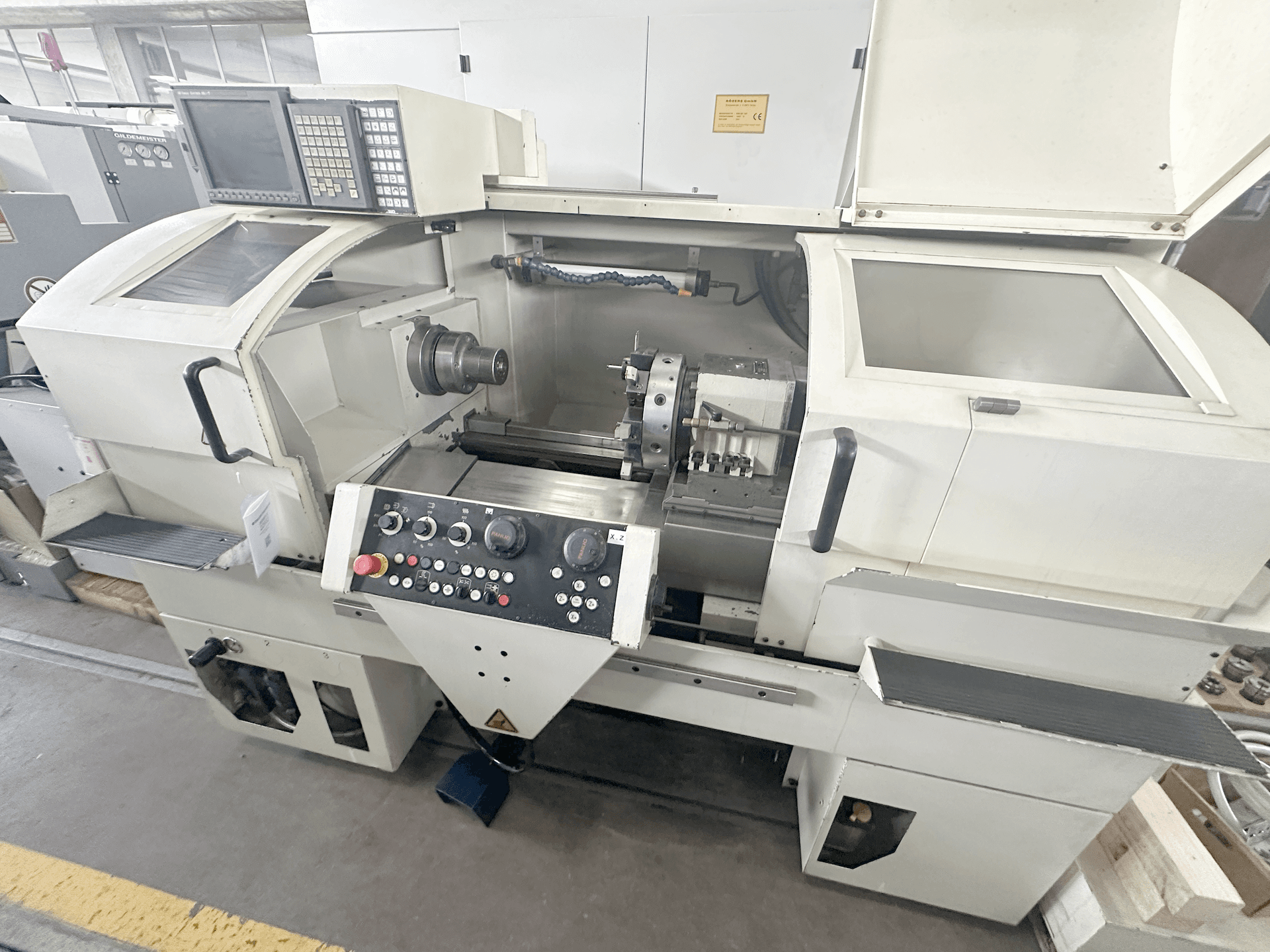

022932 - SCHAUBLIN 180 CCN R-T

Description

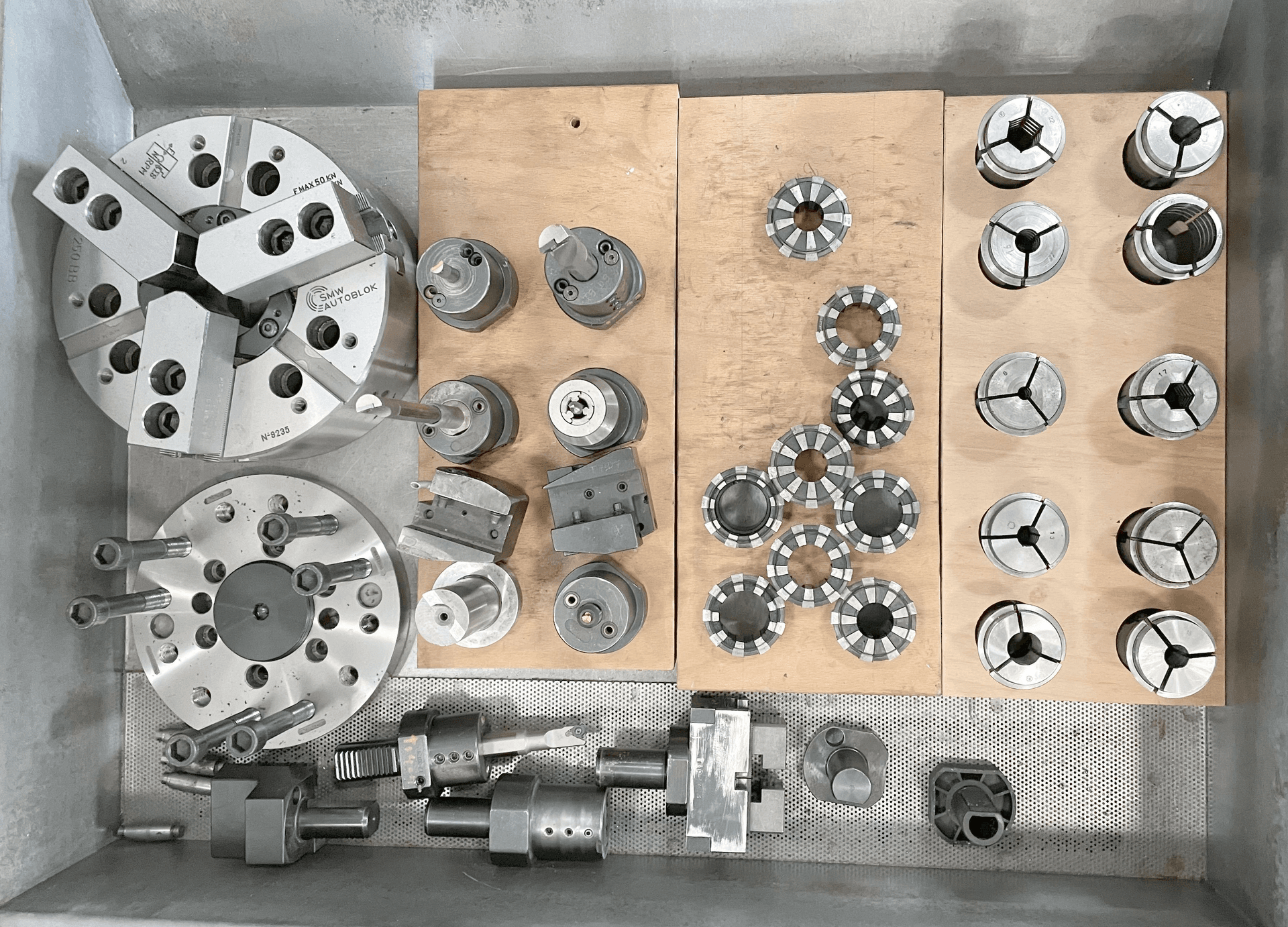

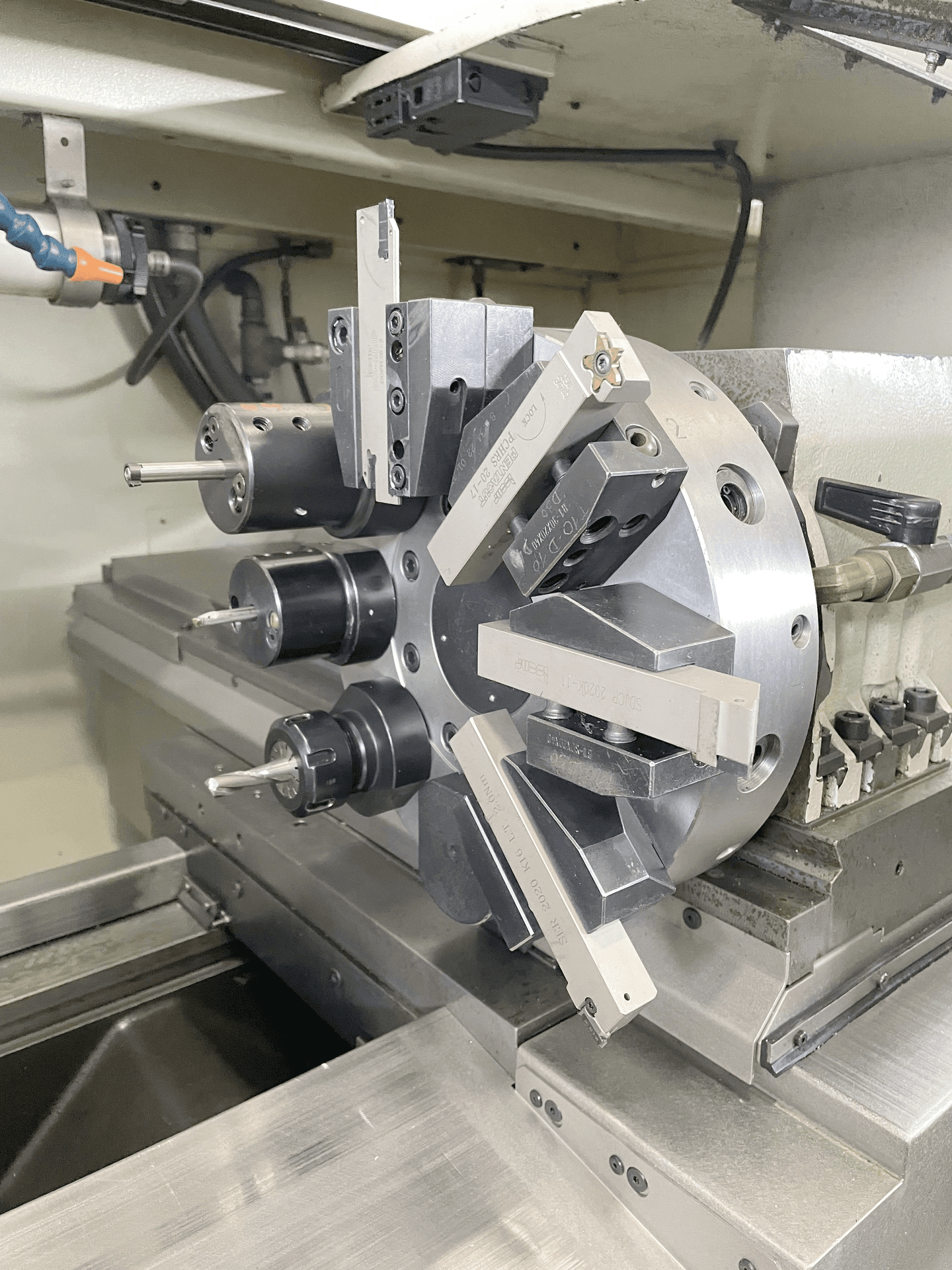

{"Centre height": "275 mm", "Distance between centres": "600 mm", "Swing over cross-slide": "150 mm", "Swing over bed": "600 mm", "Maximum turning length": "630 mm", "Bar passage": "60 mm", "Carriage:": "", "Longitudinal travel (Z-axis)": "672 mm", "Transversal strocke (X axis)": "230 mm", "Resolution": "mm", "Turret slide:": "SAUTER", "Number of positions": "8", "Fixed tools turret": "8", "Inner cone diameter": "20 x 20 mm", "Inner cone DIN": "VDI 30", "Taper in spindle:": "", "Camlock": "A2-6", "Inner taper type": "F48", "Spindle speeds:": "", "stepless": "", "from": "30 t/min", "up to": "4000 t/min", "Internal spindle diameter": "60 mm", "Feeds": "0 - 5000 mm/min", "Rapid traverse X": "8 m/min", "Rapid traverse Y": "10 m/min", "Spindle motor": "15 / 18.5 kW", "Air connect": "5 - 7 bar", "Flow rate cooling water pump": "10 l/min", "Voltage 50 Hz 3x": "400 Volt", "Noise level": "75 dB (A)", "Total power required": "24 kVA", "Machine's weight about": "2460 kg", "Overall dimensions machine:": "", "Length": "2301 mm", "Width": "1460 mm", "Height": "1676 mm", "Various accessories:": "", "3-jaw chuck diameter": "250 mm", "Collet device": "", "Set of collets": "", "Lamp": "", "Starwheel-operatet tailstock": "", "Coolant system": "", "Foot pedal": "", "Set of steel holders": "", "Set of toolholders": ""}
