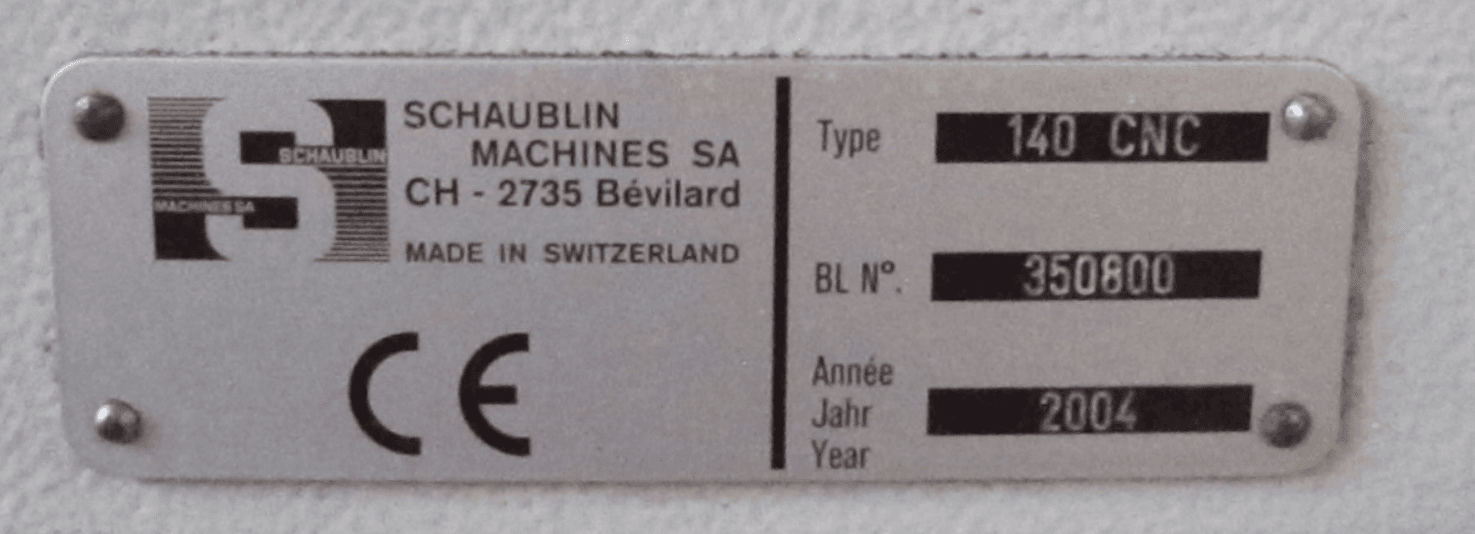

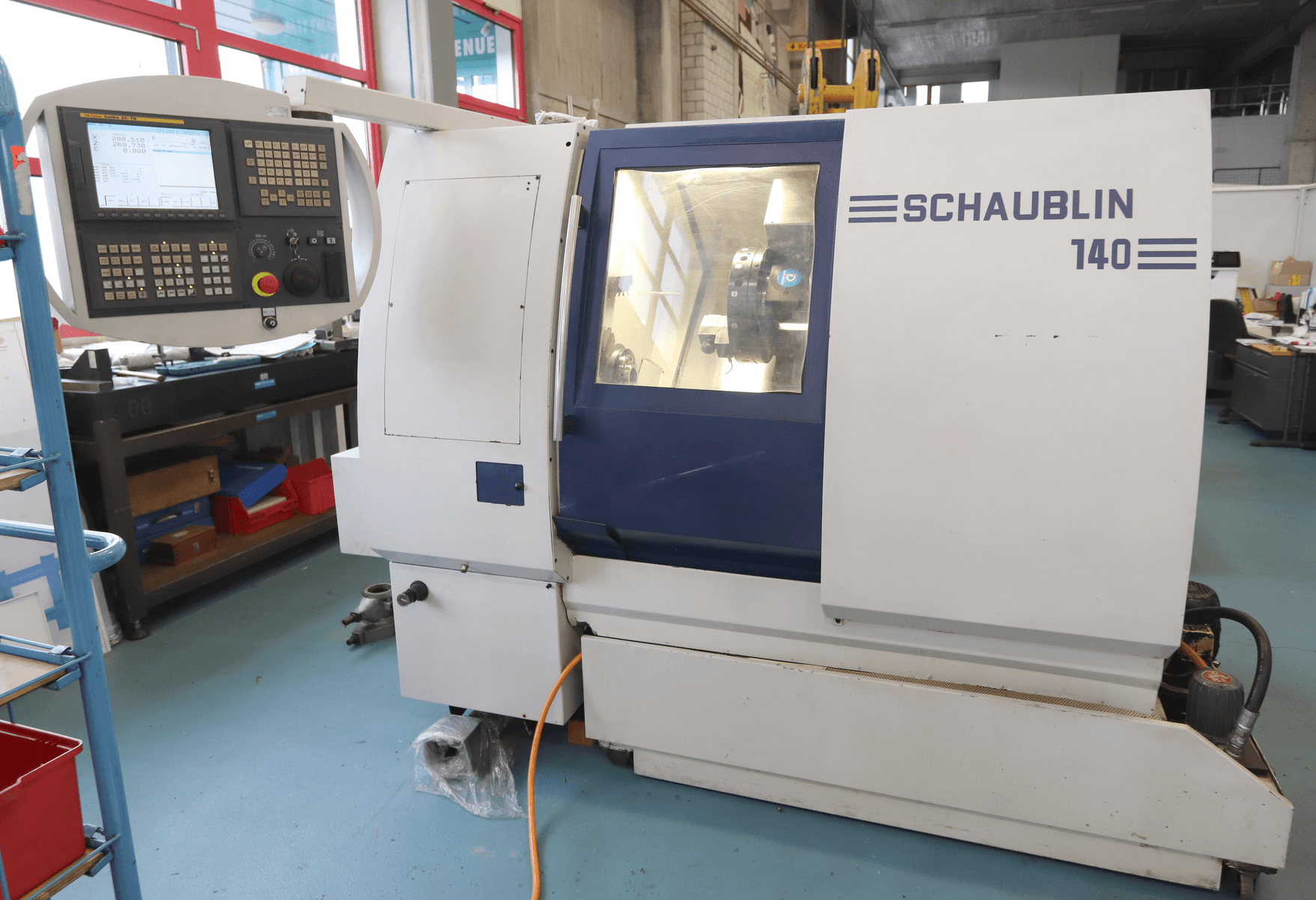

019877 - SCHAUBLIN 140 CNC

Description

{"Number of axis total": "3", "Taper in spindle": "A2-5", "Spindle hole": "51 mm", "Turning diameter": "300 mm", "Bar diameter with collet": "24 / 36 mm", "Carriage:": "", "Longitudinal travel (Z-axis)": "370 mm", "Cross travel (x-axis)": "210 mm", "Turret slide: number": "1", "Driven tools turret 1": "12", "Driven tools turret": "12", "Spindle speeds": "30 - 6000 t/min", "Power of driven tools": "2.2 / 3.7 kW", "Spindle nose: VDI": "30", "Main spindle:": "", "C axis (spindle,resolution)": "0.001 \u00b0", "Spindle speeds:": "", "stepless": "", "from": "50 t/min", "up to": "10000 mm/min", "Feeds:": "", "longitudinal from": "1 mm/min", "transversal from": "1 mm/min", "Rapid traverse:": "10 m/min", "Air connect": "6 bar", "Voltage 50 Hz 3x": "380 Volt", "Machine's weight about": "3000 kg", "Overall dimensions machine:": "", "Length": "2530 mm", "Width": "1400 mm", "Height": "1840 mm", "Various accessories:": "", "Lamp": "", "Coolant system": "130 l", "Foot pedal": ""}
