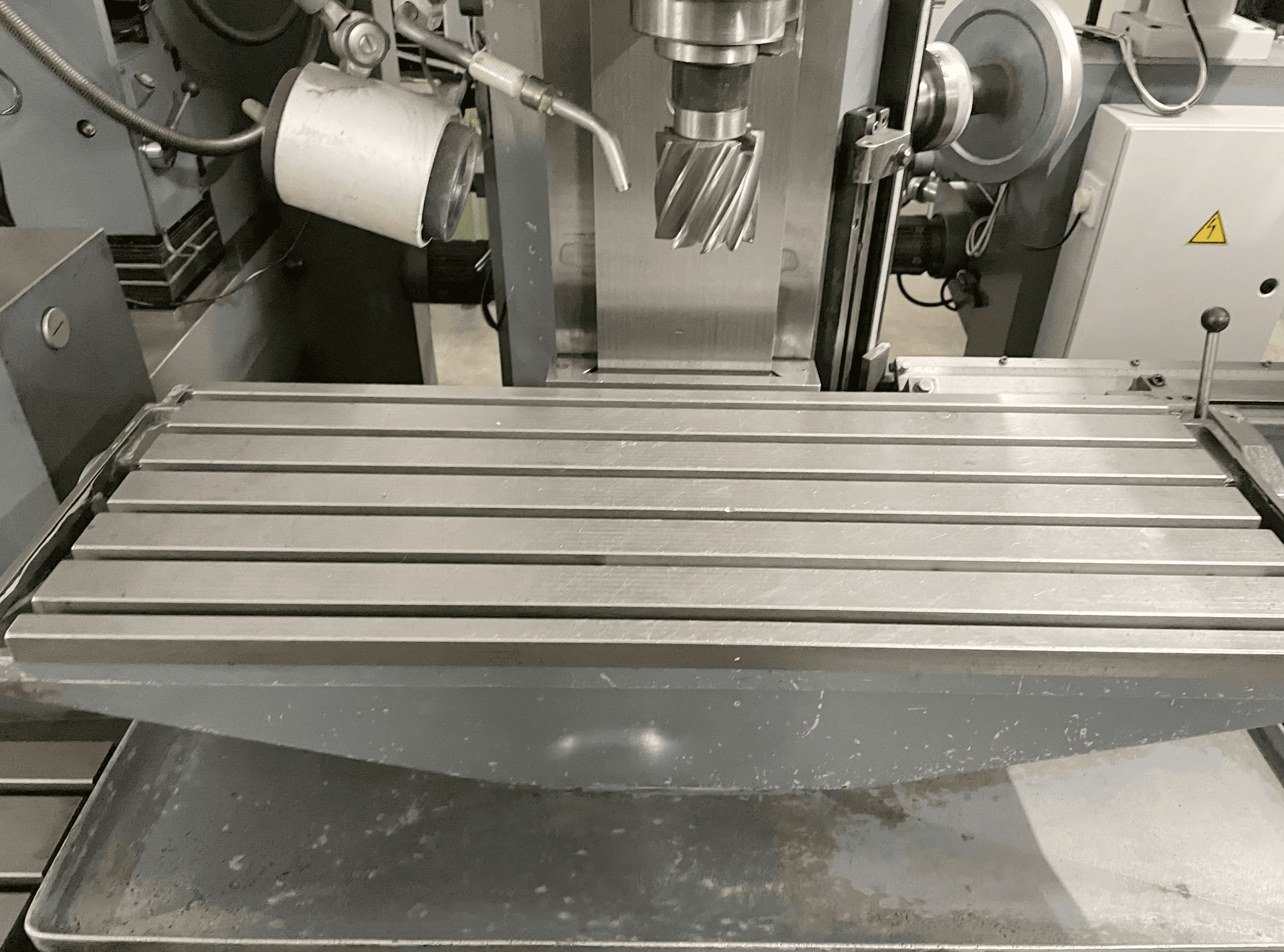

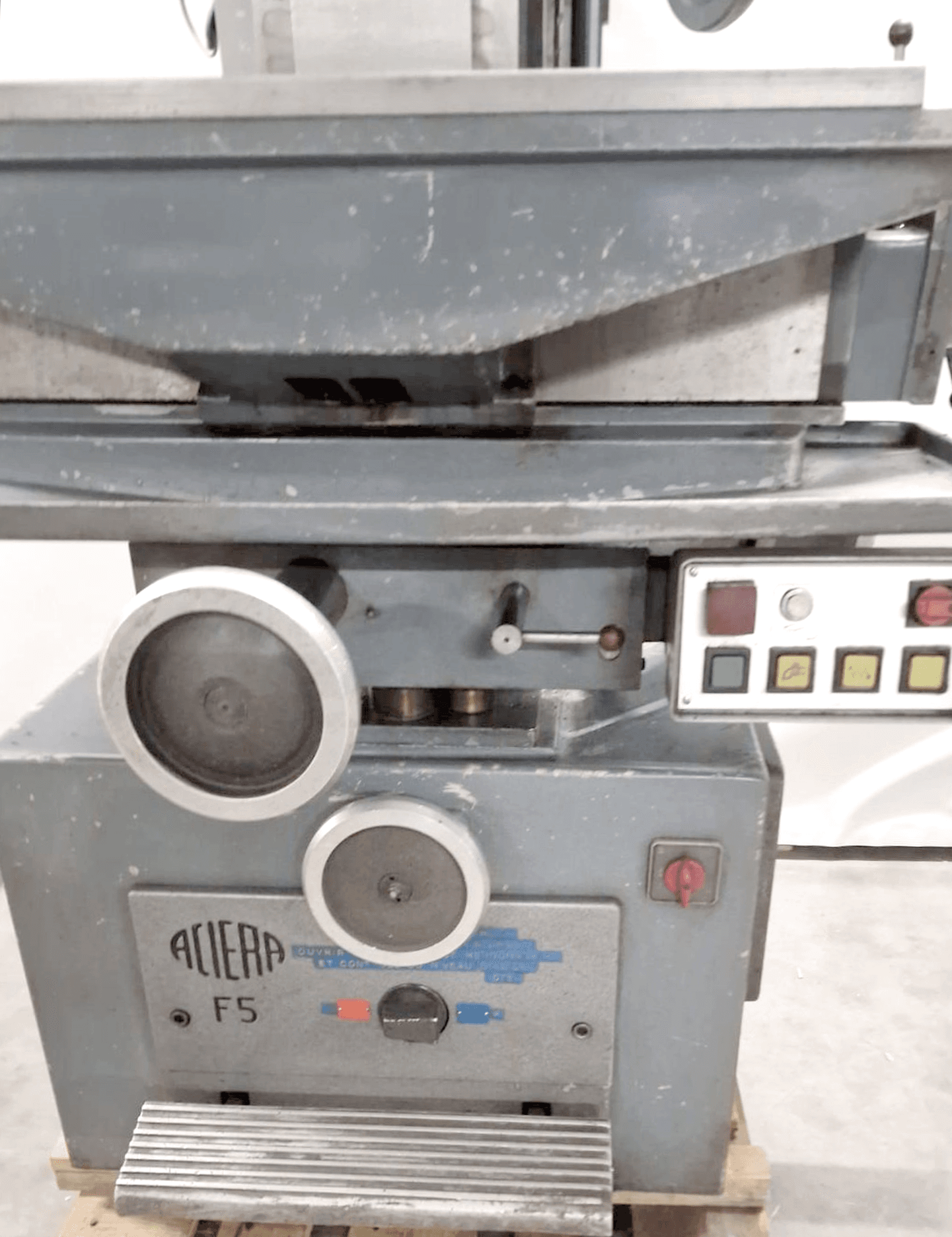

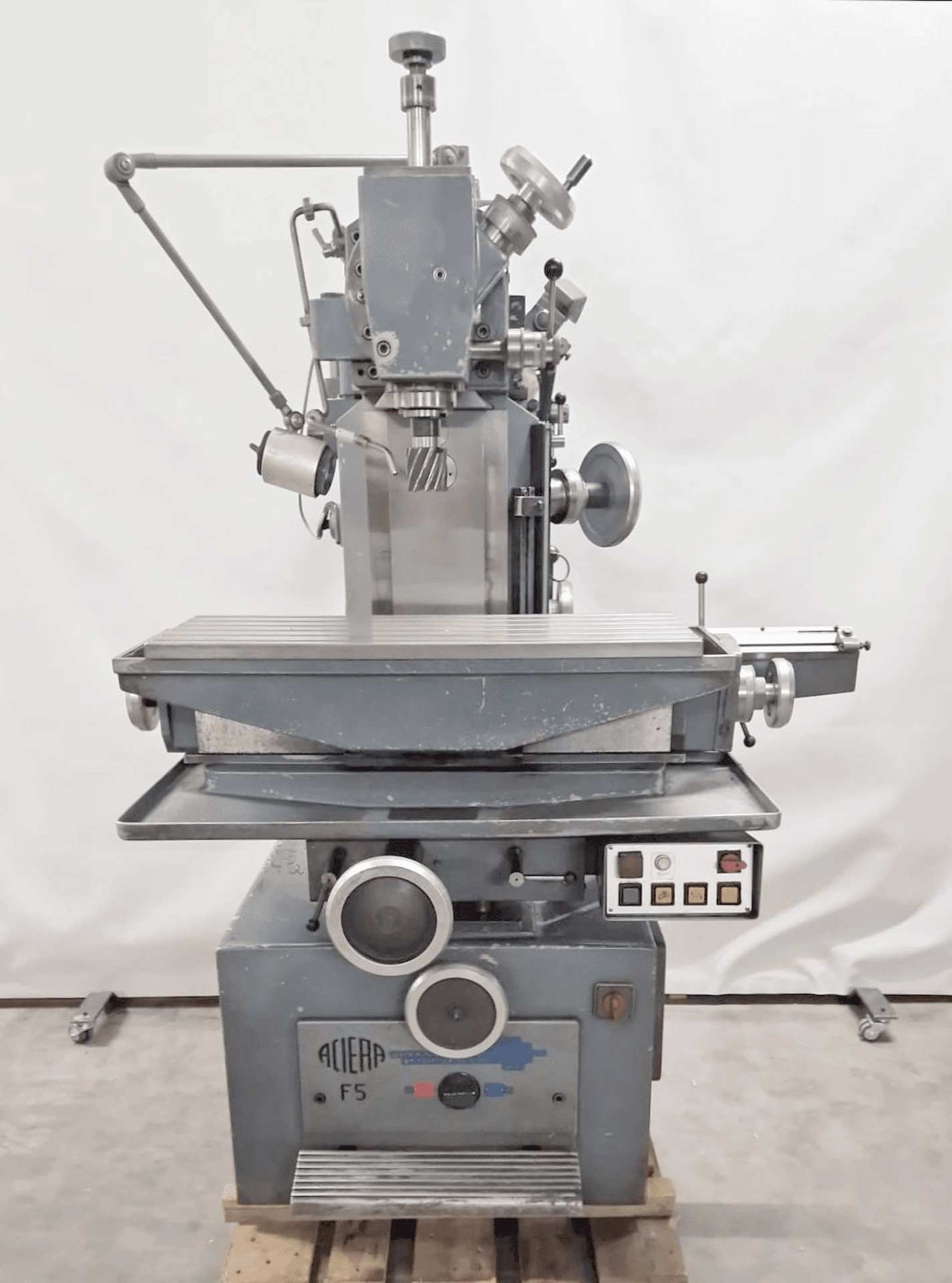

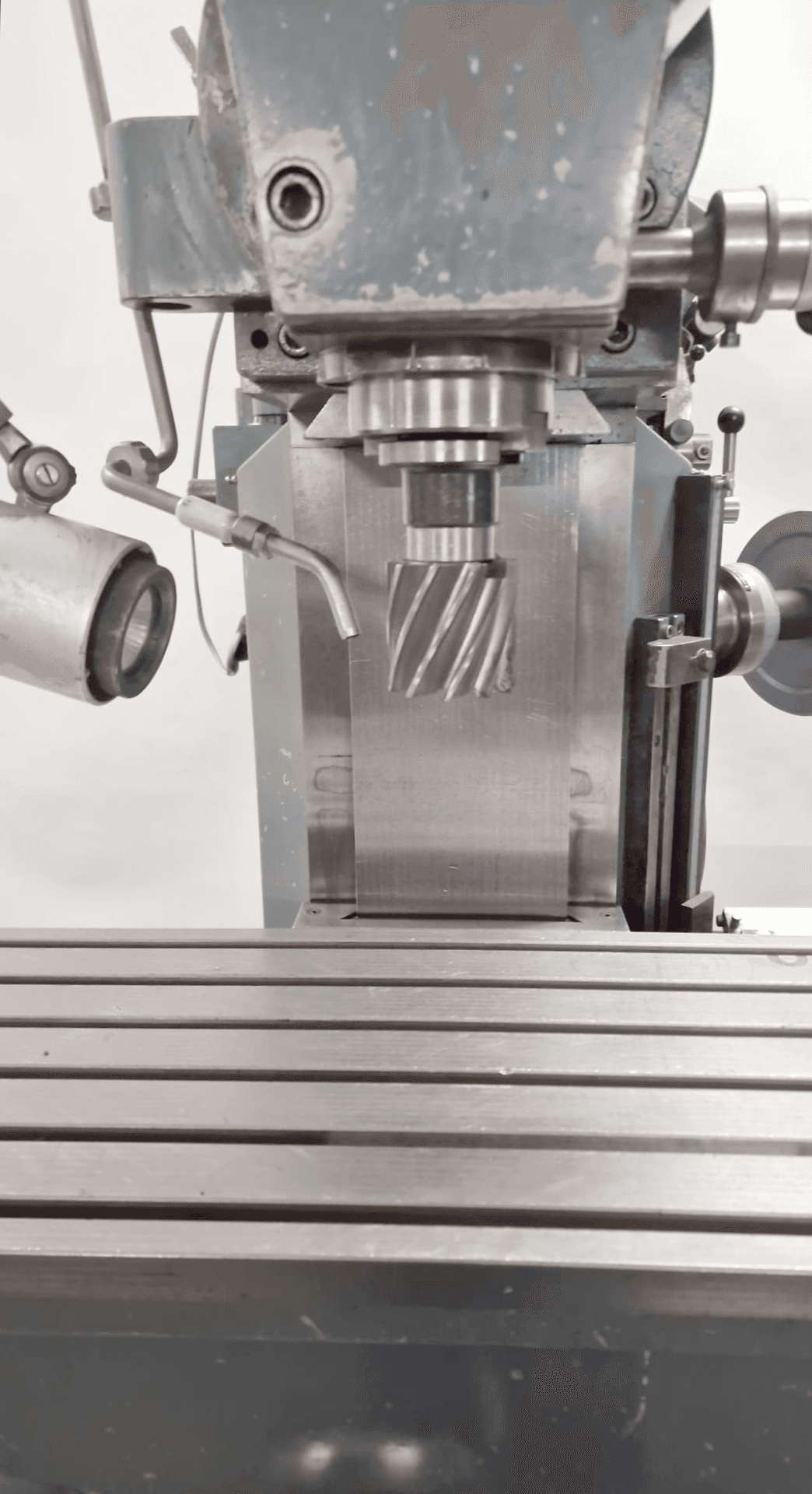

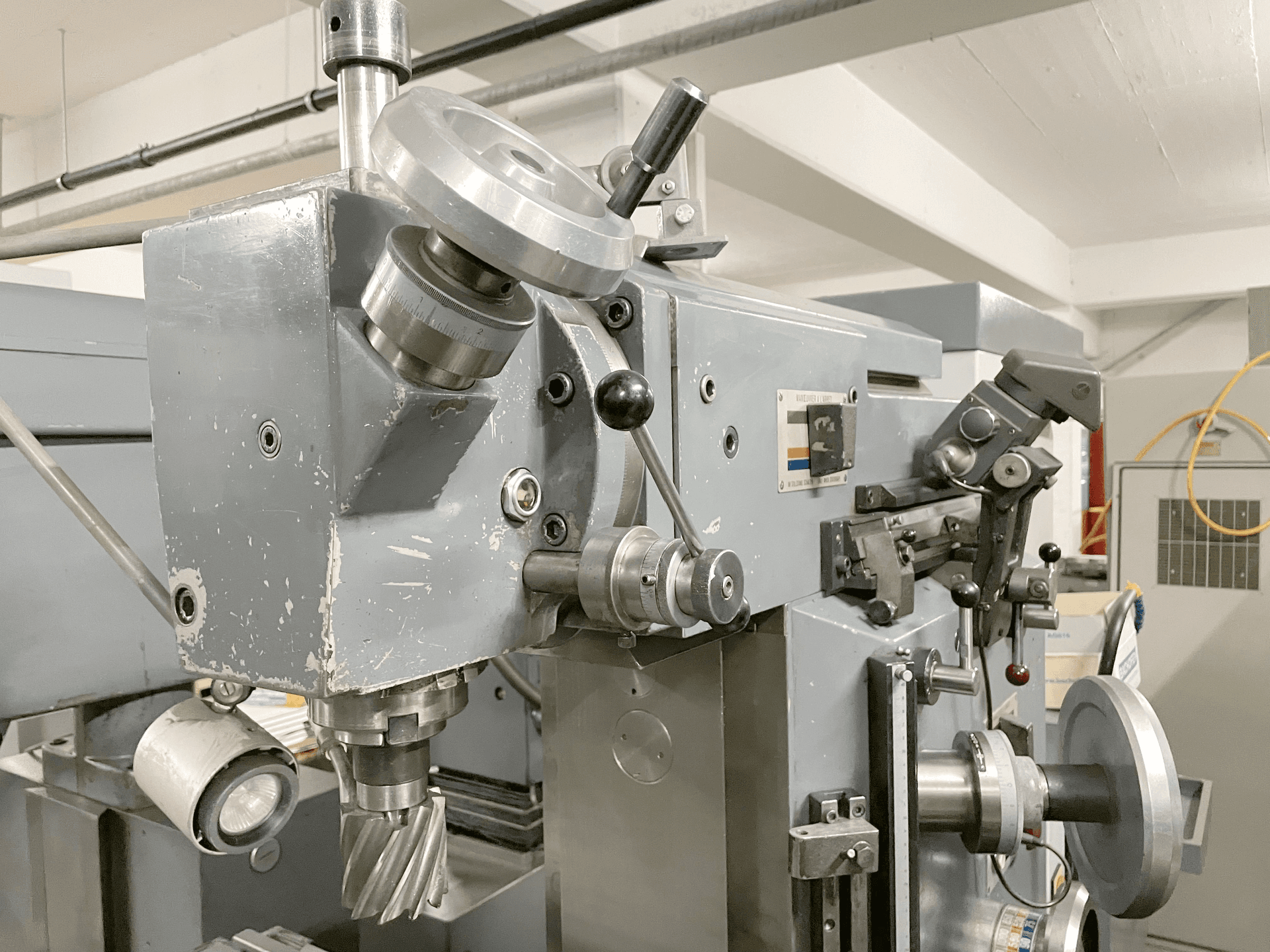

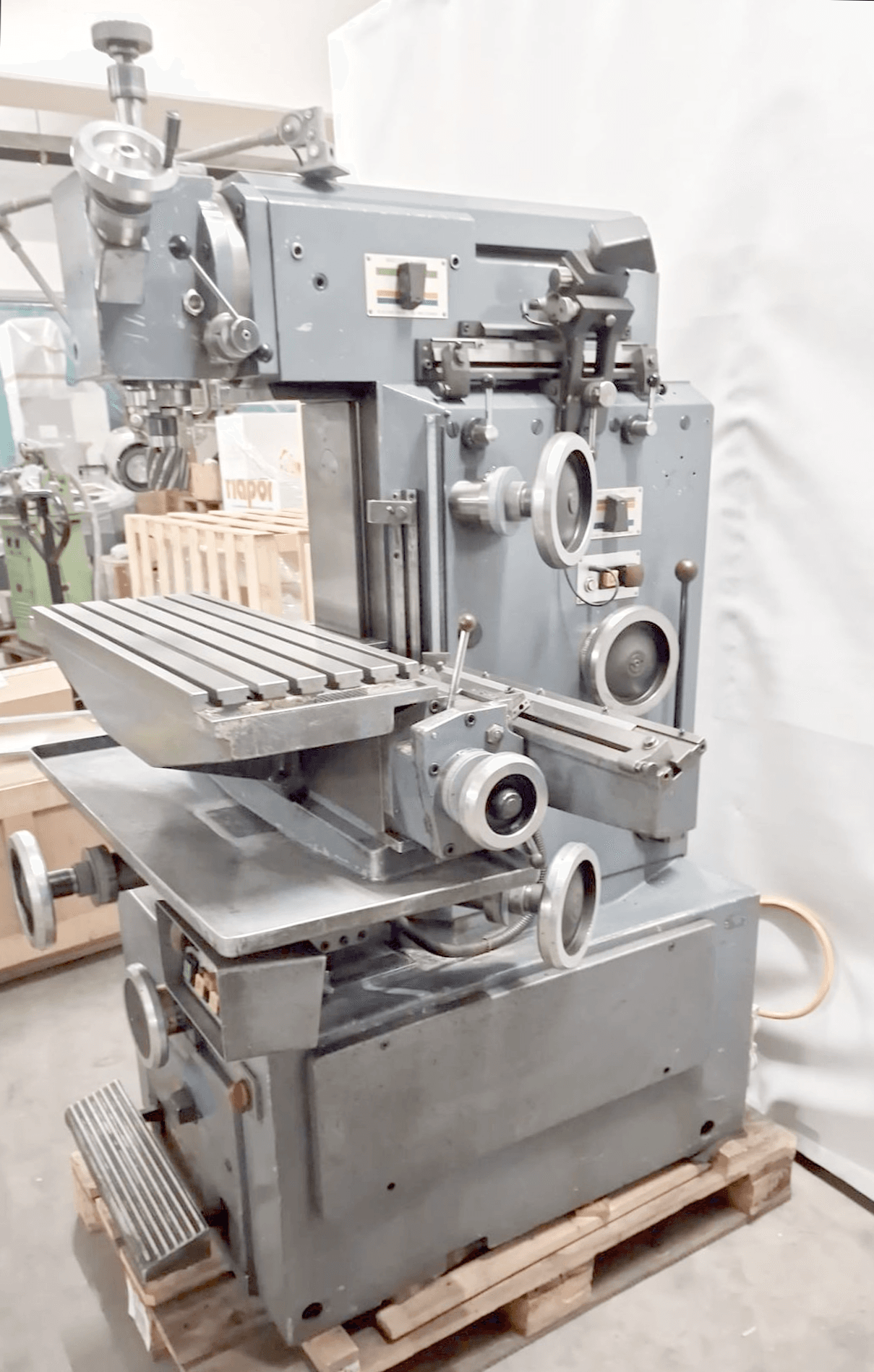

022205 - ACIERA F 5

Description

{"Number of axis total": "3", "Table length": "800 mm", "Table width": "300 mm", "Number of T-channels": "6", "T-channel width": "12 mm", "Distance of the T-slots": "55 mm", "Longitudinal travel (X-axis)": "500 mm", "Transversal travel (y axis)": "325 mm", "Vertical travel (z axis)": "420 mm", "Distance from vertical spindle to table": "365 mm", "Spindle speeds:": "", "stepless": "", "from": "50 t/min", "up to": "600 mm/min", "Taper in spindle": "40 ISO", "Head inclining + -": "90 \u00b0", "Feeds stepless:": "", "longitudinal from": "10 mm/min", "transversal from": "10 mm/min", "vertical from": "10 mm/min", "Vertical quill travel": "60 mm", "Rapid traverse:": "", "longitudinal": "1.5 m/min", "transversal": "1.5 m/min", "vertical": "1.5 m/min", "Voltage 50 Hz 3x": "380 Volt", "Motor power": "3 kW", "Total power required": "5 CV", "Machine's weight about": "1600 kg", "Overall dimensions machine:": "", "Length": "1200 mm", "Width": "1600 mm", "Height": "1800 mm", "Various accessories:": "", "Rigide table": ""}
