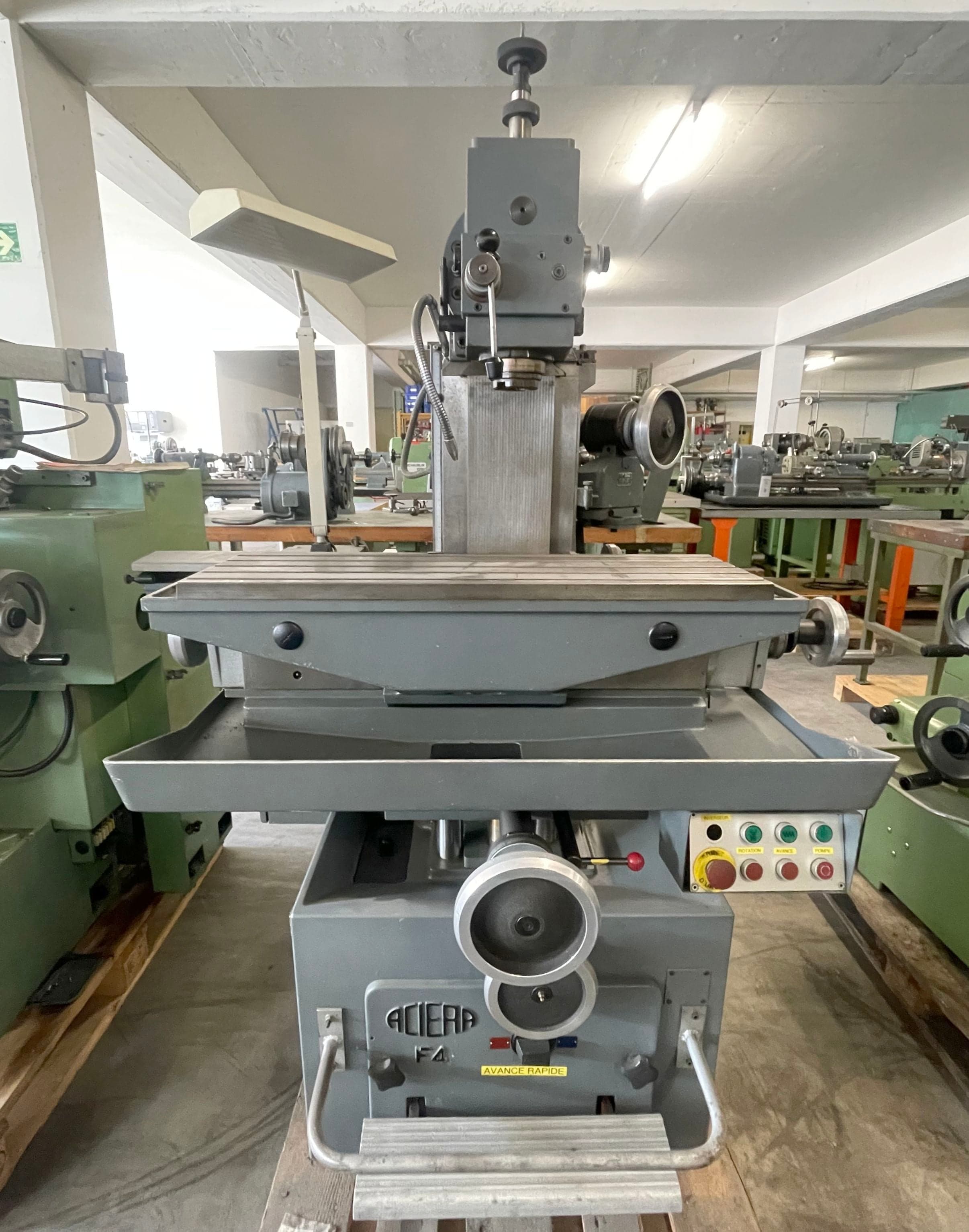

012794 - ACIERA F 4

Price on request

Condition: NEW· Manufacturer: Aciera· Country: Switzerland

Description

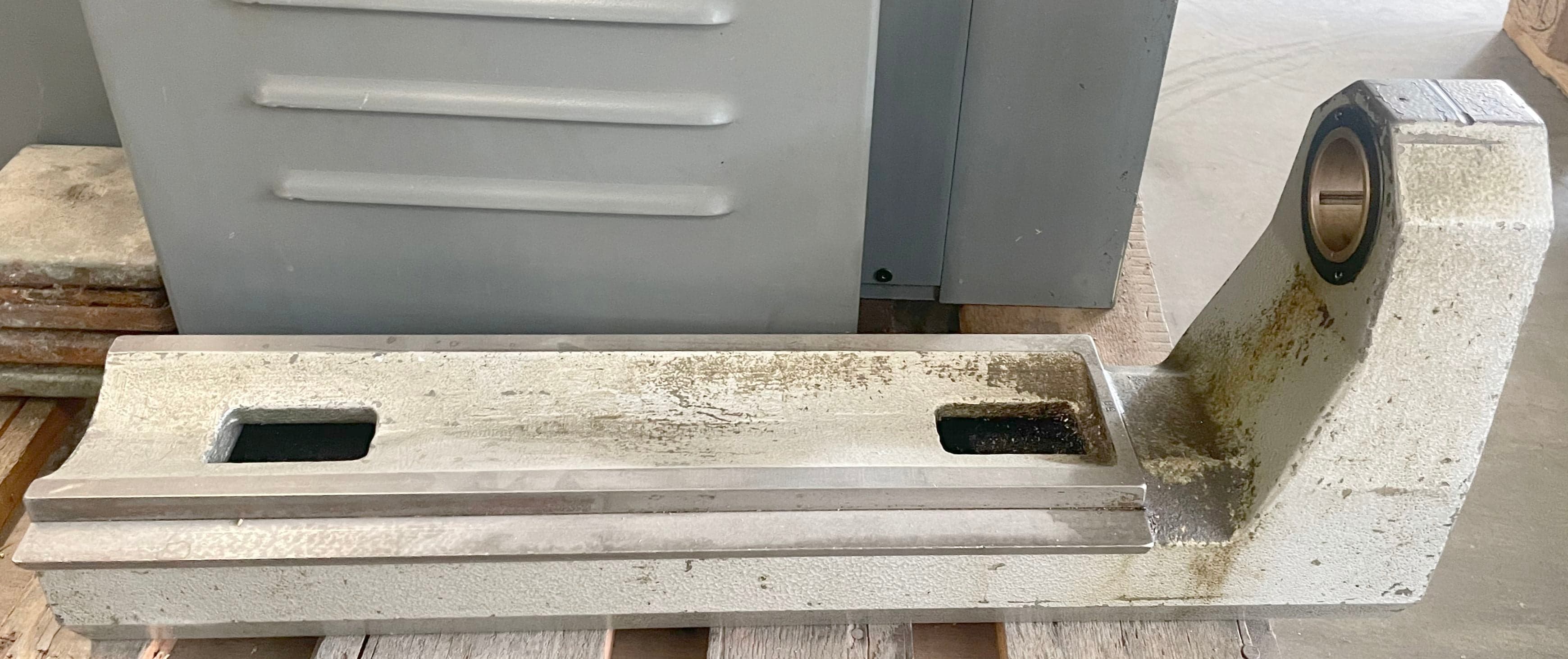

{"Table length": "800 mm", "Table width": "250 mm", "Longitudinal travel (X-axis)": "400 mm", "Transversal travel (y axis)": "175 mm", "Vertical travel (z axis)": "450 mm", "Spindle speeds:": "", "stepless": "", "from": "50 t/min", "up to": "360 mm/min", "Taper in spindle": "30 ISO", "Feeds stepless:": "", "longitudinal from": "12 mm/min", "vertical from": "12 mm/min", "Vertical quill travel": "60 mm", "Rapid traverse:": "", "longitudinal": "1.8 m/min", "vertical": "1.8 m/min", "Voltage 50 Hz 3x": "380 Volt", "Motor output": "2.5 CV", "Machine's weight about": "900 kg", "Overall dimensions machine:": "", "Length": "1200 mm", "Width": "900 mm", "Height": "1600 mm", "Various accessories:": "", "Motorized table adjustment vertically": "", "Coolant system": "", "Steady": "", "Lamp": ""}
