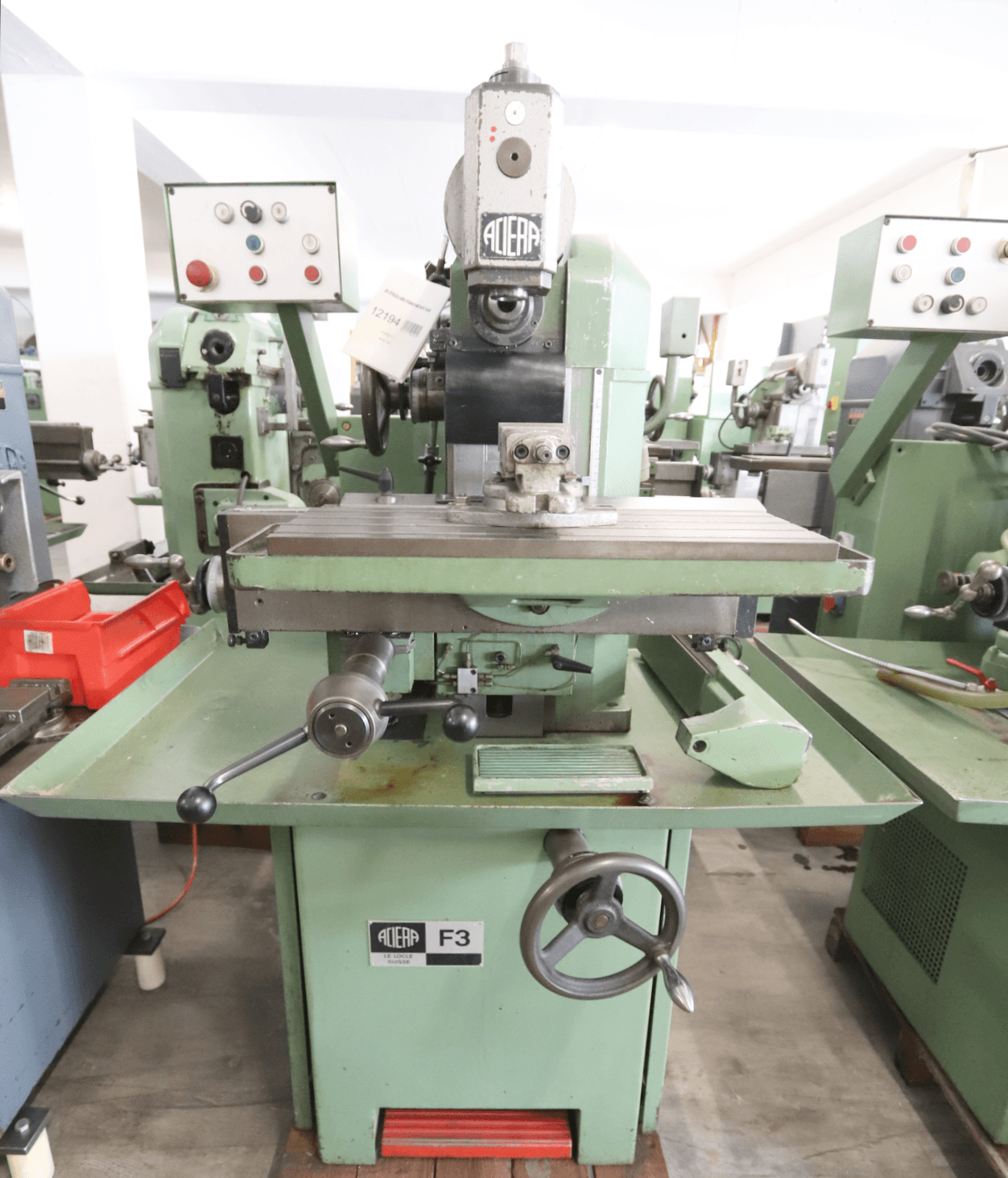

012194 - ACIERA F 3

Price on request

Condition: NEW· Manufacturer: Aciera· Country: Switzerland

Description

{"Table length": "600 mm", "Table width": "190 mm", "Longitudinal travel (X-axis)": "300 mm", "Transversal travel (y axis)": "135 mm", "Vertical travel (z axis)": "300 mm", "Distance from vertical spindle to table": "260 mm", "Distance from horizontal spindle to table": "310 mm", "Spindle speeds:": "", "number (steps)": "8", "from": "100 t/min", "up to": "116 mm/min", "Taper in spindle:": "20 W", "Feeds steps:": "8", "longitudinal from": "12.0 mm/min", "Voltage 50 Hz 3x": "380 Volt", "Motor output": "2.0 CV", "Total power required": "3 CV", "Machine's weight about": "600 kg", "Overall dimensions machine:": "", "Length": "1100 mm", "Width": "900 mm", "Height": "1600 mm", "Various accessories:": "", "Vice": "", "Steady": "", "Swivel table": "", "Vertical milling head": ""}
