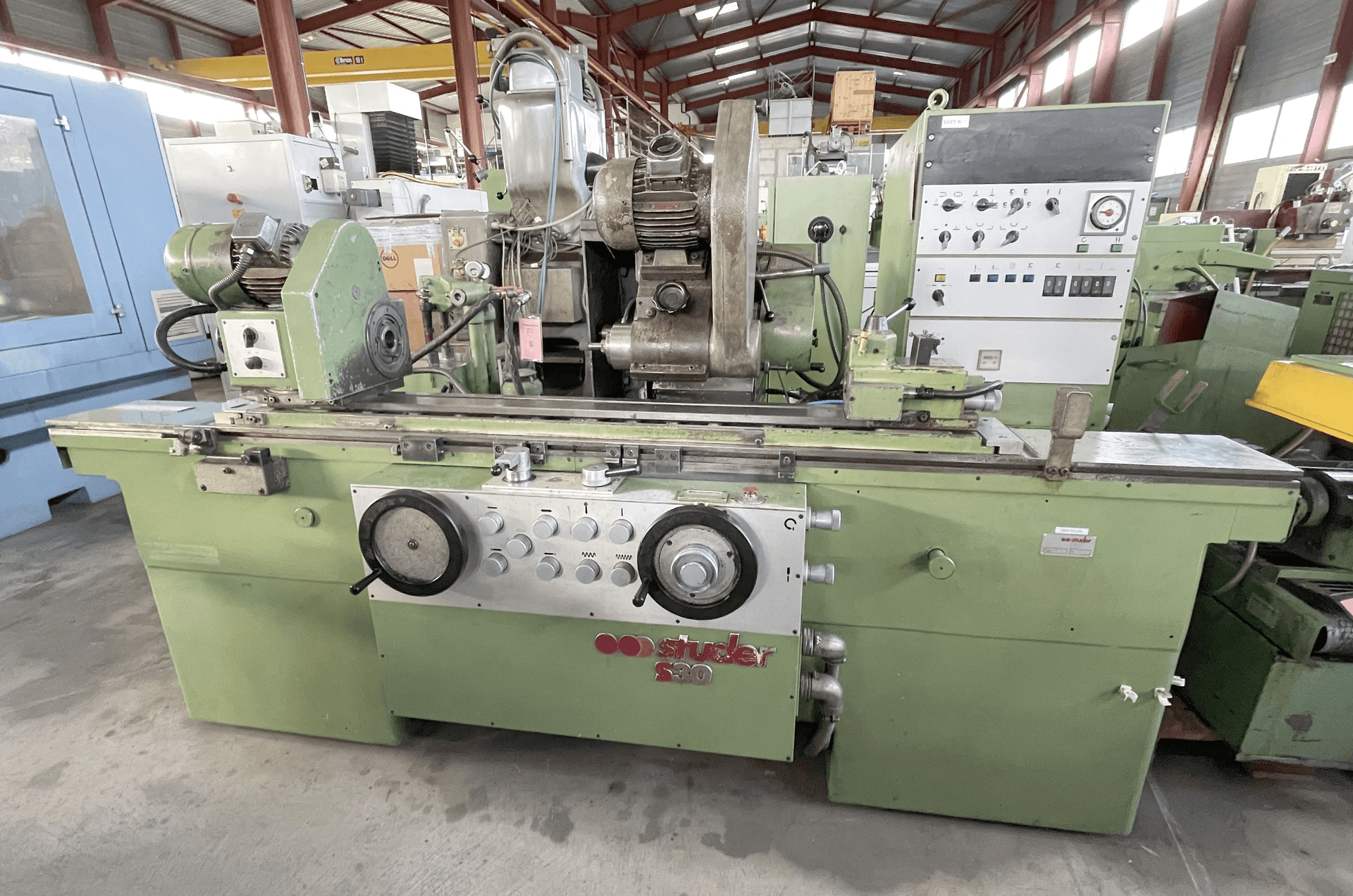

022147 - STUDER S 30-12 F

Description

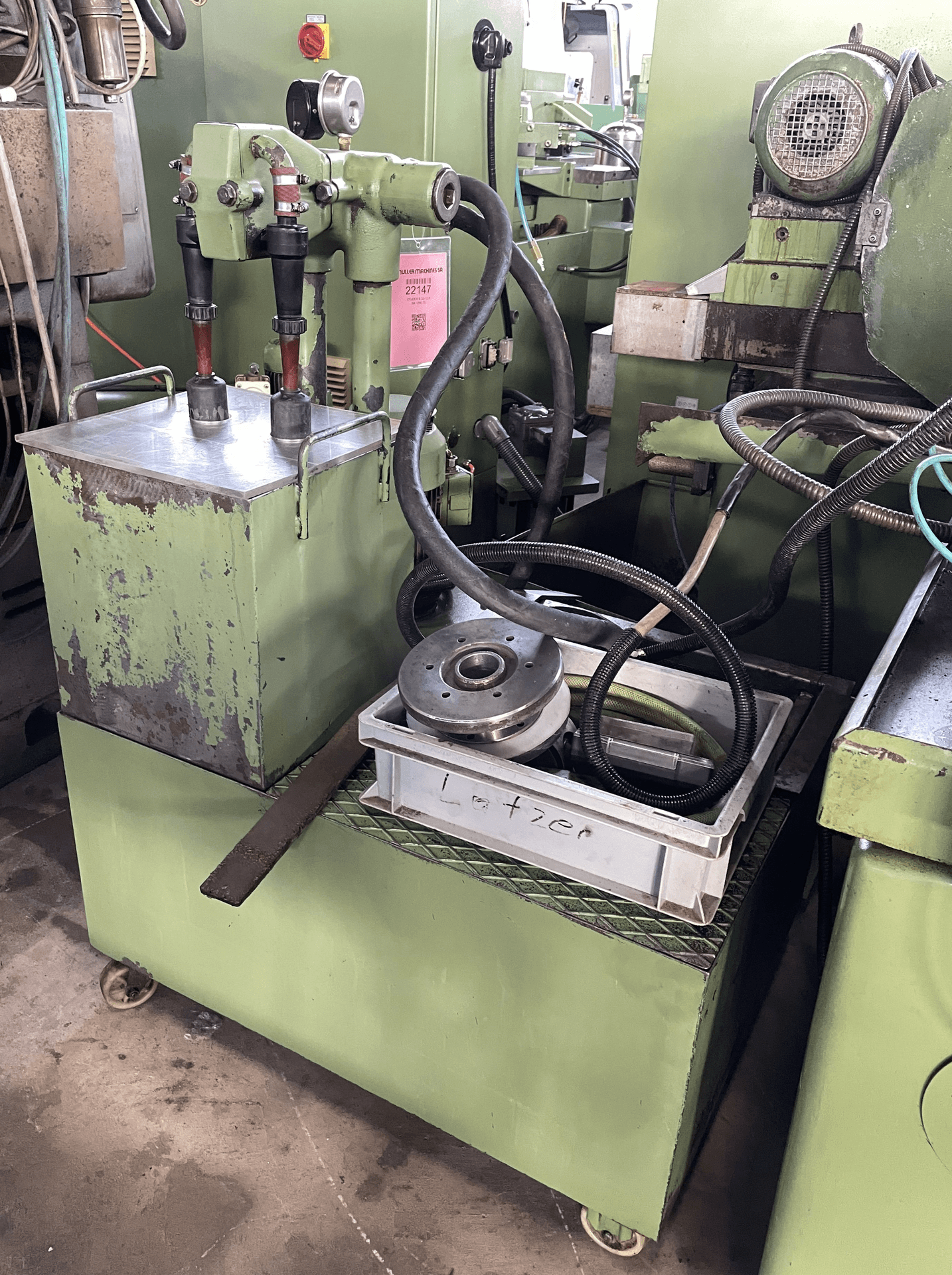

{"Centre height": "125 mm", "Distance between centres": "1025 mm", "Max. Longitudinal travel": "800 mm", "Max. transversal travel": "150 mm", "Grinding wheel:": "", "Diameter": "450 mm", "Width": "500 mm", "Bore": "127 mm", "Workpiece weight on centres max.": "80 kg", "Swivelling range": "+90 / 30 \u00b0", "Grinding wheel speeds:": "", "number (steps)": "6", "from": "m/min", "up to": "6 m/min", "Hydraulic cross travel": "40 mm", "Work piece spindle head:": "", "speeds:": "", "stepless": "", "rotatable": "90 \u00b0", "Spindle taper": "5 CM", "Taper in tailstock:": "3 CM", "Table angular displacement": "10 \u00b0", "Table speed:": "", "Voltage 50 Hz 3x": "380 Volt", "External Grinding wheel motor": "6.25 kW", "Internal Grinding wheel motor": "1 kW", "Machine's weight about": "2500 kg", "Overall dimensions machine:": "", "Length": "800 mm", "Height": "1600 mm", "Dimensions of the control:": "", "Various accessories:": "", "Measuring instrument": "", "Coolant system": "", "Flange for outer pane": "pce", "Tool cabinet": ""}
