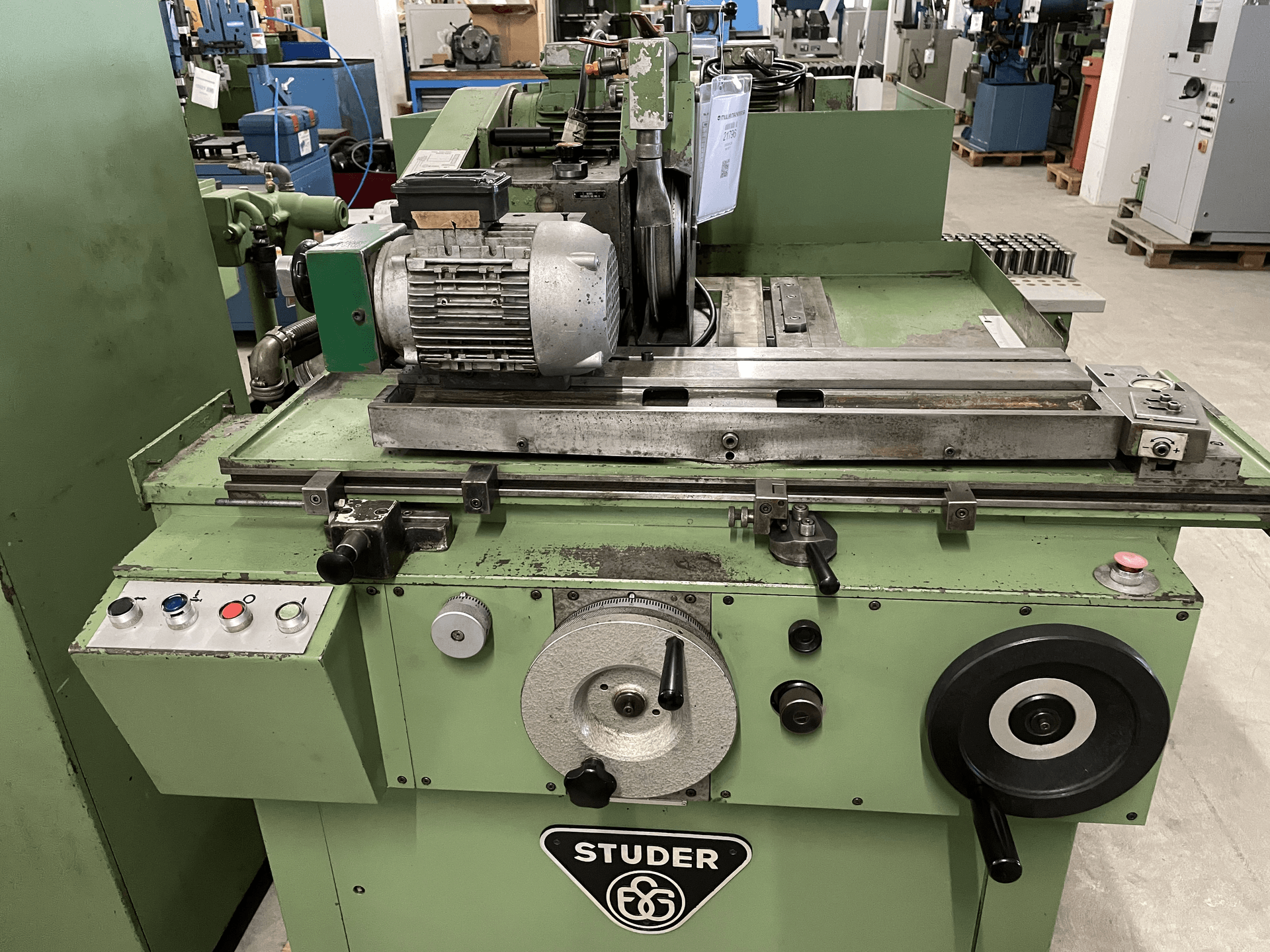

021796 - STUDER S 20-OF

Description

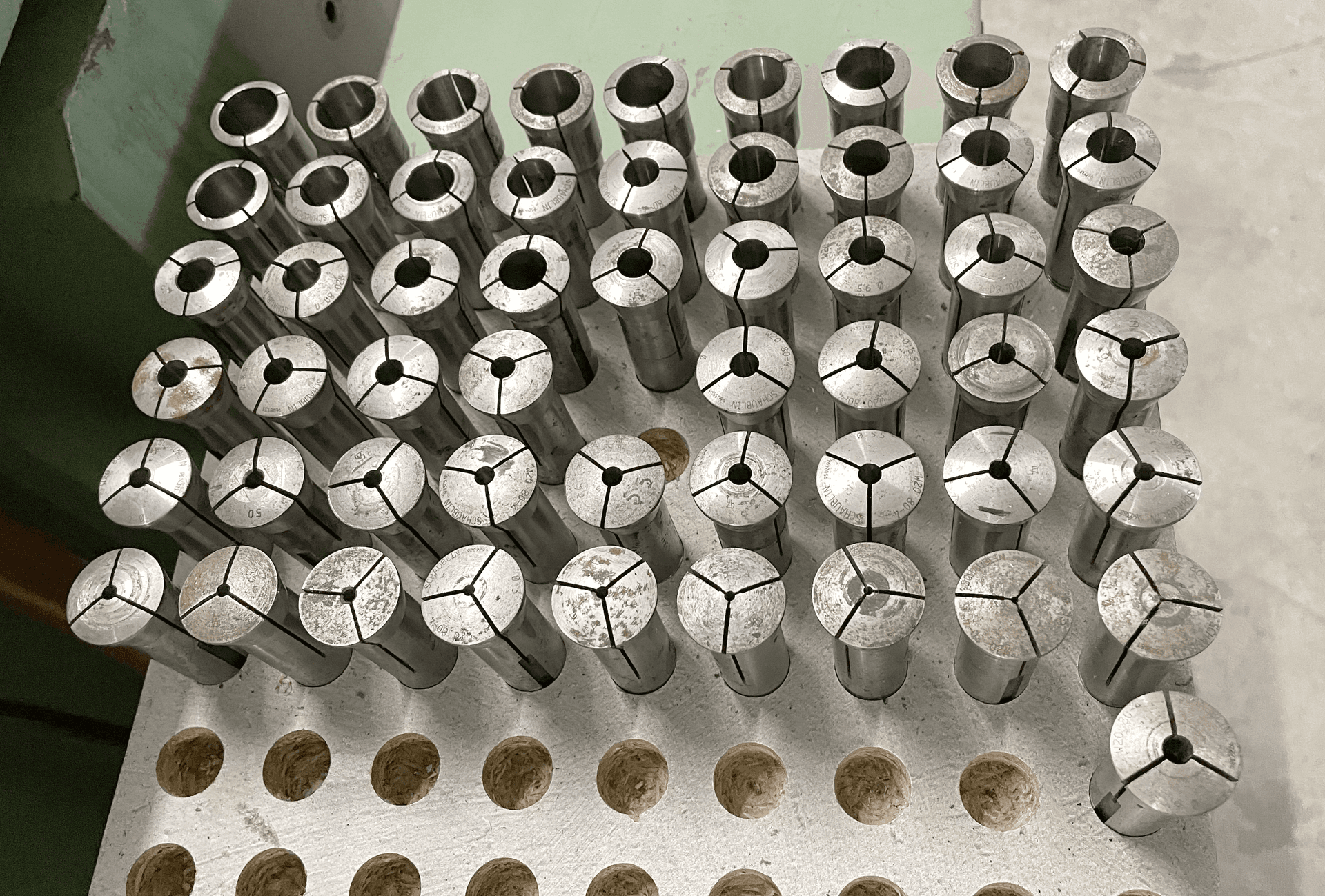

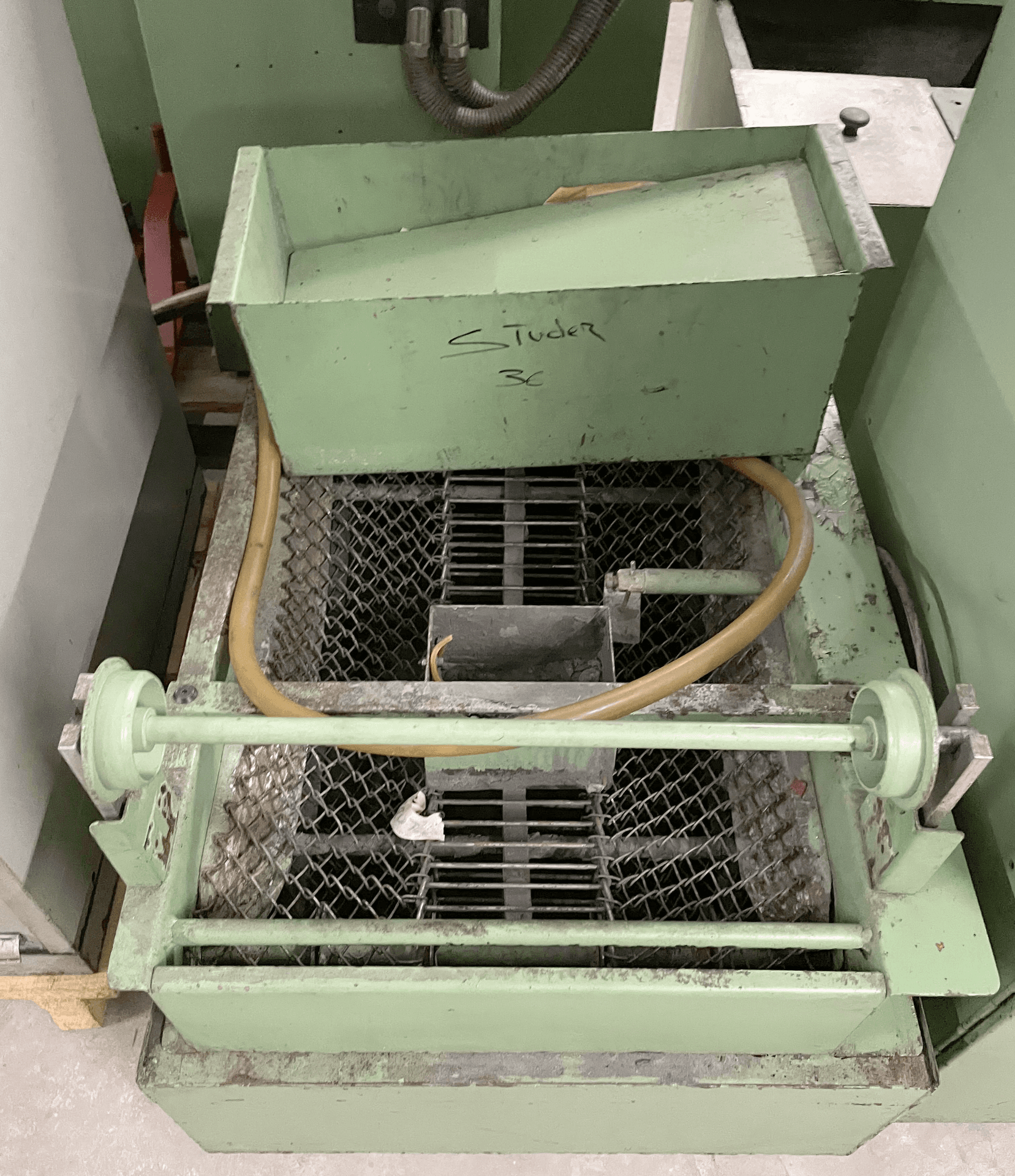

{"Centre height": "80 mm", "Distance between centres": "400 mm", "Max. Longitudinal travel": "420 mm", "Max. transversal travel": "30 mm", "Grinding wheel:": "", "Diameter": "350 mm", "Width": "600 mm", "Bore": "127 mm", "Grinding wheel speeds:": "", "number (steps)": "4", "stepless": "", "from": "m/min", "up to": "4 m/min", "Peripheral speed": "30 m/s", "Angular displacement": "+15 / + 30 \u00b0", "Work piece spindle head:": "", "speeds:": "", "Swivelling range": "0 - 90 \u00b0", "Inner taper type": "W20", "Spindle taper": "4 CM", "Table angular displacement": "30 \u00b0", "Table speed:": "", "Voltage 50 Hz 3x": "380 Volt", "Air connect": "5 bar", "External Grinding wheel motor": "3 kW", "Workpiece spindle motor": "1 kW", "Machine's weight about": "1000 kg", "Overall dimensions machine:": "", "Length": "600 mm", "Height": "1700 mm", "Dimensions of the control:": "", "Various accessories:": "", "Coolant system": "", "Paper filtration system": "", "Set of collets": "", "Notes:": "", "without tailstock": ""}
