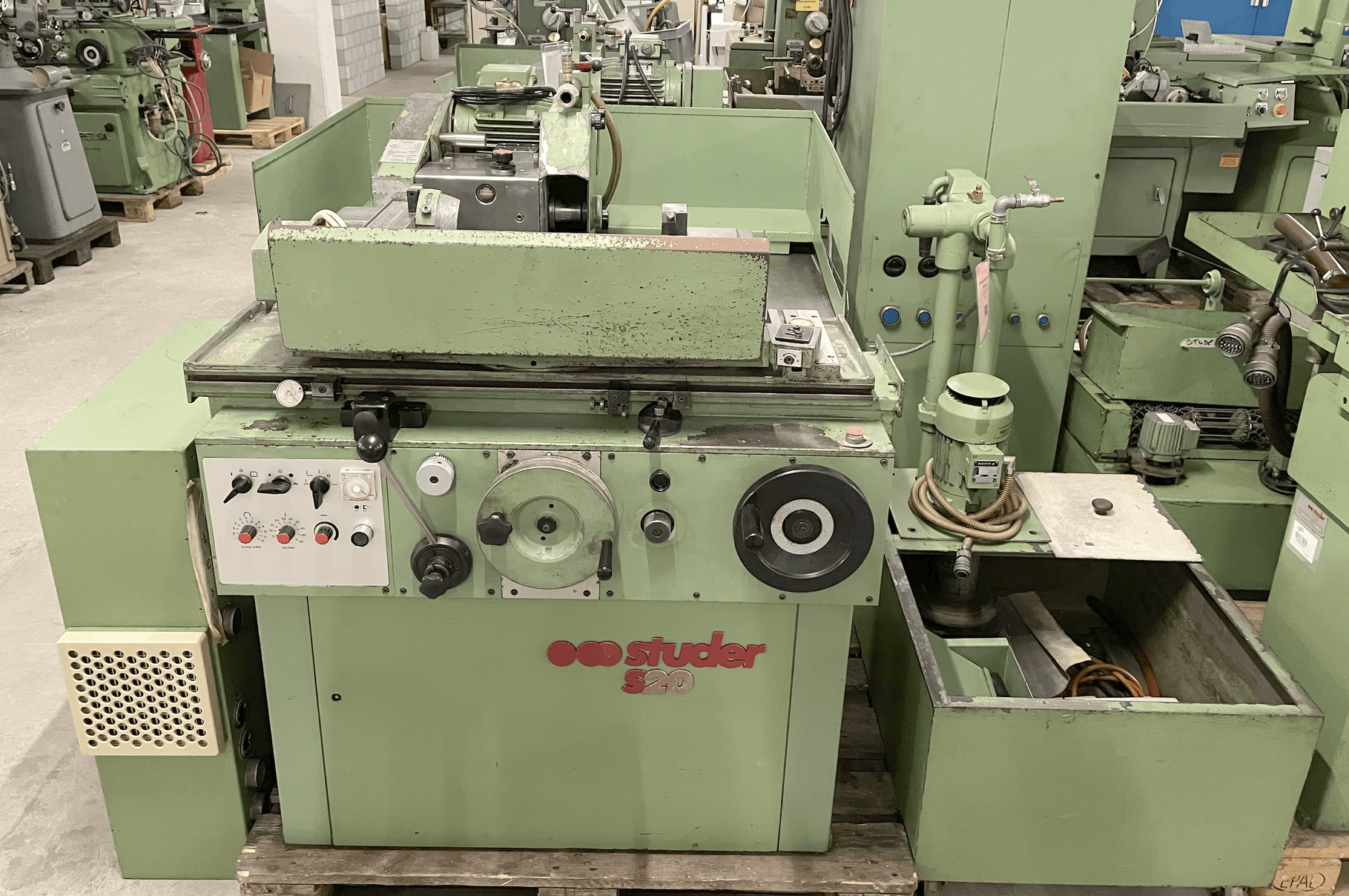

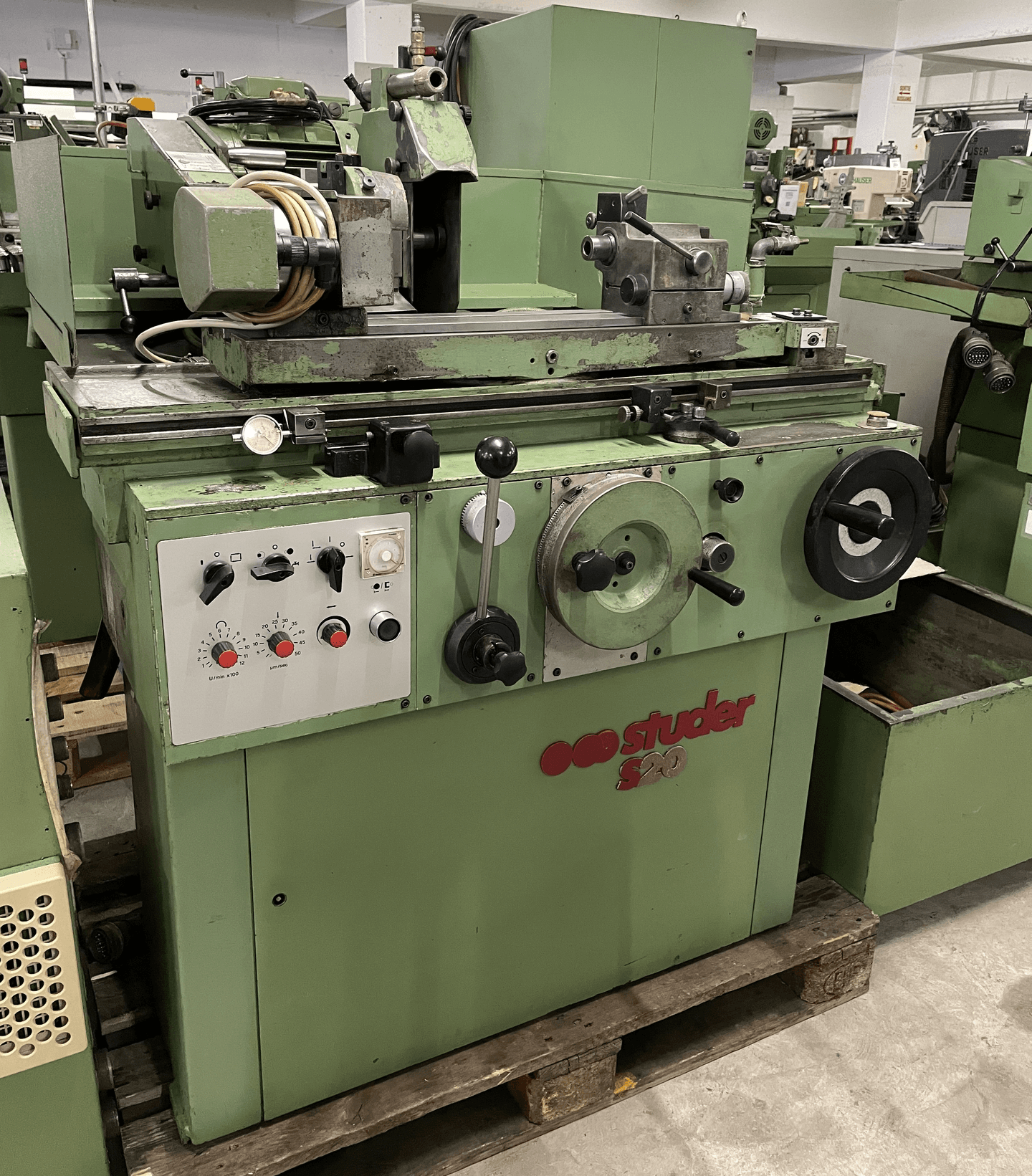

022054 - STUDER S 20-OC

Description

{"Centre height": "80 mm", "Distance between centres": "400 mm", "grinding diameter": "80 mm", "Grinding length": "400 mm", "Grinding wheel:": "", "Diameter": "300 mm", "Width": "1400 mm", "Bore": "127 mm", "Workpiece weight on centres max.": "20 kg", "Angular displacement": "30 \u00b0", "Work piece spindle head:": "", "speeds:": "", "stepless": "", "from": "100 mm/min", "up to": "3500 mm/min", "rotatable": "90 \u00b0", "Spindle taper": "2 CM", "Taper in tailstock:": "2 CM", "Table angular displacement": "30 \u00b0", "Table speed:": "", "Voltage 50 Hz 3x": "380 Volt", "External Grinding wheel motor": "4.5 CV", "Machine's weight about": "1900 kg", "Overall dimensions machine:": "", "Length": "1500 mm", "Height": "1600 mm", "Various accessories:": "", "Redressing device": "", "Coolant system": "", "Tailstock with fine adjustement": "", "Safety device": ""}
