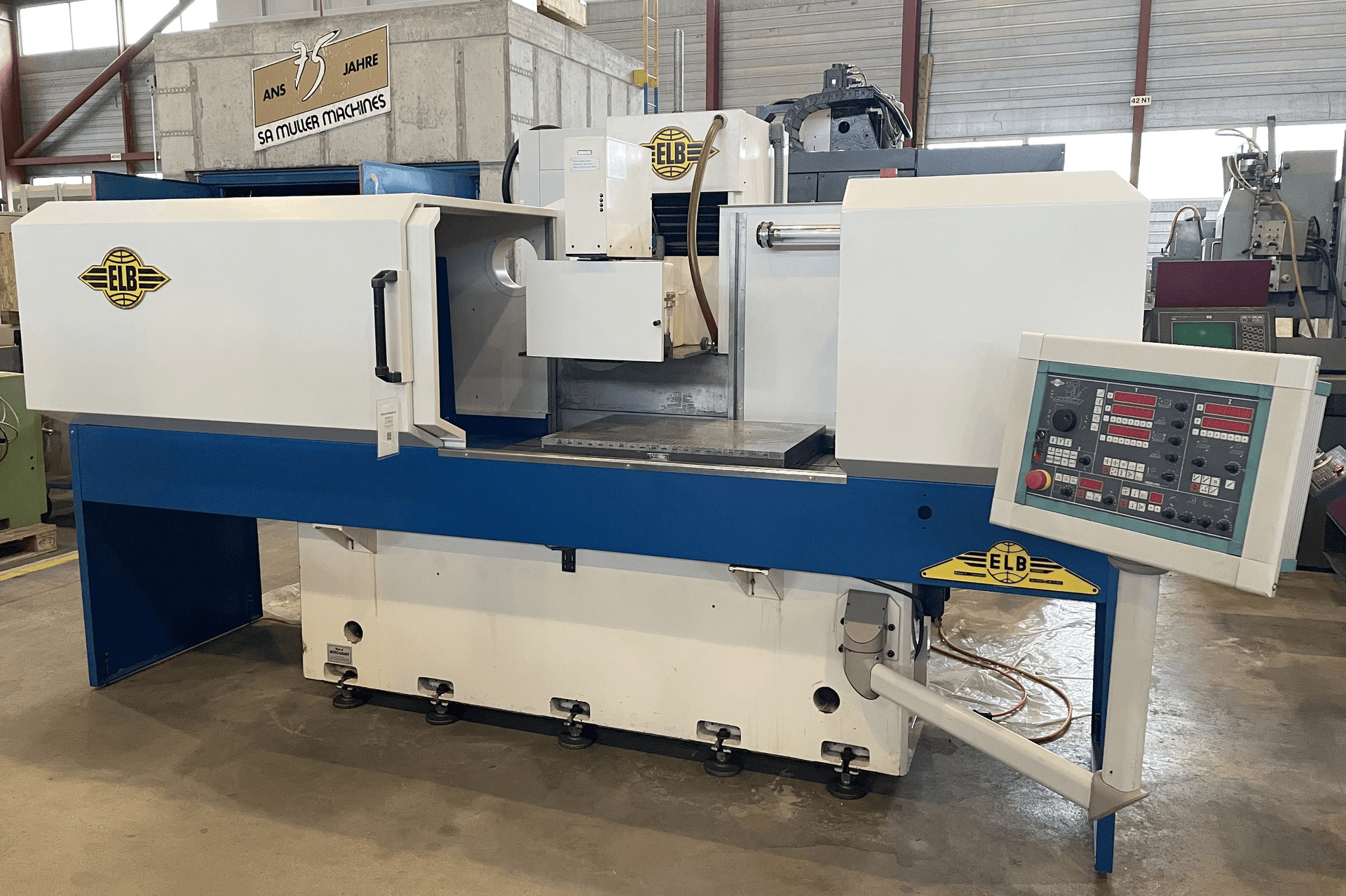

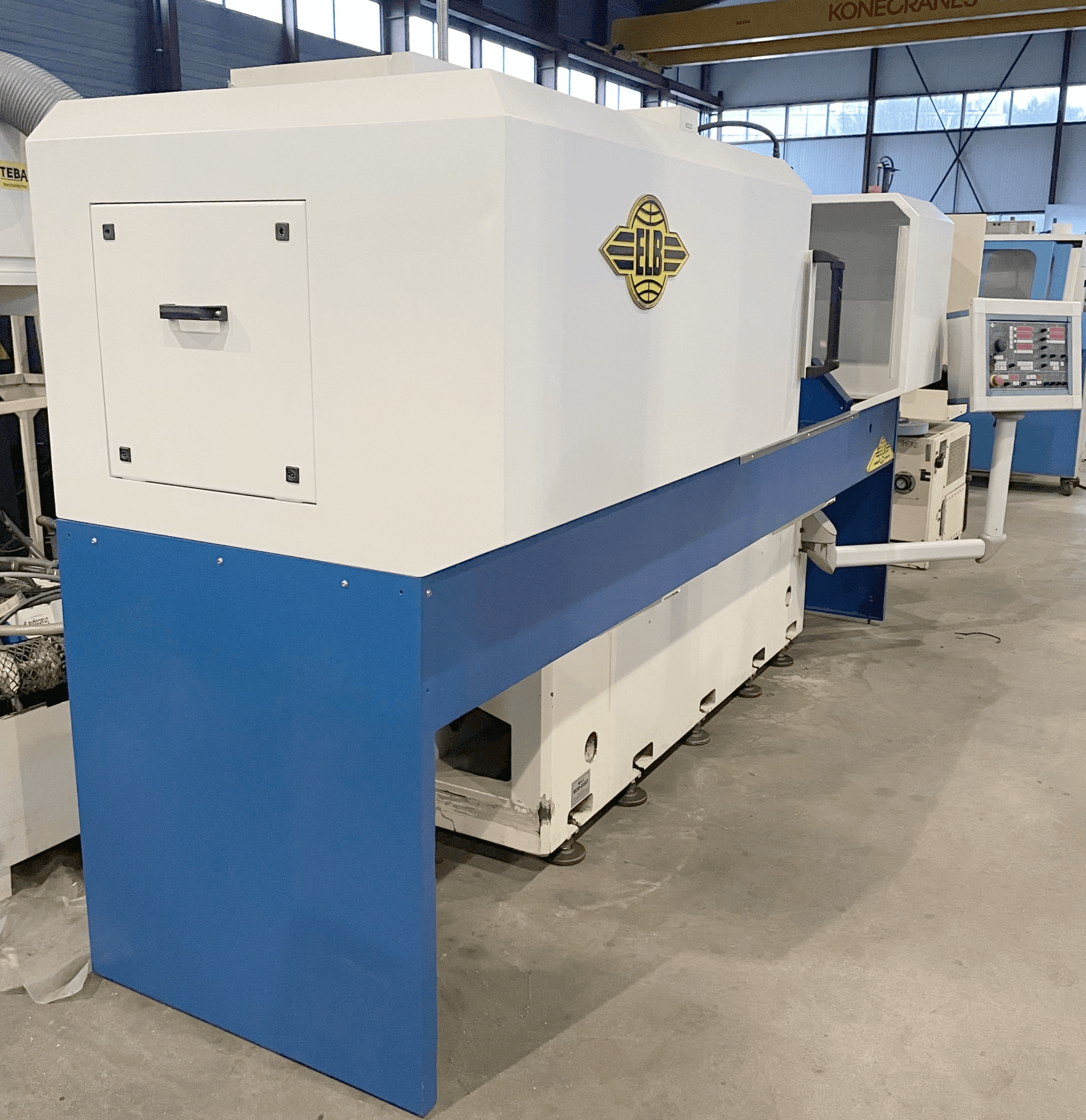

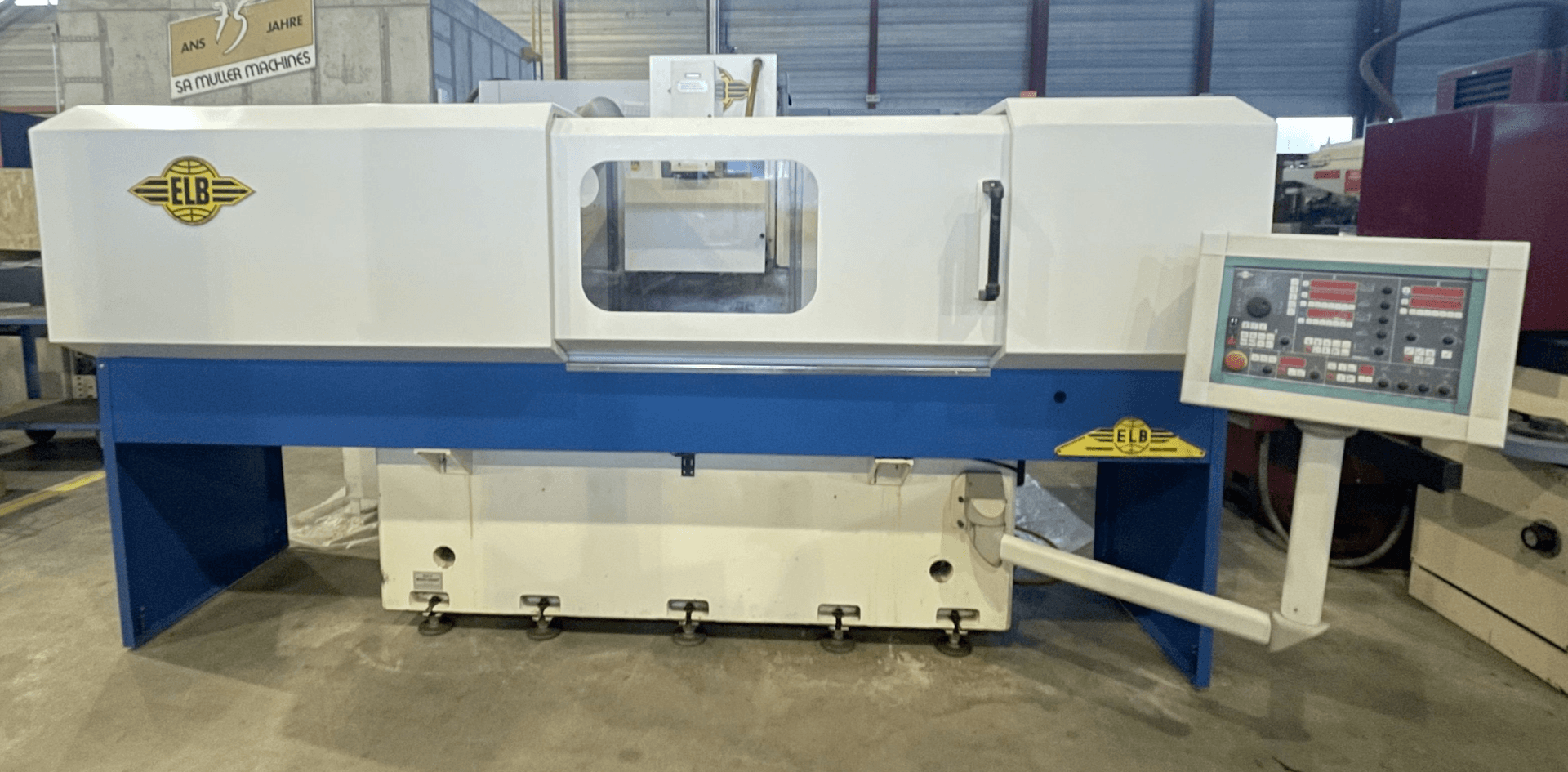

021869 - ELB PERFEKT BD 8 SPS

Description

{"Table length": "1360 mm", "Table width": "590 mm", "Number of T-channels": "1", "T-channel width": "16 mm", "Grinding length": "800 mm", "Grinding width": "600 mm", "Grinding height": "400 mm", "Table load max.": "900 kg", "Longitudinal travel (X-axis)": "900 mm", "Cross travel (z-axis)": "540 mm", "Vertical travel (Y-axis)": "400 mm", "Automatic longitudinal feeds:": "", "stepless": "", "from": "mm/min", "up to": "300 mm/min", "Automatic cross-feed:": "", "Automatic Vertical feed:": "", "Grinding wheel speeds fix": "1440 t/min", "Diameter of grinding wheel": "400 mm", "Width of the grinding wheel": "100 mm", "Drilling cap. of grind.wheel": "127 mm", "Spindle cone": "60 mm", "Voltage 50 Hz 3x": "400 Volt", "Grinding spindle motor": "10 kW", "Total power required": "18.5 kW", "Machine's weight about": "5400 kg", "Overall dimensions machine:": "", "Length": "800 mm", "Width": "600 mm", "Height": "1900 mm", "Dimensions electric cabinet:": "", "Various accessories:": "", "Paper filtration system": "", "Electrical magnetic chuck": "", "Redressing device": "", "Lamp": "", "Set of flanges": "", "Central lubrification": "", "Oil mist extractor": "TEBARON"}
