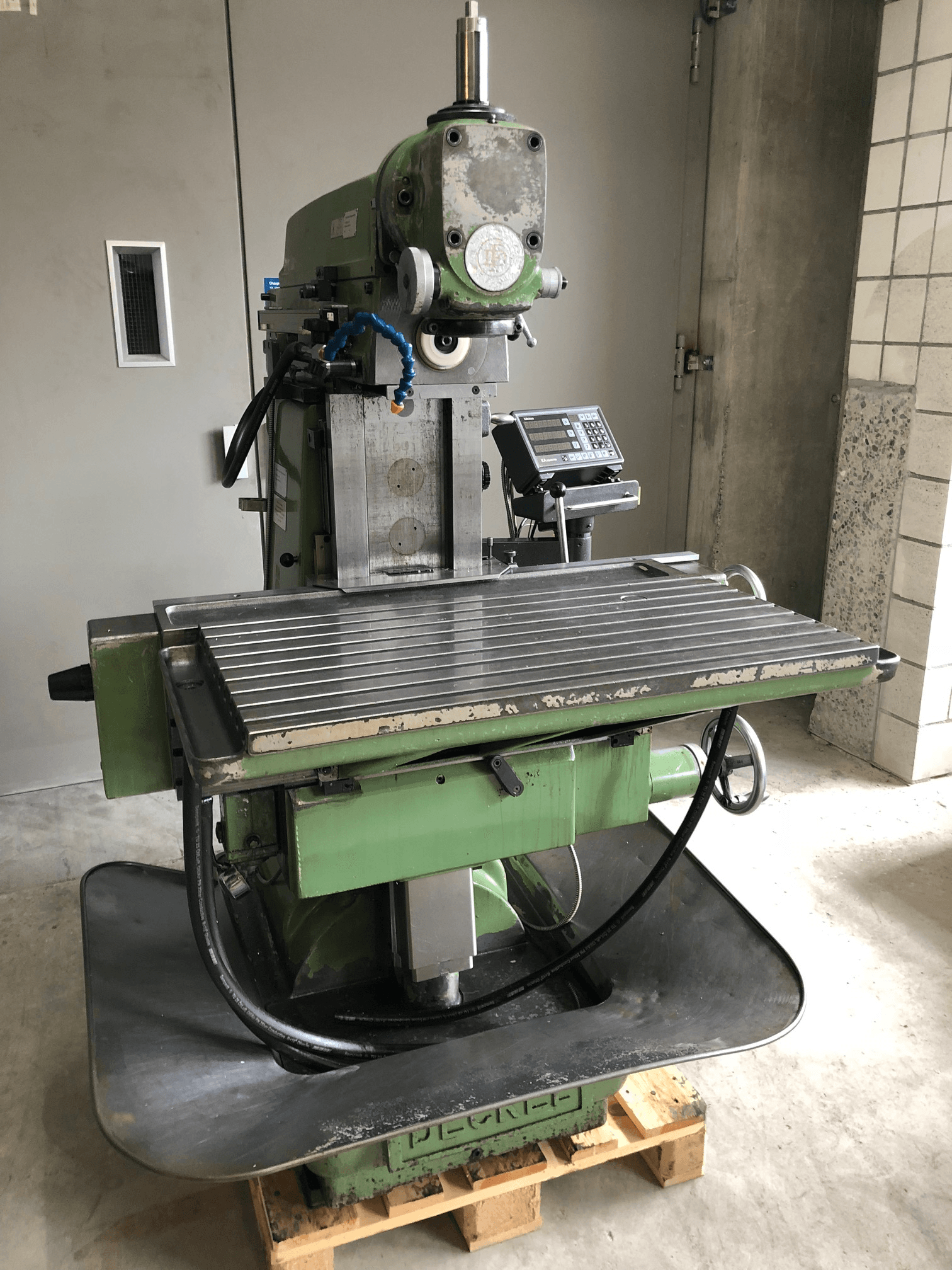

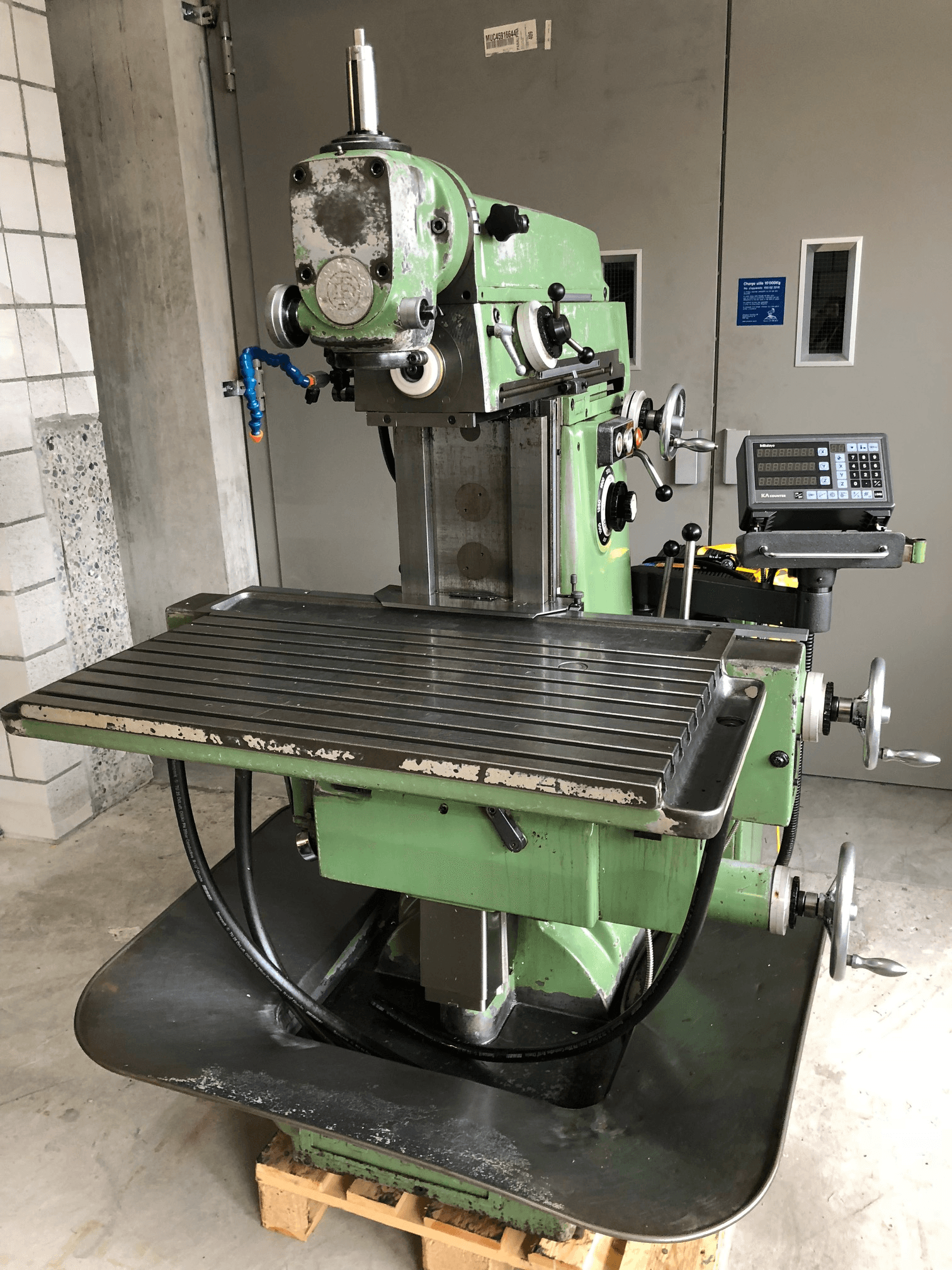

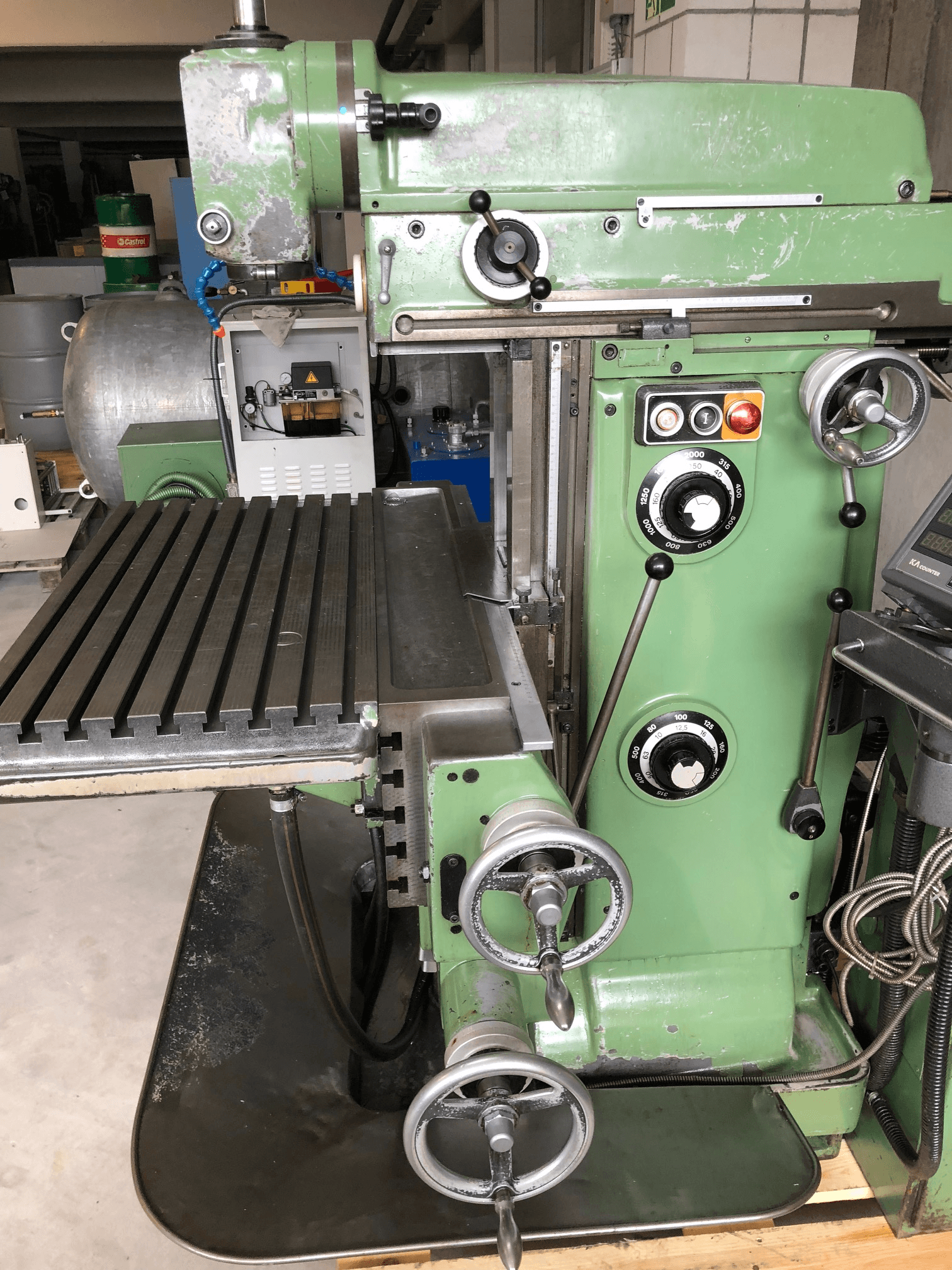

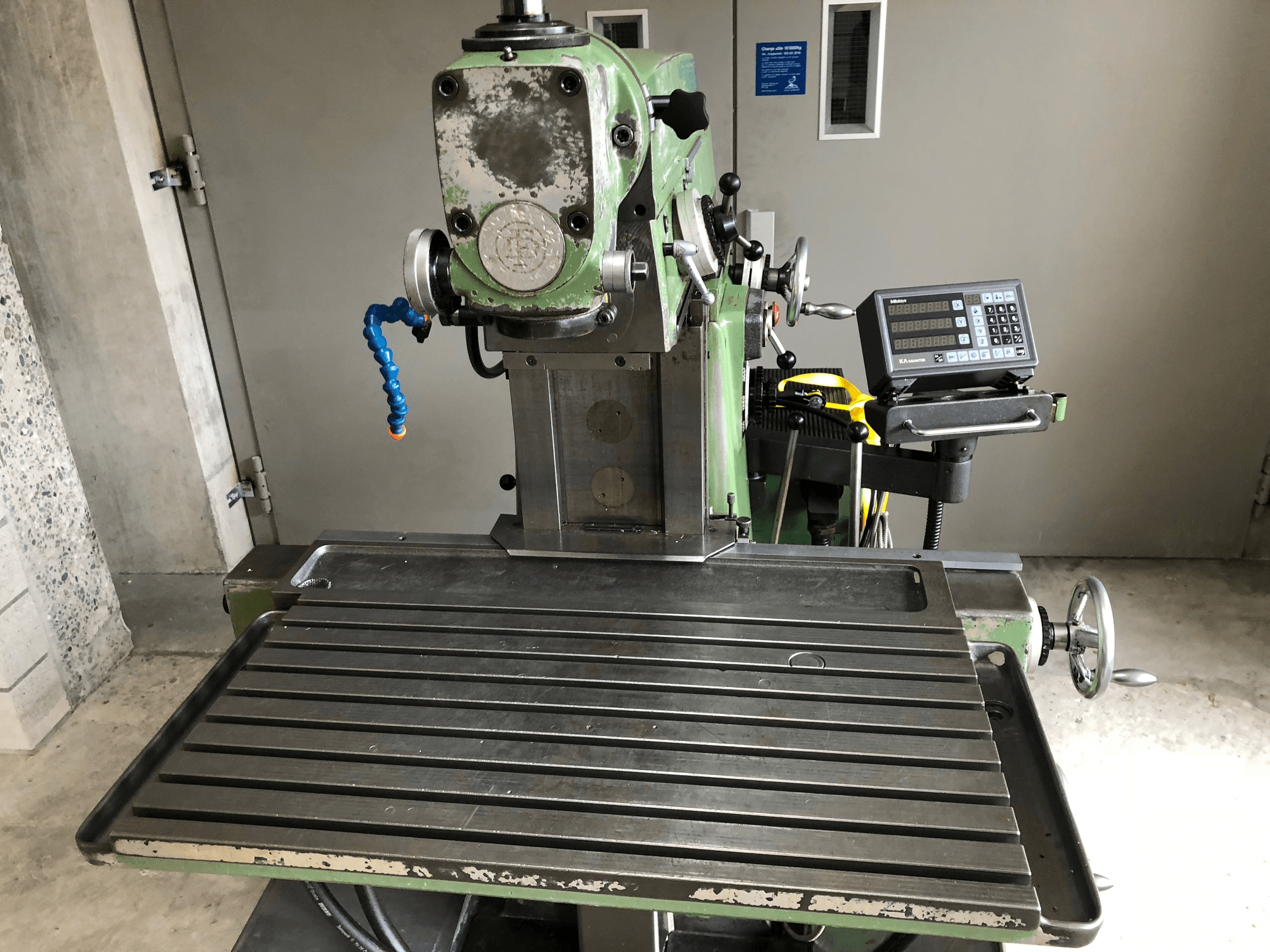

020270 - DECKEL FP 3

Description

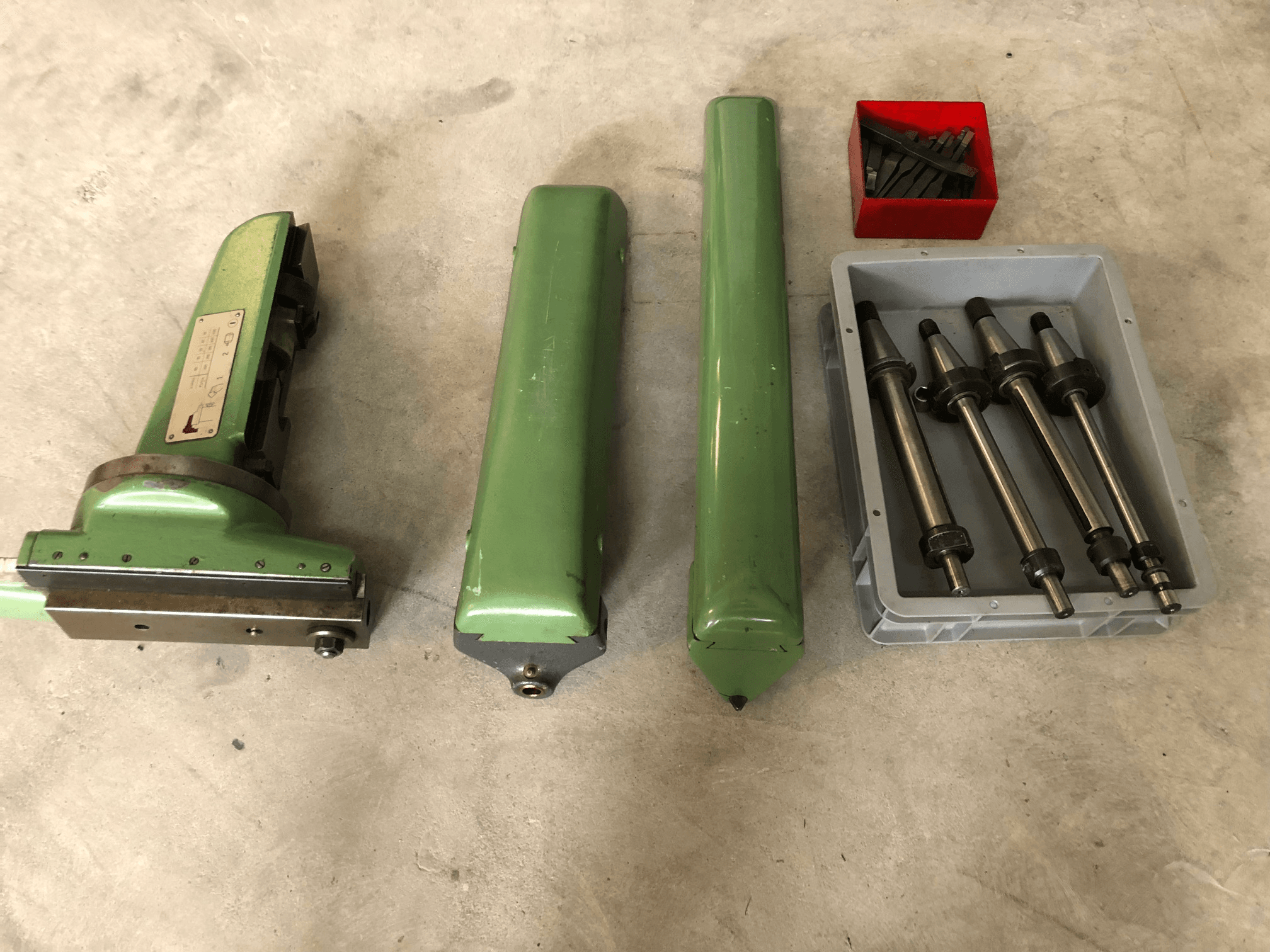

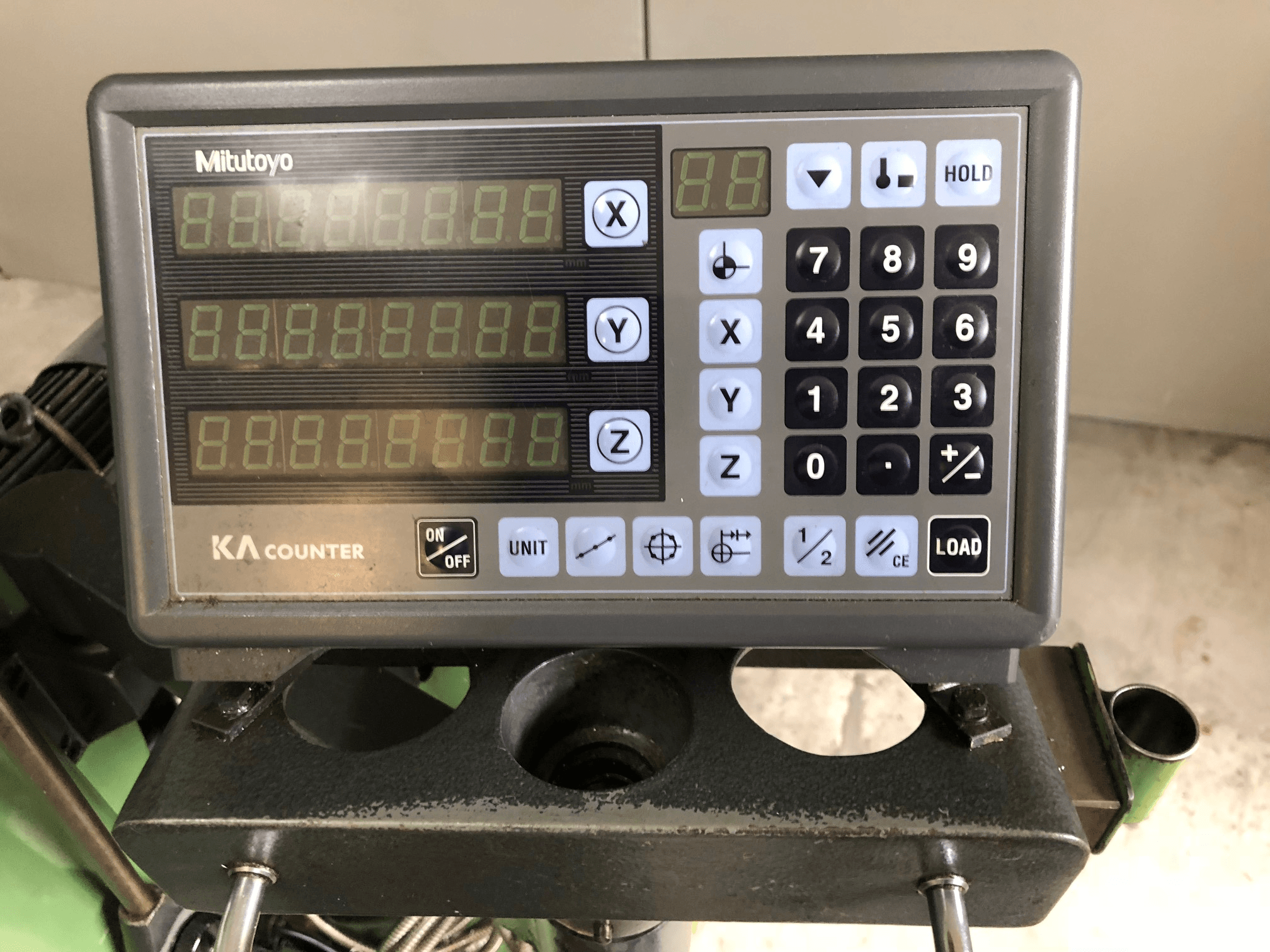

{"Table length": "600 mm", "Table width": "350 mm", "Longitudinal travel (X-axis)": "500 mm", "Transversal travel (y axis)": "300 mm", "Vertical travel (z axis)": "380 mm", "Distance from vertical spindle to table": "470 mm", "Spindle speeds:": "", "number (steps)": "18", "from": "40 t/min", "up to": "500 mm/min", "Taper in spindle CN": "40", "Feeds steps:": "18", "longitudinal from": "10.0 mm/min", "transversal from": "10.0 mm/min", "vertical from": "10.0 mm/min", "Vertical quill travel": "100 mm", "Rapid traverse:": "", "longitudinal": "1.5 m/min", "transversal": "1.5 m/min", "vertical": "1.5 m/min", "Voltage 50 Hz 3x": "380 Volt", "Motor output": "4.0 CV", "Machine's weight about": "1100 kg", "Overall dimensions machine:": "", "Length": "2200 mm", "Width": "1800 mm", "Height": "2000 mm", "Various accessories:": "", "Digital readout number of axis:": "3", "Manufacturer": "Mitutoyo"}
