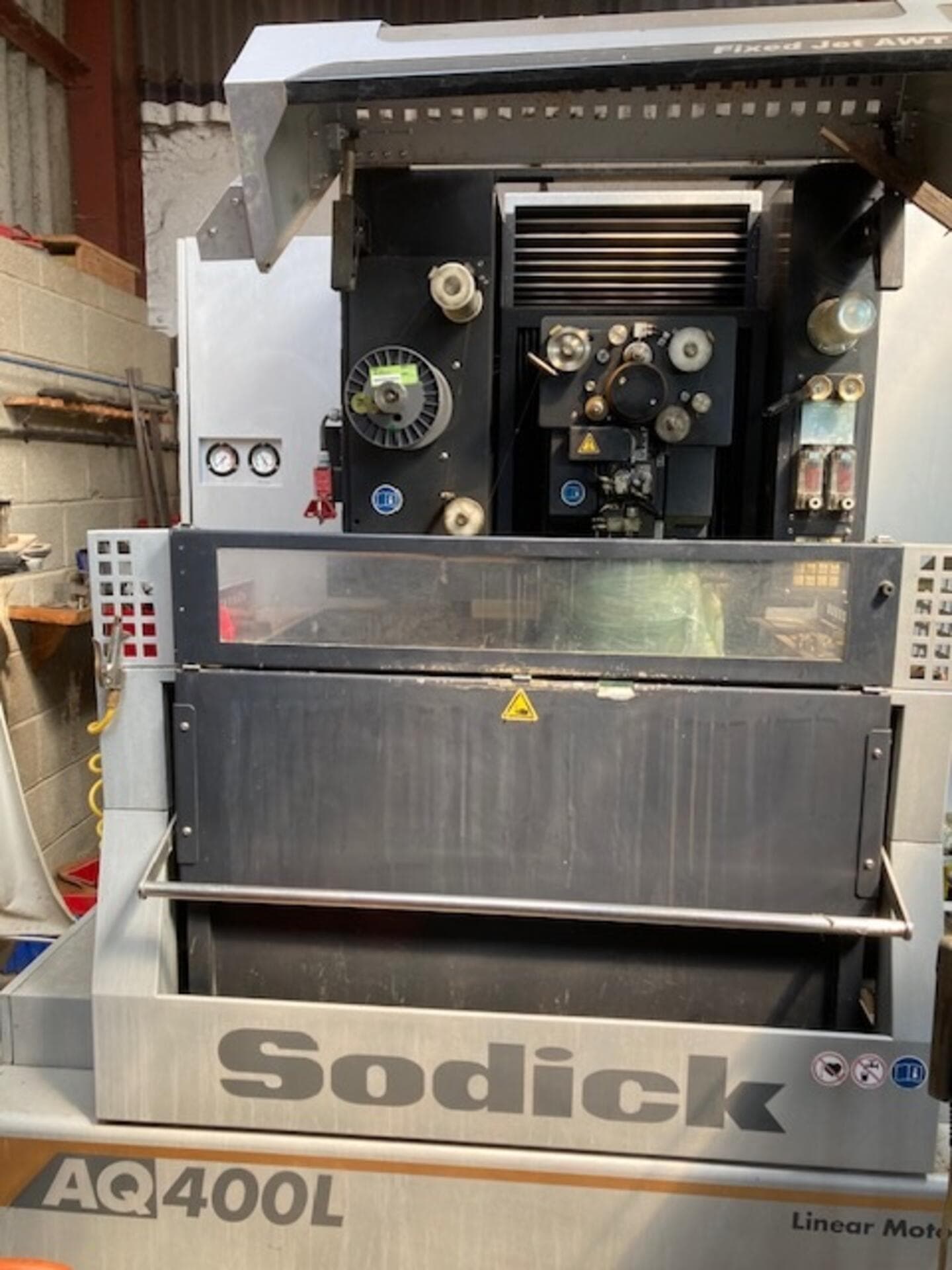

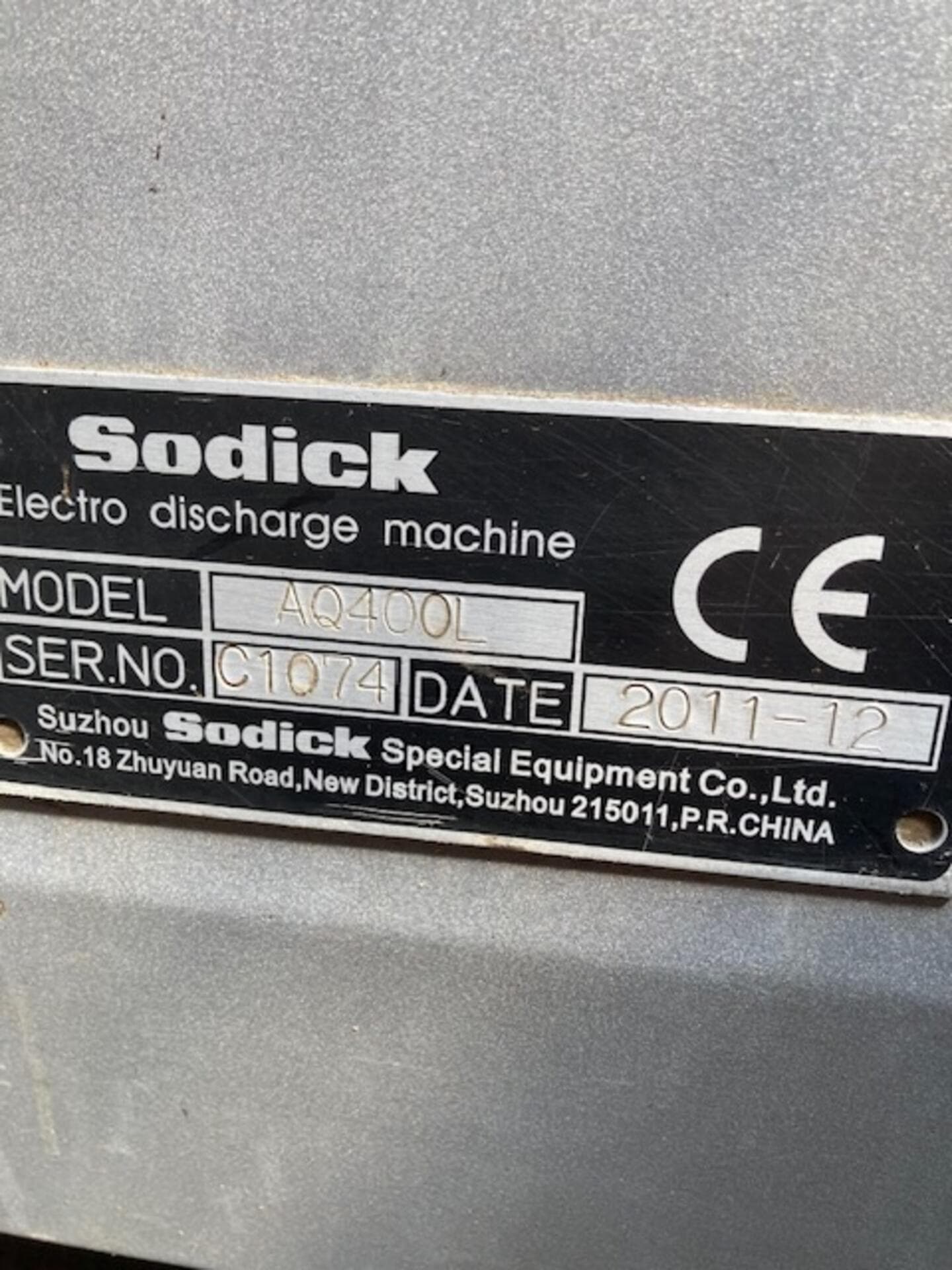

Code: Year: 2011<br>Sodick AQ400L EDM<br><br>Model: AQ400L<br>Year: 2011<br><br>X/Y/Z Stroke: 400 x 300 x 250<br>U axis & V axis Stroke: 80 x 80<br>Taper Angle (height of 80mm): +/- 20 degrees<br>Max. workpiece dimensions: 590 x 450 x 250mm<br>Max. workpiece weight: 550mm<br>Worktank Dimensions: 935 x 770mm<br>Wire Dia.: 0.10 0.30mm<br>Machine Dimensions: 1920 x 2600 x 2095mm<br>Weight: 4300kg<br><br>If you are happy with your details above please tick the box and click the send button
