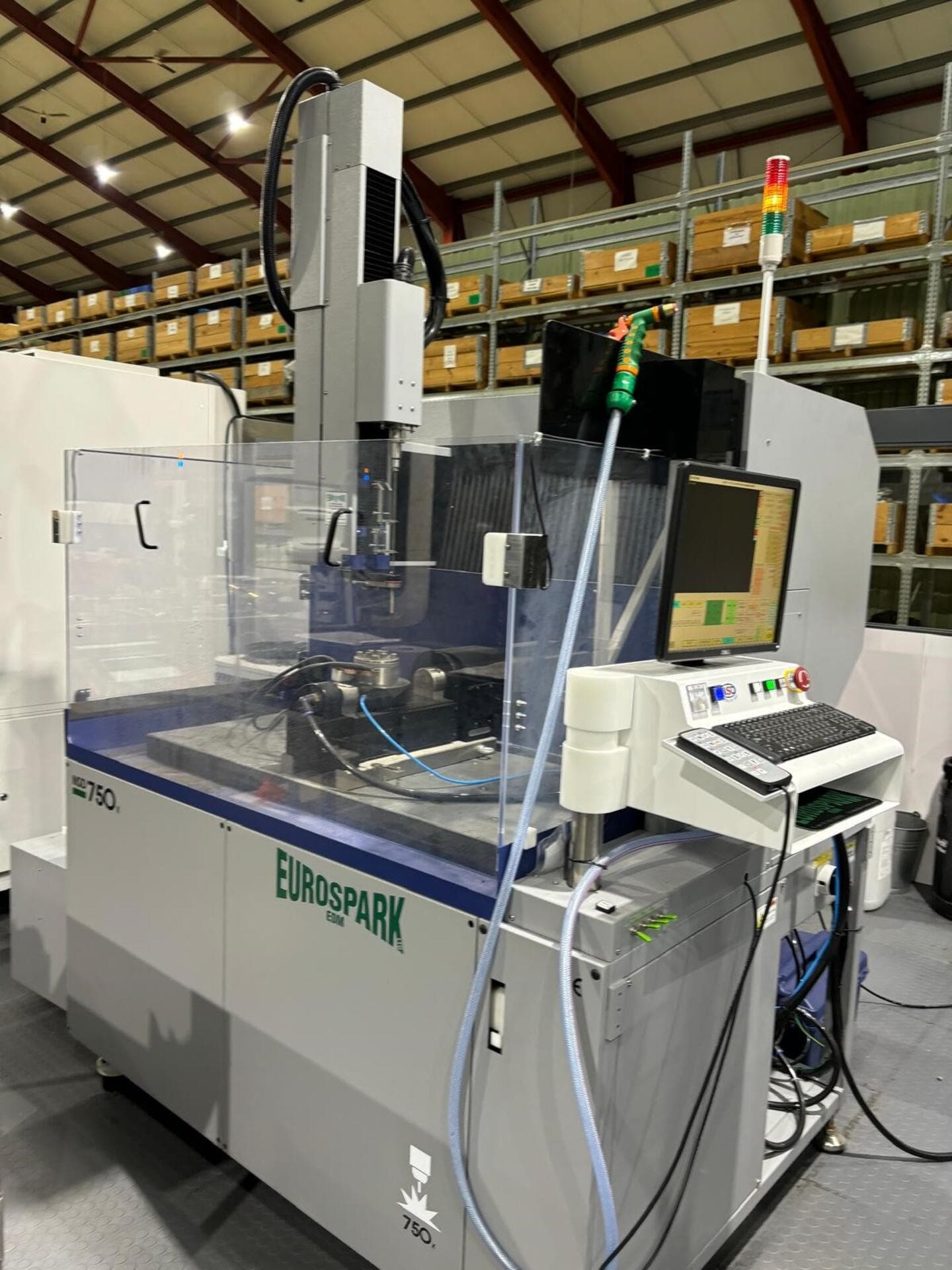

EUROSPARK NSD 750K CNC EDM DRILL

Description

Code: ST3899
EUROSPARK NSD 750K CNC EDM DRILL

Year: 2023

Machine travels: 800 x 450 x 640 x 360mm (X * Y * Z * W)
Machine Dimension: 1910 x 1990 x 2240mm (2600mm Max) (W x D x H)
Machine Weight: 1700Kg
Max Weight for workpiece: 500Kg

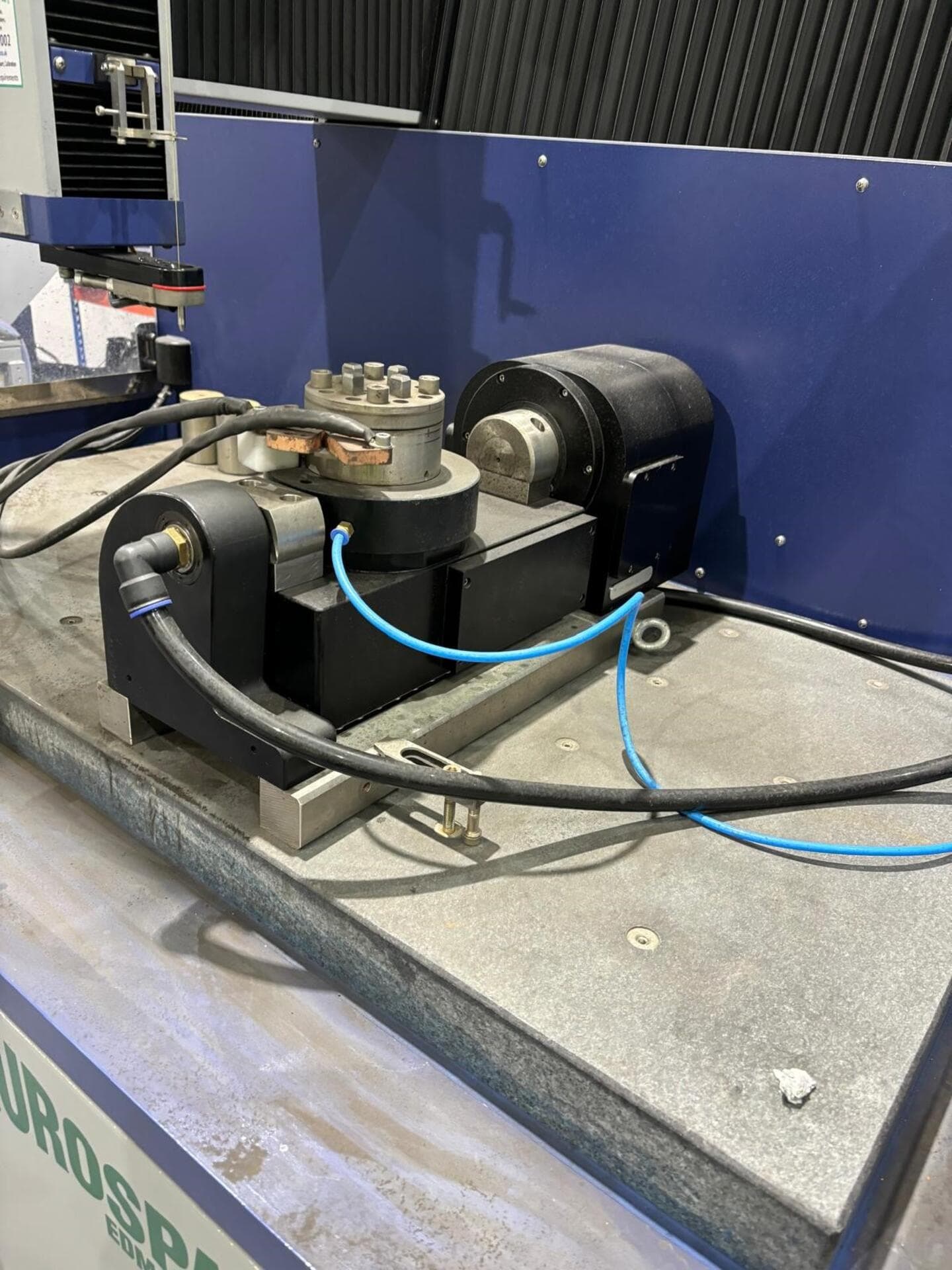

2 Axis indexer with 3 jaw chuck
Usable Electrode Diameter: ø 0.1 ~ ø 6.0mm
Usable Electrode Length: 200 ~ 600mm, Drilling depth : 360mm Maximum
Power: 3ø 415V 50㎐(Changeable)
Max Allowable Current: 30A
Rated Power Capacity: 5KVA
Pneumatic Pressure Required: 5 bar

Self-contained water system with filtration and deionisation system with sensor

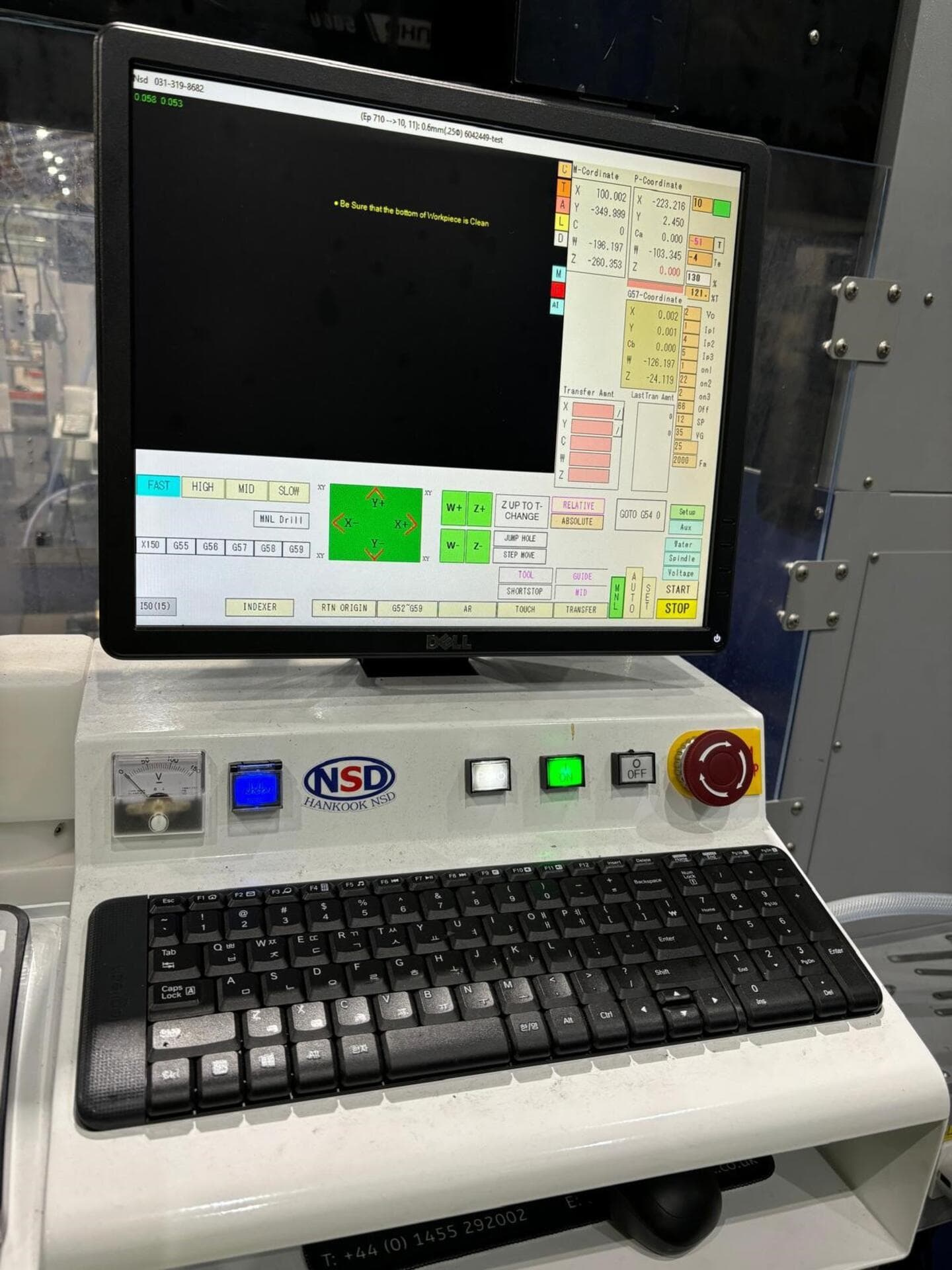

CNC programmable, from DXF or CNC auto hole patterns for PCD, Rows, Square, or GM code
Auto routines for, set up, hole finding, simple programming
