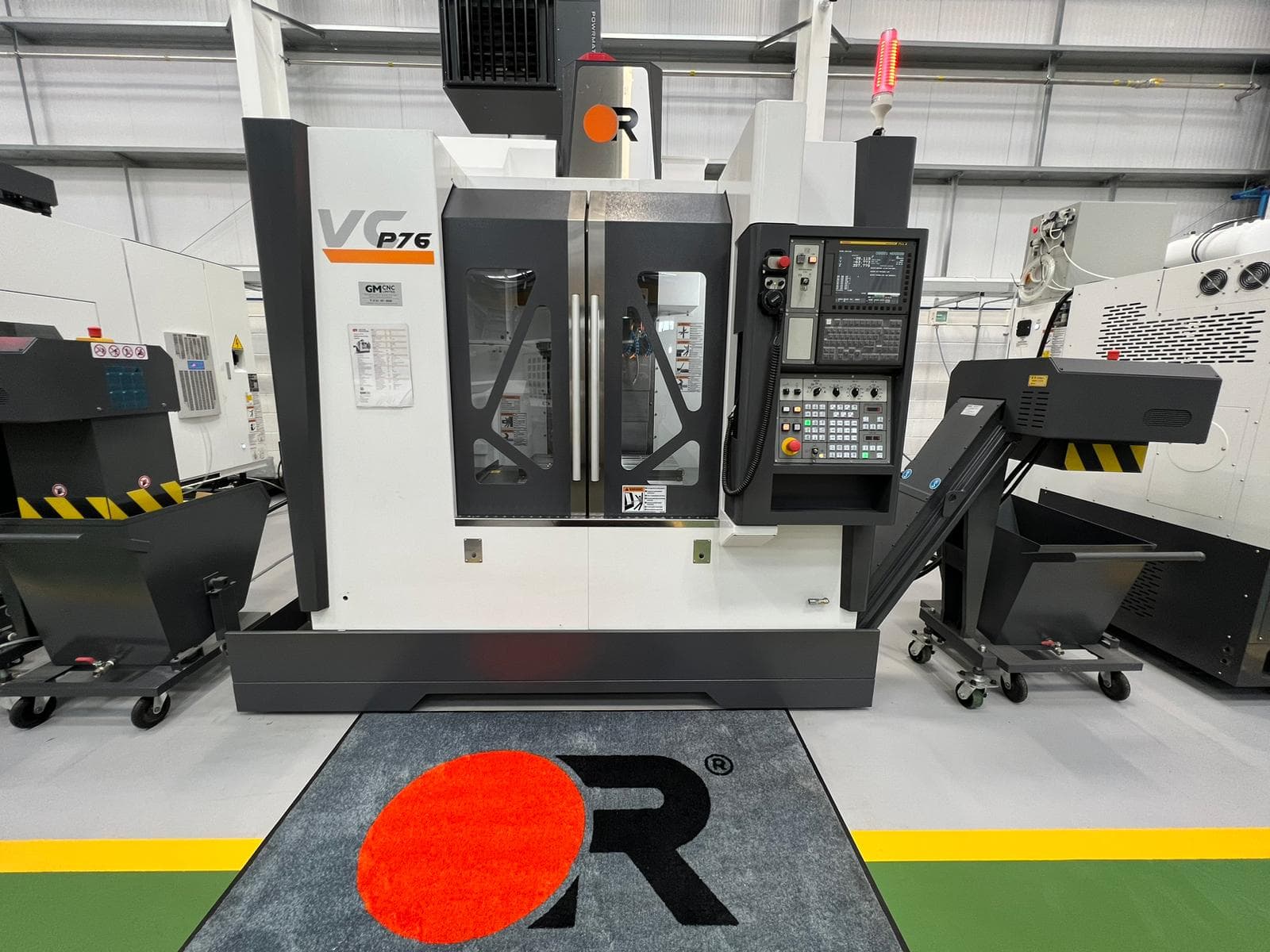

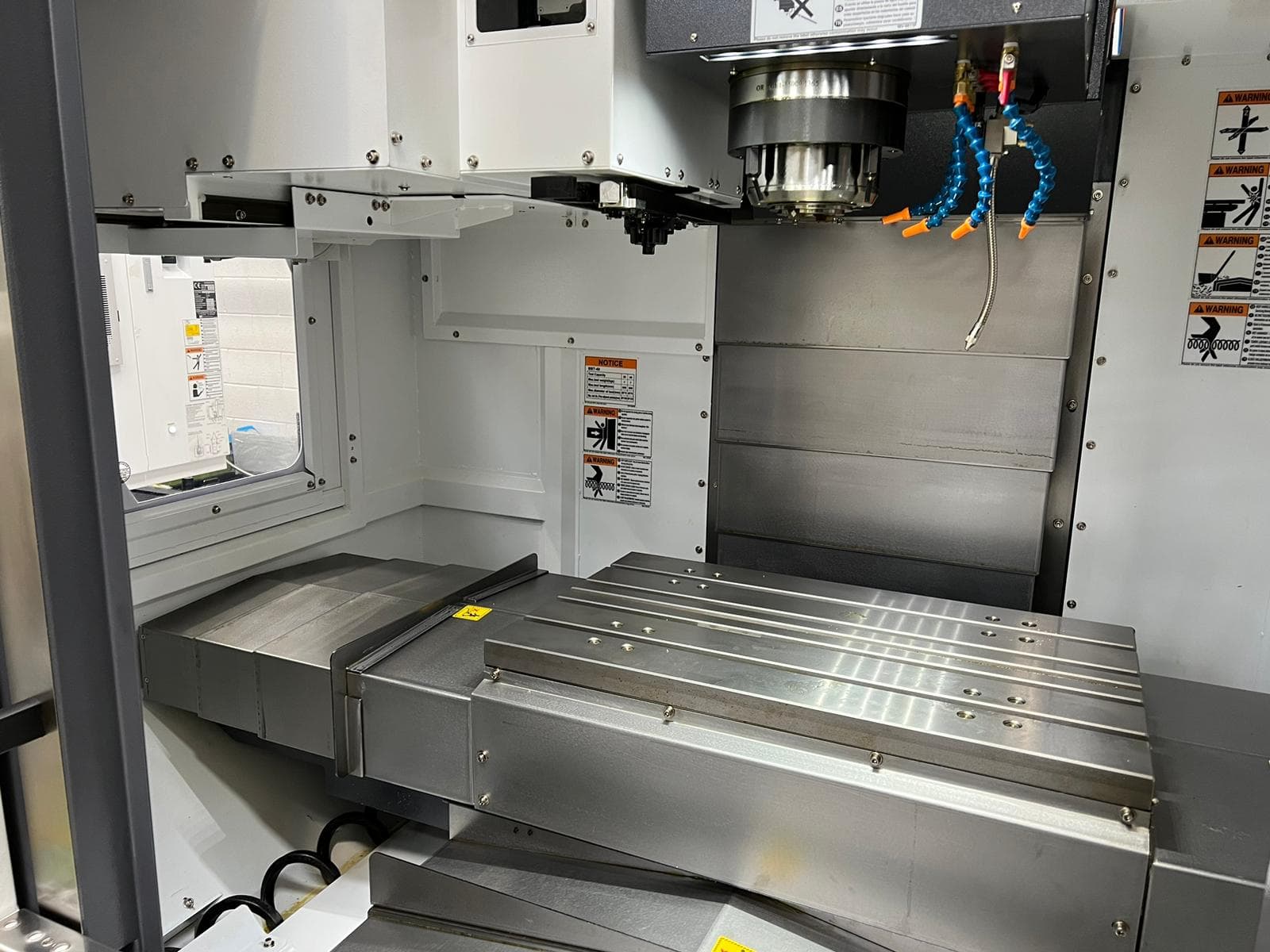

NEW VICTOR P76 Vertical Machining Centre with Fanuc Control

Description

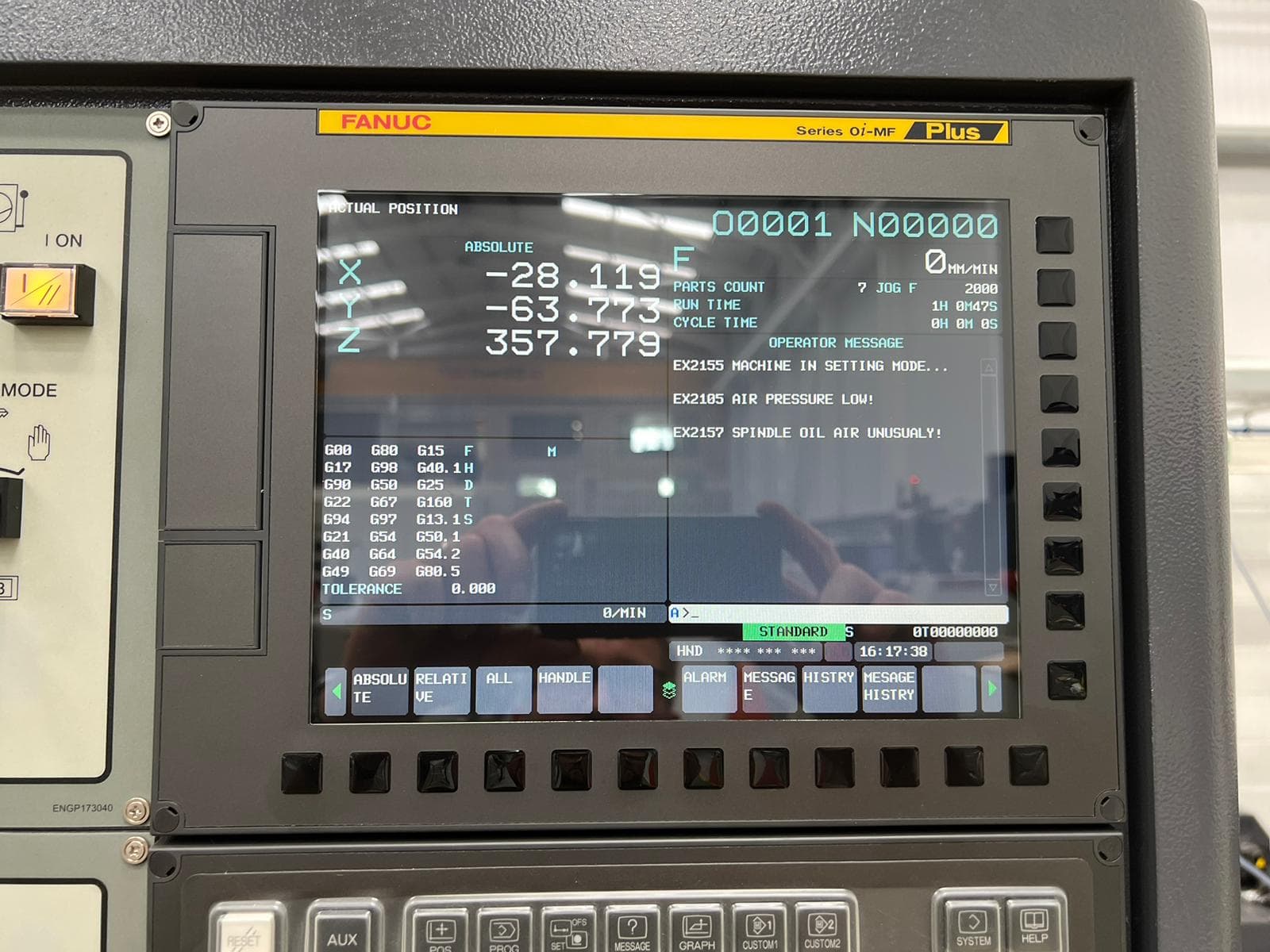

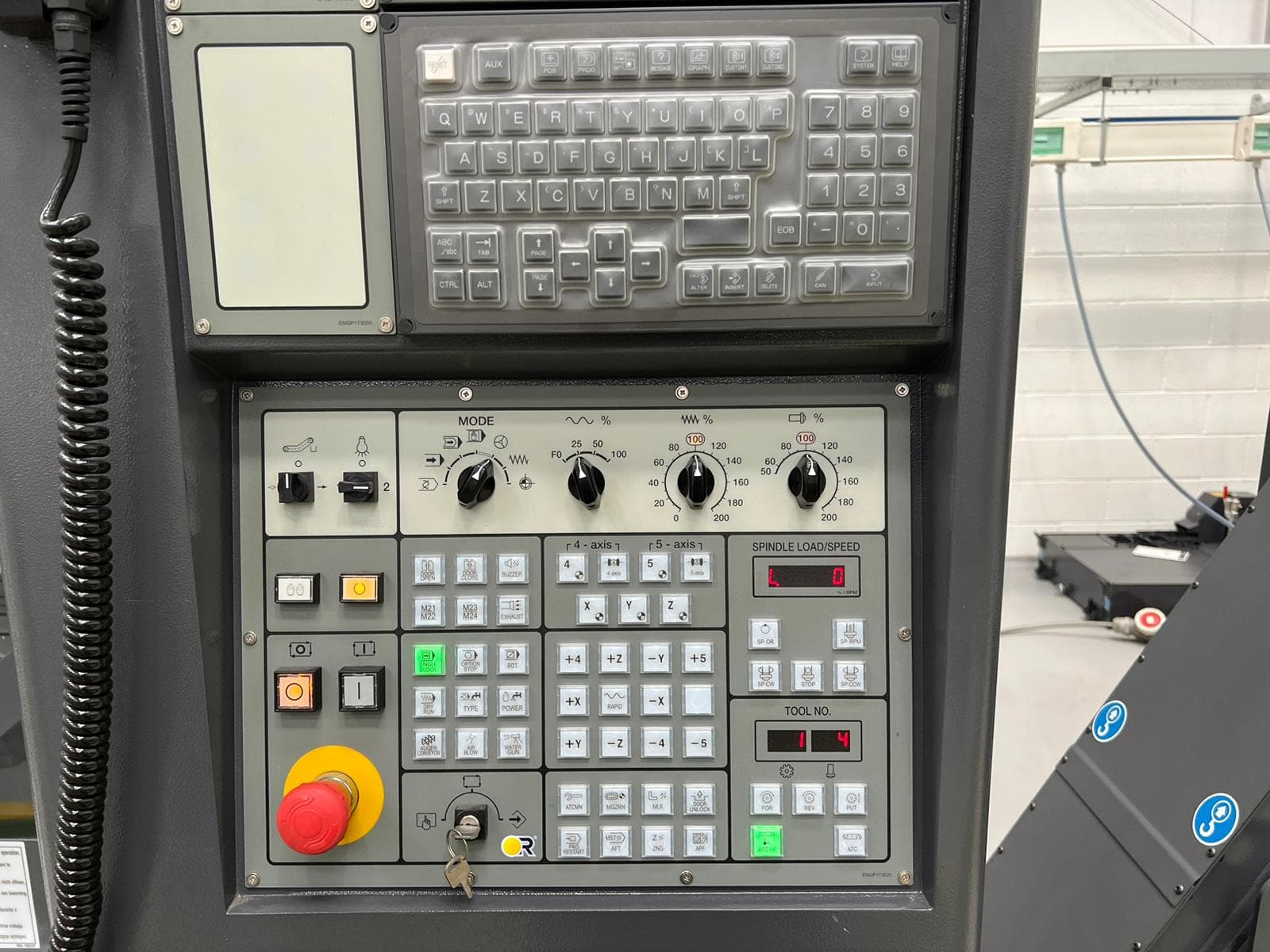

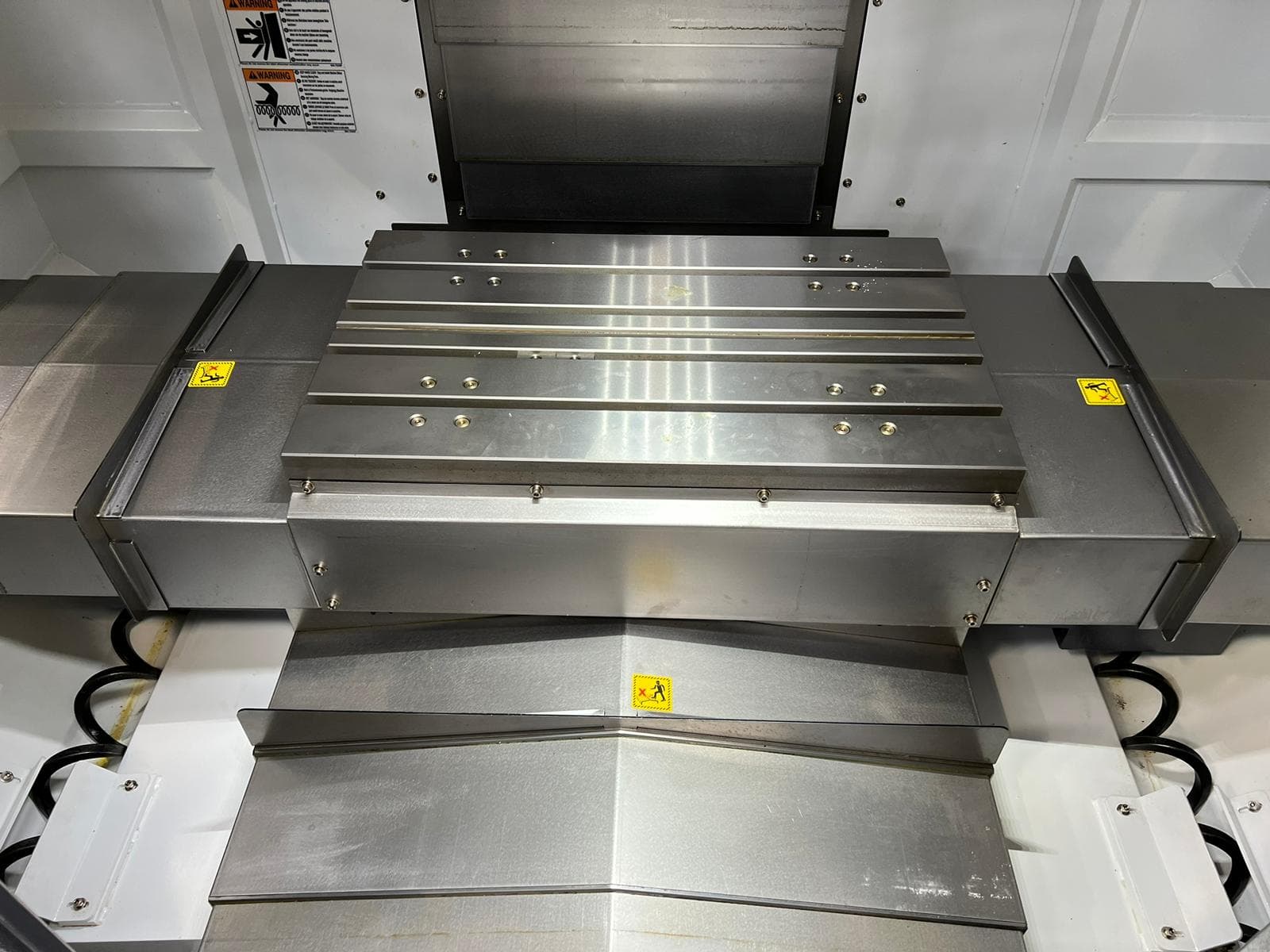

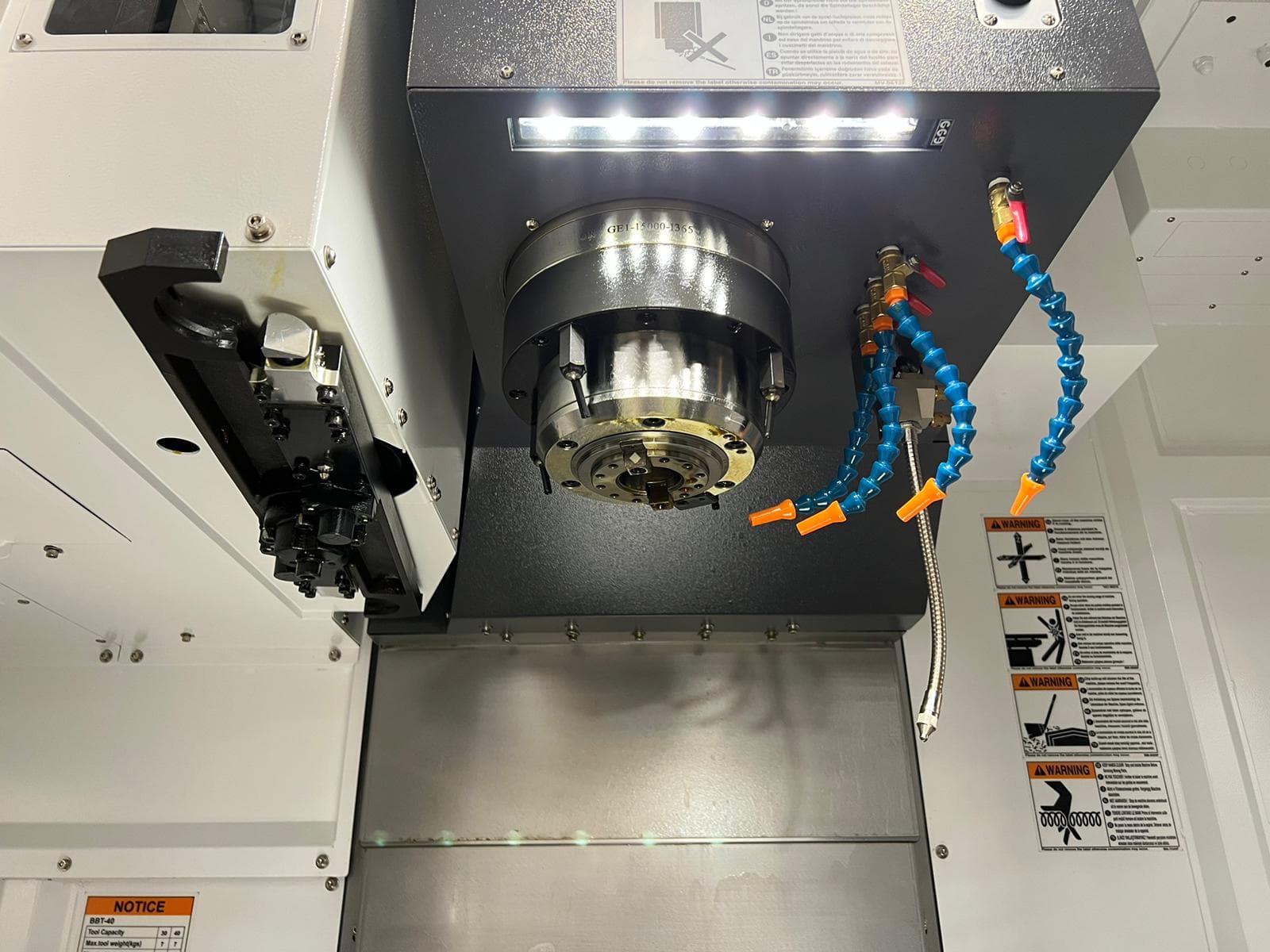

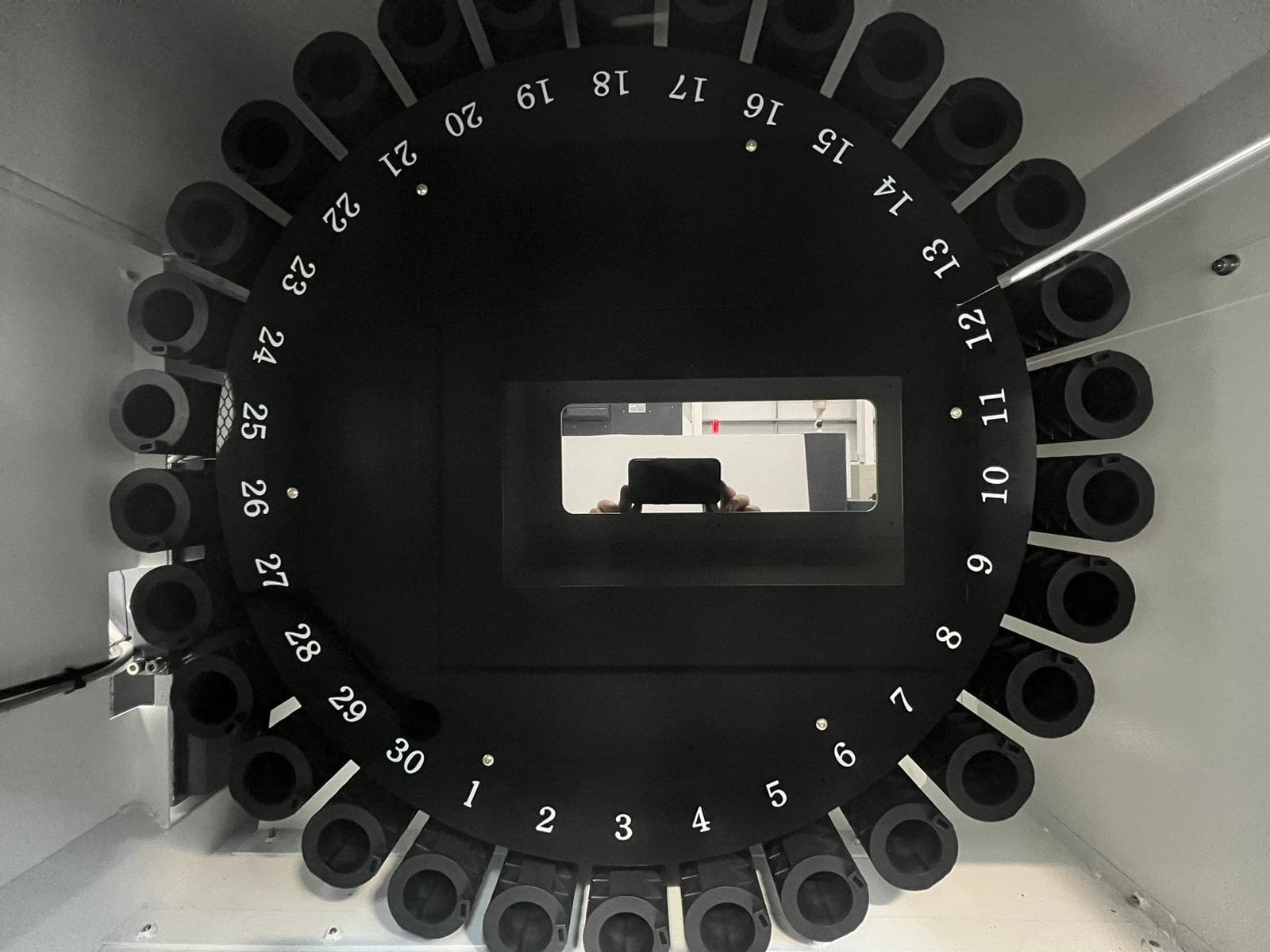

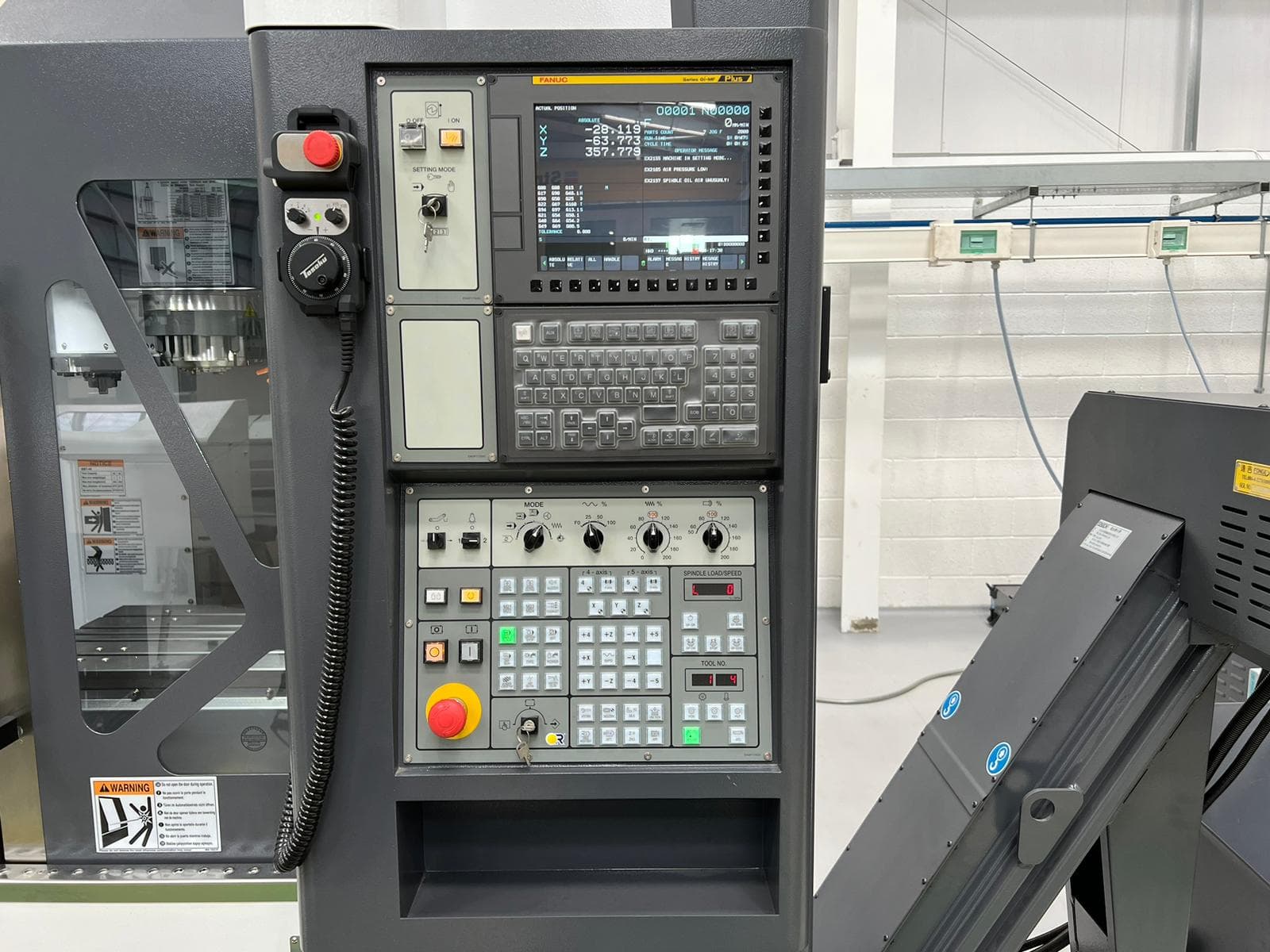

Travels X/Y/Z 760/500/510. Spindle center to column 565mm. Spindle nose to table surface 120 ~630mm. Table work area 840 x 500mm. Dimension of T-slot 4 x 18 x 100mm. Max. table load 500kg.  Spindle taper BBT-40. Spindle motor – cont./60%/25% (Fanuc). Spindle speed 15000rpm. Rapid feedrate – X/Y/Z 48/48/32 m/min. Axis acceleration 0.7G / 0.7G / 0.5Gm/sec. Axis feed motor – X/Y/Z 3 / 3 / 3kW. Cutting feedrate by table.  X/Y/Z ballscrew (dia x pitch) 40 x P16 (X) 40 x P16 (Y/Z)mm.  Linear guide width (X/Y/Z) 30 x 35 x 45mm. Max. tool length 300mm. Max. tool weight 7Kg. Magazine capacity 30. Max. tool diameter 75 (150)mm. Tool exchange time 1.8 (T-T), 4.3 (C-C) sec. Pull stud angle 15 (JIS 40P) deg.  Tool selection method – random. Fanuc 0i-MF Plus. 10.4” Colour display with QWERTY keypads. Manual Guide I. 2GB CF Card. AICC-2 (200 blocks). 15000rpm DCS Spindle (Oil air lubricated by aT8/15000i motor). Spindle oil cooler, Air conditioner for electrical cabinet, Through spindle coolant (MTR3-36, 20 ba / 50hz with mahle single filter). Air through spindle. 30 tool magazine.  Oilmist spray unit. Twin screw chip removers. High pressure coolant (Grundfos MTH 4-40/4). Auto power off. Chip conveyor & cart (left exit). Oil skimmer. Handy coolant gun. Handy air gun. Remote handwheel. Fully enclosed splash guarding. Victor toolbox & standard accessories. Dimensions L x W x H 2818 x 2719 x 2731mm. Weight 5500Kg.
