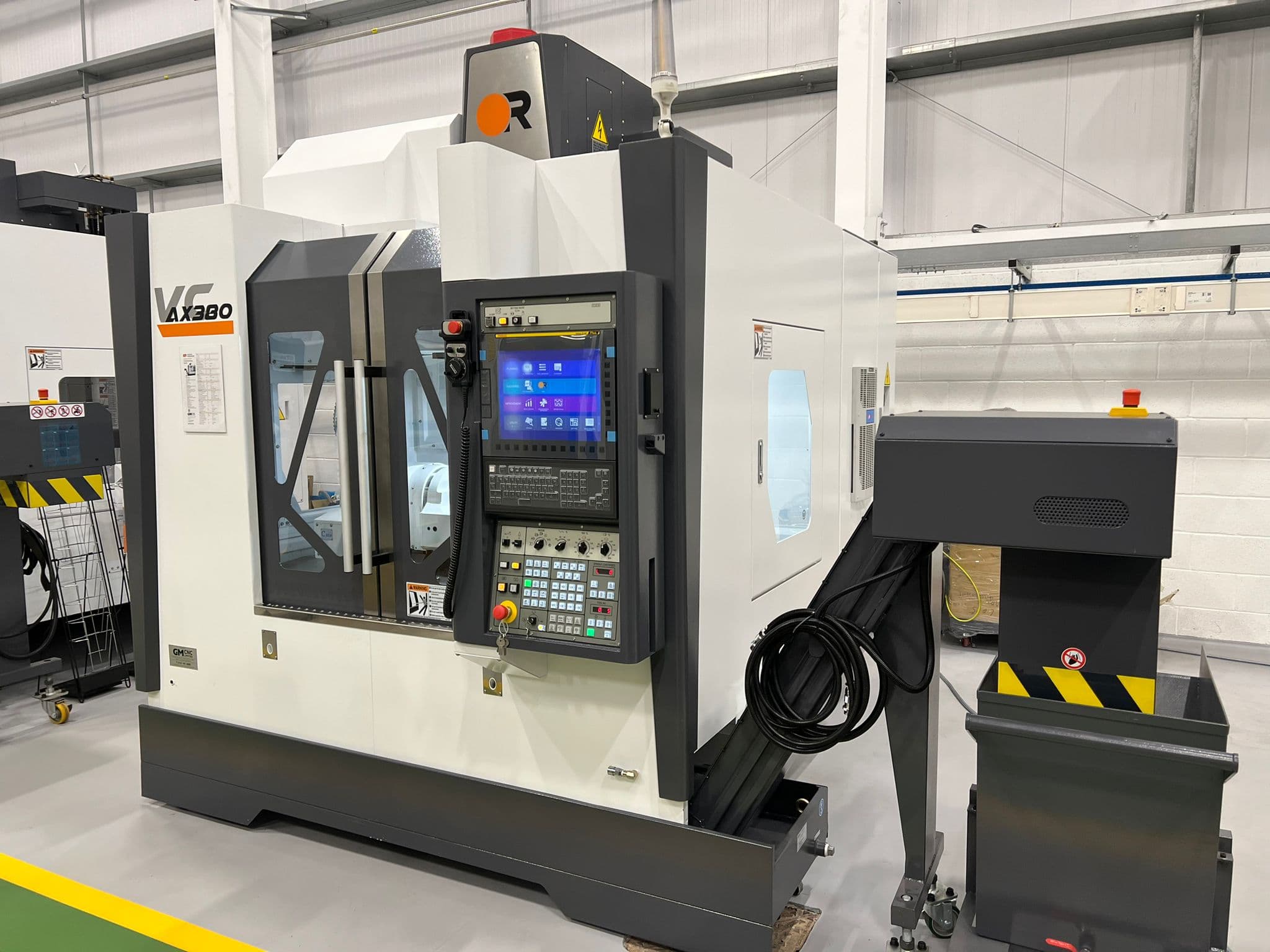

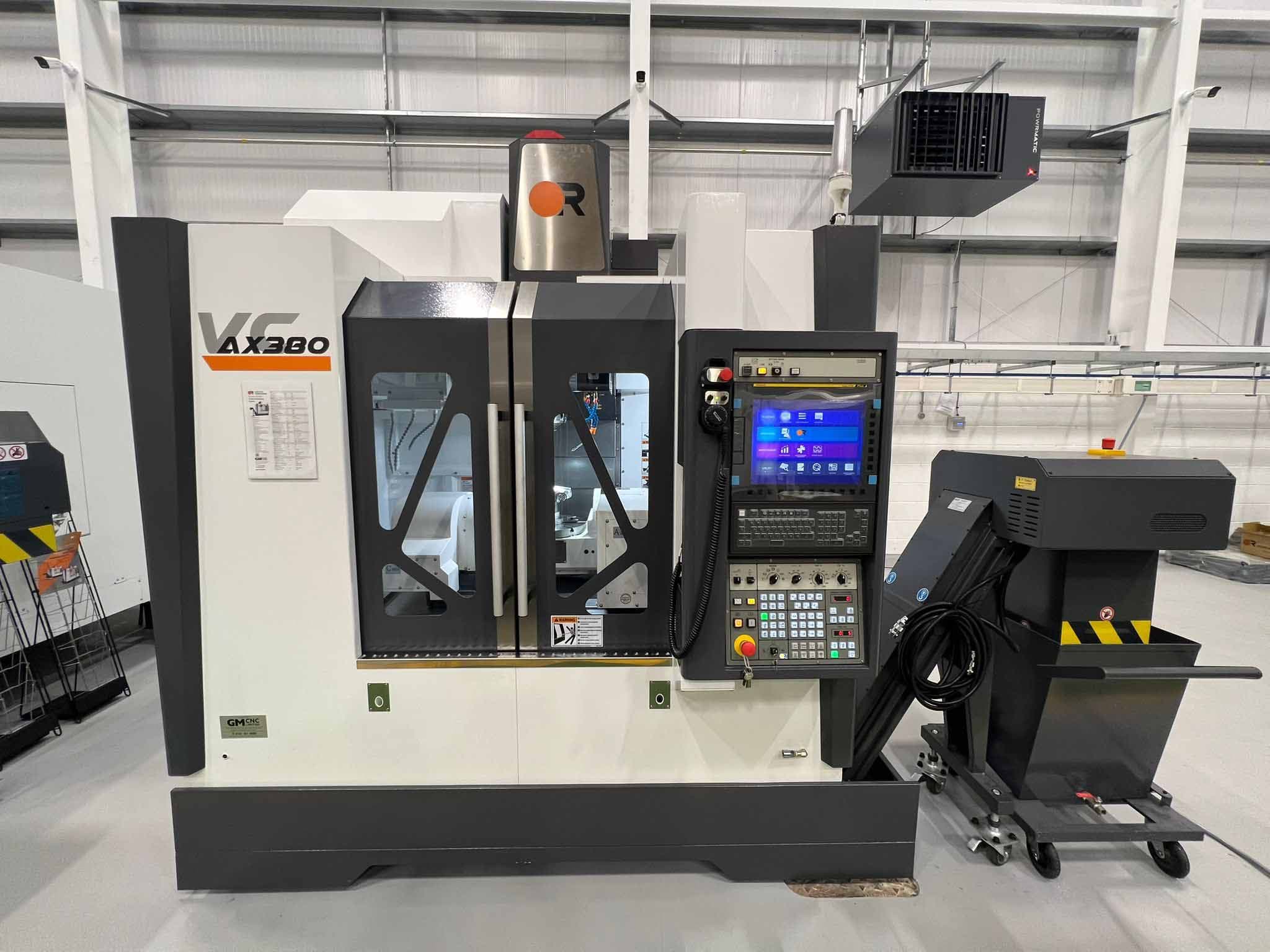

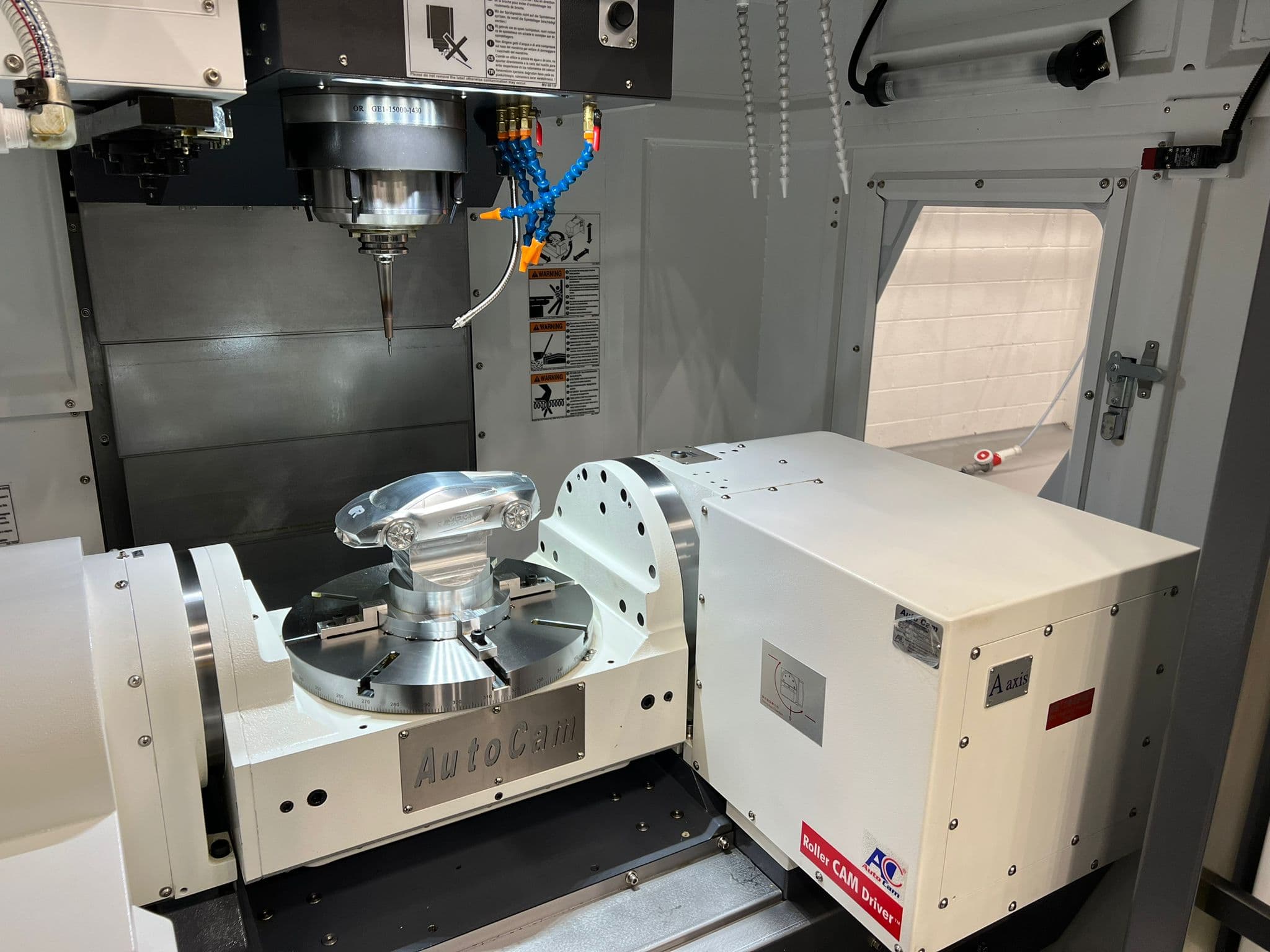

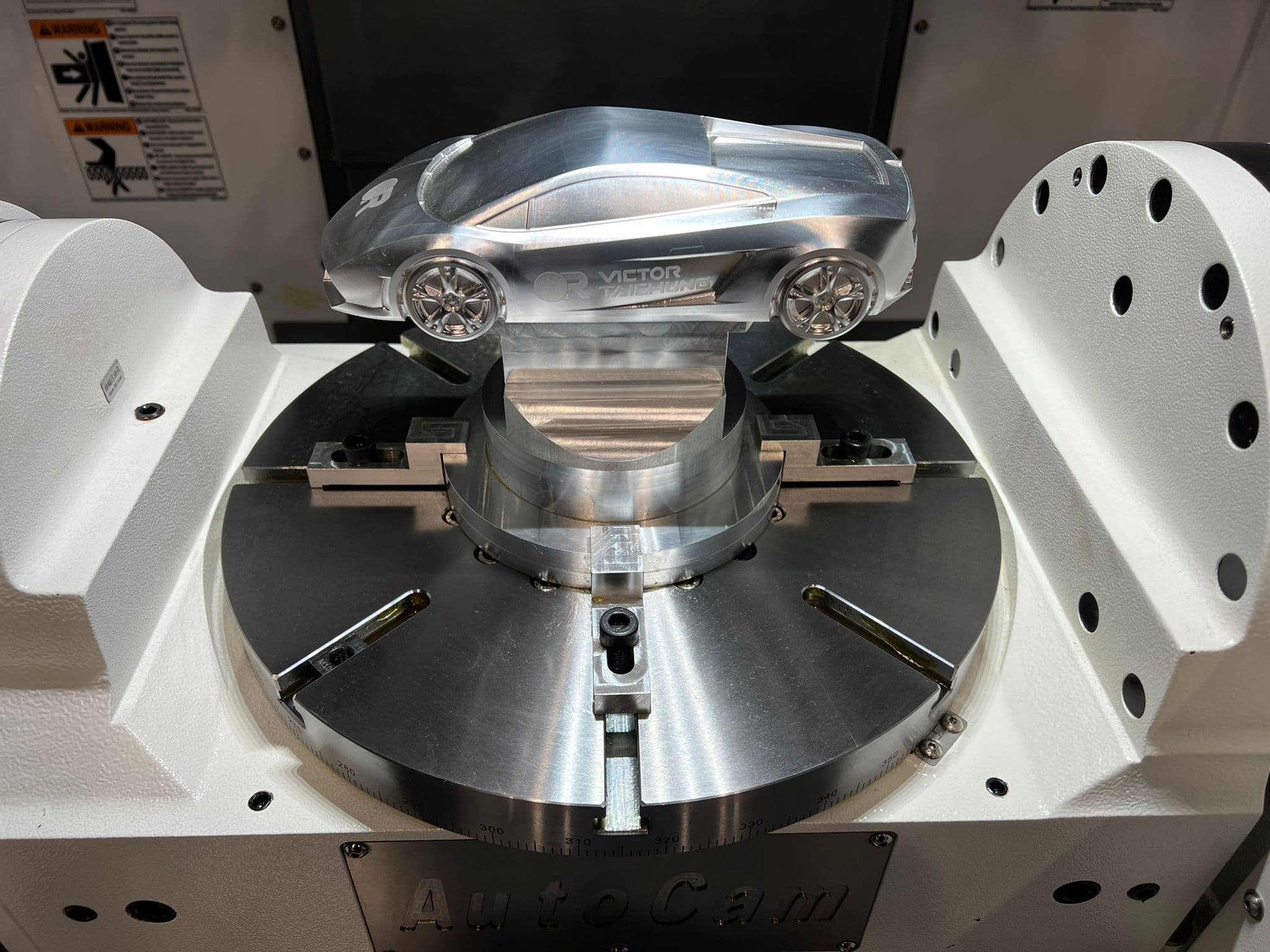

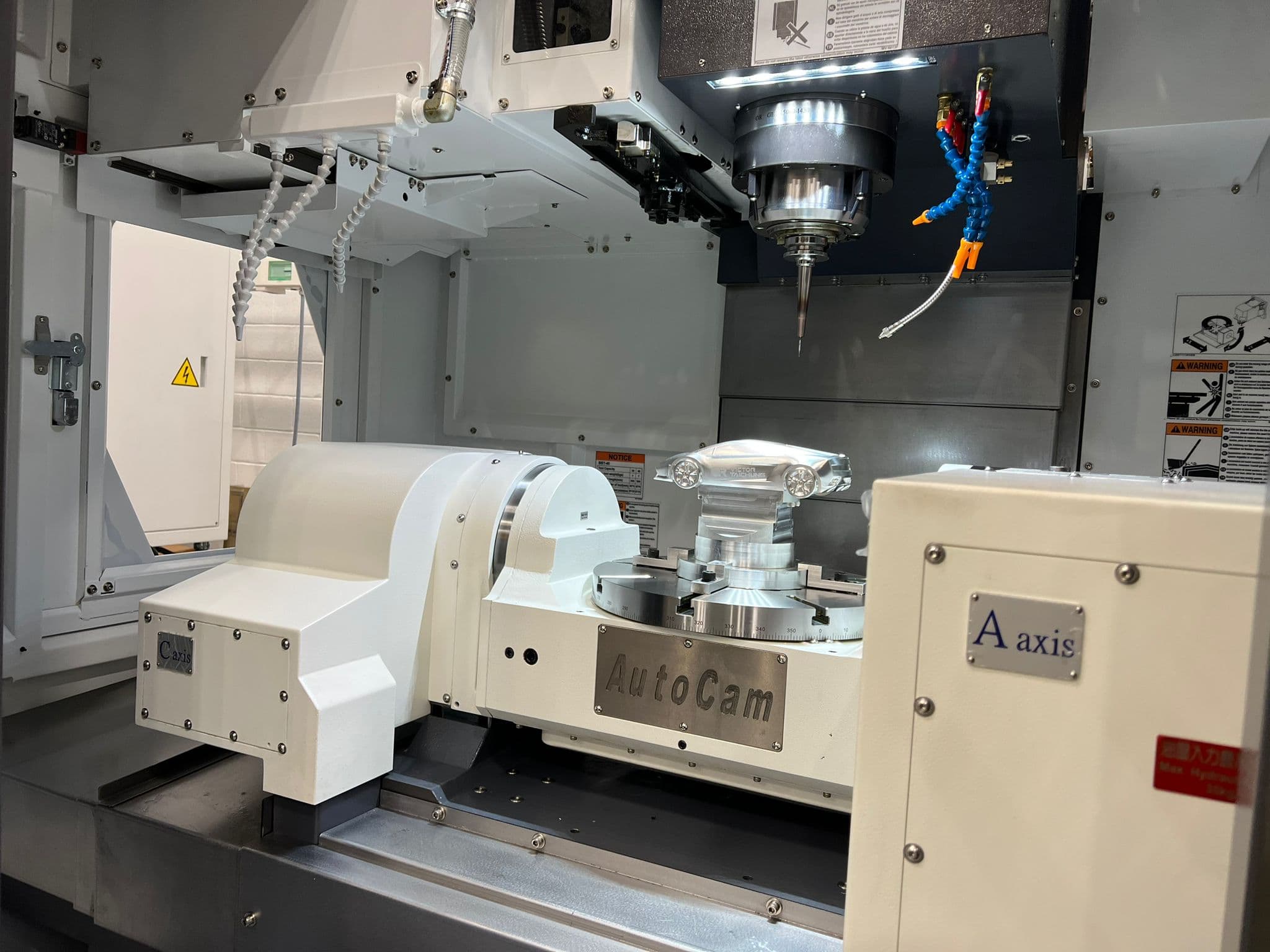

NEW VICTOR AX380 5 Axis Vertical Machining Centre

Description

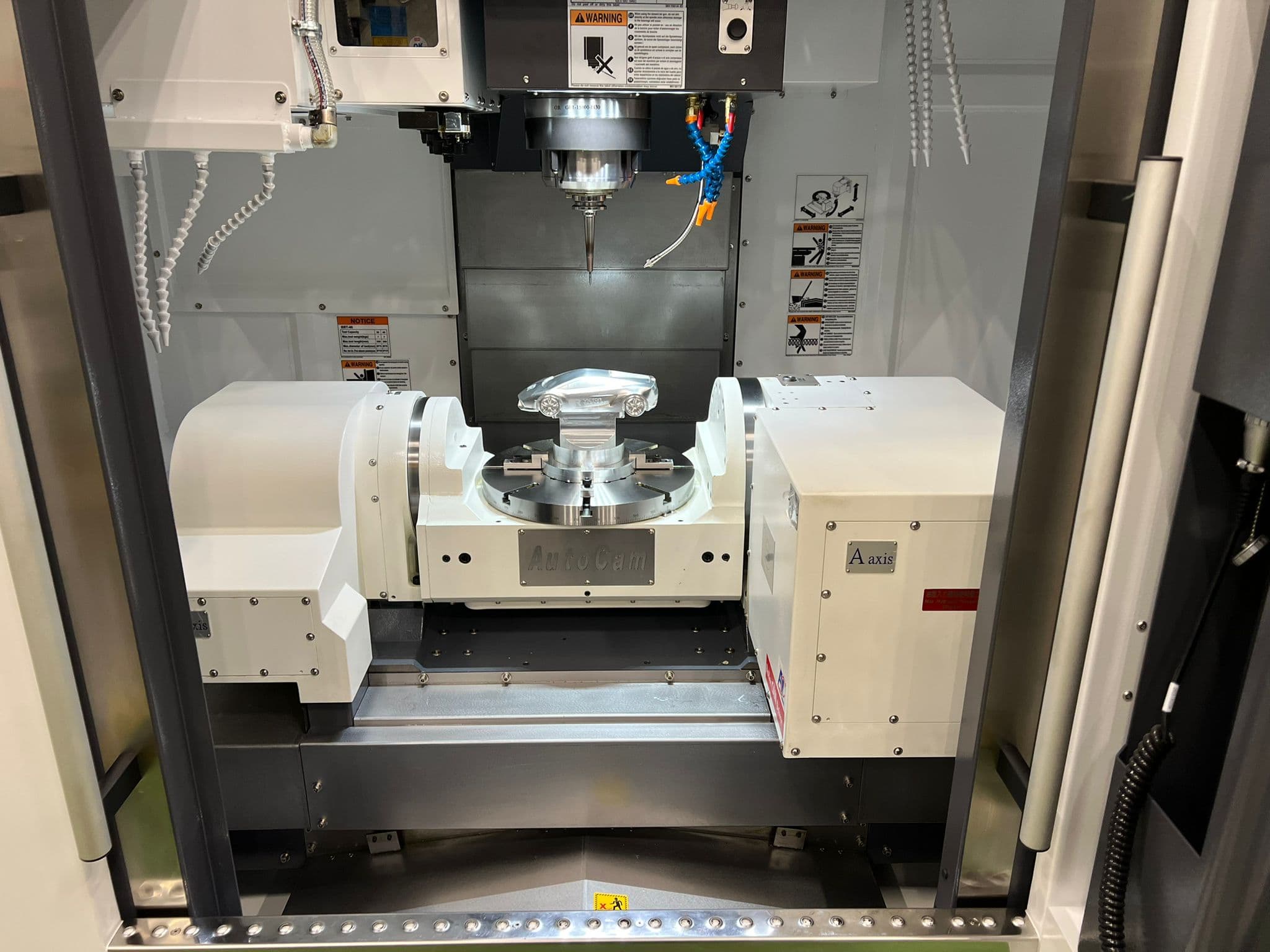

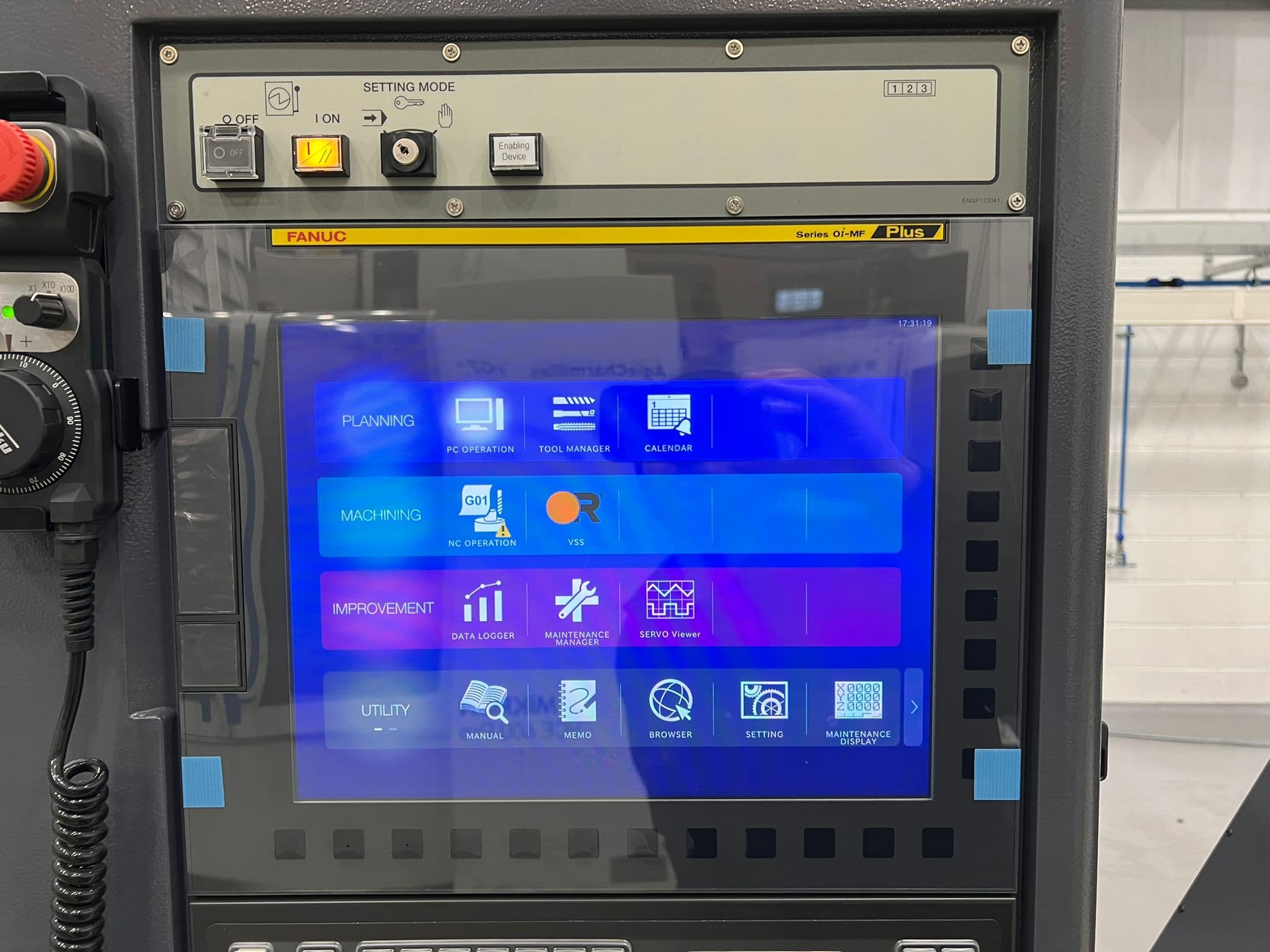

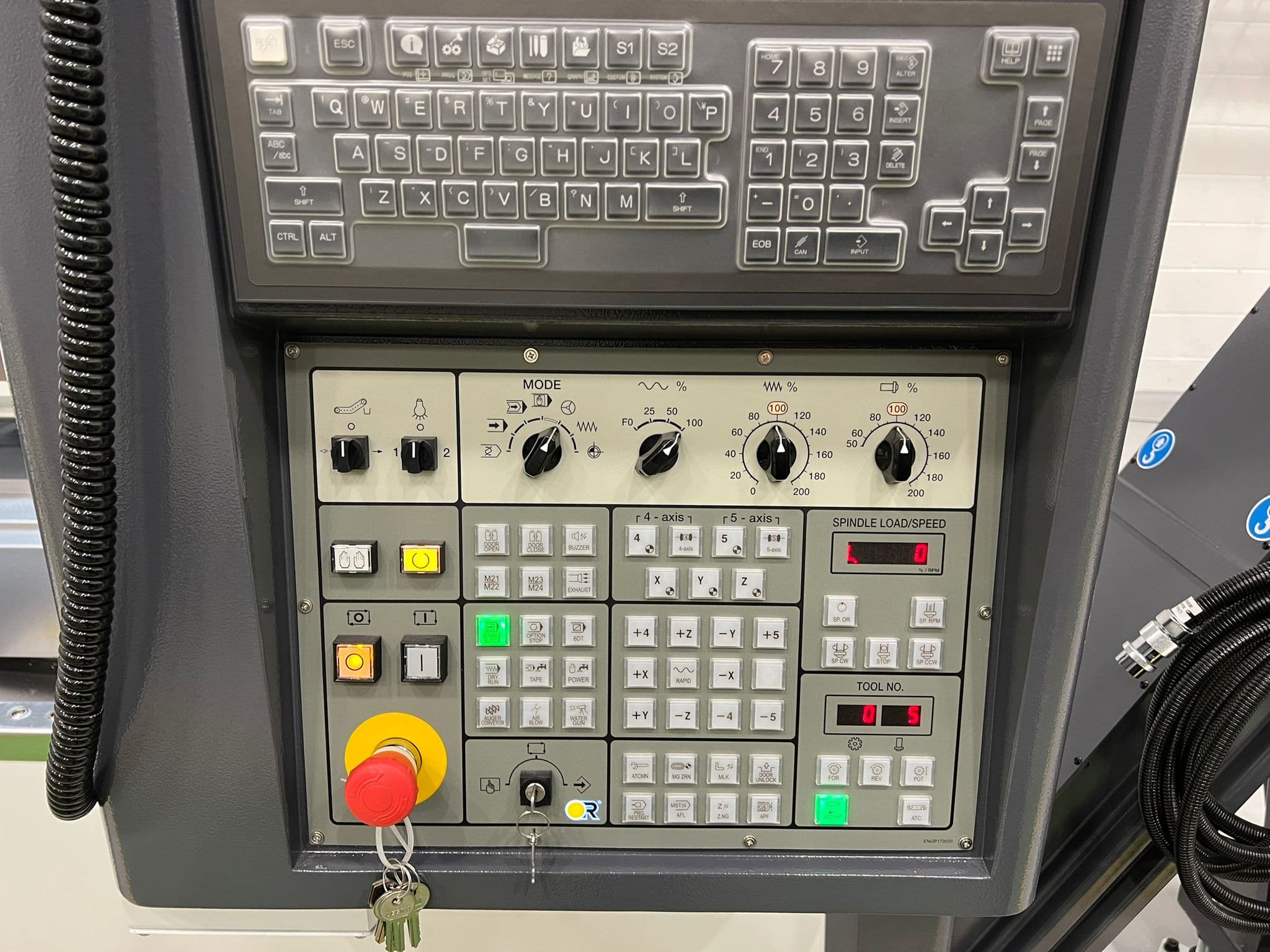

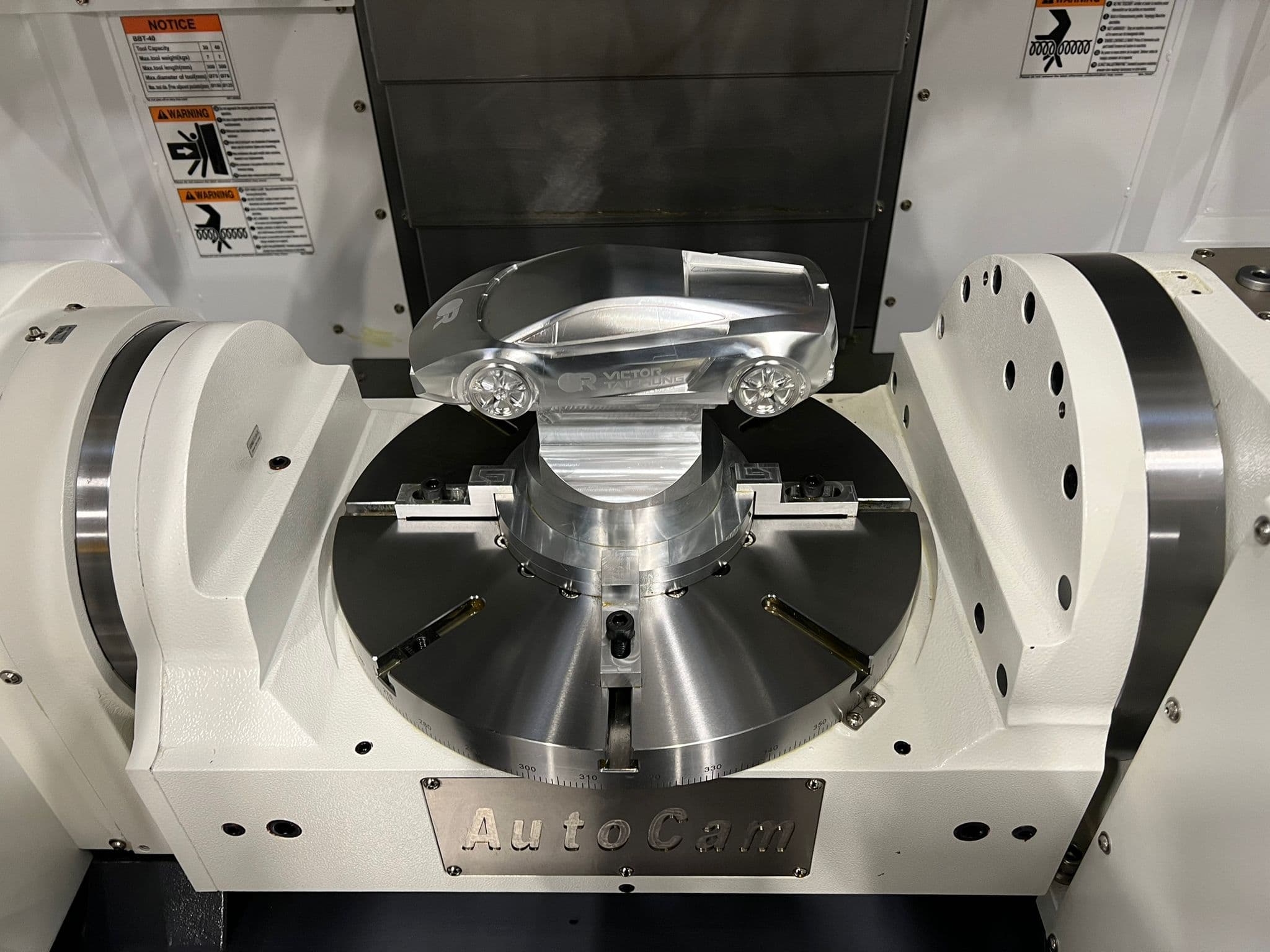

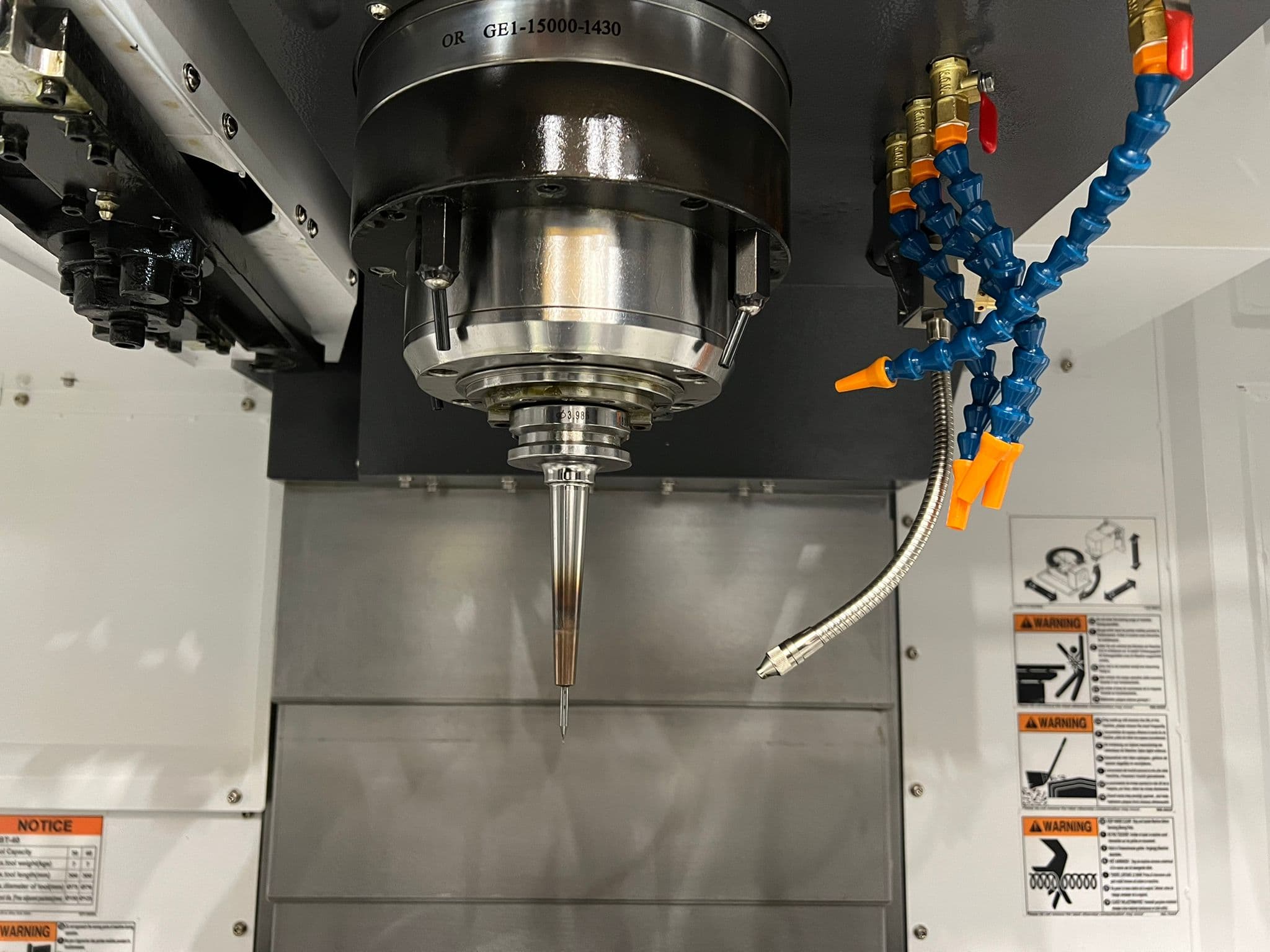

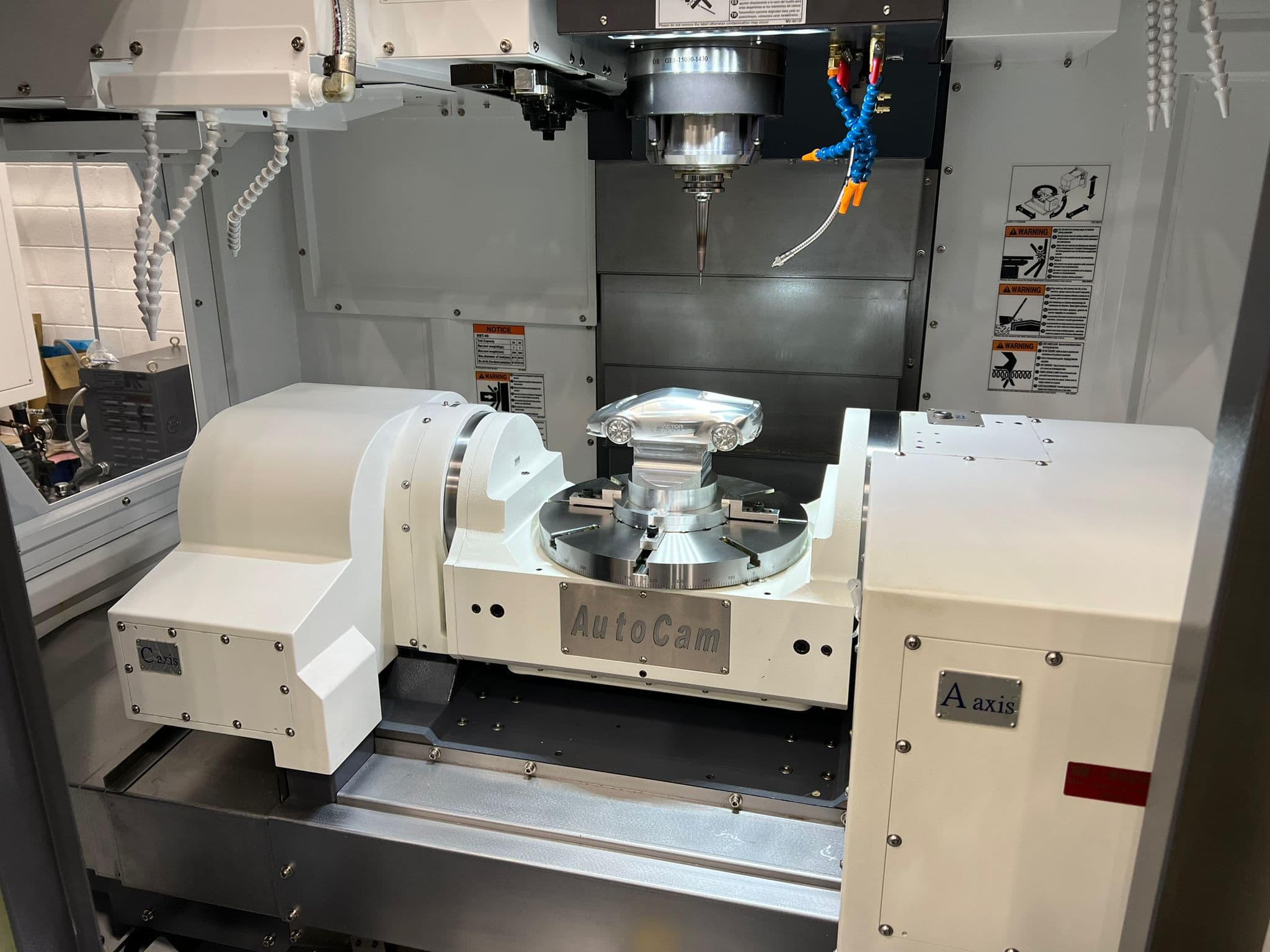

X axis travel 700mm. Y axis travel 500mm. Z axis travel 540mm. Spindle centre to column (vertical milling) 547mm. Spindle nose to table surface (or table centre) 60~600mm. Height from table surface (or table centre) to floor 1085.5mm.  Table work area 380mm. Dimension of T-slot 12H7mm. Max. table load (rotary) 200Kg.  Spindle taper BBT-40.  Spindle motor(cont/30/10min) 7/11/15 kW. Spindle speed 15000rpm. Rapid feedrate – X/Y/Z 48/48/48 m /min. Axis feed motor – X/Y/Z 4/4/7 kW.  Cutting feedrate by table 20 m/min. Linear guide width (X/Y/Z) 30 / 35 / 45 mm. Ballscrew dia. x pitch (X/Y/Z) 40 x 16 (X/Y/Z).  Tilting (swivel)/rotary angles -20 ~30 / 360 deg.  Rotary rapid feed rate 33.3 / 40rpm. Axis feed motor 3 / 1.6 (A/C) kW. Continuous indexing resolution 0.001 (roller cam drive) deg. Continuous torque output 1060 / 588 (A/C) N-m. Braked torque (clamping) 2452 / 2158 (by brake, A/C) N-m. Max. tool length 300mm. Max. tool weight 7Kg. Magazine capacity 30. Max. tool diameter (without adjacent tools) 76(125)mm. Tool exchange time 2.3 (T-T), 6.0 (C-C) sec. Pull stud angle 15 (JIS 40P) deg. Tool selection method – Random. Fanuc 0i-MF Plus. 15” Colour display with QWERTY keypads. Manual Guide I. 2GB CF Card. AICC-3 (400 blocks). VSS Macros (GUI). IHMi. 15000 rpm DCS spindle (oil air lubricatedbearings by aT8/15000i motor). Spindle oil cooler. Air conditioner for electrical cabinet. Through spindle coolant (MRT3-36, 20 bars/50hz with Mahle duplex filters). Air through spindle. Table shower. Oil mist spray. 30 Tool magazine. Twin screw chip removers. High pressure coolant (Grundfos MTH 4-40/4). Chip conveyor & cart (left exit). Oil skimmer. Handy air gun & coolant gun. Remote handwheel. Fully enclosed splash guarding. Victor toolbox & standard accessories. Machine dimension (with conveyor) (L x W x H) 3200 x 2848 x 3084mm. Weight 6000kg
