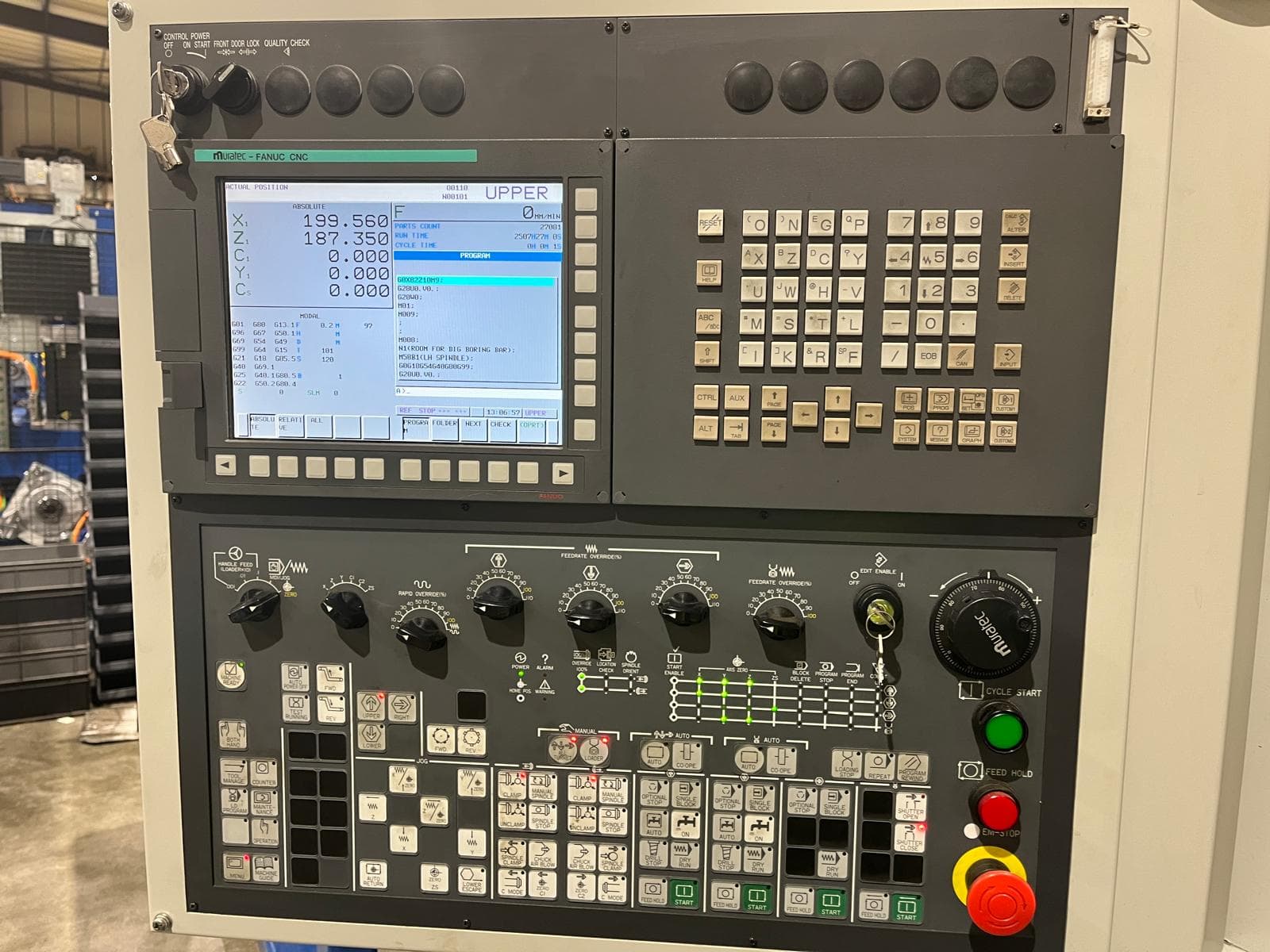

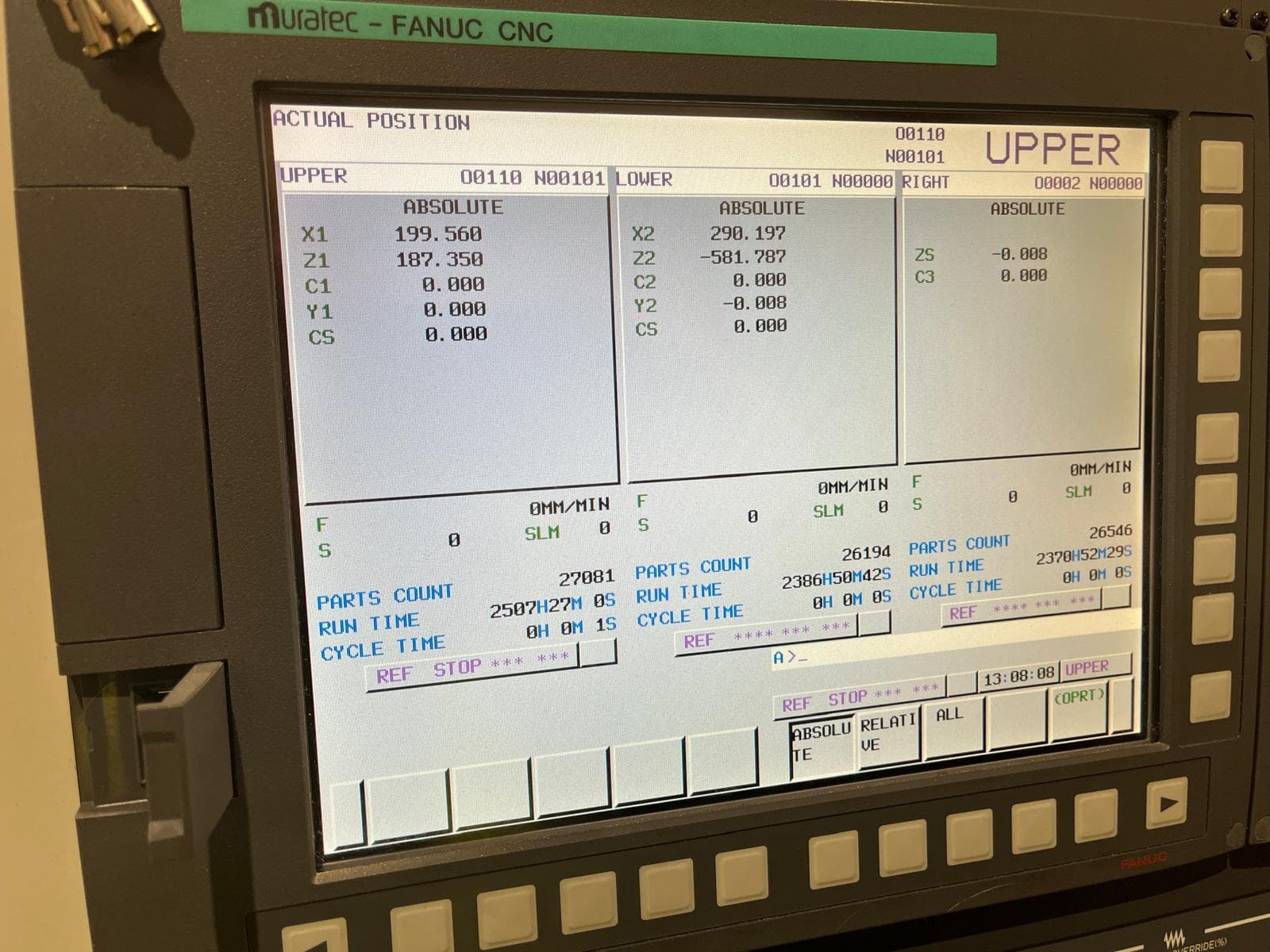

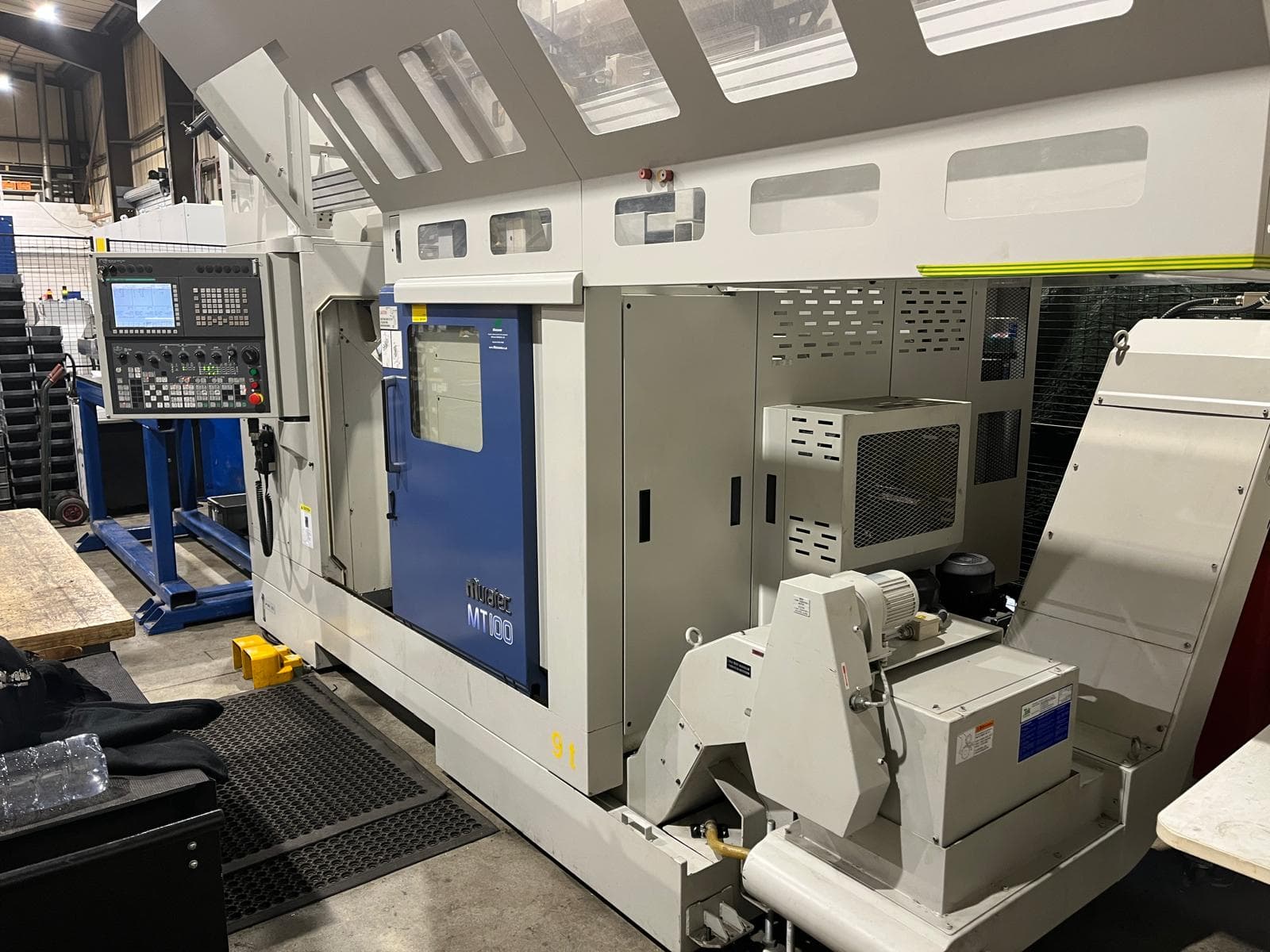

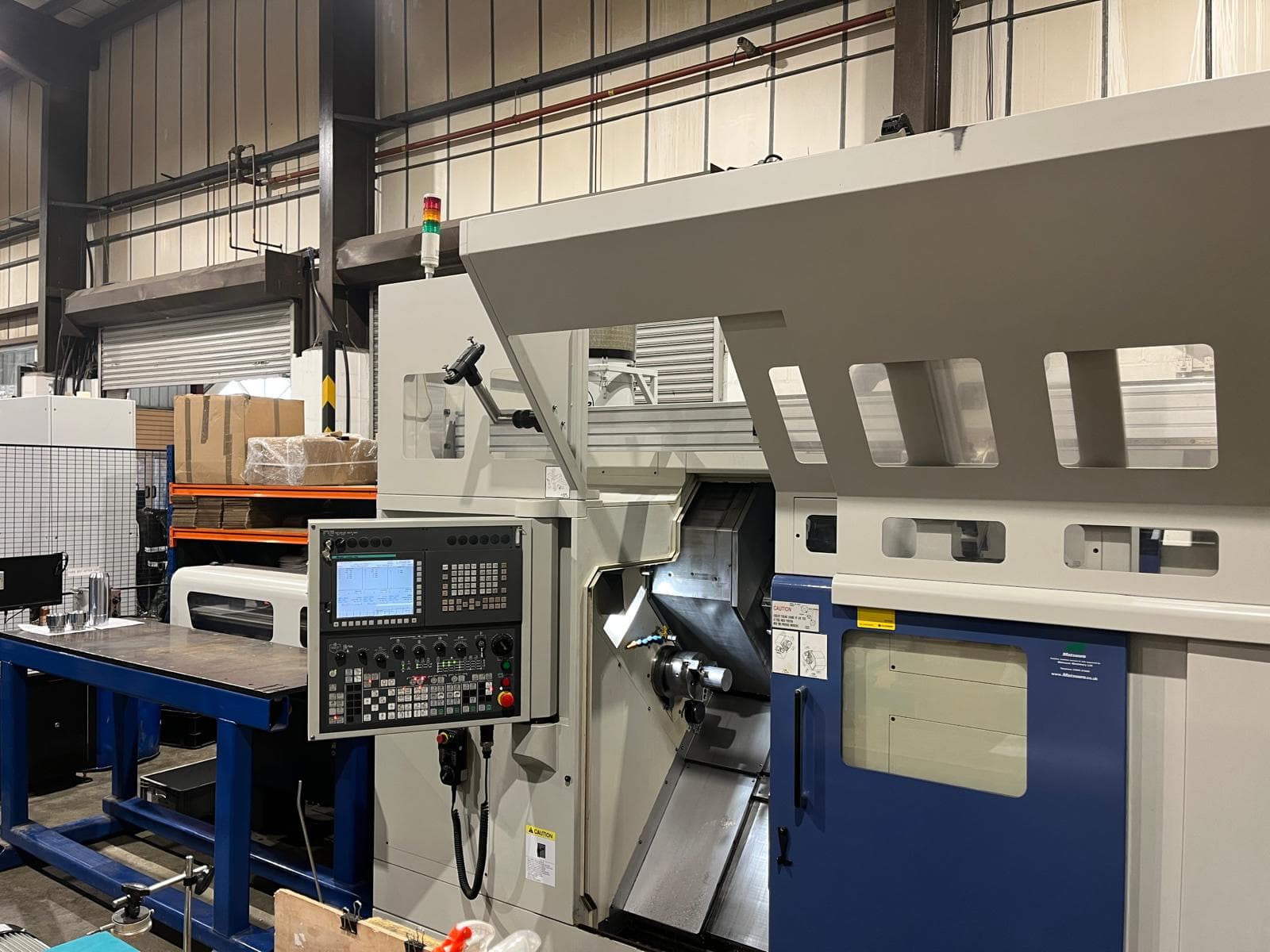

MURATEC Murata MT100 CNC Lathe with Sub Spindle, Upper & Lower Turrets, LNS Alpha SL65-S Barfeed. G-Tech Fanuc CNC Control.Year 2016

Description

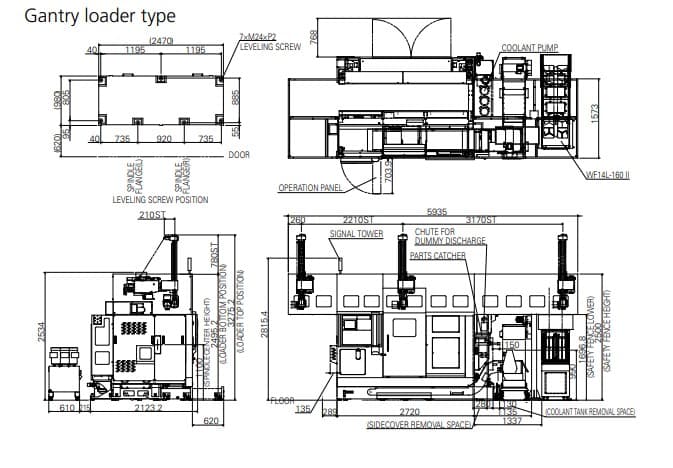

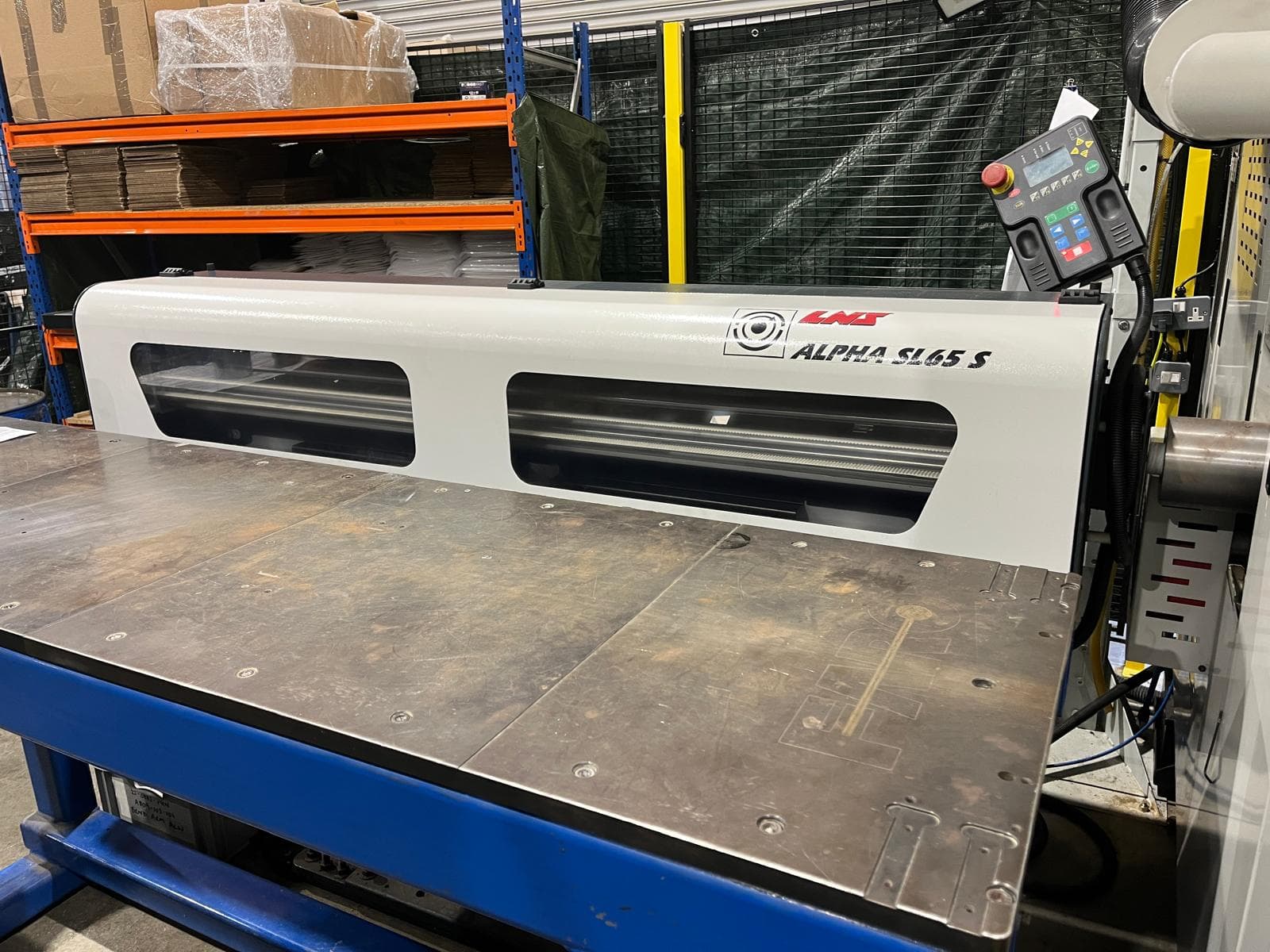

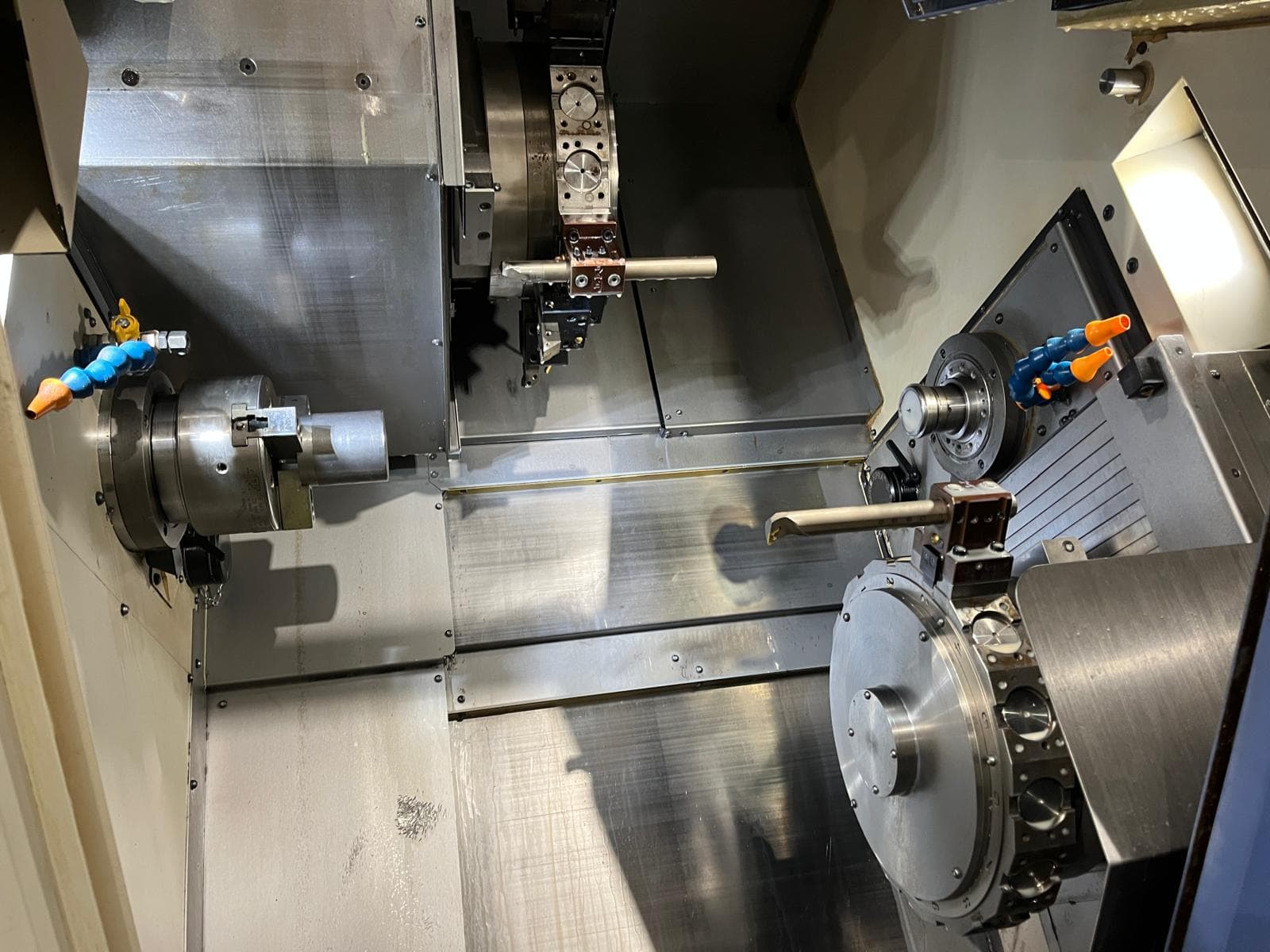

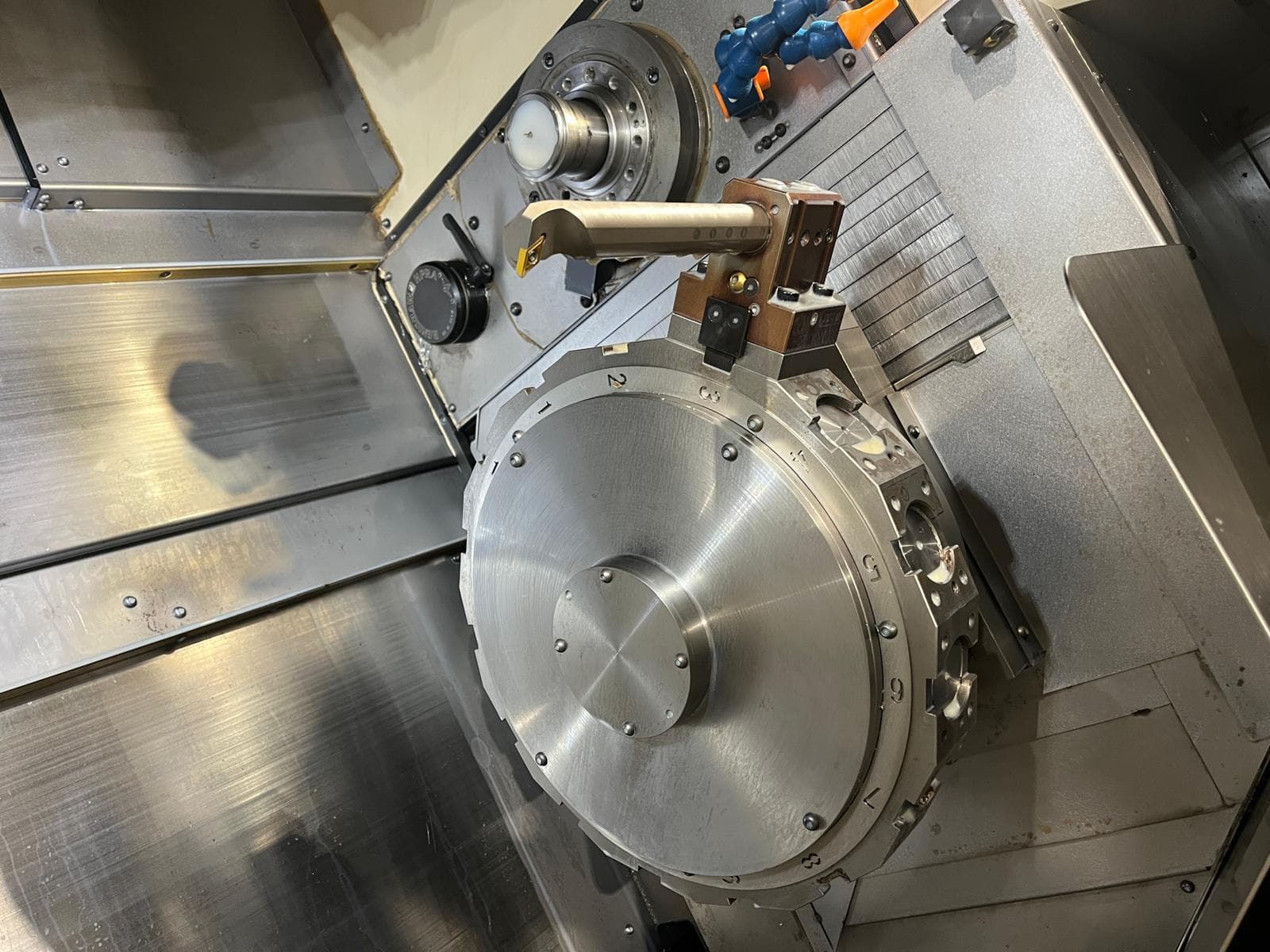

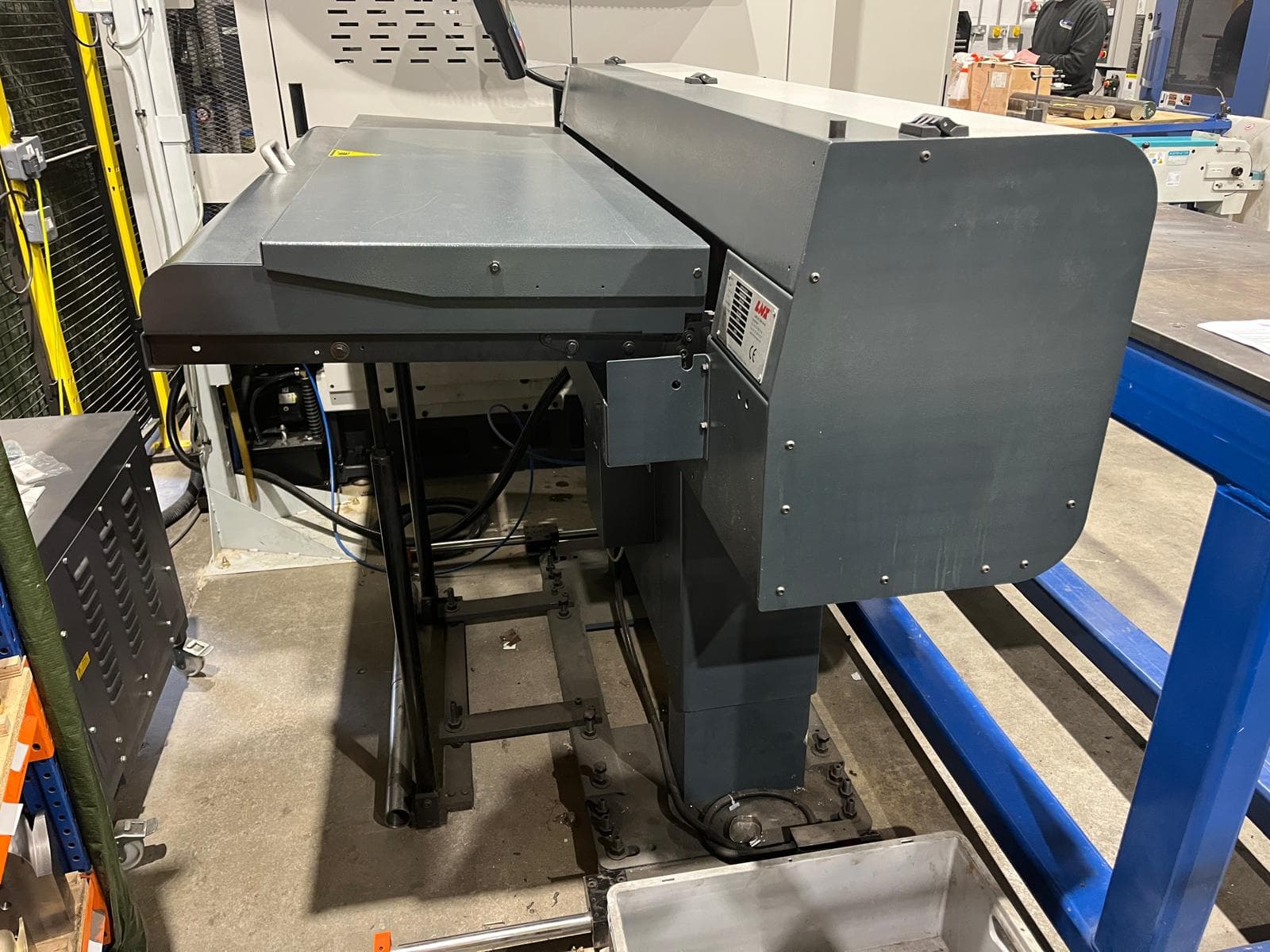

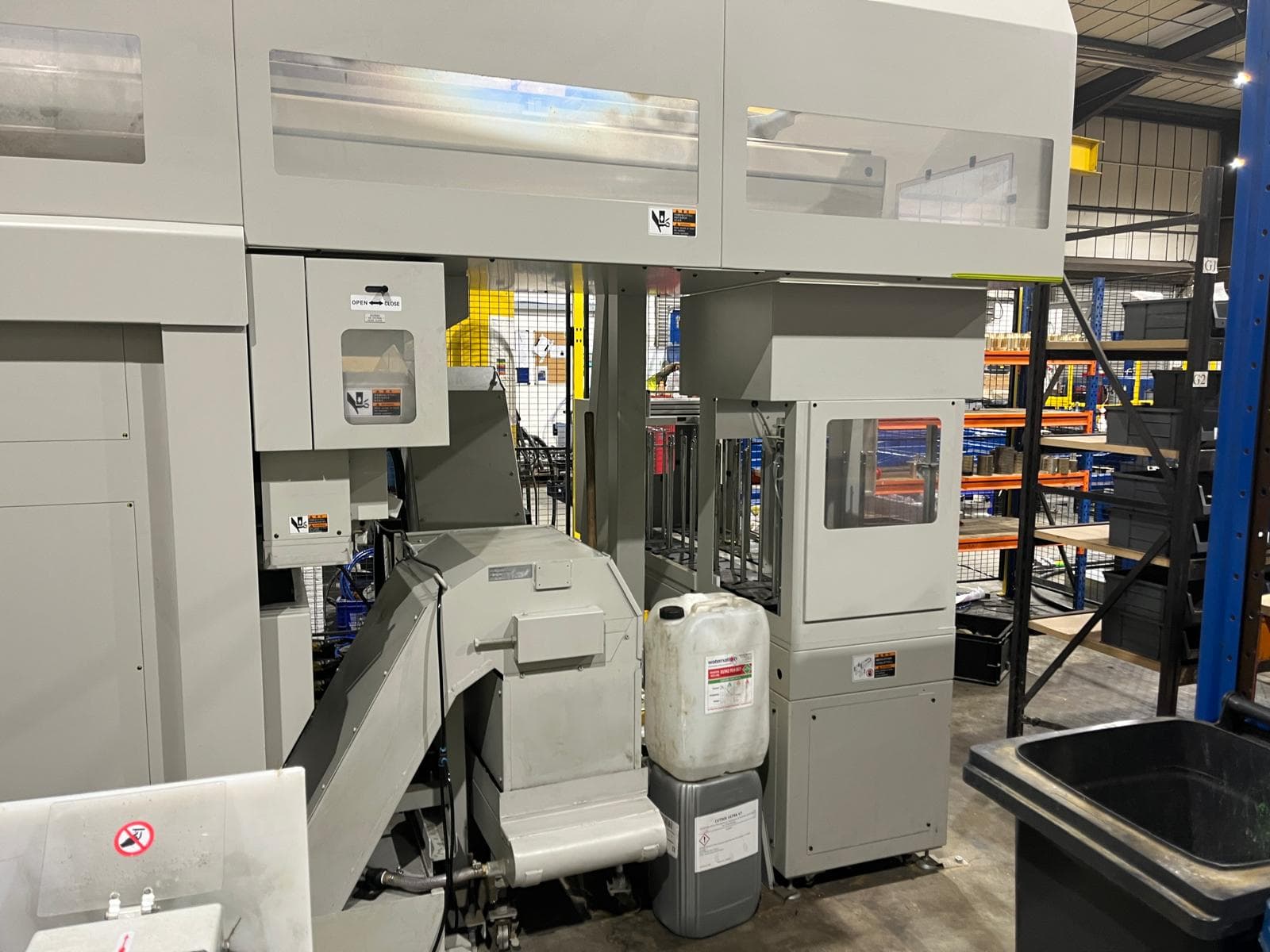

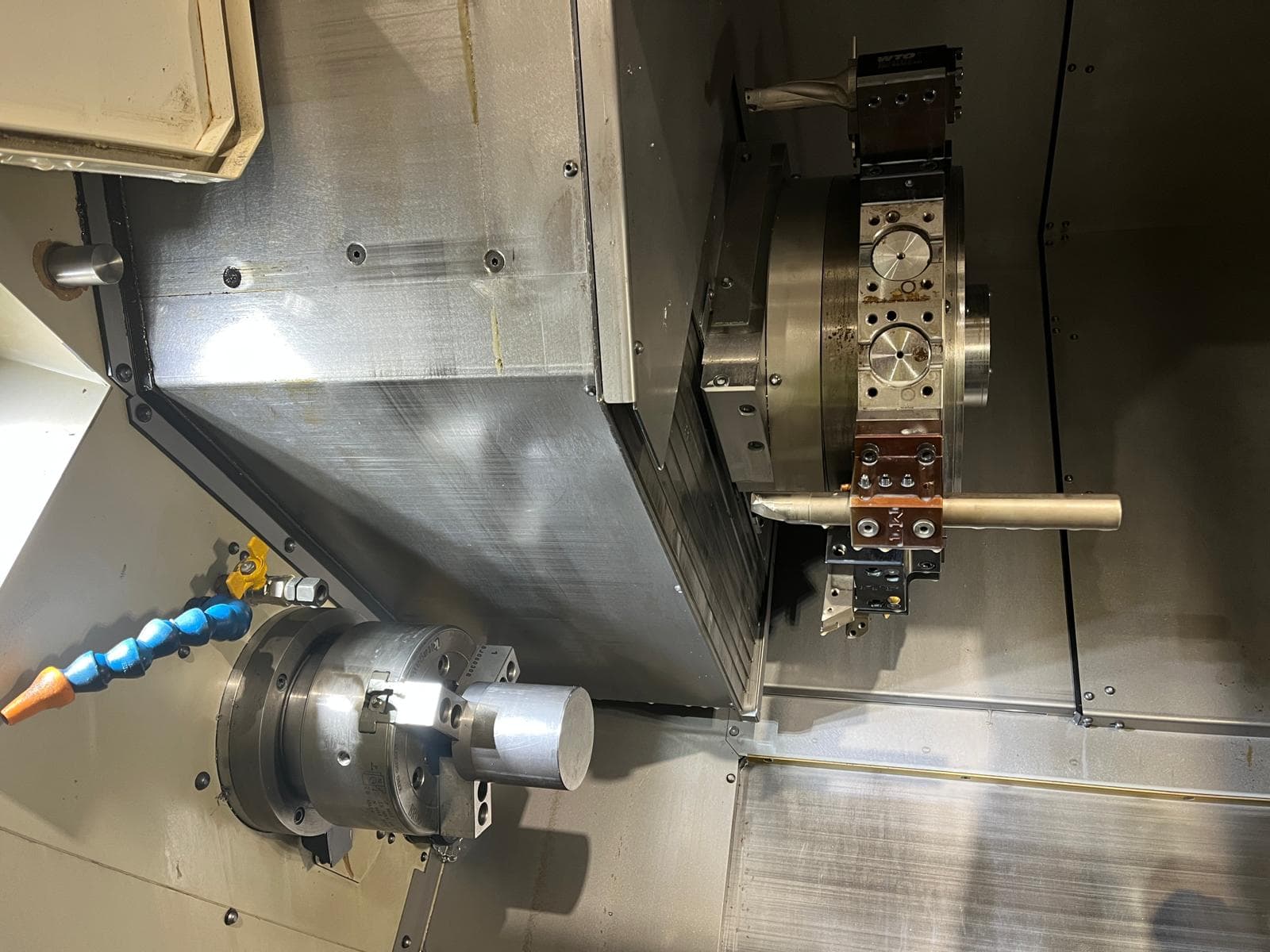

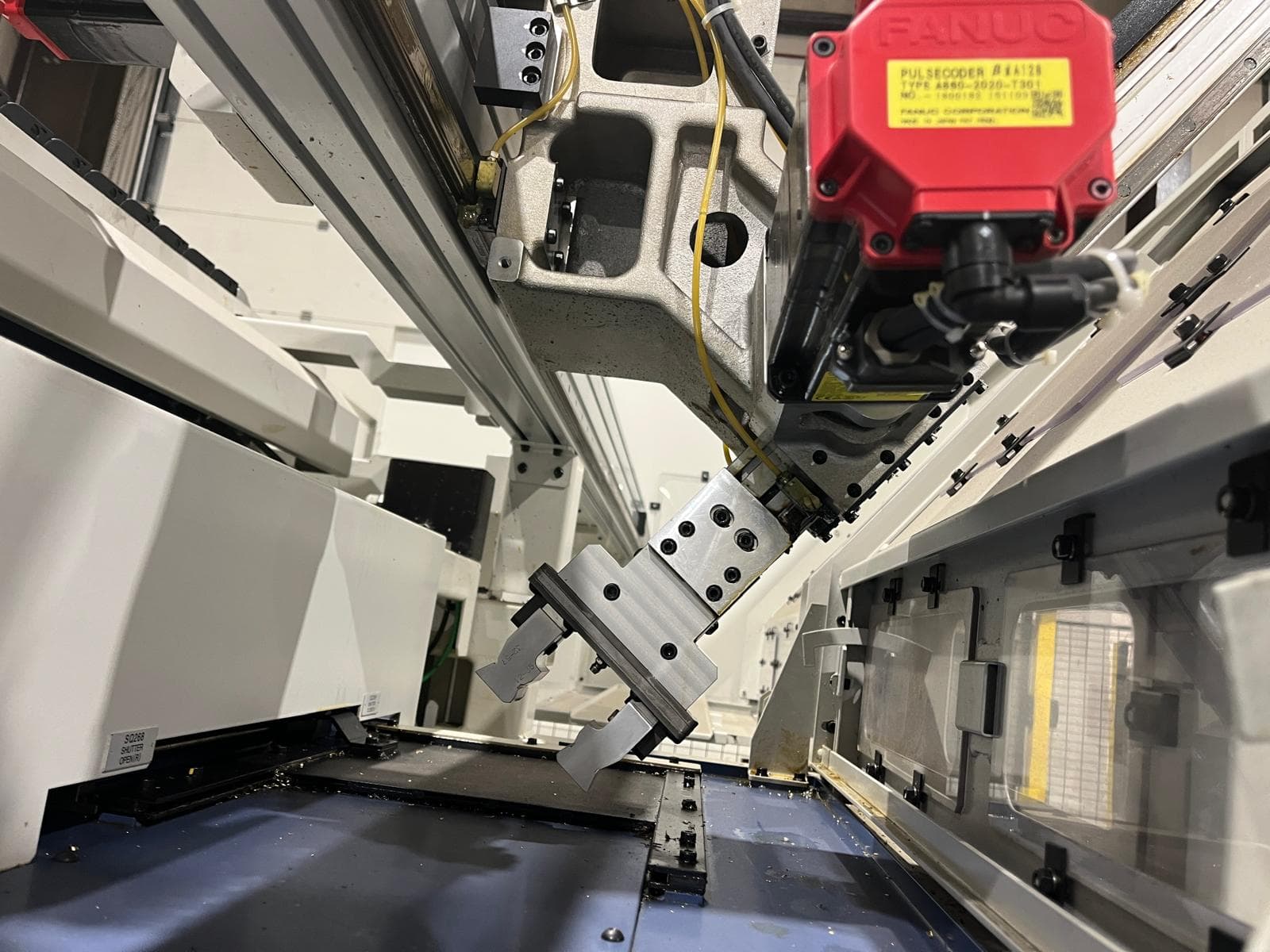

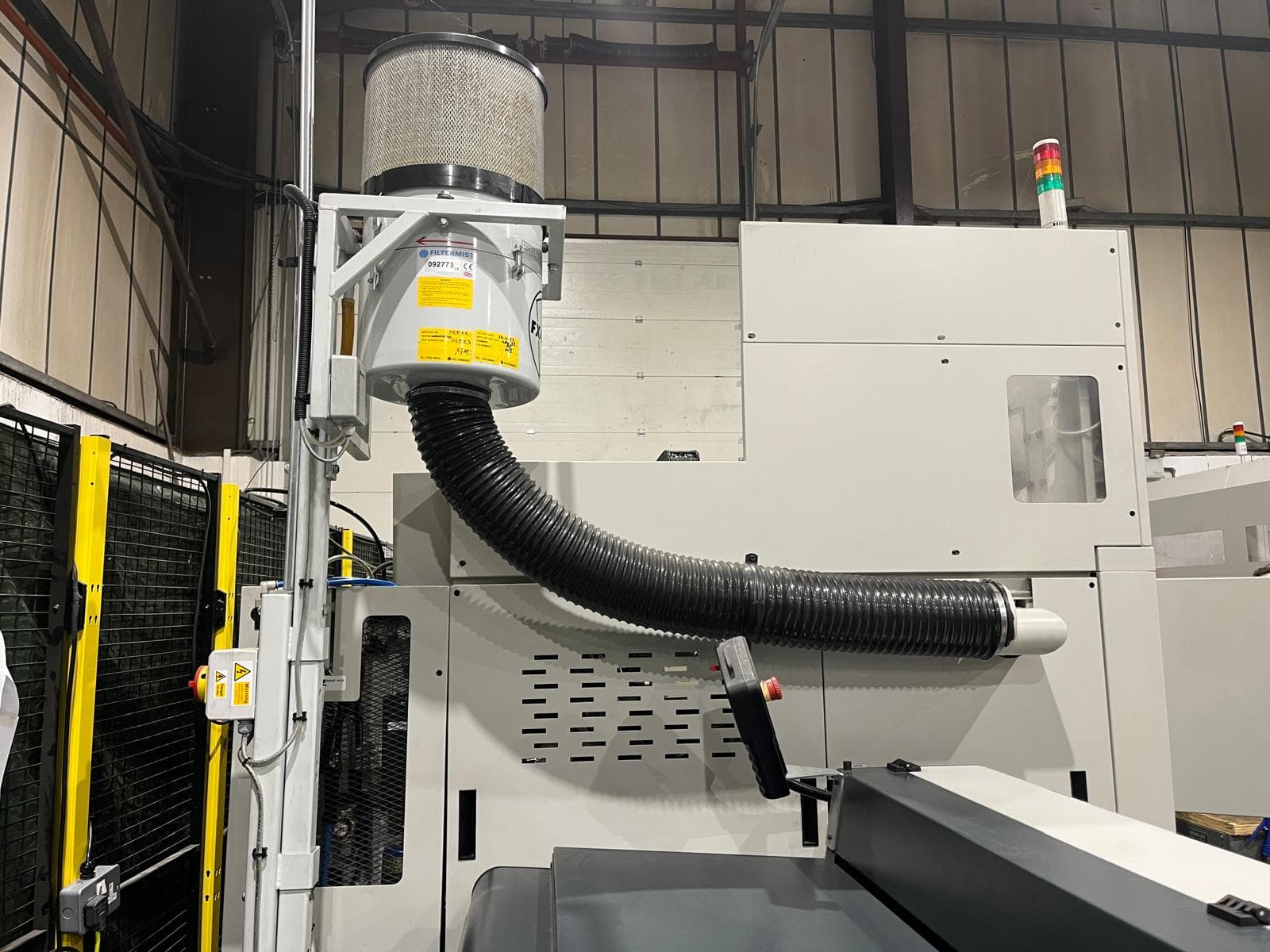

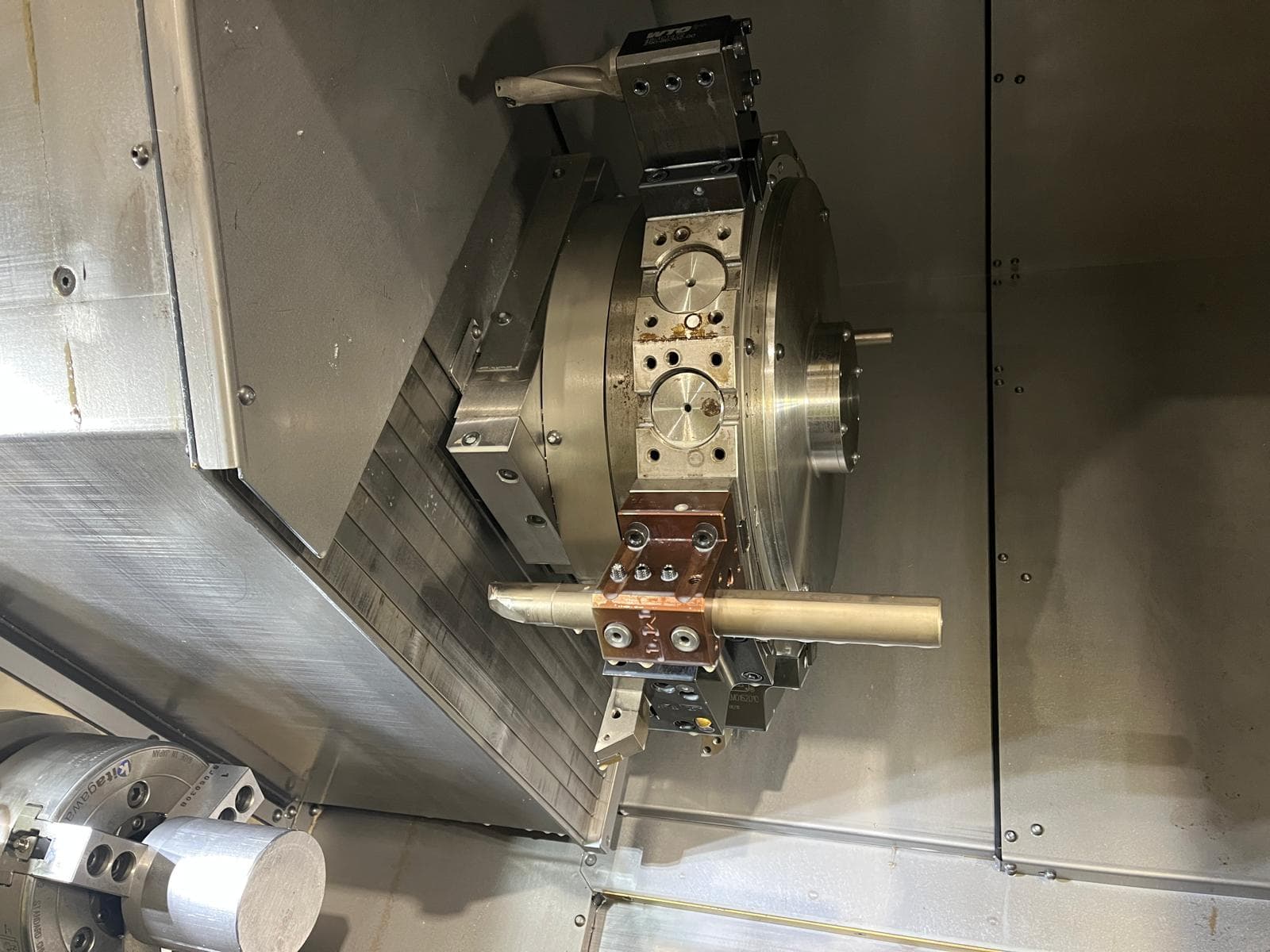

Maximum swing 410mm . Maximum turning length 620mm. Maximum turning dia. 210mm. Maximum Spindle speed 6000 rpm on both main spindle and sub spindle. Spindle capacity 51mm. 15 station upper & lower turrets. Y axis on both turrets (+/- 30mm). Driven tooling on both turrets in all positions. 6000 rpm. Driven tooling power 8kW. Kitagawa BR06 170mm dia.  3 Jaw powered chuck fitted to main spindle. 2 Collet Chucks. FX4000 Filtermist. Swarf conveyor. LNS Alpha SL65-S Multifeed Barfeed.  Overhead gantry. Toolsetter for both turrets. Machine dimensions – See image attached. Approximate weight 9,000kg.
