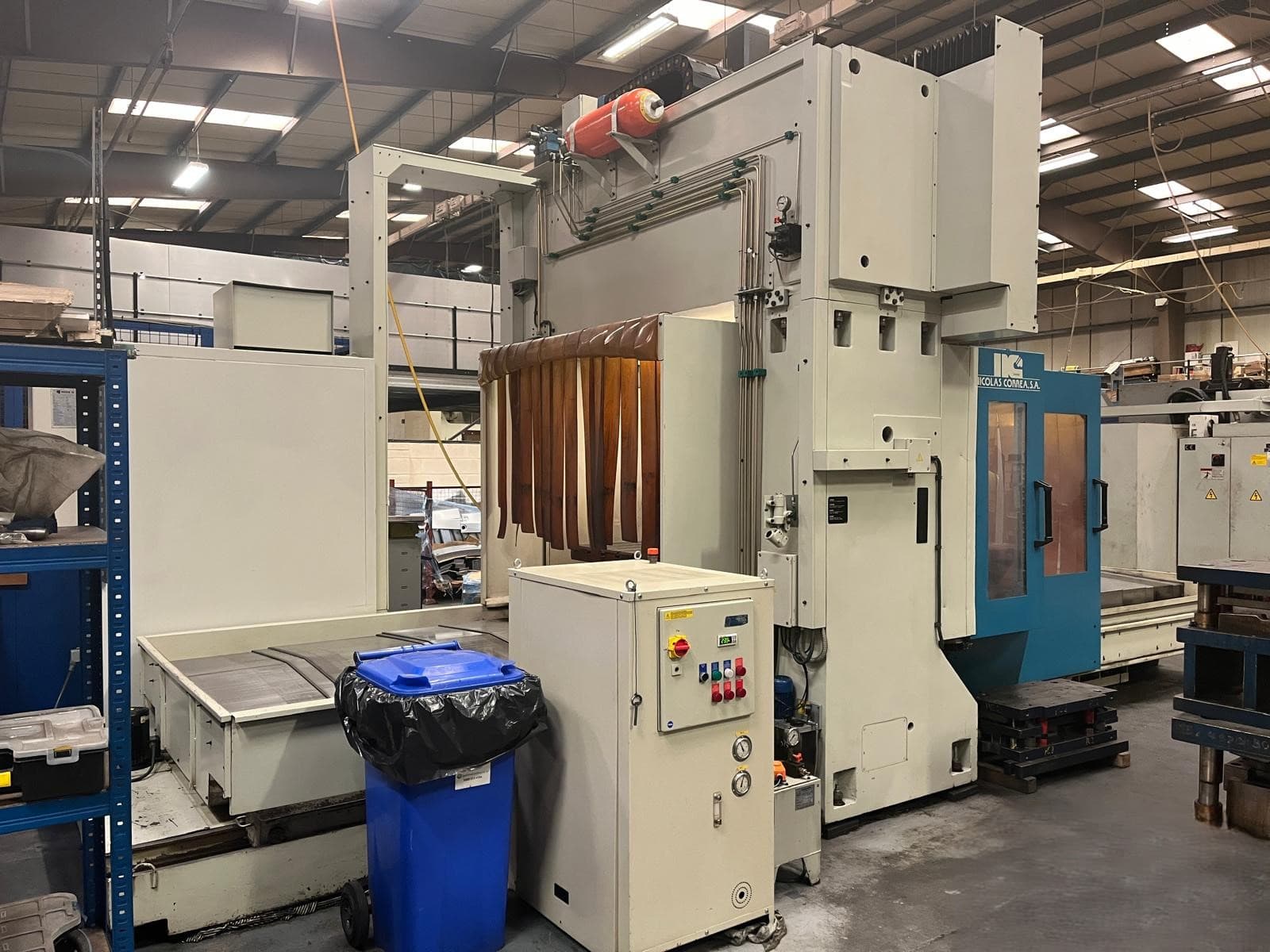

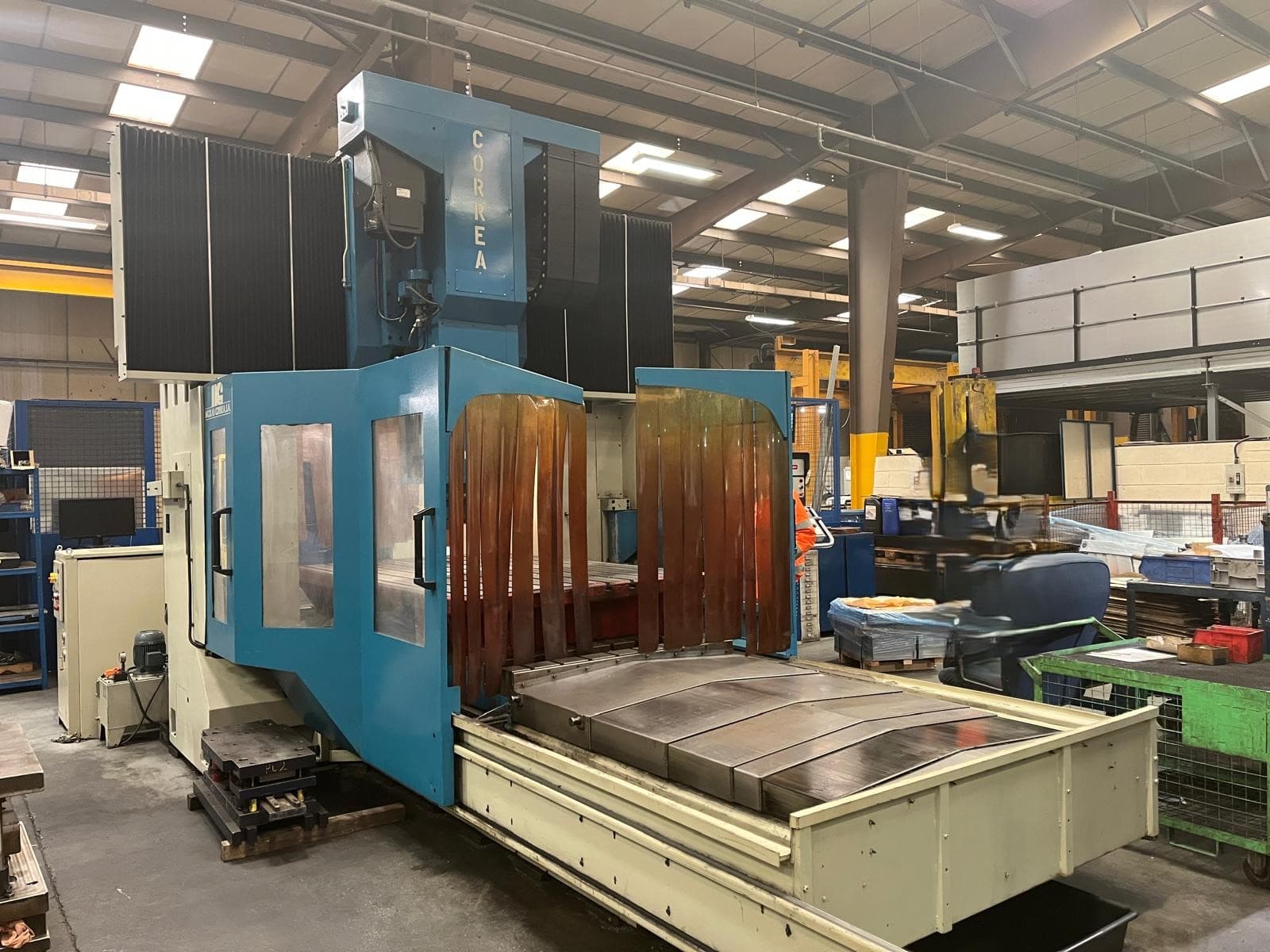

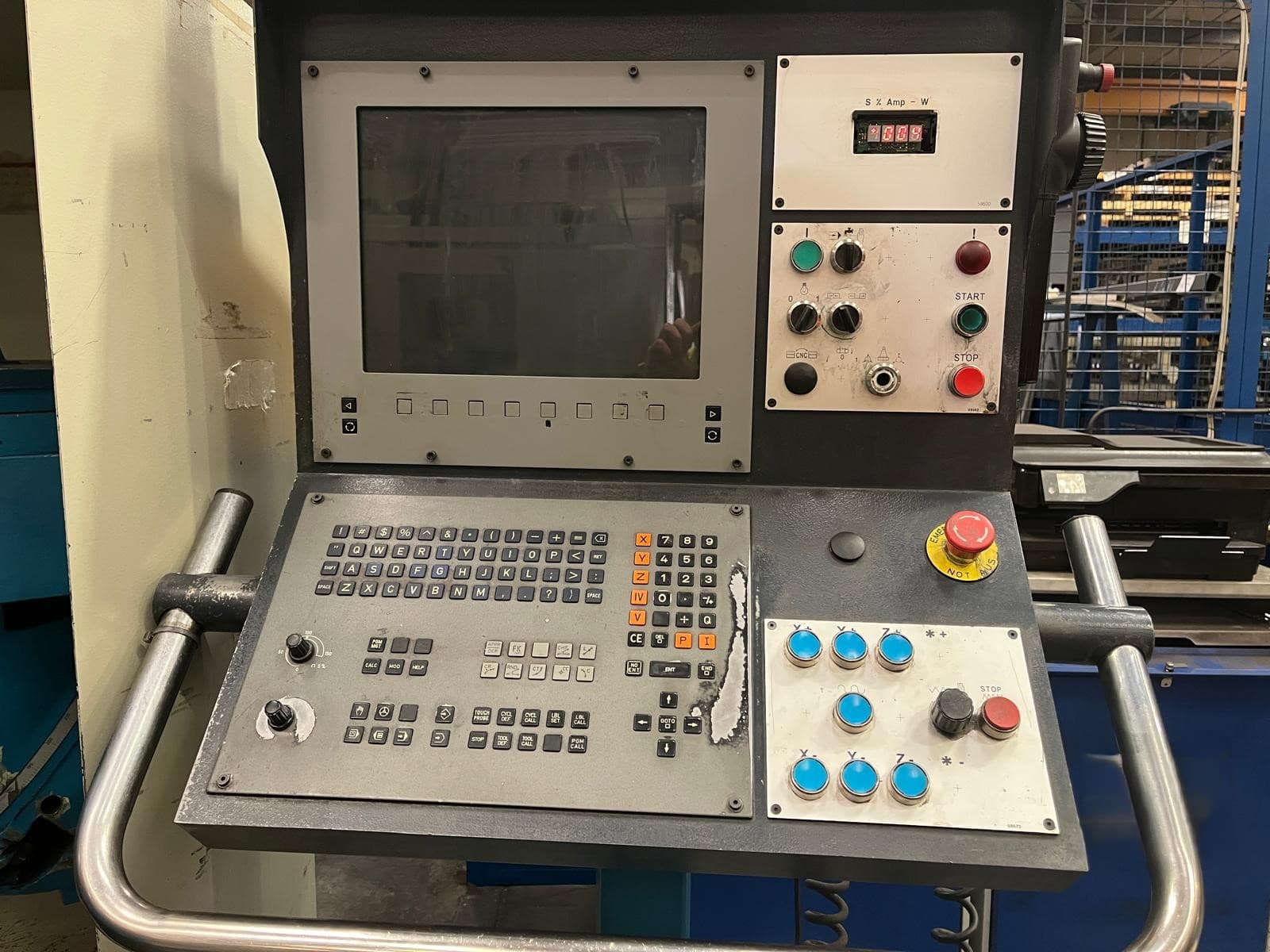

CORREA FP30/30 Gantry Mill with Heidenhain 426 CNC Control. Year 2002

Description

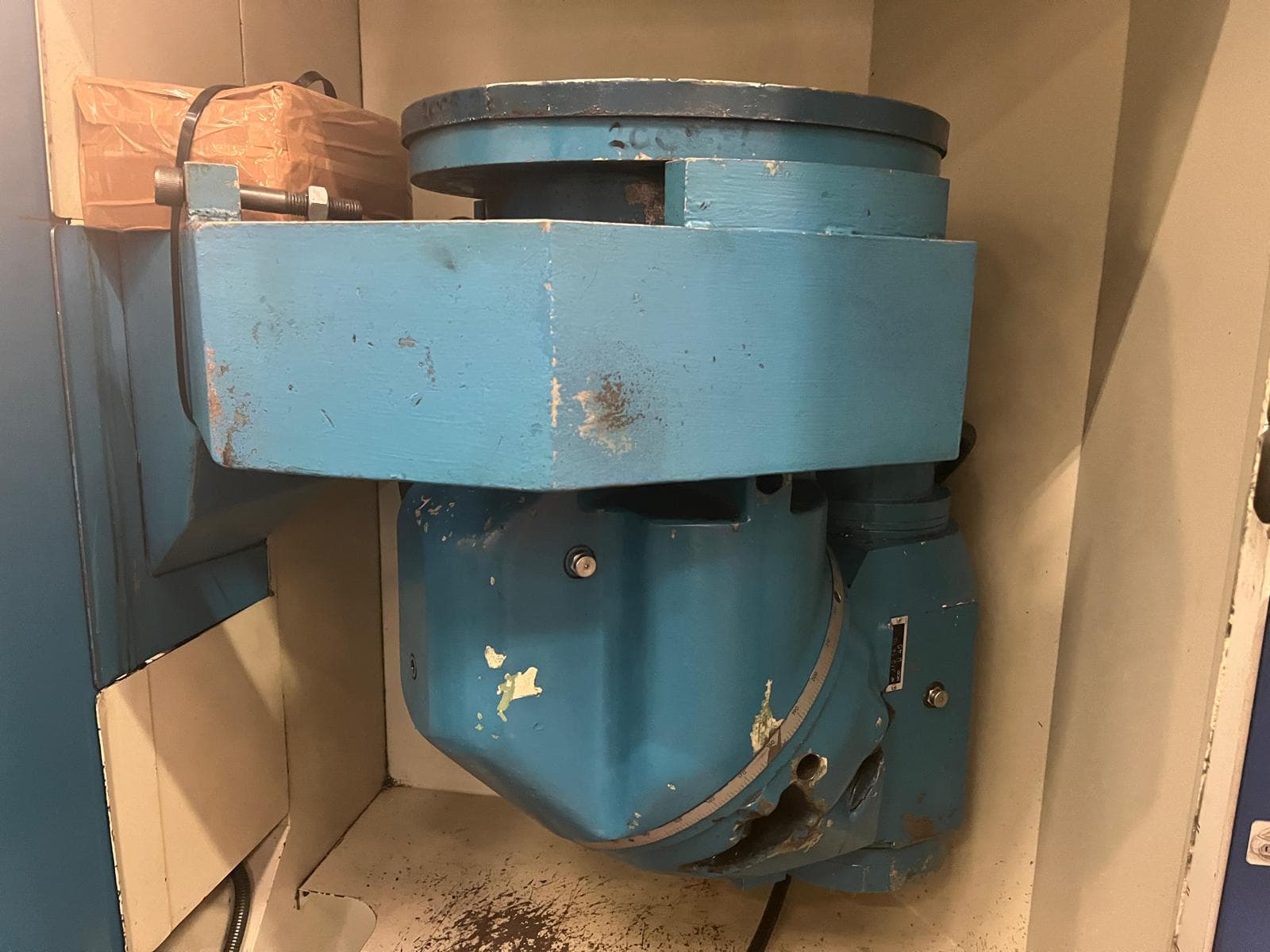

Table size 3000mm x 1250mm. 8 x T Slots 8 x 22mm. Distance between columns 1740mm. Longitudinal travel 2500mm. Cross travel of Milling Spindle 2000mm. Vertical travel of quill 800mm. Spindle Taper ISO 50. Spindle speeds 311-5000 rpm. Feeds range 2mm-7500mm/min. Rapids X 15000mm/min. Y & Z 12000mm/min. Maximum loading on table 10,000 kg. Universal Milling Head. Manual Tool change (No ATC). Machine dimensions 7000mm x 5000mm x 3950mm high. Approximate weight of machine 25,500 kg.
