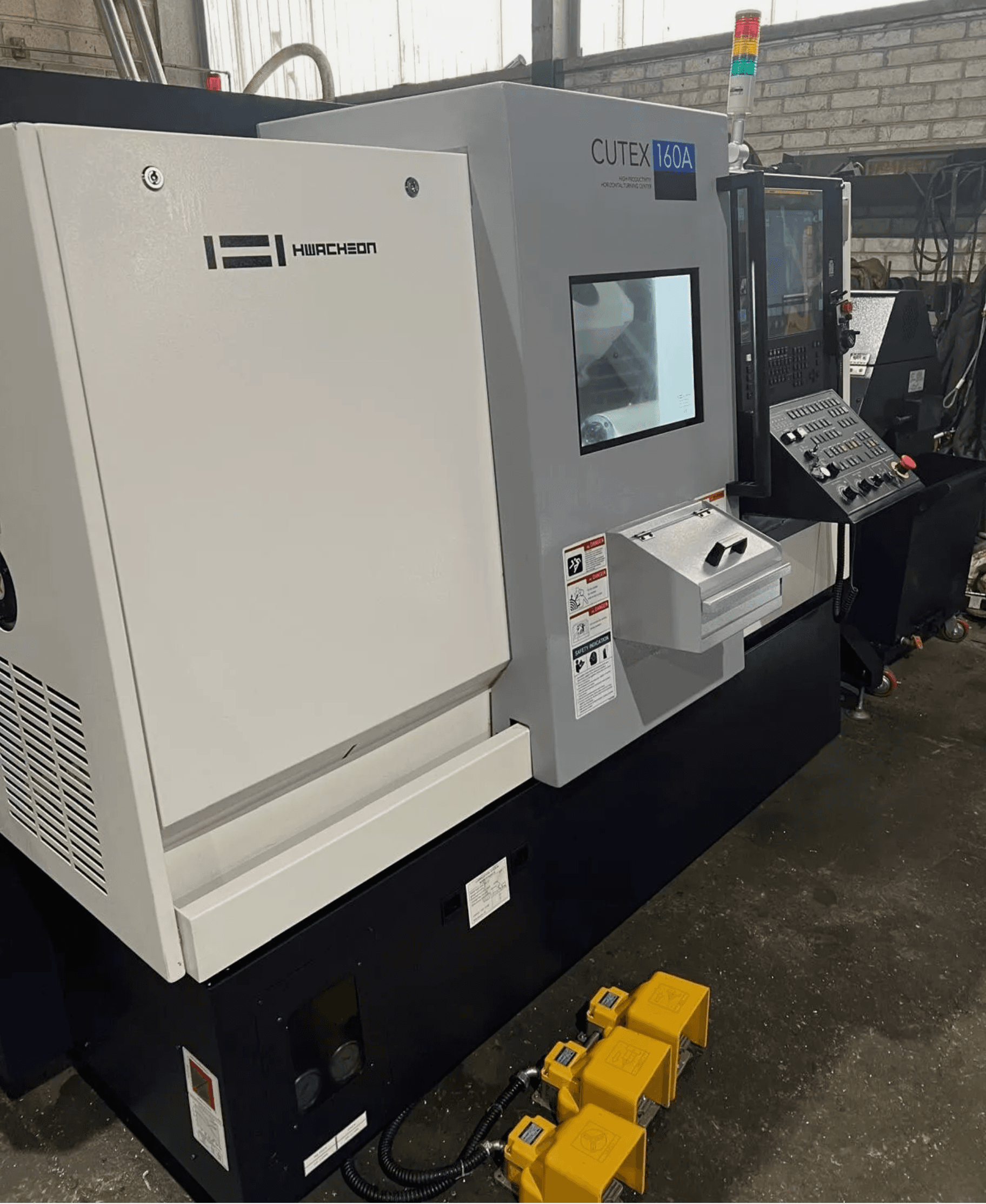

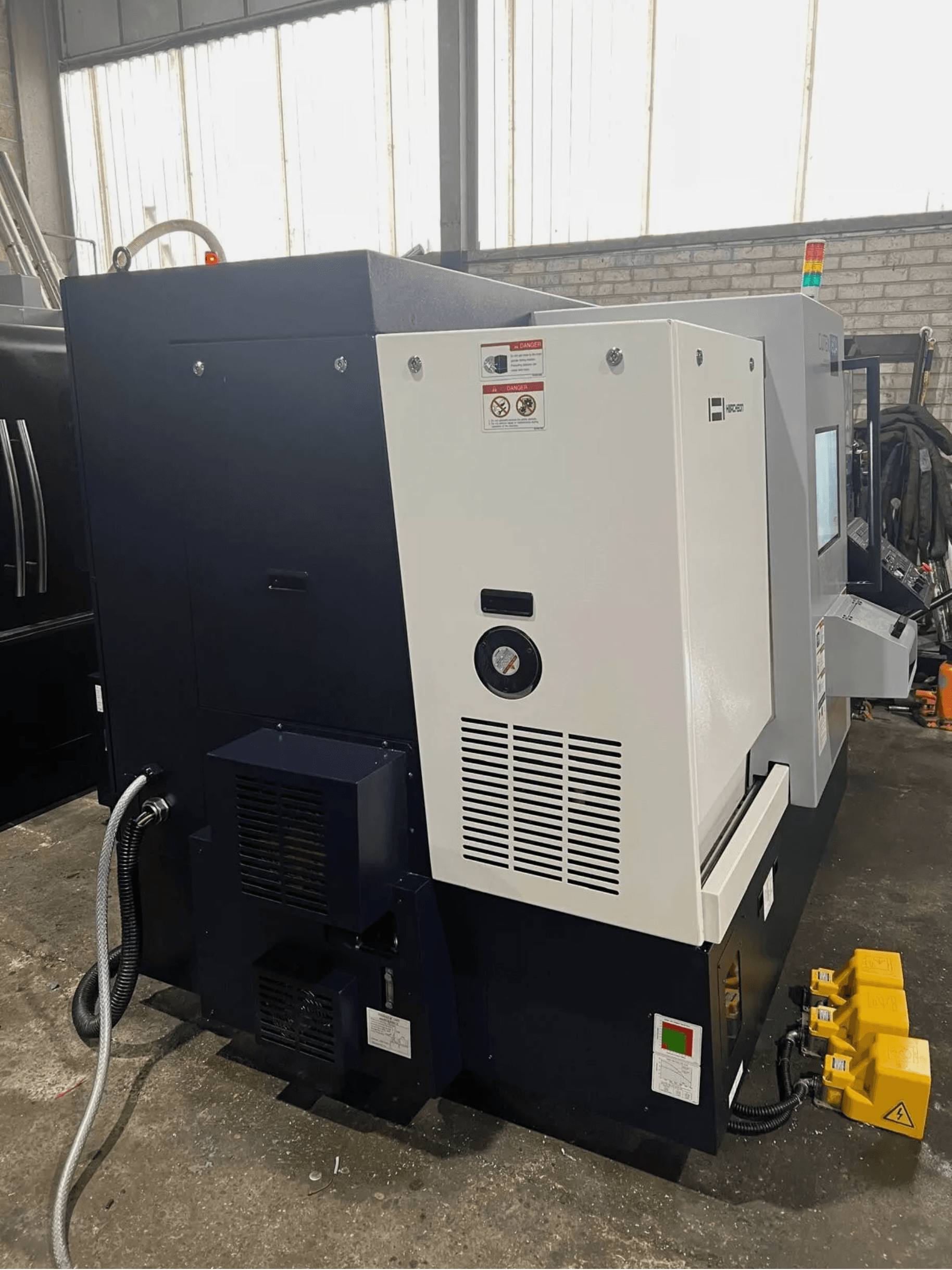

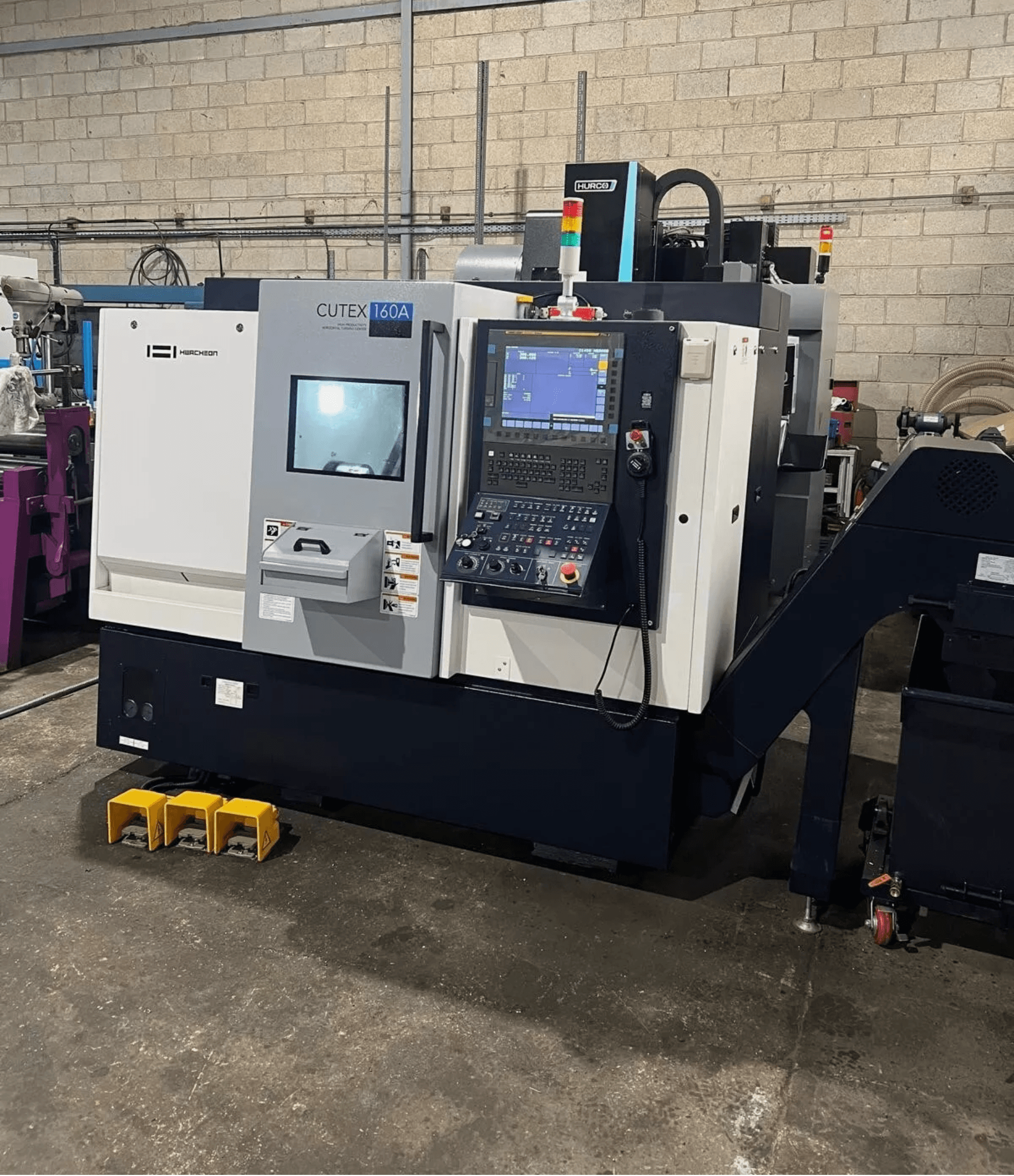

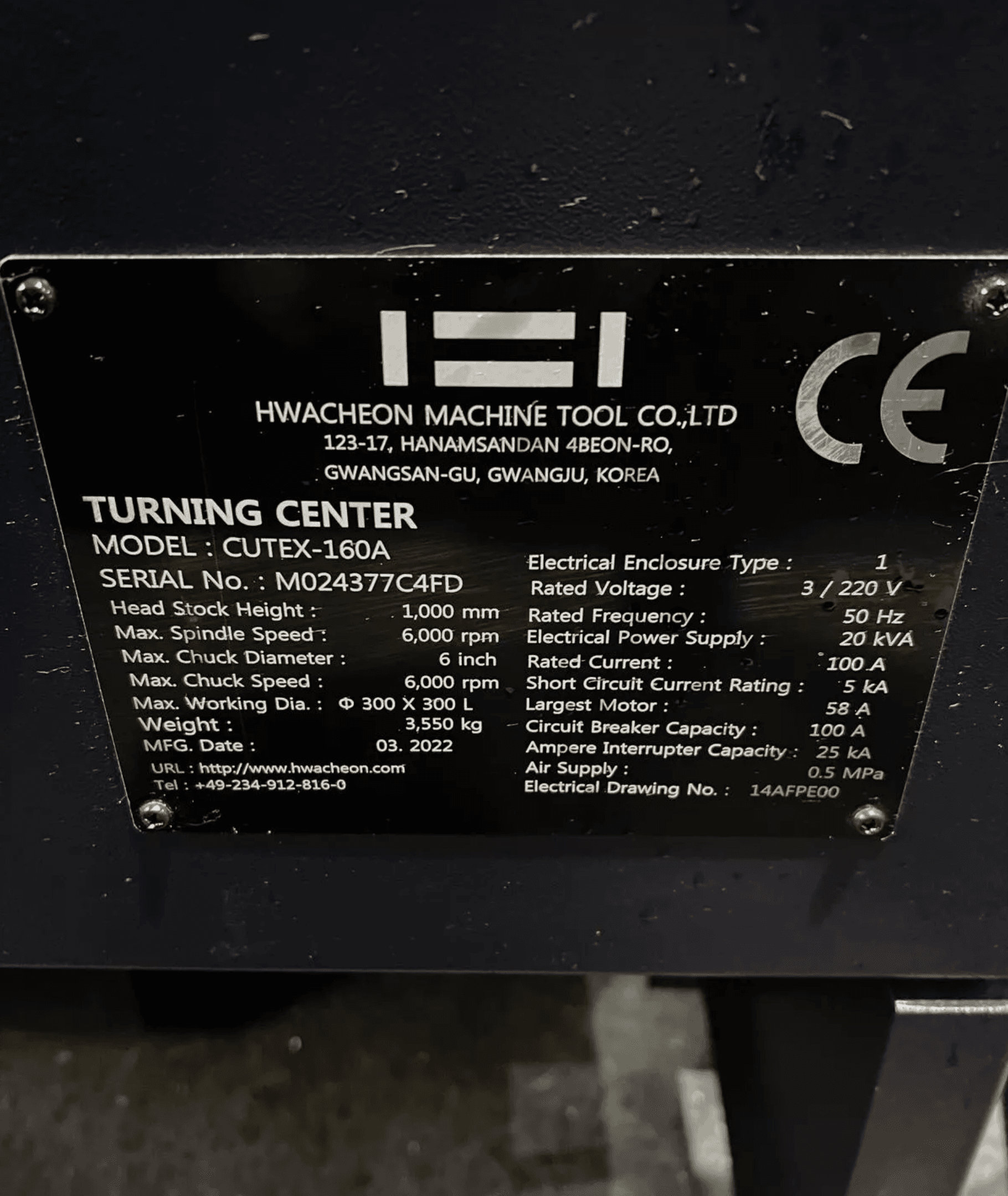

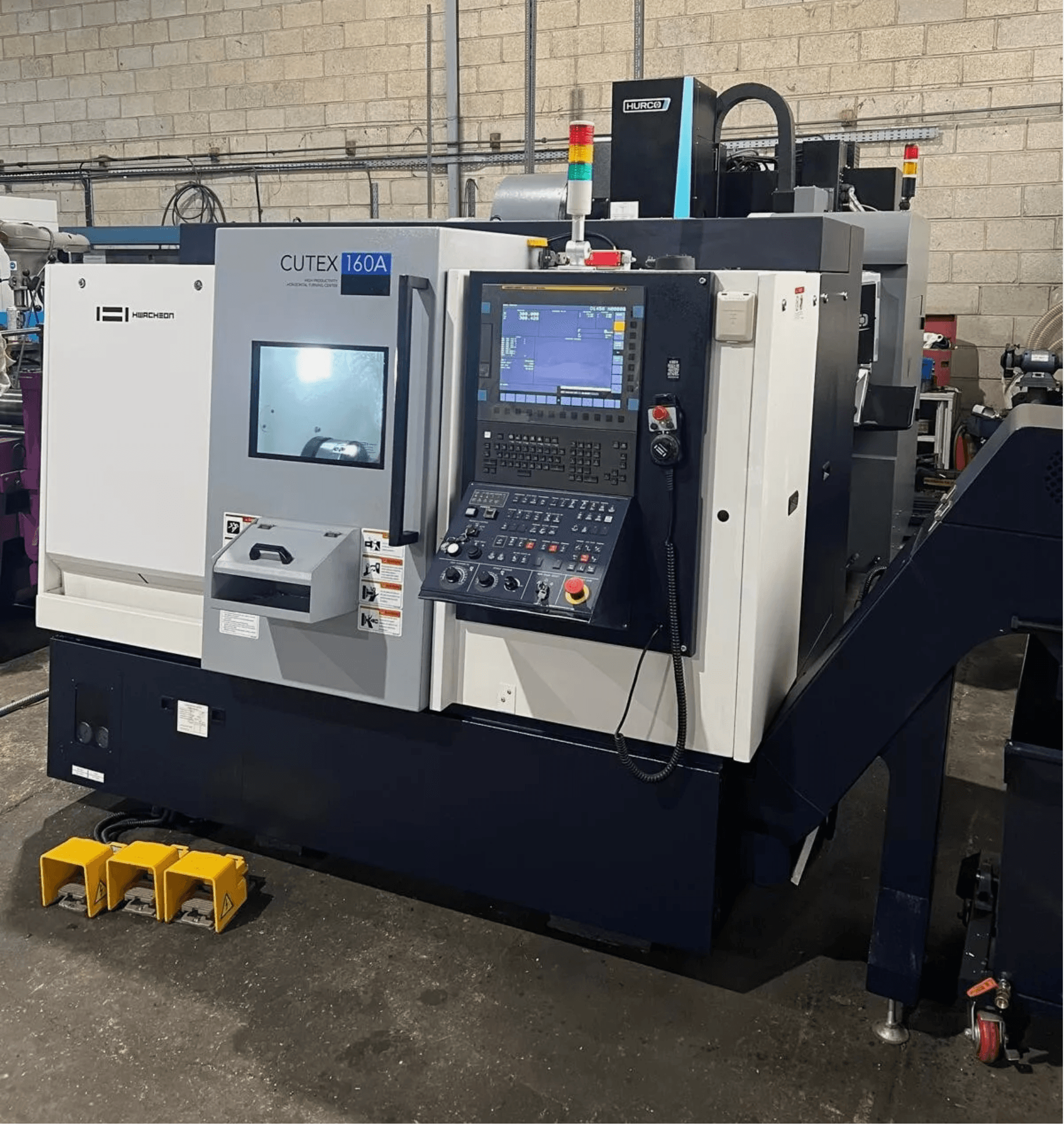

Hwacheon Cutex 160A CNC Lathe, with Renishaw Tool Probe

Price on request
Condition: NEW· Manufacturer: Hwacheon· Country: United Kingdom

Description

Hours: 789 Hours from new
Year: 2022

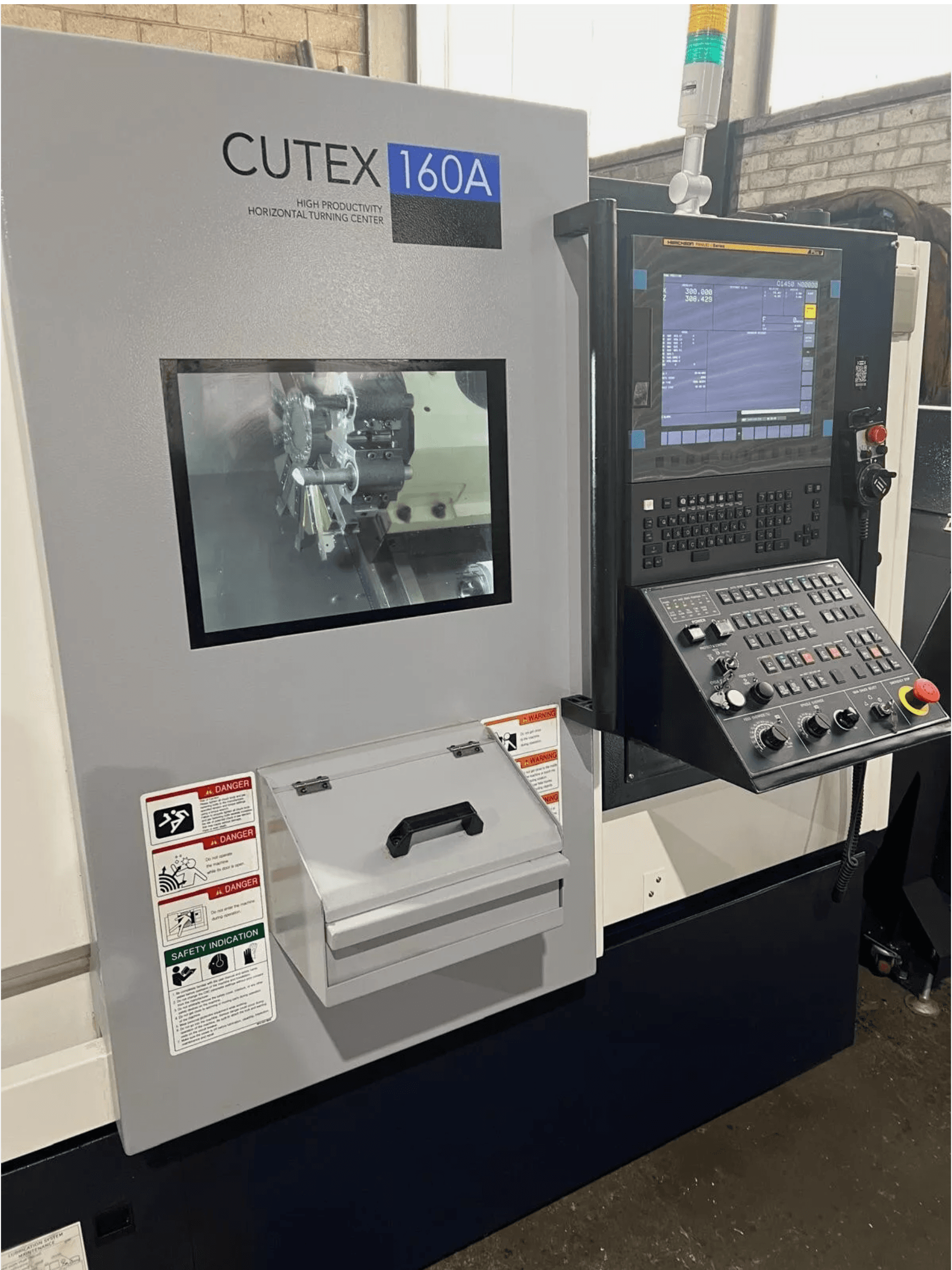

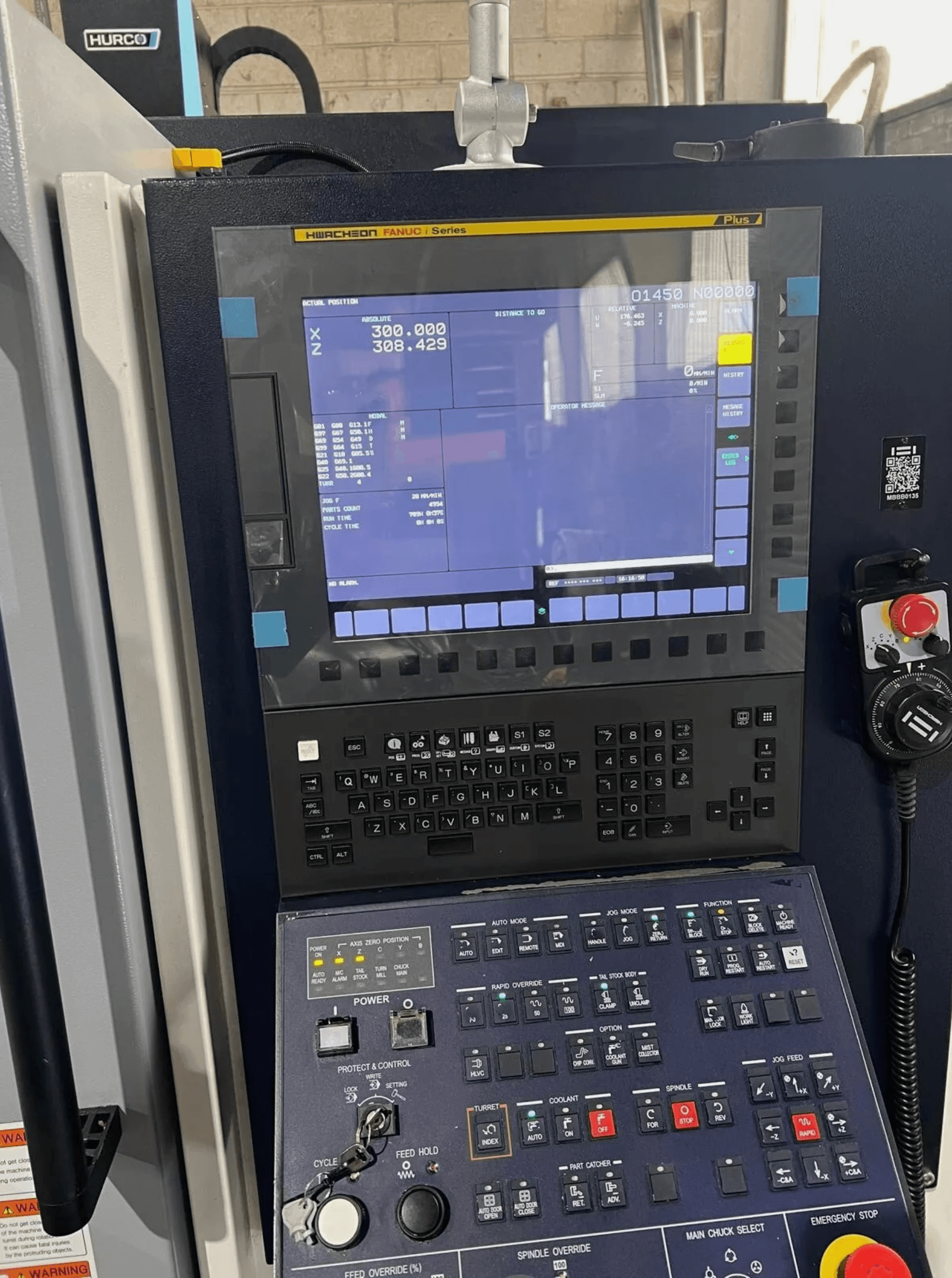

Control: CNC Fanuc 0i-TF Plus
Swing Over Bed: 550mm
Max Cutting Diameter: 300mm
Chuck SIze: 6"
Spindle Nose: A2-5
Max Spindle Speed: 6000rpm
Through spindle hole diameter: 56mm
Max bar size: 45mm
Spindle Bearing Inner Diameter: 90mm
Spindle Motor: 15kW

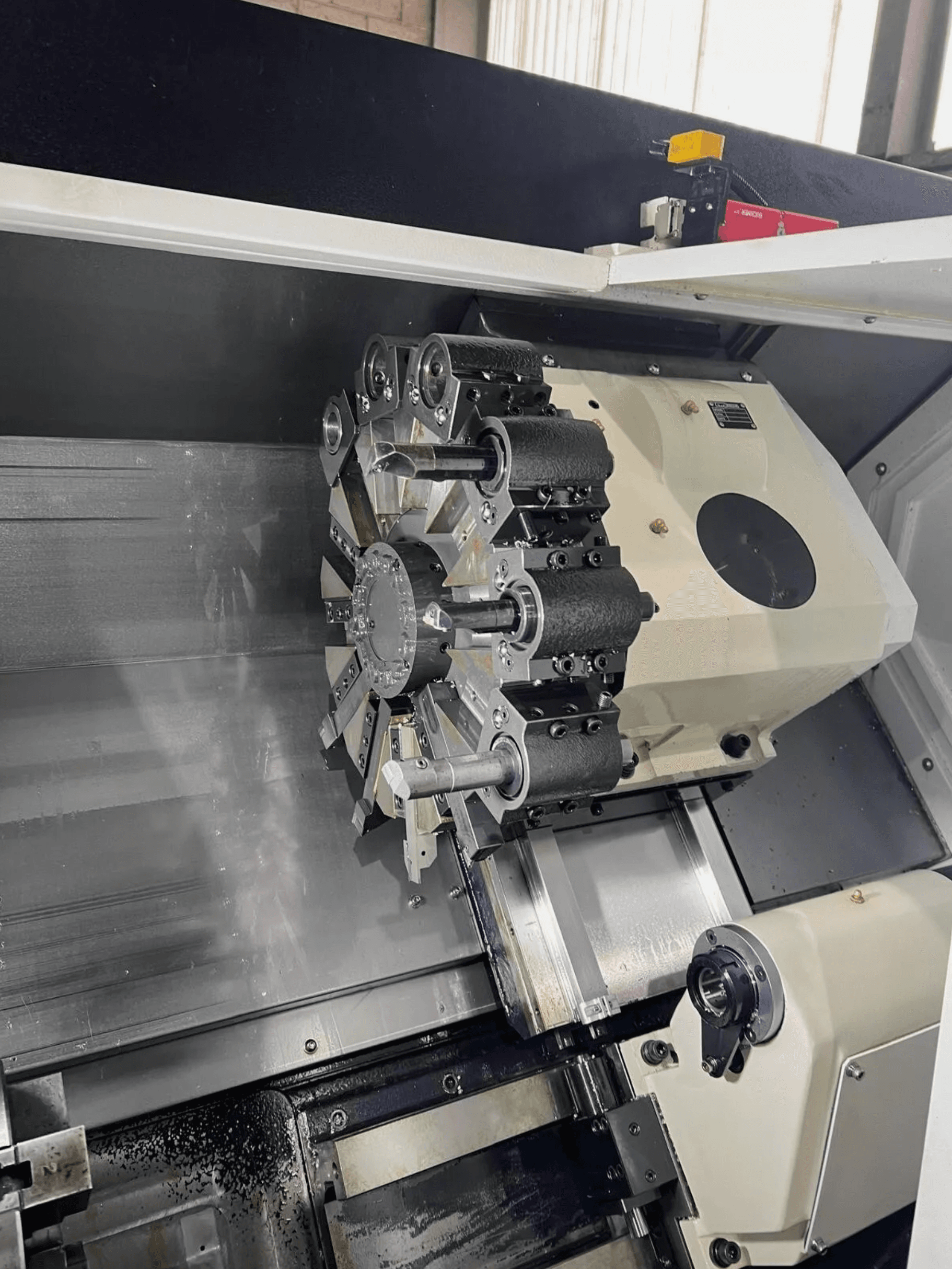

Number of tool station: 12
Tool Size: 25 x 40mm
Turret Indexing time: 0.15 sec
Rapid Feedrate: 36 / 36m/min
Max Stroke: 170 / 335mm
Feed Motor: 1.8 / 1.8 kW
Quill Diameter: 60mm
Quill Stroke: 80mm
Quill Taper: 4MT
Lubrication tank Capacity: 2L
Hydraulic tank capacity: 11L
Coolant tank Capacity: 81L
Power Requirement: 20kVa
Dimensions: 2373mm x 1520mm x 1720mm (L x W x H)
Weight: 3550kgs

Send Enquiry

United Kingdom

Seller

Charter Auctions

Similar Machines

Tornos Swiss GT26 CNC Lathe

Tornos Swiss GT26 CNC Lathe

Location : United Kingdom

Seller : Charter Auctions

Manufacturer: TORNOS

View Details
Dugard Eagle 100 Turning Centre with Barfeed

Dugard Eagle 100 Turning Centre with Barfeed

Location : United Kingdom

Seller : Charter Auctions

Manufacturer: Dugard

View Details
Colchester Student 1800 Lathe

Colchester Student 1800 Lathe

Location : United Kingdom

Seller : Charter Auctions

Manufacturer: Colchester

View Details

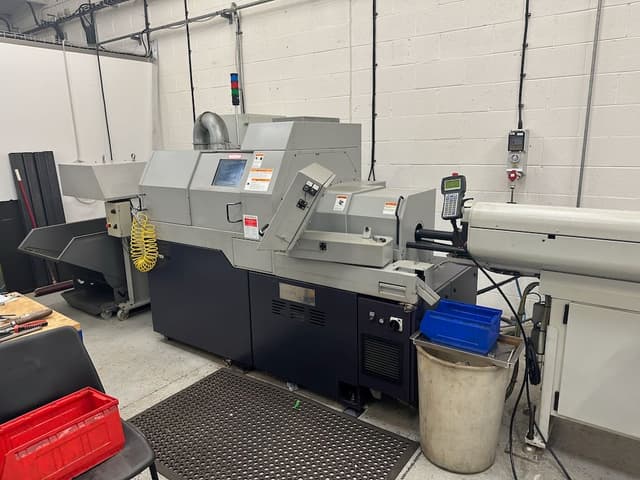

Citizen L520 Sliding Head Lathe (2004)

Citizen L520 Sliding Head Lathe (2004)

Location : United Kingdom

Seller : Charter Auctions

Manufacturer: Citizen

View Details
CMZ TA 25 Lathe (2020)

CMZ TA 25 Lathe (2020)

Location : United Kingdom

Seller : Charter Auctions

Manufacturer: MZ

View Details

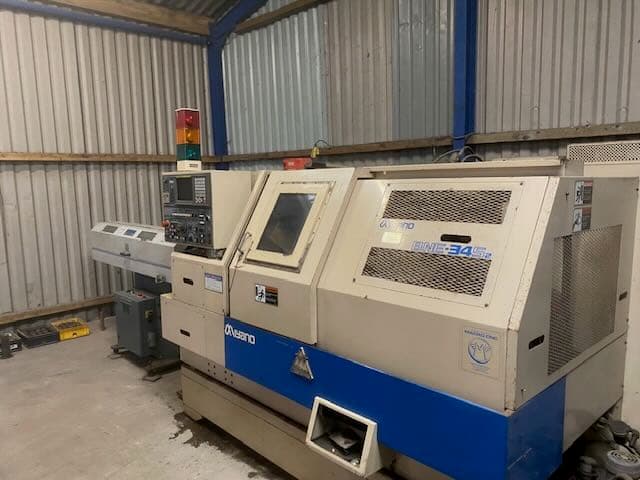

Miyano BNE34-S2 CNC Lathe

Miyano BNE34-S2 CNC Lathe

Location : United Kingdom

Seller : Charter Auctions

Manufacturer: MIYANO

View Details

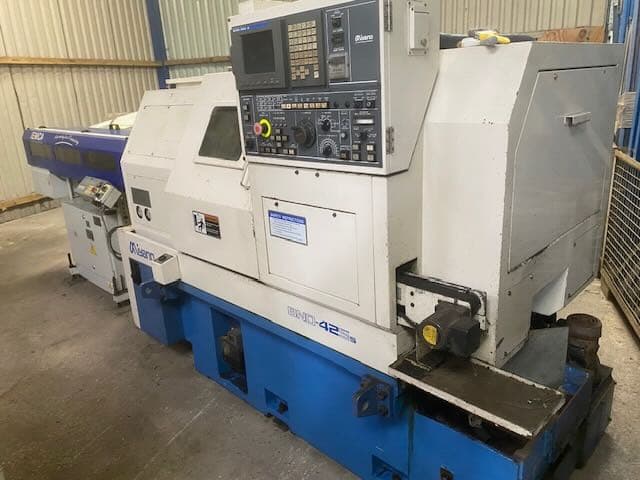

Miyano BND 42 S5 (2001)

Miyano BND 42 S5 (2001)

Location : United Kingdom

Seller : Charter Auctions

Manufacturer: MIYANO

View Details

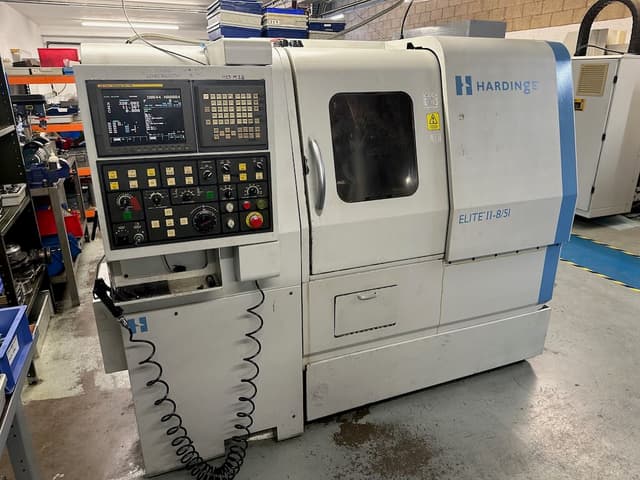

Hardinge Elite II Turning Centre

Hardinge Elite II Turning Centre

Location : United Kingdom

Seller : Charter Auctions

Manufacturer: Hardinge

View Details

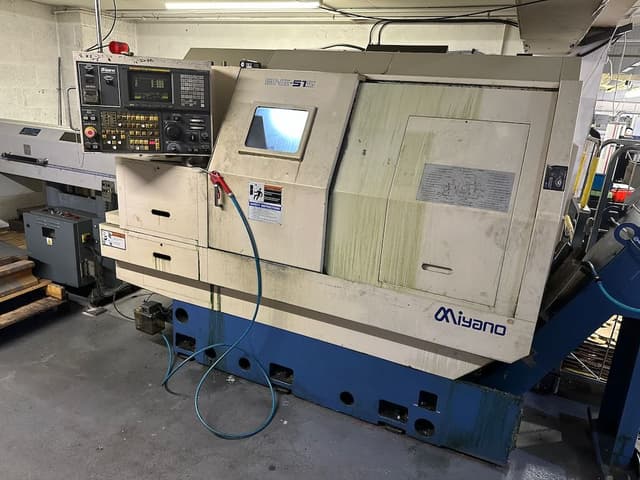

Miyano BNE51S Slant Bed Lathe with Bar Feeder

Miyano BNE51S Slant Bed Lathe with Bar Feeder

Location : United Kingdom

Seller : Charter Auctions

Manufacturer: MIYANO

View Details

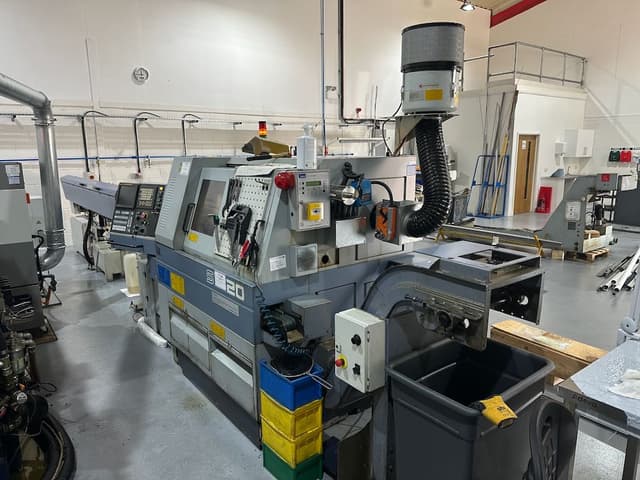

Star SV20 CNC Lathe

Star SV20 CNC Lathe

Location : United Kingdom

Seller : Charter Auctions

Manufacturer: Star

View Details

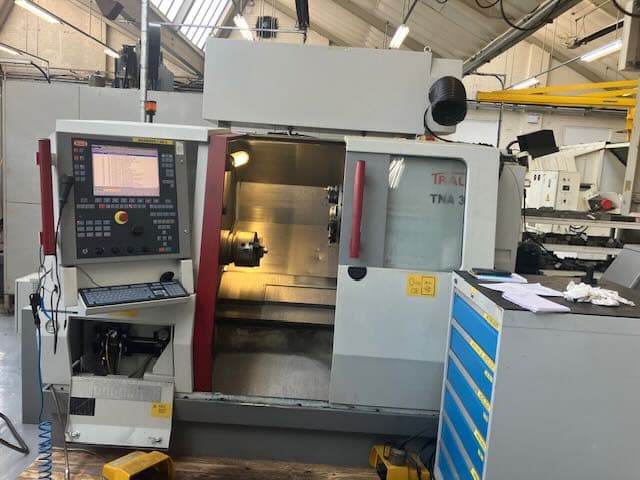

TRAUB TNA300 CNC Lathe (2018)
