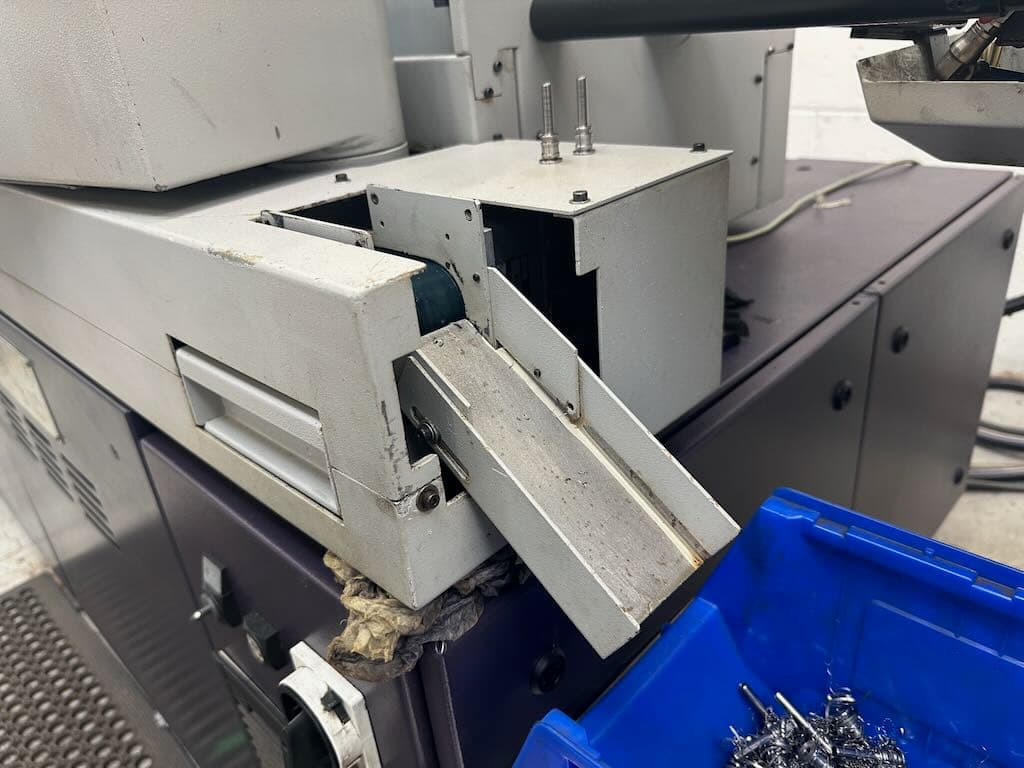

Machine image 7
Machine image 8
Machine image 9
Machine image 10
Machine image 11
Machine image 12
Machine image 13
Machine image 14
Machine image 15
Machine image 16
Machine image 17
Machine image 18
Machine image 19
Machine image 20
Machine image 21
Machine image 22
Machine image 23
Machine image 24
Machine image 25
Machine image 26
Machine image 27
Machine image 28
Machine image 29
Machine image 30
Machine image 31
Machine image 32
Machine image 33
Machine image 34
Machine image 35
Machine image 36
Machine image 37
Machine image 38
Machine image 39
Machine image 40
Machine image 41
Machine image 42
Machine image 43
Machine image 44
Machine image 45
Machine image 46
Machine image 47
Machine image 48
Machine image 49
Machine image 50
Machine image 51
Machine image 52
Machine image 53
Machine image 54
Machine image 55
Machine image 56
Machine image 57
Machine image 58
Machine image 59
Machine image 60
Machine image 61
Machine image 62
Machine image 63
Machine image 64
Machine image 65
Machine image 66
Machine image 67
Machine image 68
Machine image 69
Machine image 70
Machine image 71
Machine image 72
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4
Thumbnail 5
Thumbnail 6
Thumbnail 7
Thumbnail 8
Thumbnail 9
Thumbnail 10
Thumbnail 11
Thumbnail 12
Thumbnail 13
Thumbnail 14
Thumbnail 15
Thumbnail 16
Thumbnail 17
Thumbnail 18
Thumbnail 19
Thumbnail 20
Thumbnail 21
Thumbnail 22
Thumbnail 23
Thumbnail 24
Thumbnail 25
Thumbnail 26
Thumbnail 27
Thumbnail 28
Thumbnail 29
Thumbnail 30
Thumbnail 31
Thumbnail 32
Thumbnail 33
Thumbnail 34
Thumbnail 35
Thumbnail 36
Thumbnail 37
Thumbnail 38
Thumbnail 39
Thumbnail 40
Thumbnail 41
Thumbnail 42
Thumbnail 43
Thumbnail 44
Thumbnail 45
Thumbnail 46
Thumbnail 47
Thumbnail 48
Thumbnail 49
Thumbnail 50
Thumbnail 51
Thumbnail 52
Thumbnail 53
Thumbnail 54
Thumbnail 55
Thumbnail 56
Thumbnail 57
Thumbnail 58
Thumbnail 59
Thumbnail 60
Thumbnail 61
Thumbnail 62
Thumbnail 63
Thumbnail 64
Thumbnail 65
Thumbnail 66
Thumbnail 67
Thumbnail 68
Thumbnail 69
Thumbnail 70
Thumbnail 71
Thumbnail 72

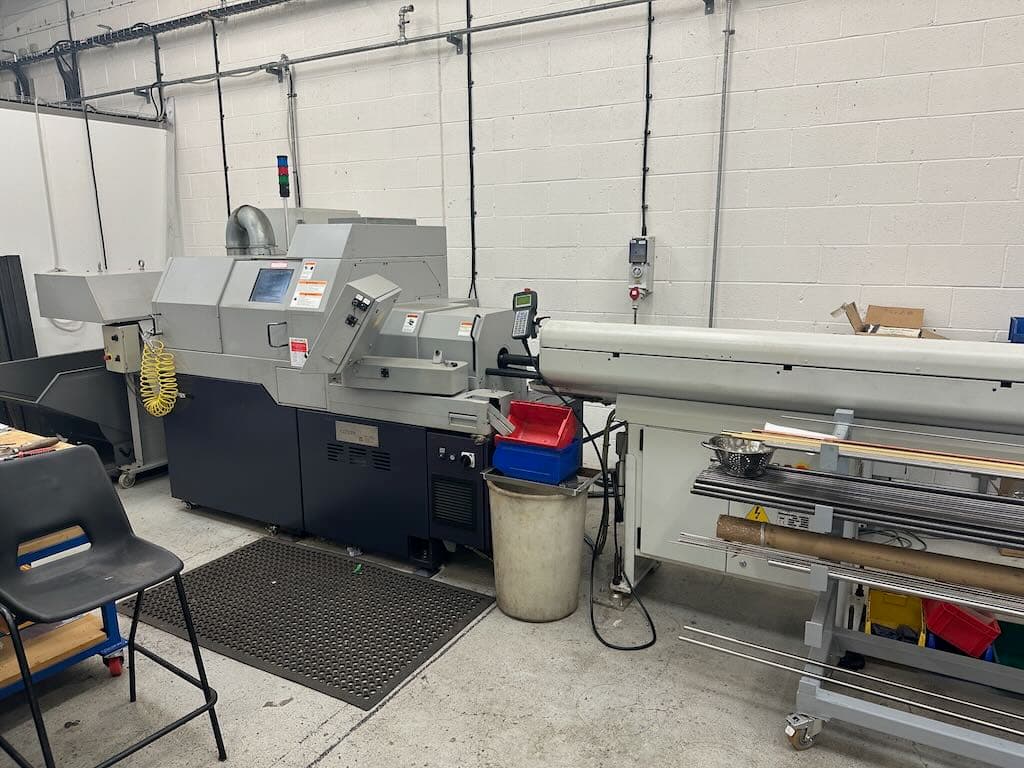

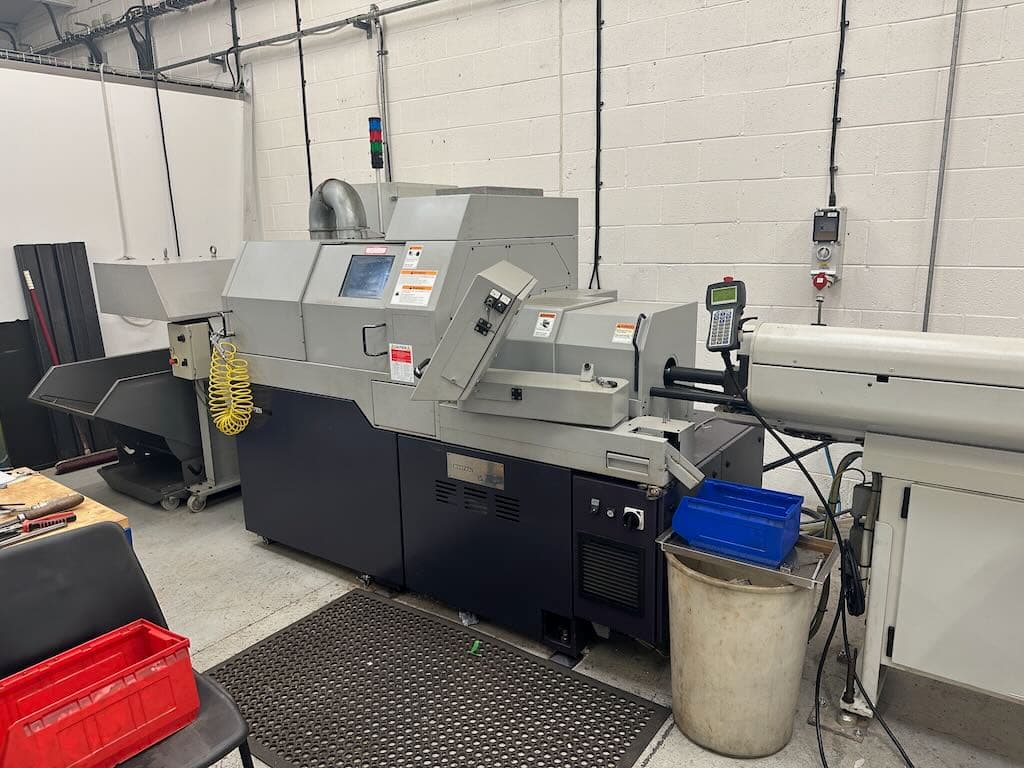

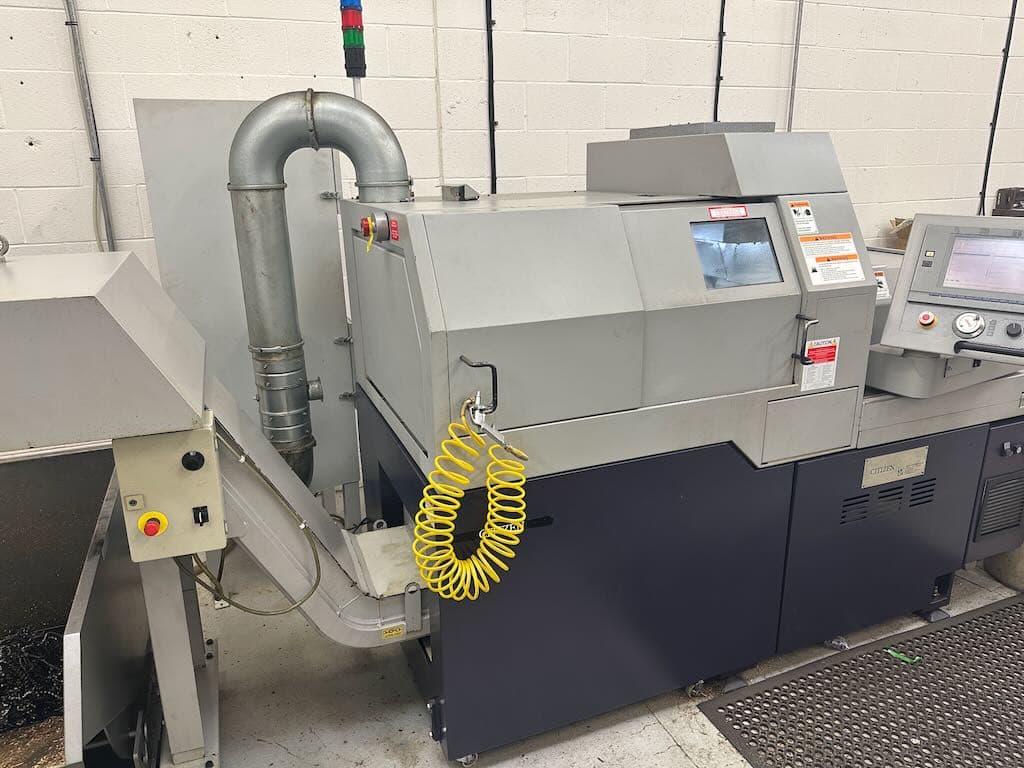

Citizen L520 Sliding Head Lathe (2004)

Price on request
Condition: NEW· Manufacturer: Citizen· Country: United Kingdom

Description

Max. Machining Diameter: 20mm
Max. Machining Length: 200mm
Max Front Drilling Diameter: 10mm
Max Front Tapping: M6
Spindle Through Hole Diameter: 24mm
Max Front Spindle Speed: 10,000rpm
Max Back Spindle Drilling: 8mm diameter
Max Back Spindle Tapping: M6
Max Back Spindle Speed: 8,000rpm
Main Spindle C Axis: 0.001 Degrees
Max chuck diameter of the back spindle: 20mm
Max Workpiece protrusion length from the back spindle: 30mm
Max Back Spindle Speed: 8,000 Rpm
Rotary Tools On Gear Post Maximum Drilling: 7mm Diameter
Rapid Feed Rates (All Axes): 20m/min
Axis Travel: X1 Axis: 45.5mm
Main and back spindle Indexing: 0.1 degrees
Main and back spindle 'C' Indexing: 0.001 degrees
Bar Feeder Length: 4270mm
Center Height: 1,050mm
Year: 2004

Send Enquiry

United Kingdom

Seller

Charter Auctions
