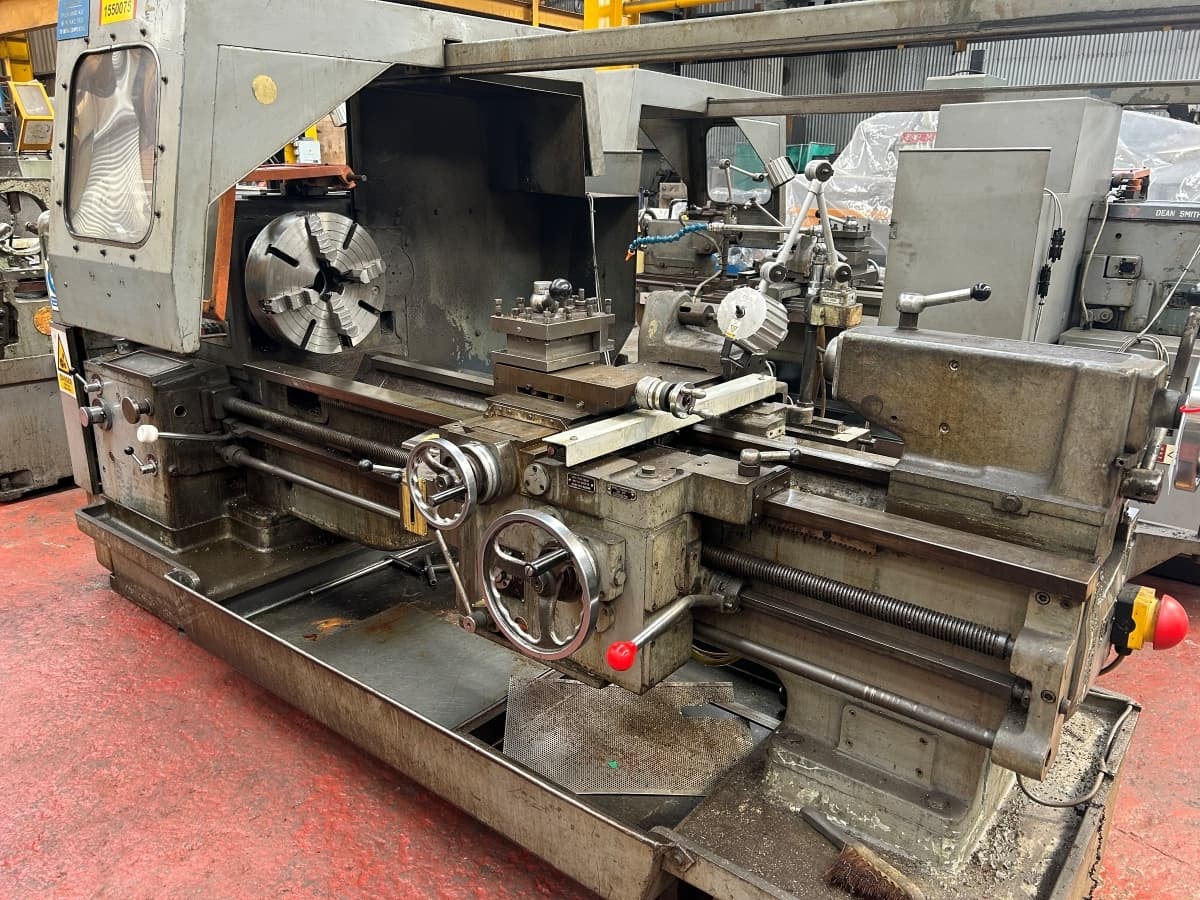

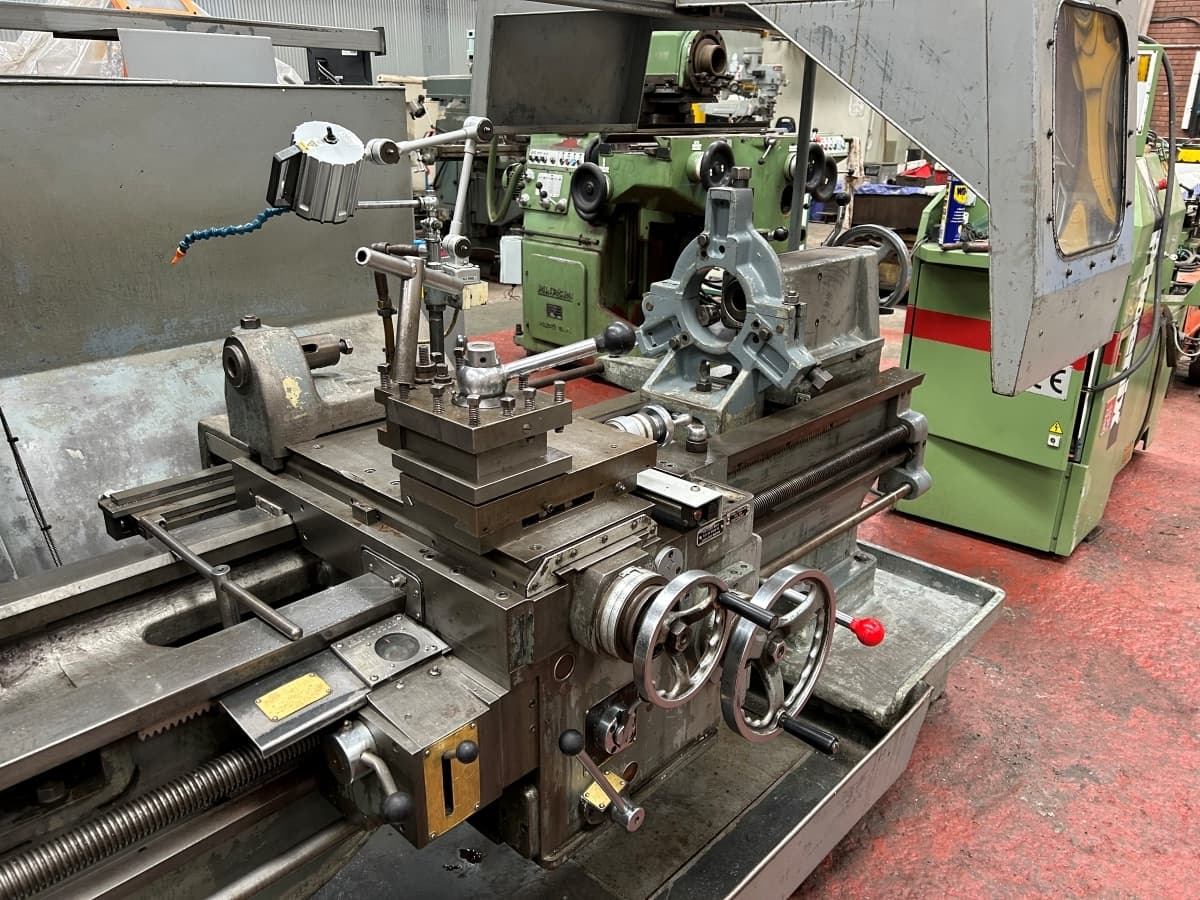

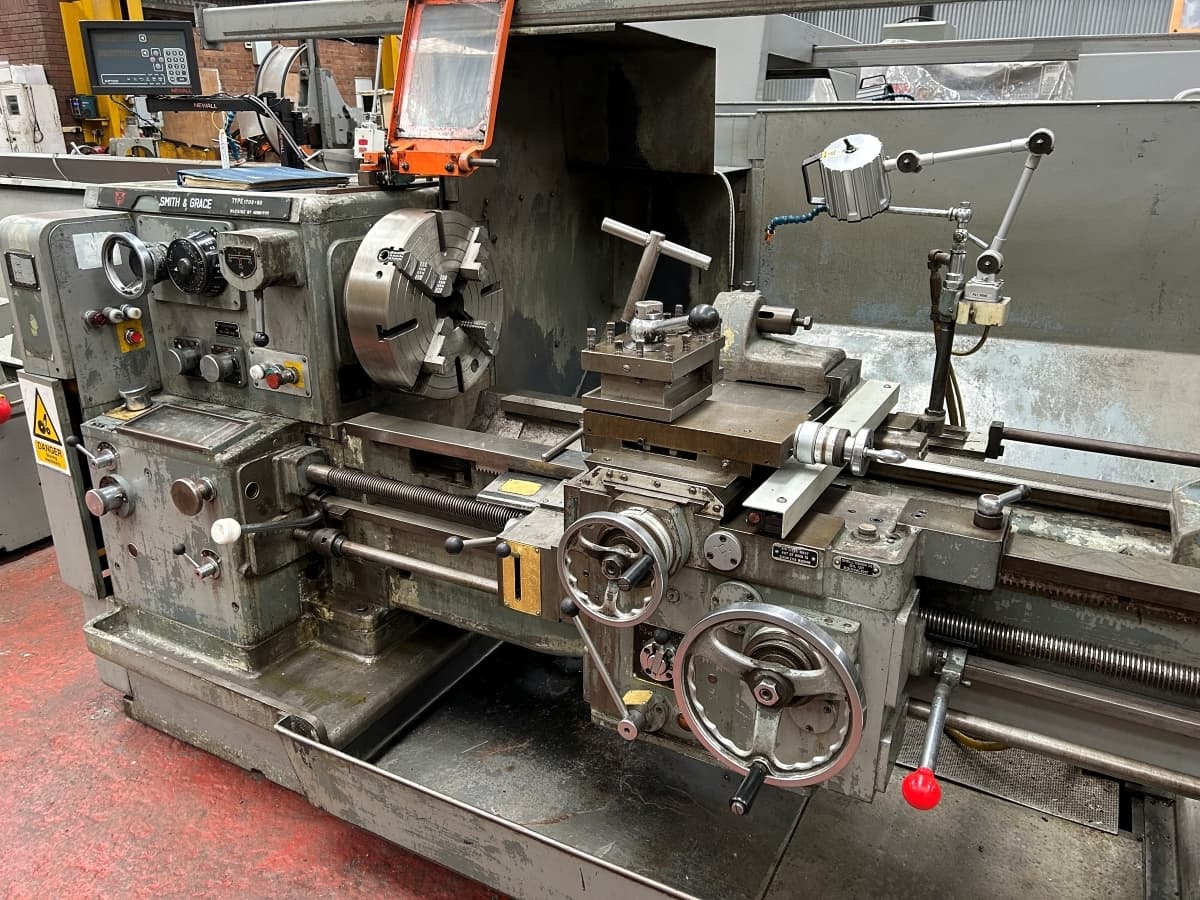

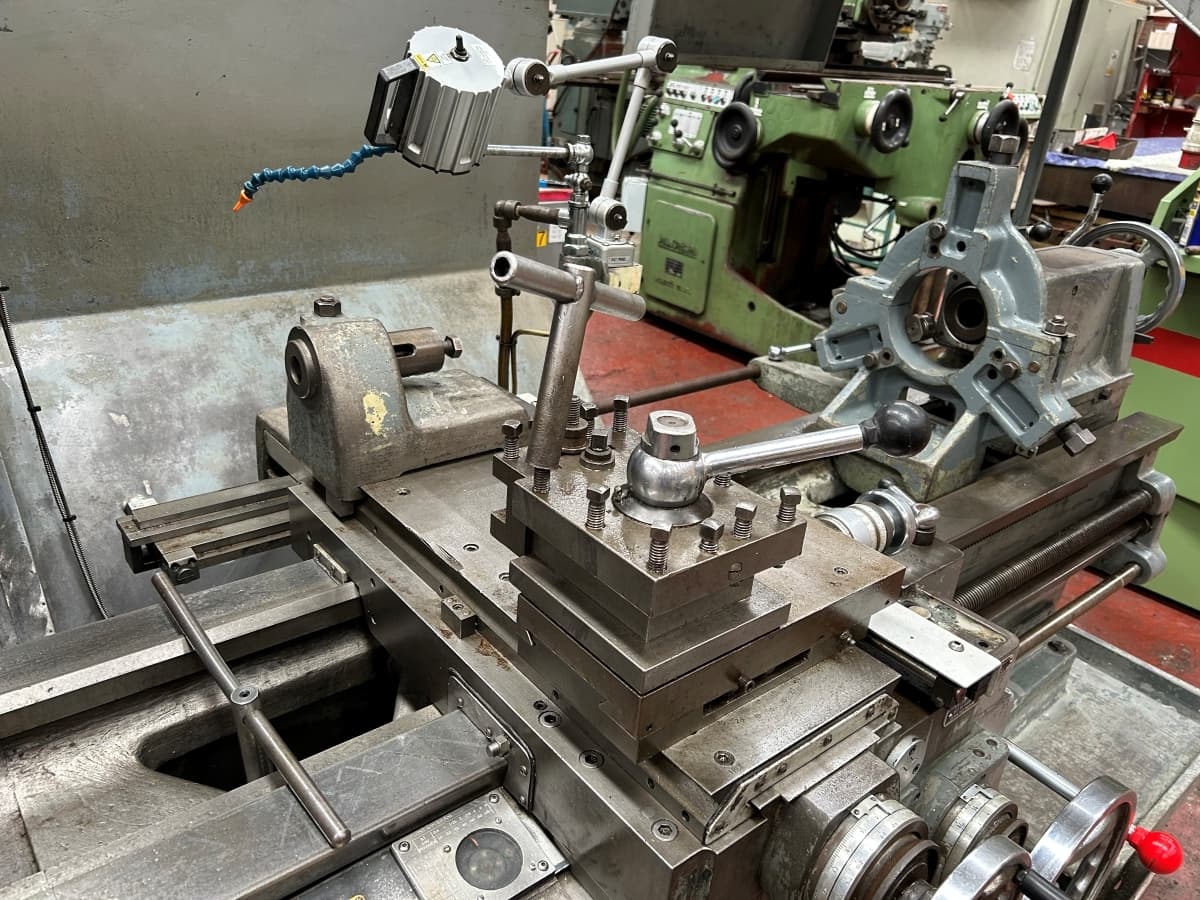

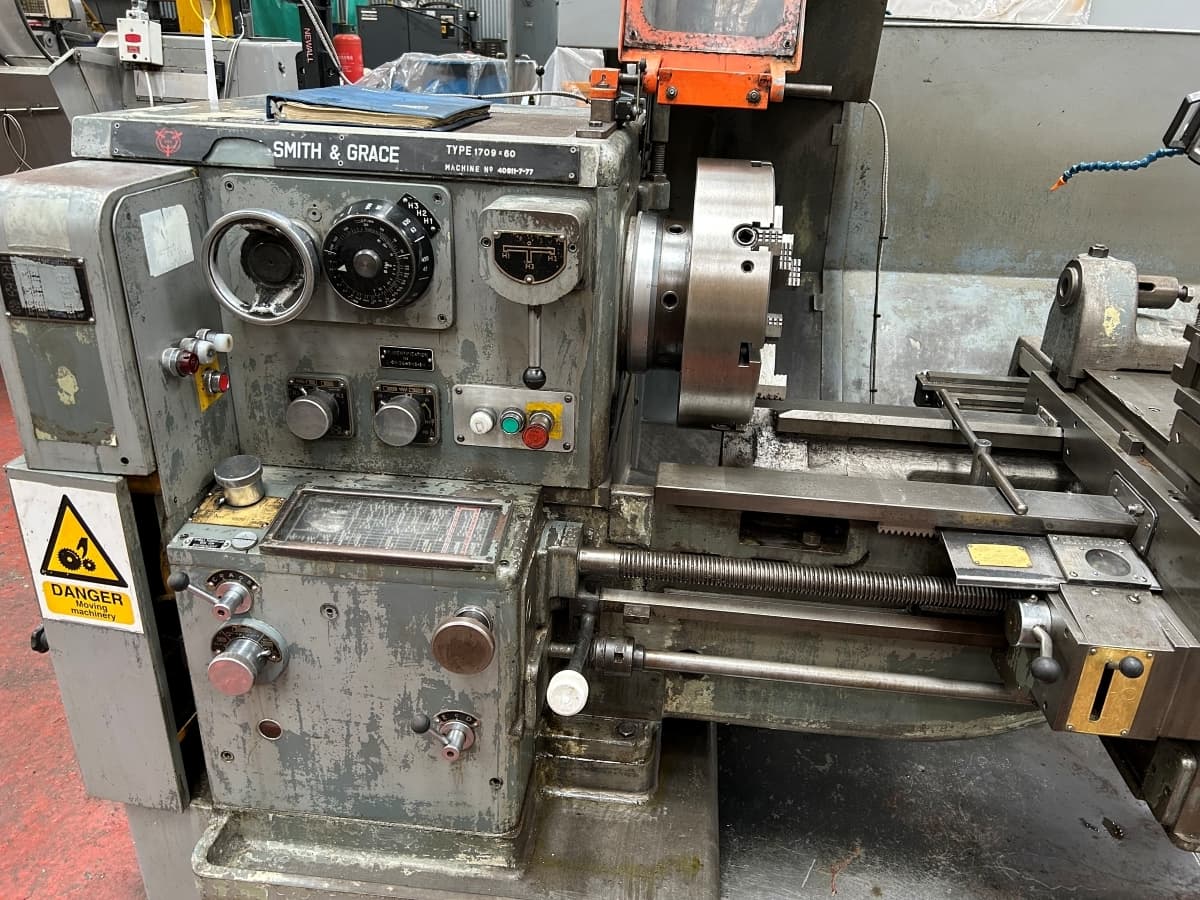

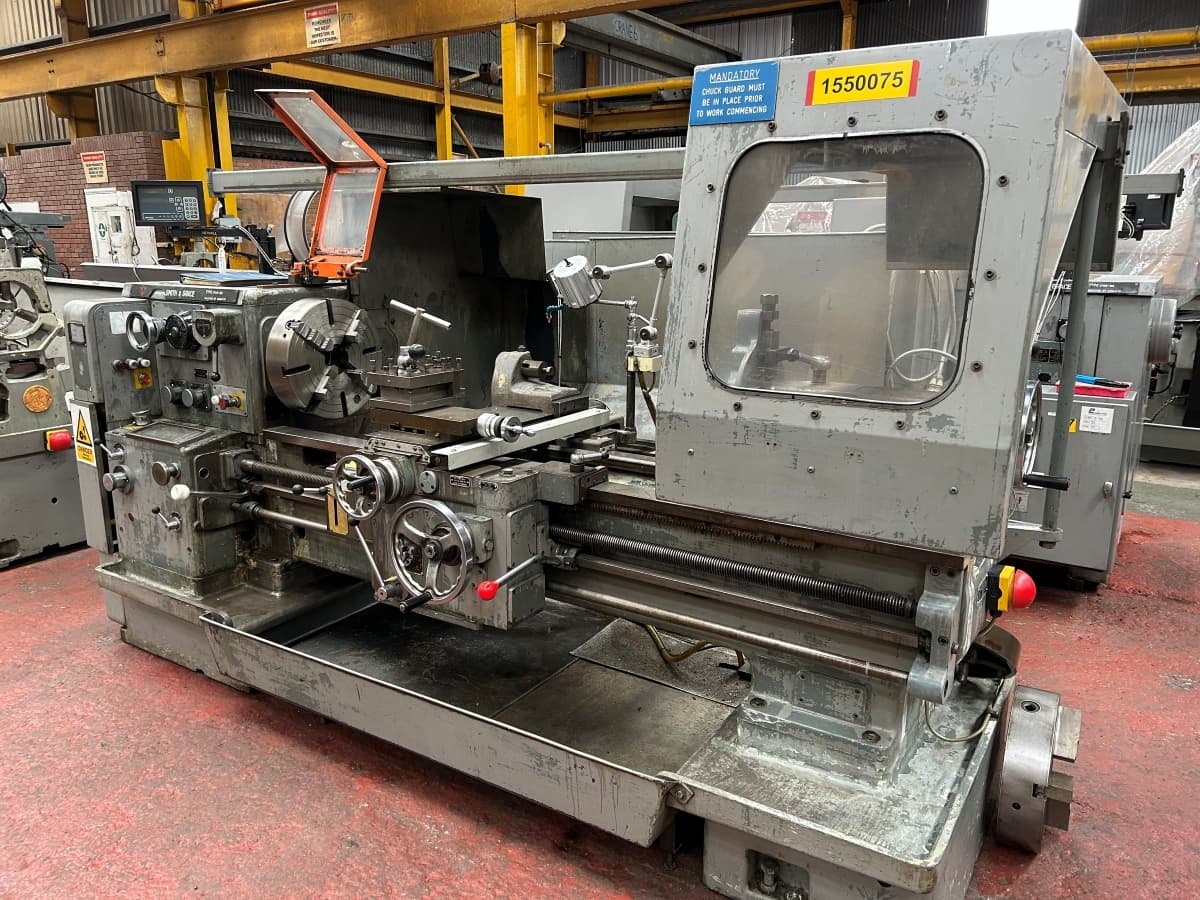

Dean Smith & Grace 1709 x 60″ Gap Bed

Description

Type: 1709
Serial No: 40811-7-77

Capacities:
Swing Over Bed: 430mm
Swing Over Saddle: 230mm
Swing in Gap: 660mm
Maximum Distance Between Centres: 1524mm
Spindle Speeds: 31.5 1400rpm
Spindle Bore: 80mm
Feeds, Sliding: 0.05 0.2mm/rev
Surfacing: 0.025 0.1mm/rev
Screw Cutting
TPI: 2 56
MM Pitch: 0.5 14

Motor: 10HP
Electrics 415v, 3ph, 50 Cycles
Complete With:
4 Jaw Chuck
Taper Turning
2 Axis DRO
Fixed 3 Point Steady
Cross Slide Drill Attachment
4 Wat Tool Post
Sliding Guard, Chuck Guard, Rear Splash Guard

Approximate Dimensions: 3300 x 1950 x 1800mm
Approximate Weight 2500kg
