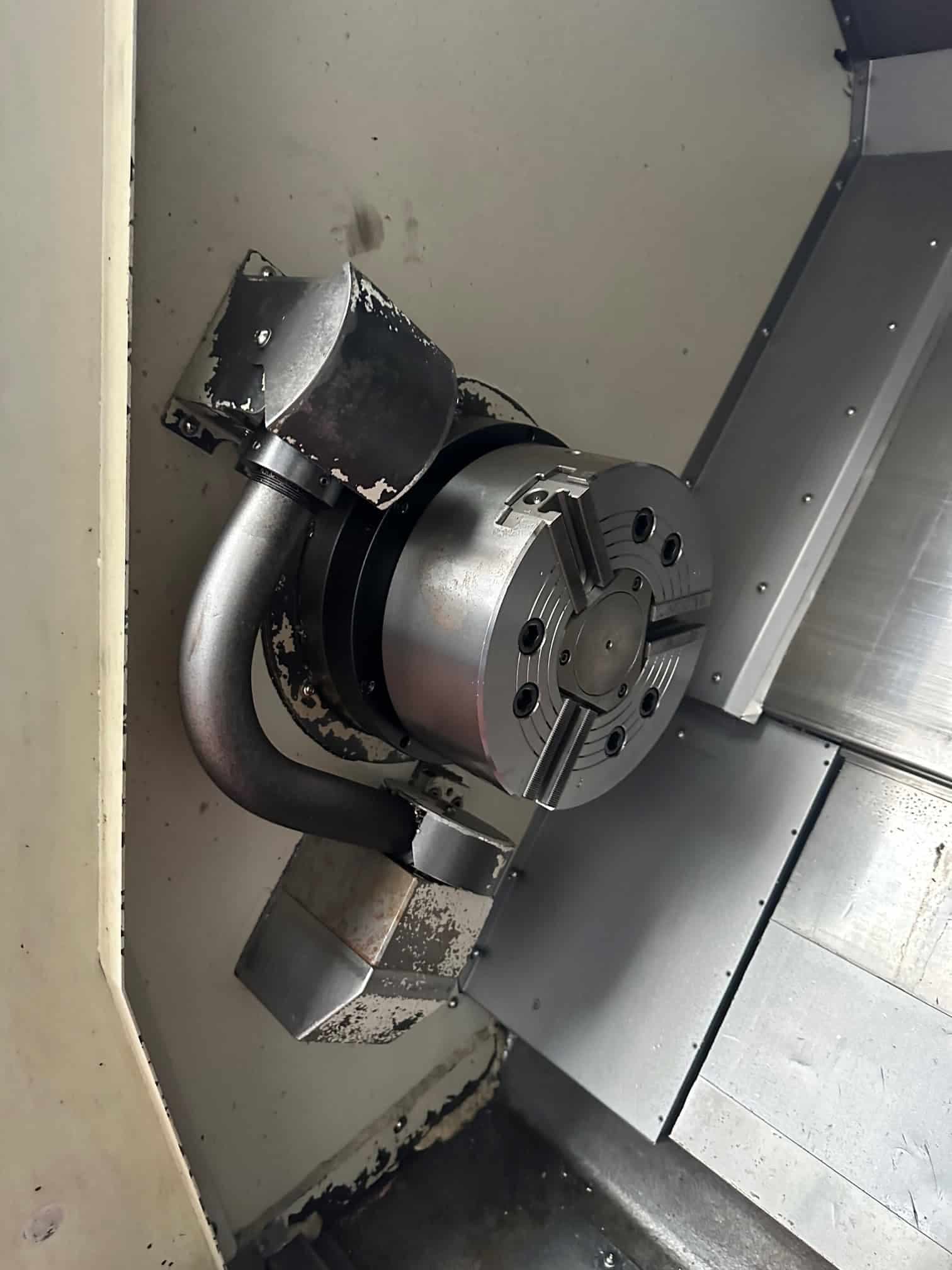

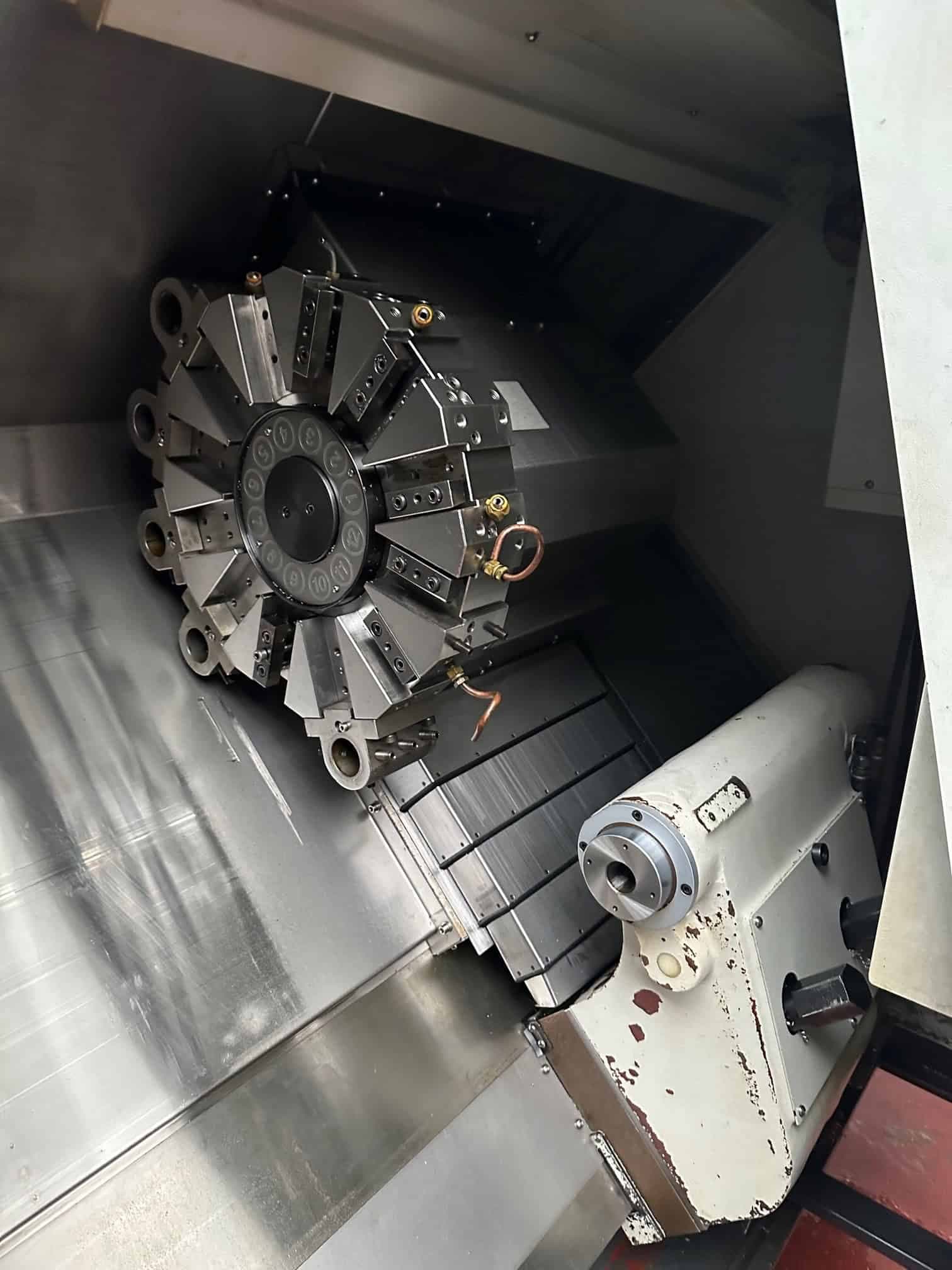

New 2008<br>Swing over bed 600 (Ø 23.62)<br>Diameter × length Ø 300 × 600 (Ø 11.81 × 23.62)<br>Max. diameter Ø 380 (Ø 14.96)<br>Max. travel range of Z/X axis 600 / 240 (23.62 / 9.44);<br>Z-axis: FANUC 2.8 kW (4 HP) /3000 rpm;<br>X-axis: FANUC 2.8 kW (4 HP) /3000 rpm<br>Diameter of spindle bore/Draw bar bore –<br>STD: Ø 77 / Ø 52 (Ø 3.03 / Ø 2.04); OPT: Ø 86 / Ø 77 (Ø 3.38 / Ø 3.03)<br>Spindle speed –<br>STD: 8” chuck 3500 rpm; OPT: 8” chuck 4500 rpm, 10” chuck 3500 rpm<br>Chuck diameter STD: Ø 8” ; OPT: Ø 10”<br>Hydraulic Tailstock travel 465 (18.3) MT. No.4<br>12 station turret<br>Drop down tool probe<br>Coolant and Chip conveyor<br>Power requirement 208-220 volts / 100 Amps / 3 Phases / 60 Cycles<br>Floor area (L × W × H) 4080 ×1675 × 1842 (160.62 × 65.94 × 72.51)<br>Gross weight (approx.) 5200 kg (11440 Ibs)
