Colchester Mascot 1600 x 100″

Description

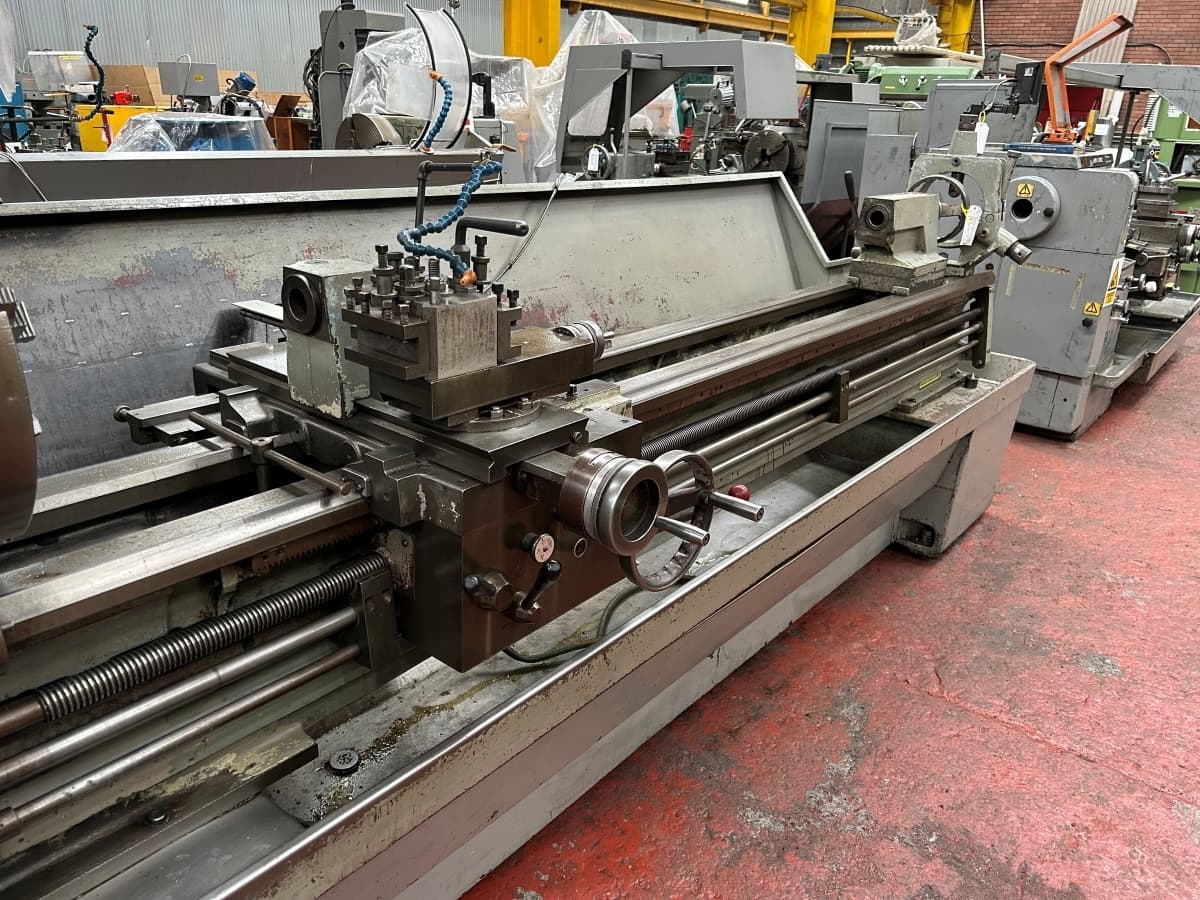

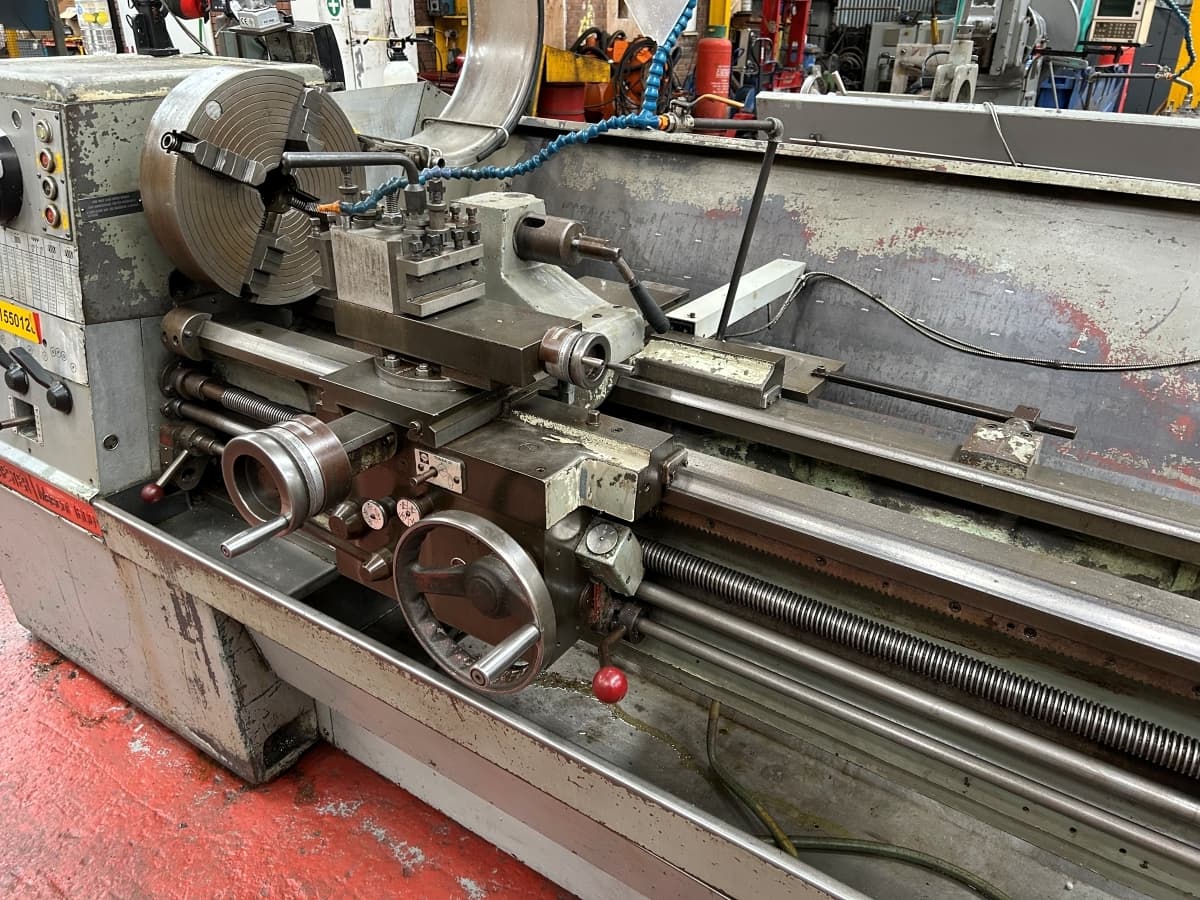

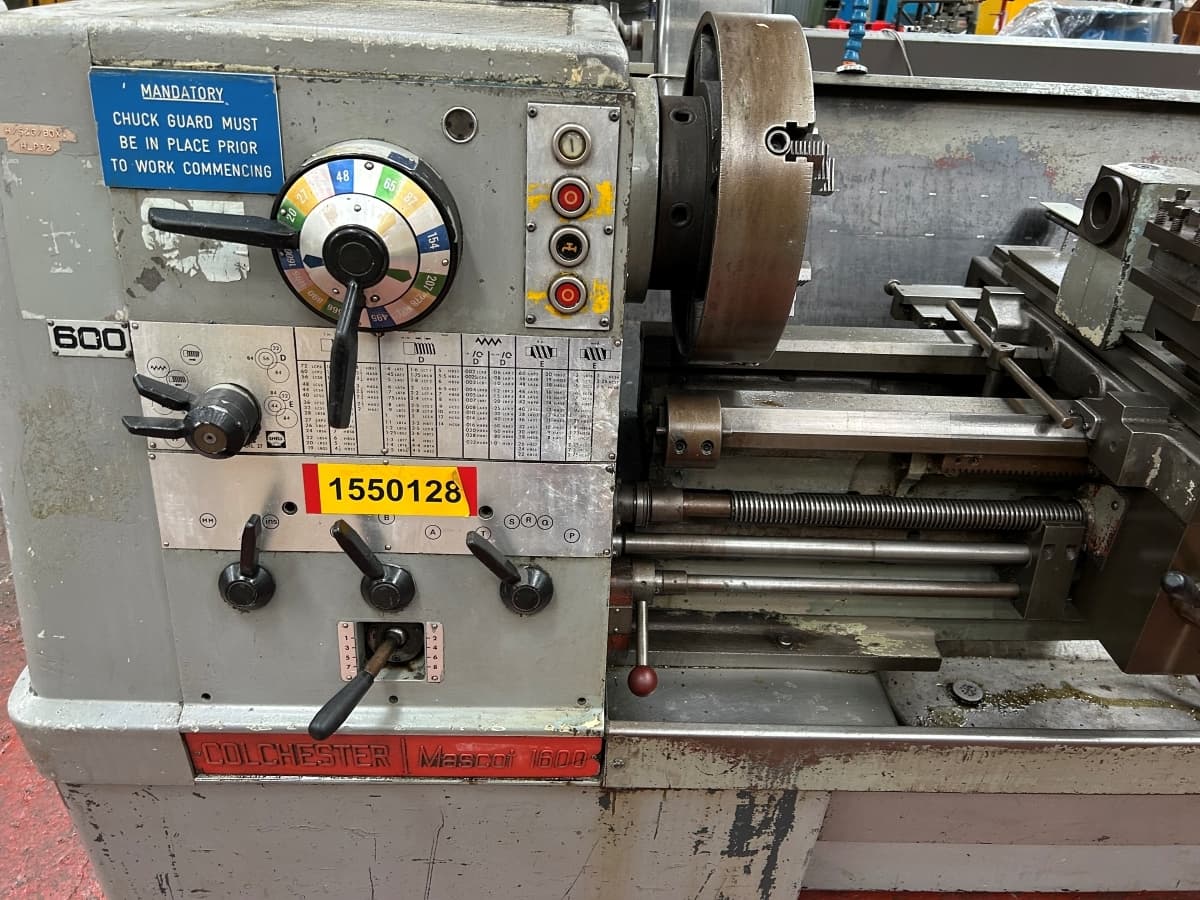

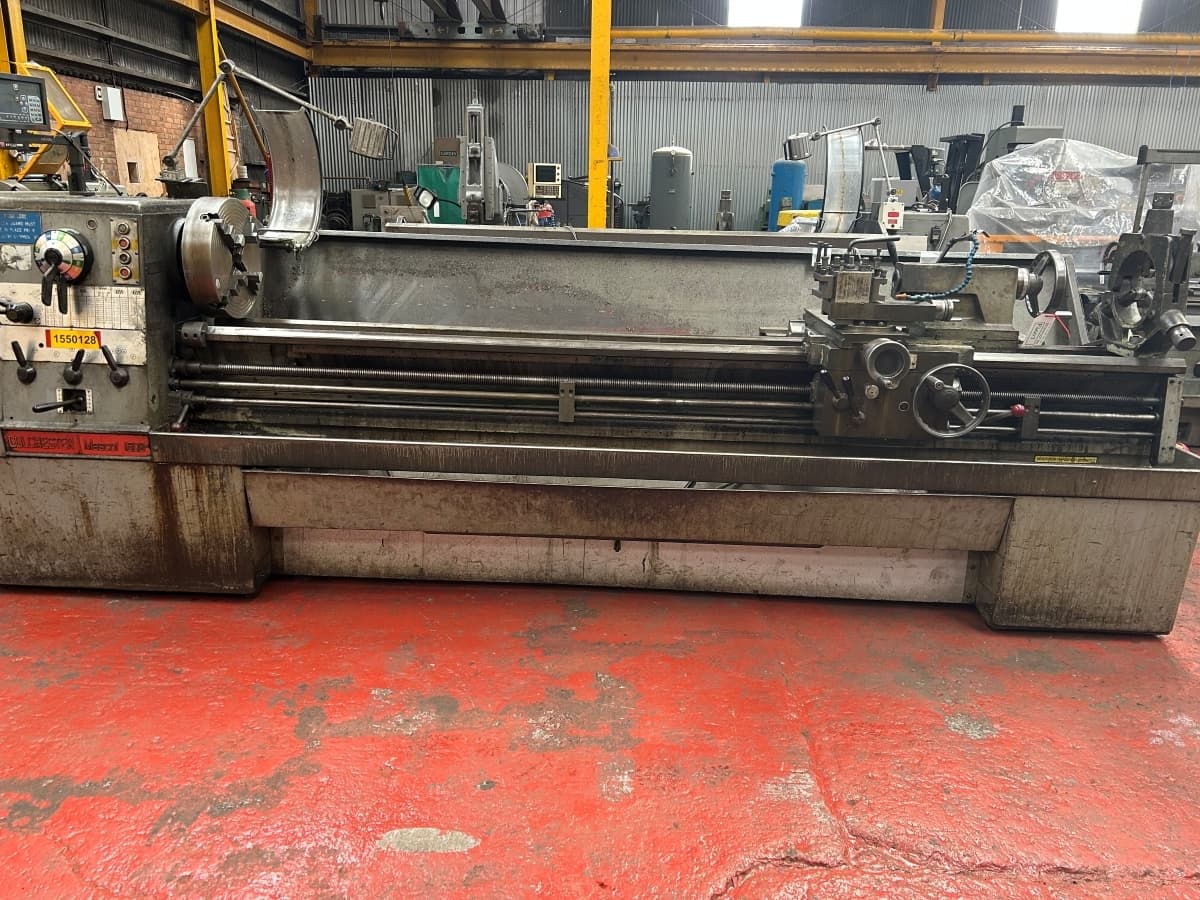

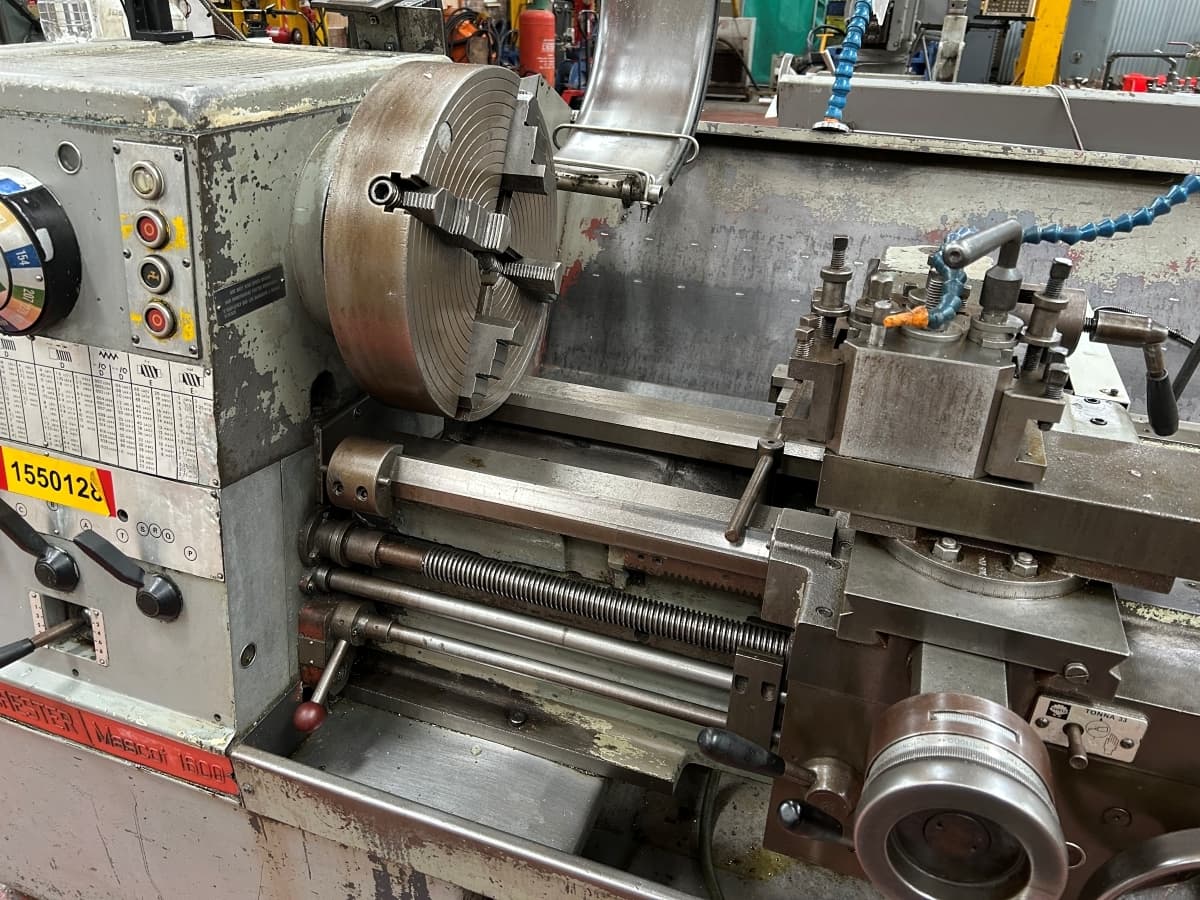

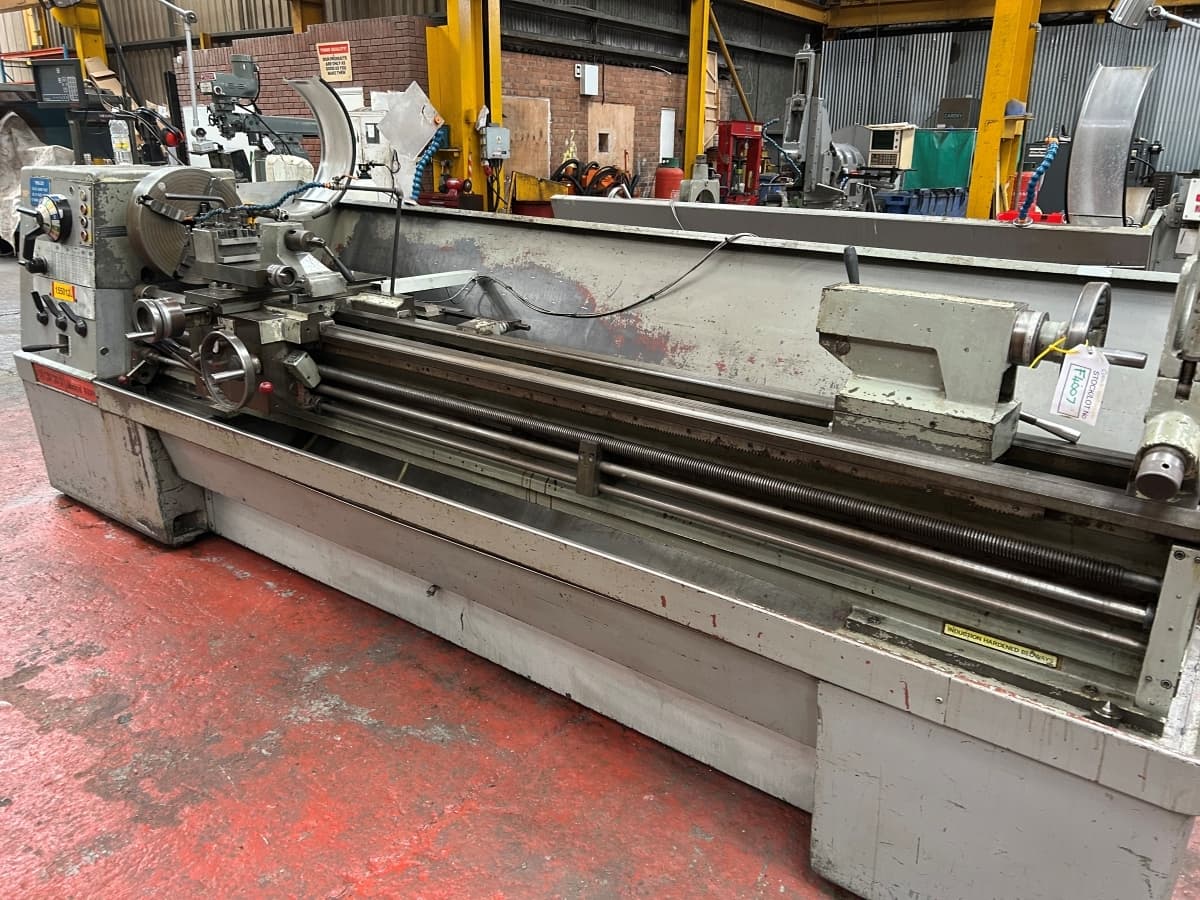

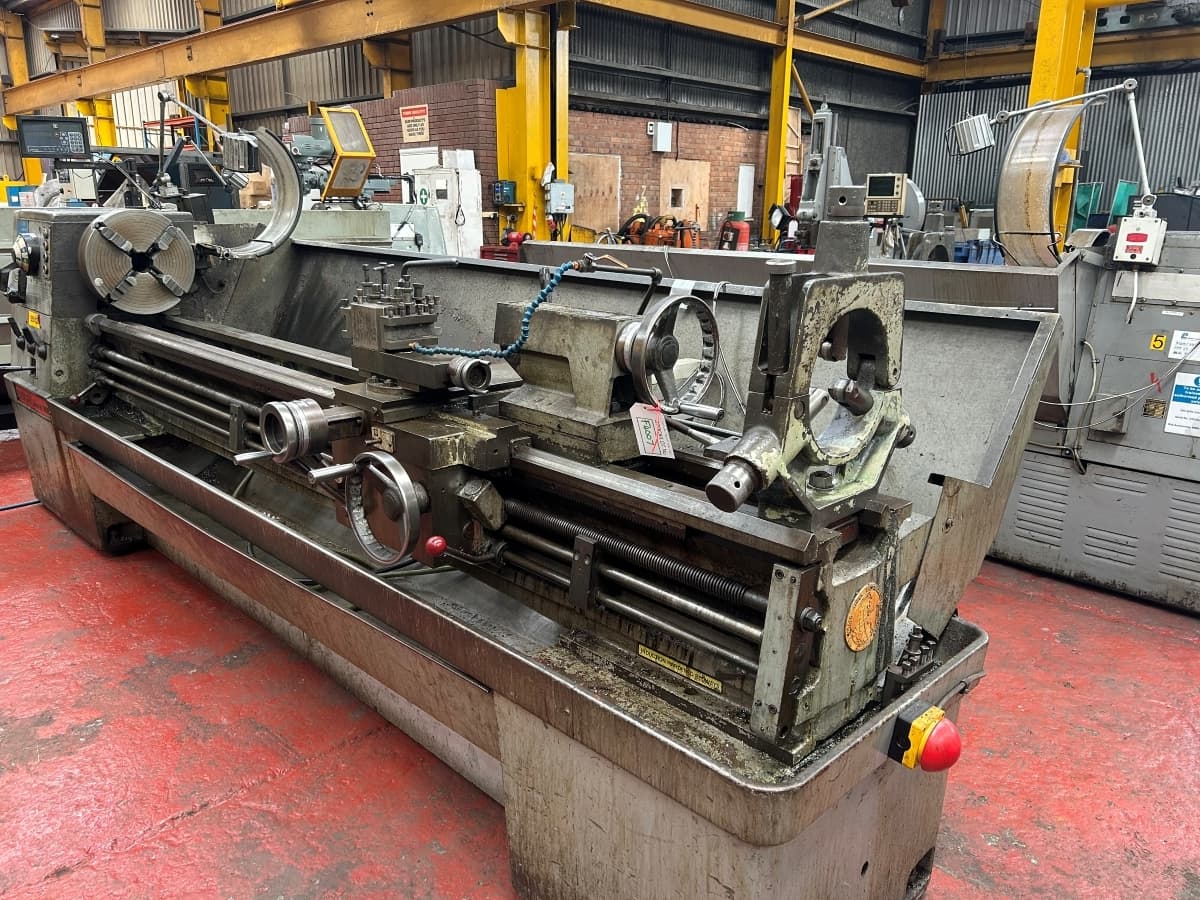

Colchester Mascot 1600 x 100″ Gap Bed Lathe
Type: Mascot 1600
Serial No: 7/0053/10131

Capacities:
Swing Over Bed: 431mm
Swing Over Saddle: 266mm
Swing in Gap: 711mm
Maximum distance Between Centres: 2540mm
Spindle Speeds: 20 1600rpm
Spindle Bore: 74mm
Feeds, Sliding: 0.6 1mm/rev
Surfacing: 0.3 0.5mm/rev
Screw Cutting:
TPI 4 72
MOD 8 60
Metric 0.4 14
DP: 0.3 3.5
Tailstock Taper 5MT

Motor: 12.5HP
Electrics: 415v, 3ph, 50 Cycles

Complete With:
4 Jaw Chuck
Fixed 3 Point Steady
Taper Turning
2 Axis DRO
Quick Change Tool Post & Tool Holders
Chuck Guard & Rear Splash Guard, Emergency Stop

Approximate Dimensions: 4000 x 1300 x 1500mm
Approximate Weight: 2750kg
