Colchester Mascot 1600 x 80″

Description

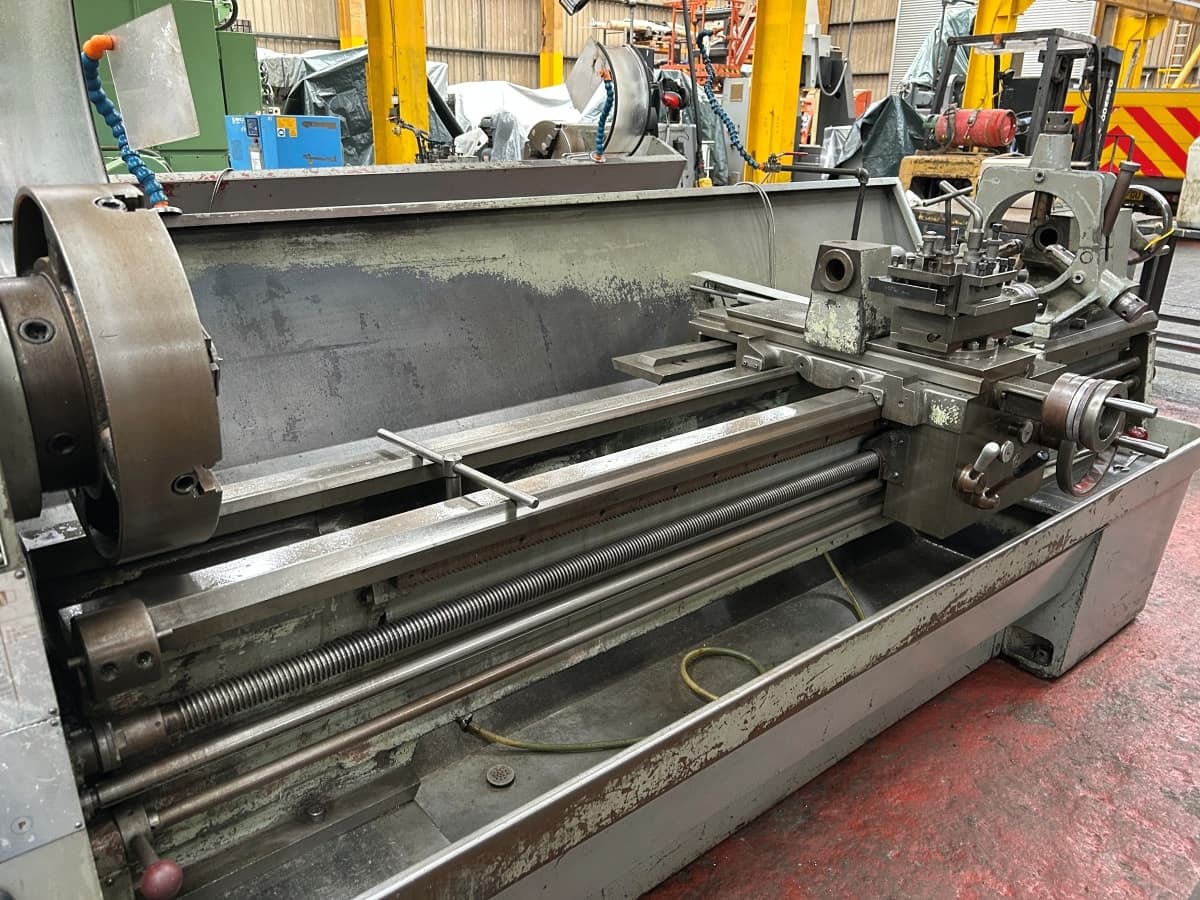

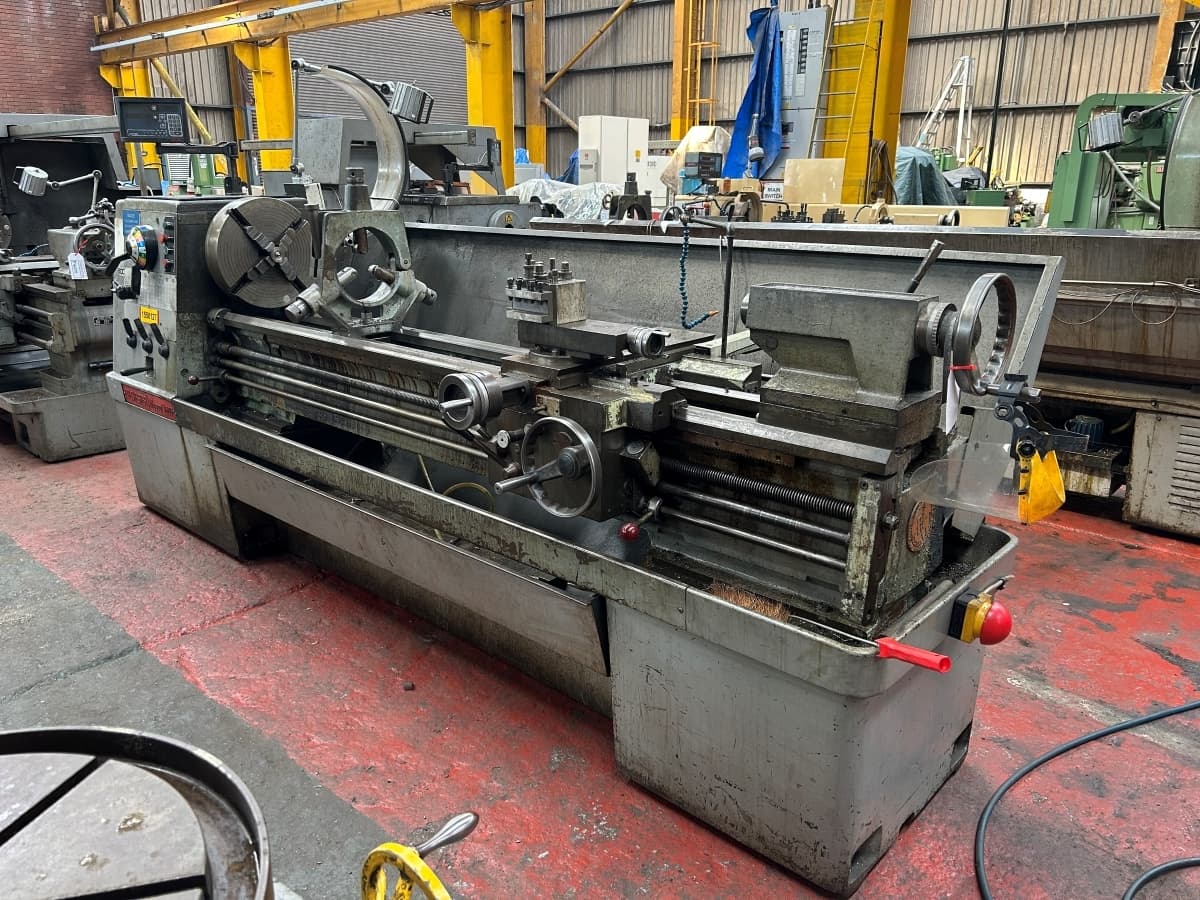

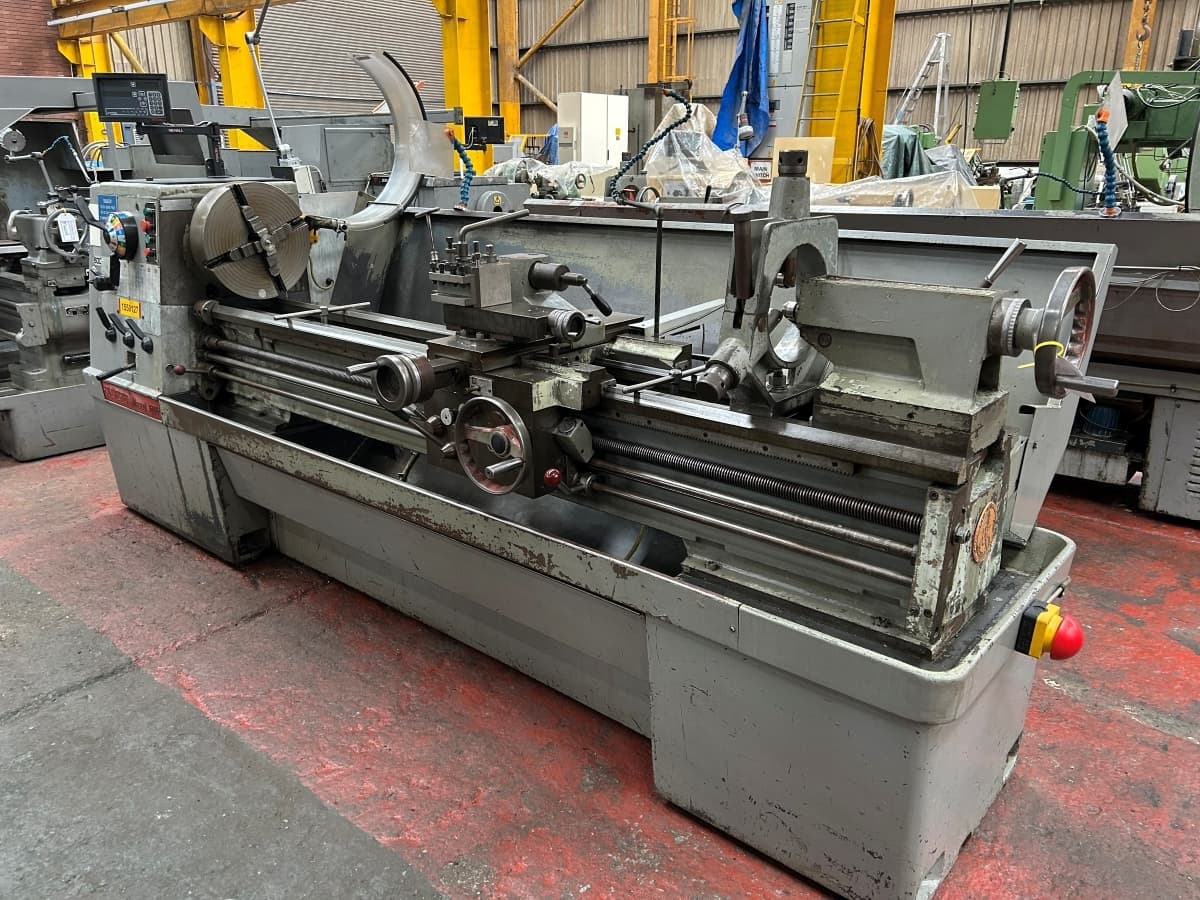

Colchester Mascot 1600 x 80″ Gap Bed Lathe
Type: Mascot 1600
Serial No: 7/0205/1393

Capacities:
Swing Over Bed: 431mm
Swing Over Saddle: 266mm
Swing in Gap: 711mm
Maximum distance Between Centres: 2032mm
Spindle Speeds: 20 1600rpm
Spindle Bore: 74mm
Feeds, Sliding: 0.6 1mm/rev
Surfacing: 0.03 0.5mm/rev
Screw Cutting:
TPI 4 72
MOD 8 60
Metric 0.4 14
DP: 0.3 3.5
Tailstock Taper: 5MT

Motor: 12.5HP
Electrics: 415v, 3ph, 50 Cycles

Complete With:

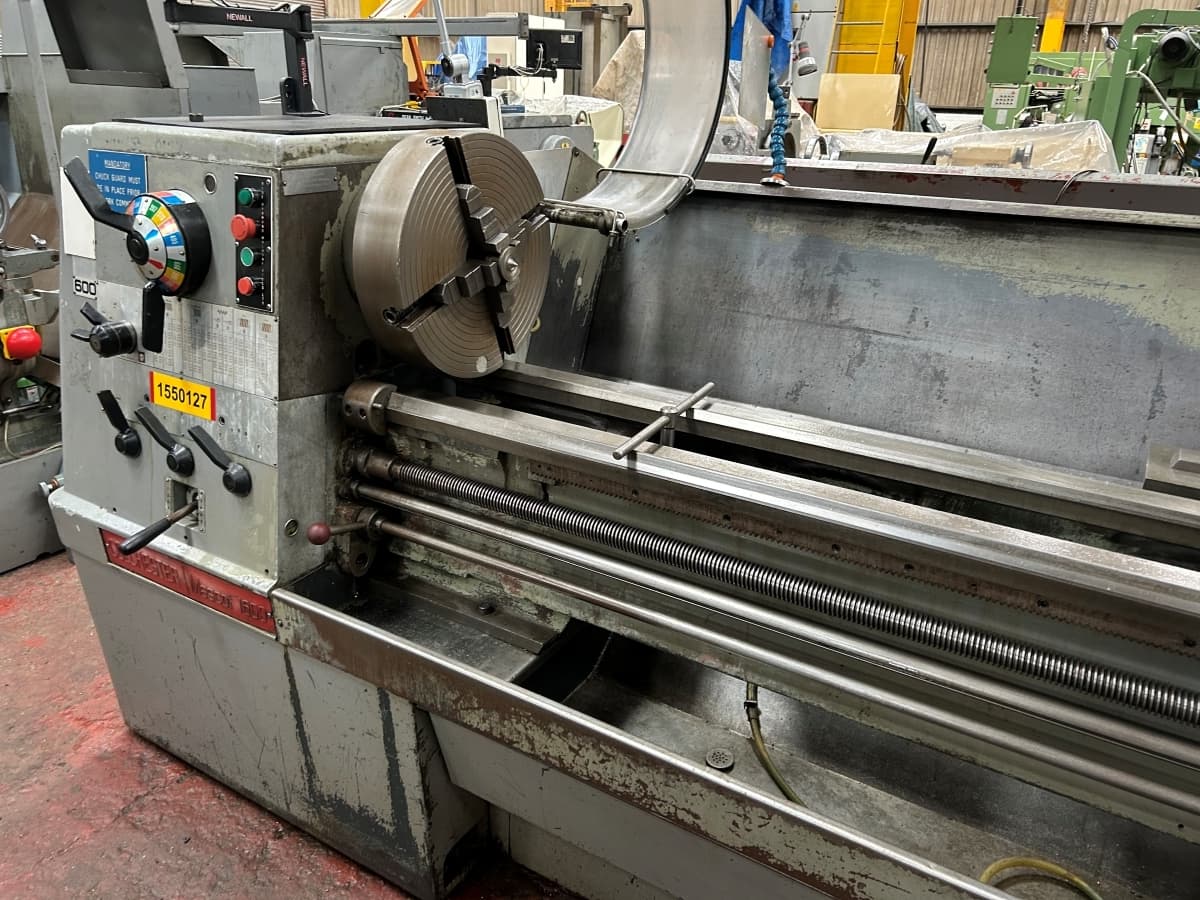

4 Jaw Chuck

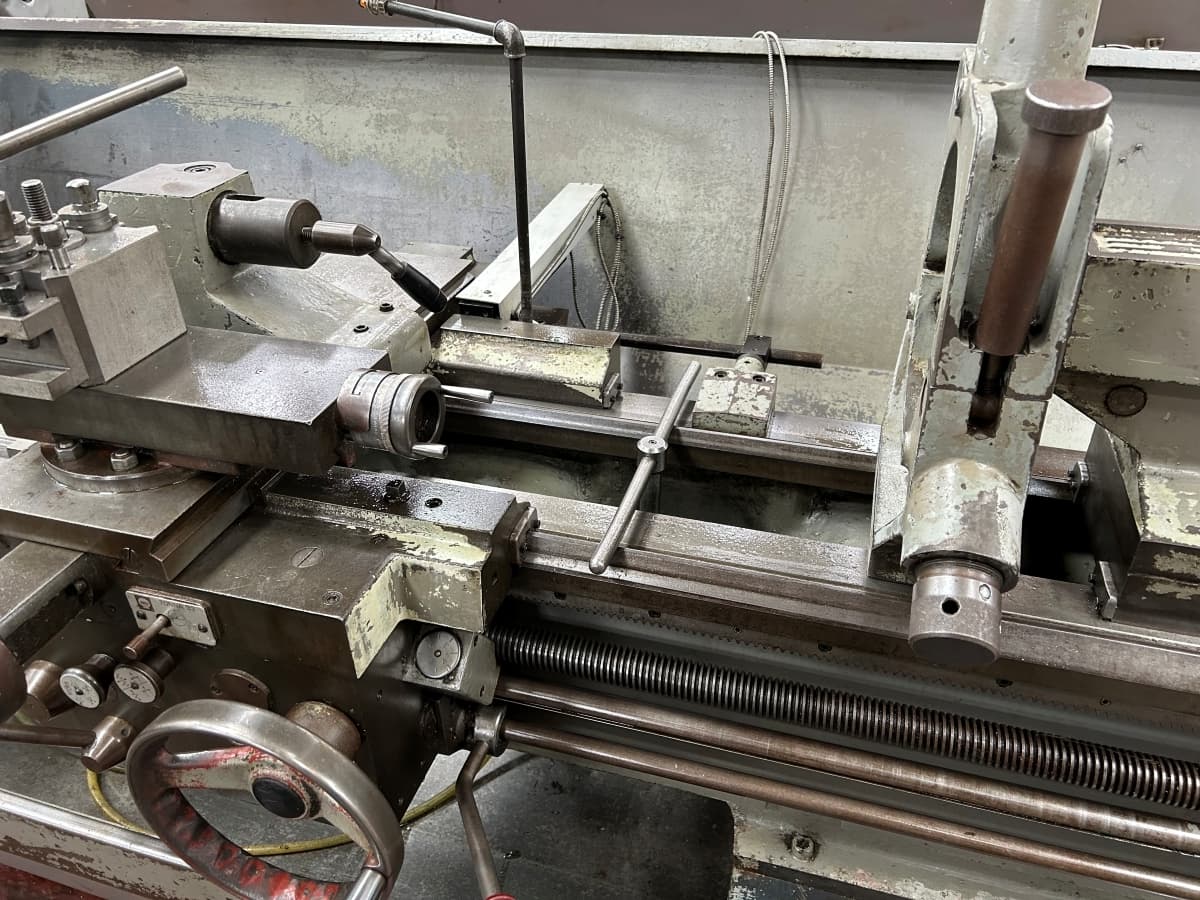

Fixed 3 Point Steady
Taper Turning
2 Axis DRO
Quick Change Tool Post & Tool Holders

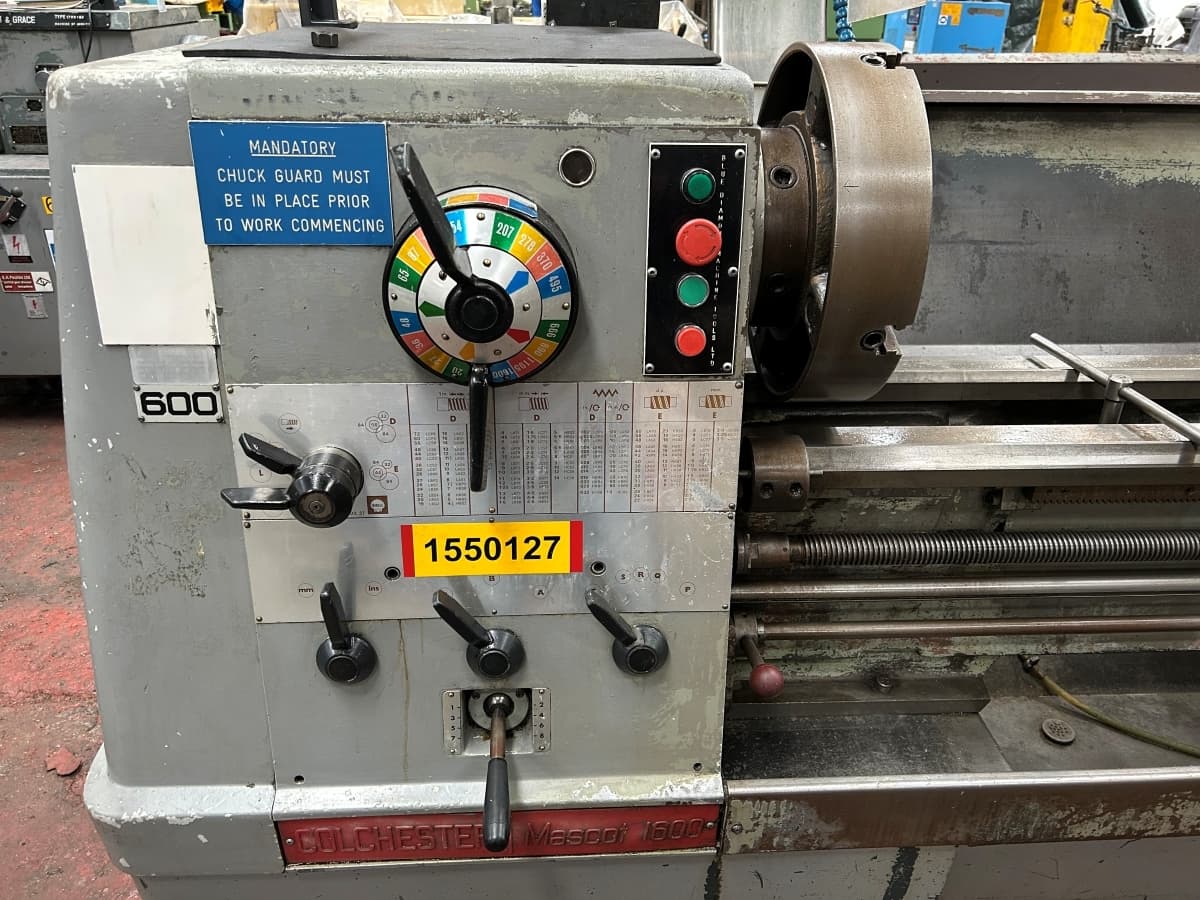

Chuck Guard & Rear Splash Guard, Emergency Stop

Approximate Dimensions: 3500 x 1300 x 1500mm
Approximate Weight: 2500kg
