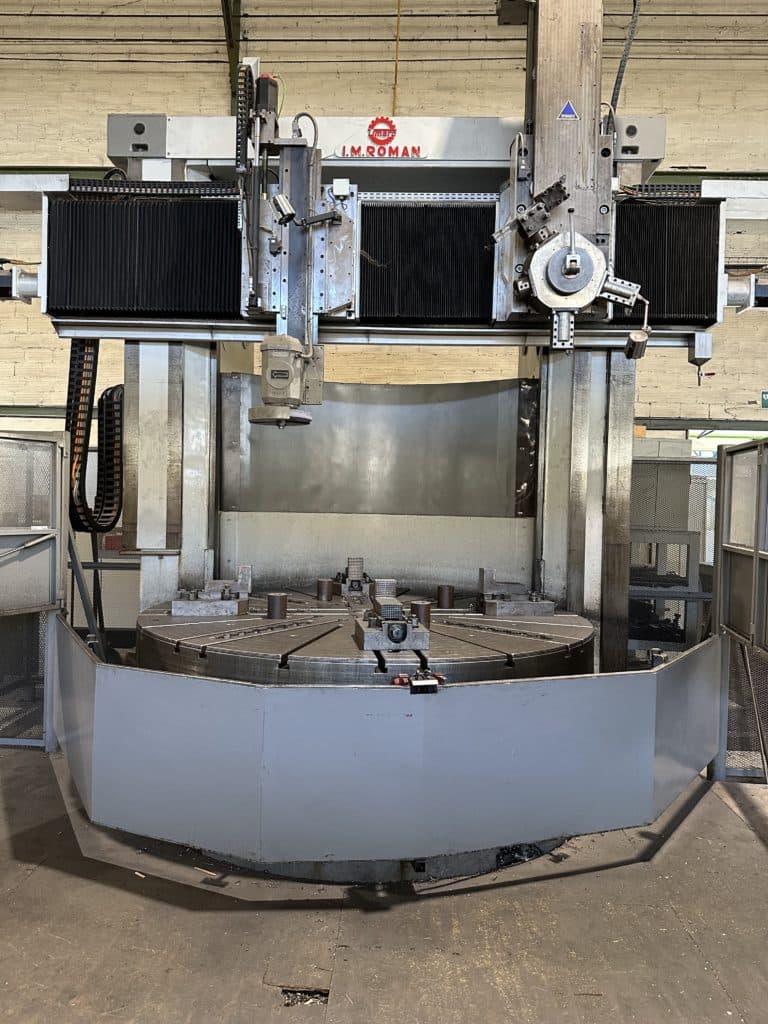

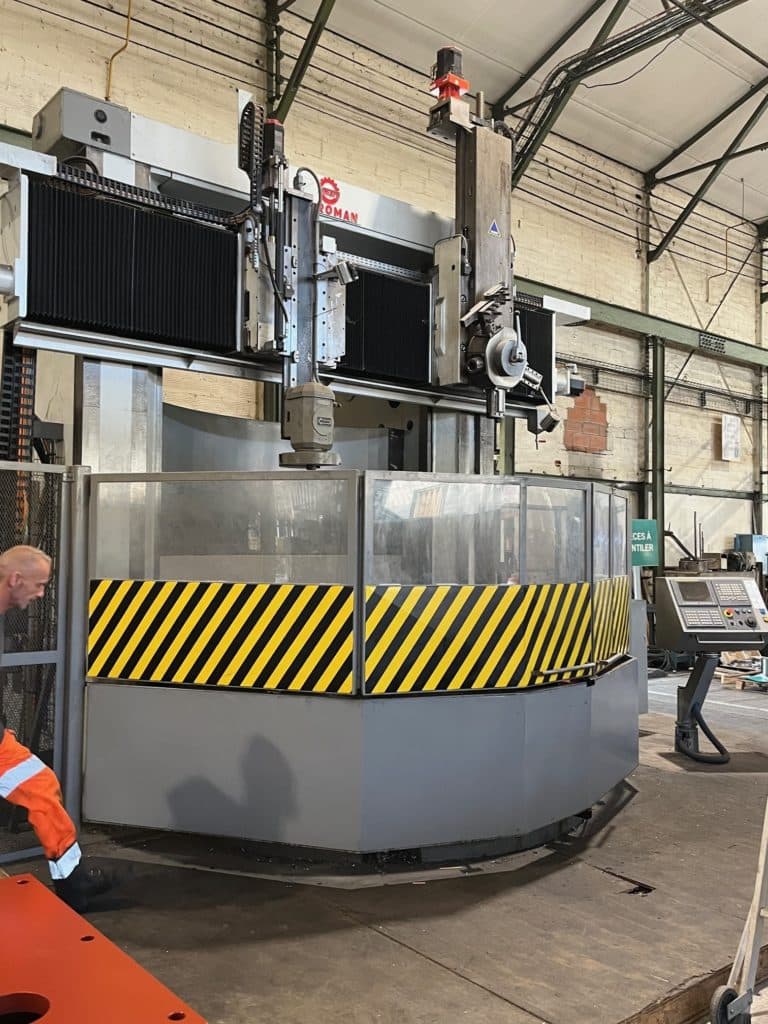

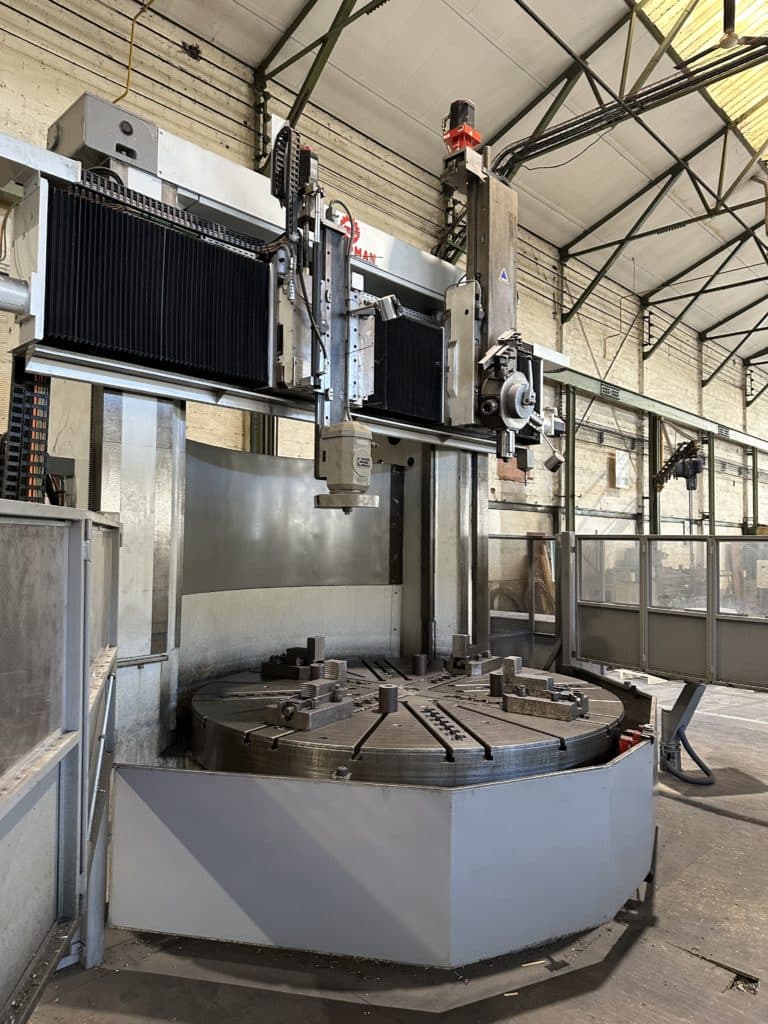

CNC 4 AXES VERTICAL BORER – UMARO – SC 27

Description

Specifications: CNC
:

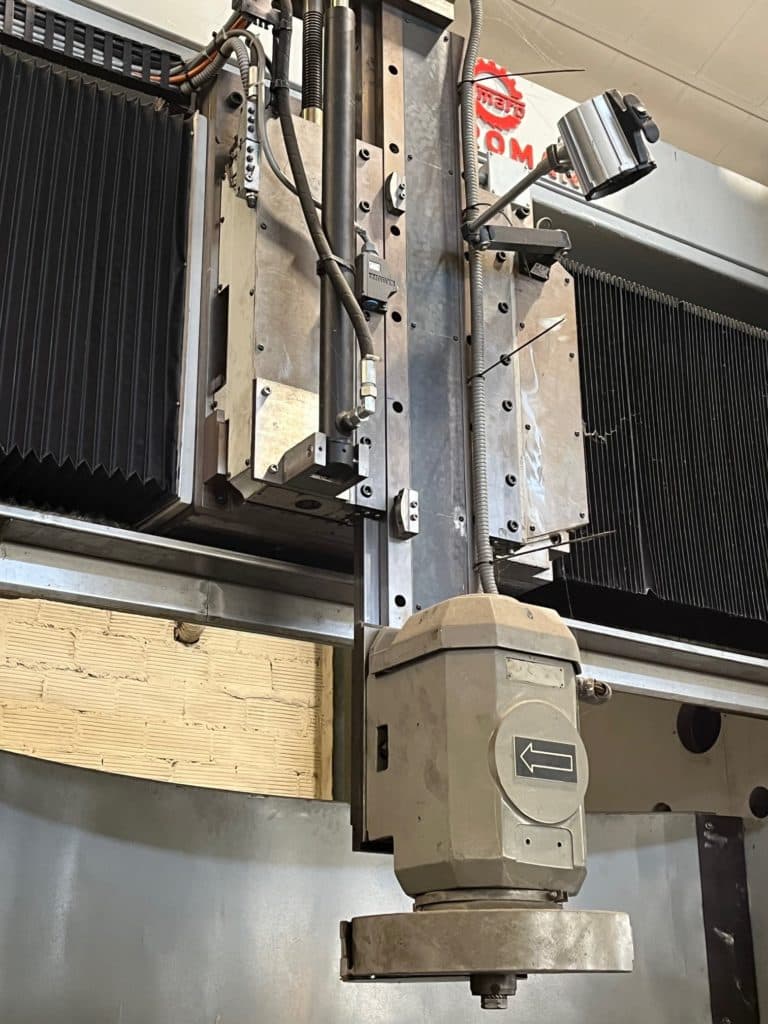

FANUC 0i Max swing diameter :    2650 mm Max turn diameter :   2600 mm Max Turn height. 1900 mm Diameter   2500 mm Max Load.   15 T Chuck Speed (2 ranges)  1 – 112 RPM Main motor power   75 / 60 kW Rams on cross-rail : Vertical stroke RH saddle 760 mm Vertical stroke LH saddle    1200 mm Cross-rail : Vertical stroke  1600 mm Foot-print + height   5 x 4.8 x 4.8 m Equipped with : CNC Grinding head to RH saddle Set of 4 chuck jaws
