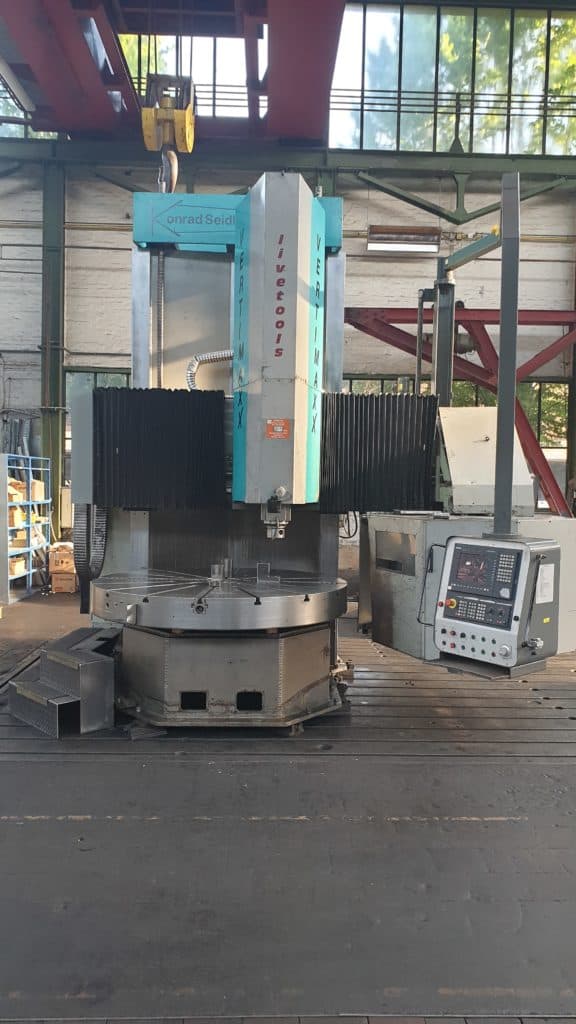

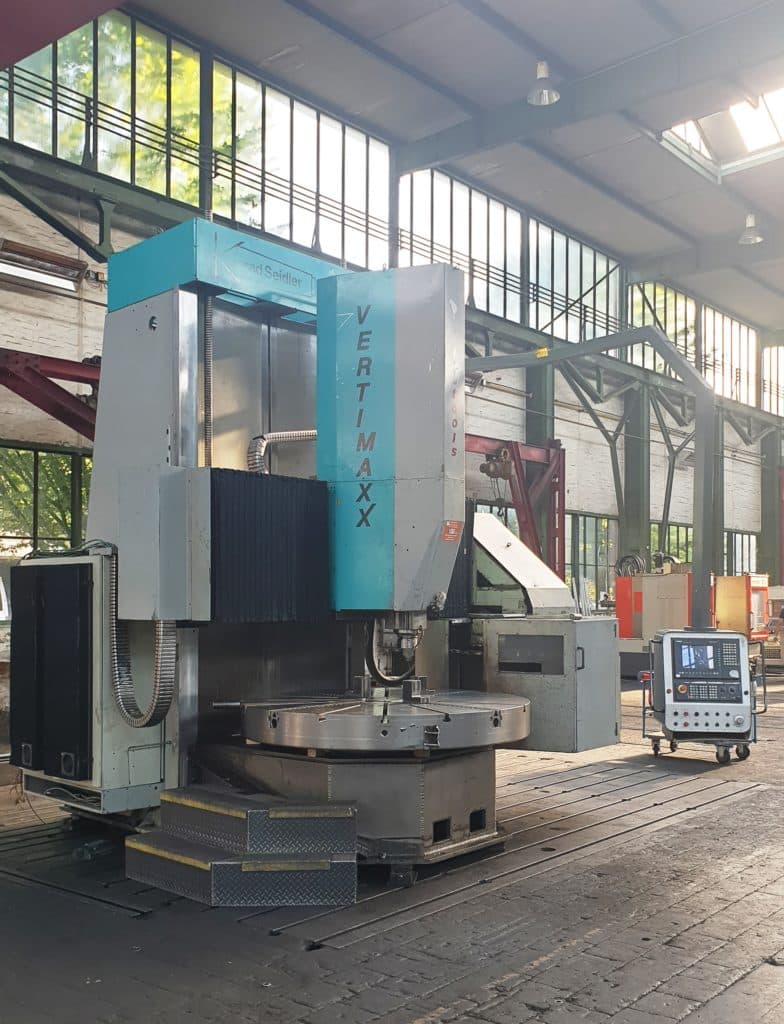

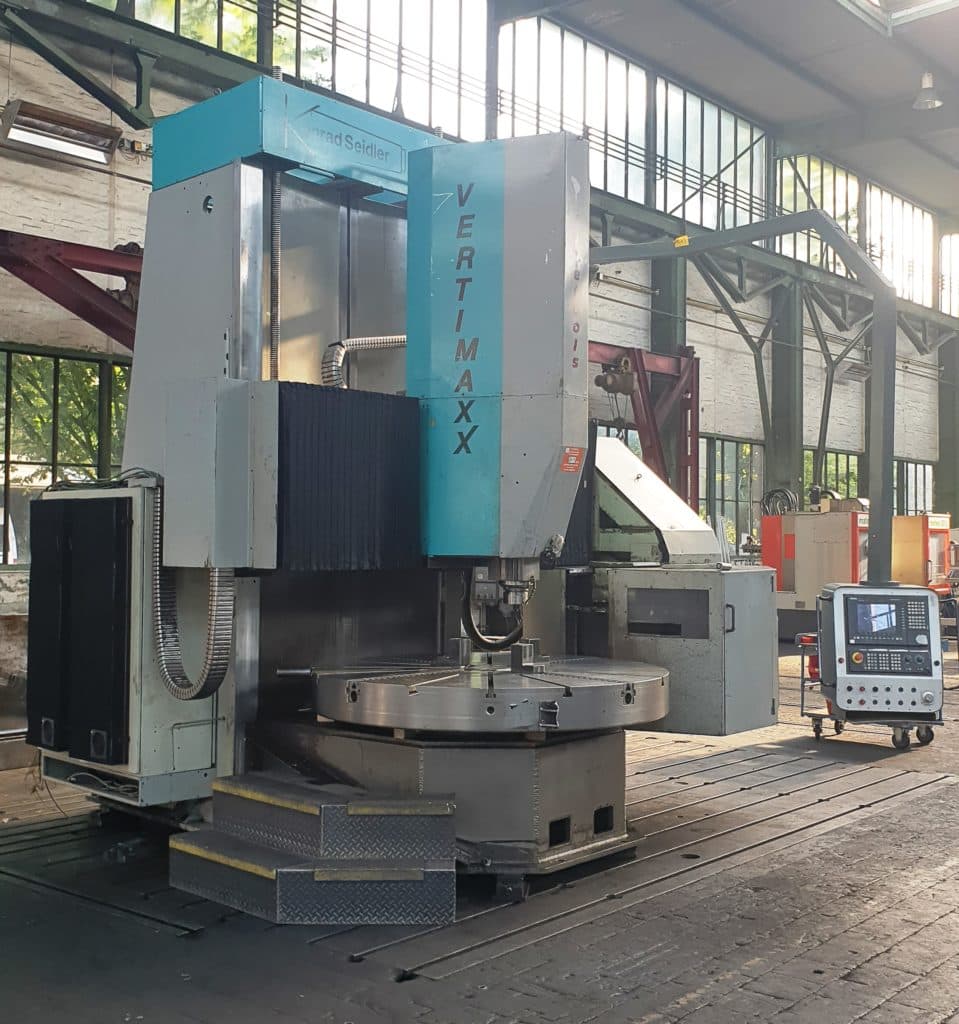

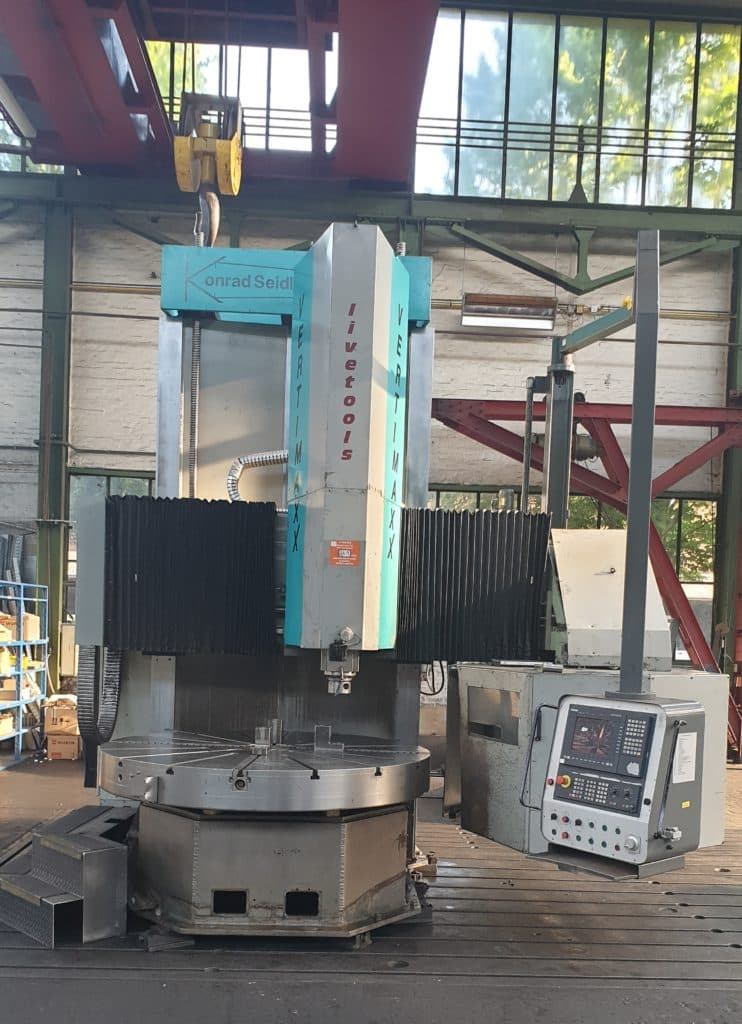

3 AXIS CNC VERTICAL BORER – KONRAD SEIDLER – VERTIMAXX 2000

Description

Specifications: Chuck diameter  1 800 mm Max. turning diameter  130 mm Max. turning height   1 400 mm Height under cross rail  1 500 mm Chuck load  10 T Vertical stroke of ram  1 000 mm Chuck speed   140 RPM (high torque gear box) Main motor power   60 kW Motor power of milling spindle   15 / 22 kW Voltage   400 V / 50 Hz / 3 Ph Machine weight apprx.  24 T Overall machines dimensions approx.   6 000 x 4 000 x h 5 600 mm
