Specifications: CNC
:

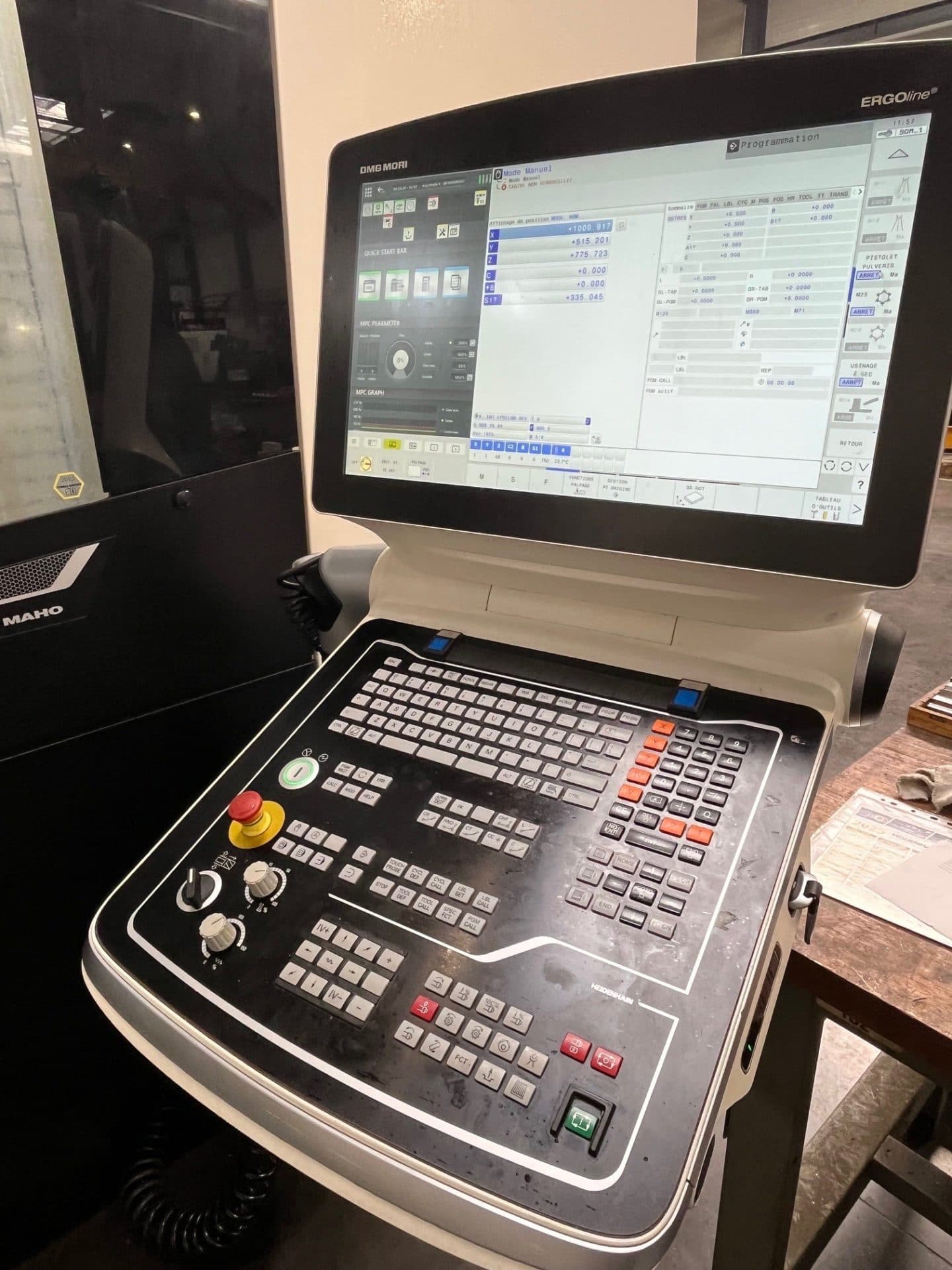

Celios Heidenhain iTNC640 écran 21.5 Table surface 3300 x 850 mm X Stroke 3000 mm
Y Stroke 800 mm
Z Stroke 850 mm B Axis -/+110° C axis 360.000° Spindle speeds 2 – 15 000 RPM Spindle power 46/30 KW Spindle taper SK 40 Big plus
XYZ Rapid traverse 50 m/min Approx. Machine dimensions 11.150 x 6.500 x H 2650 mm

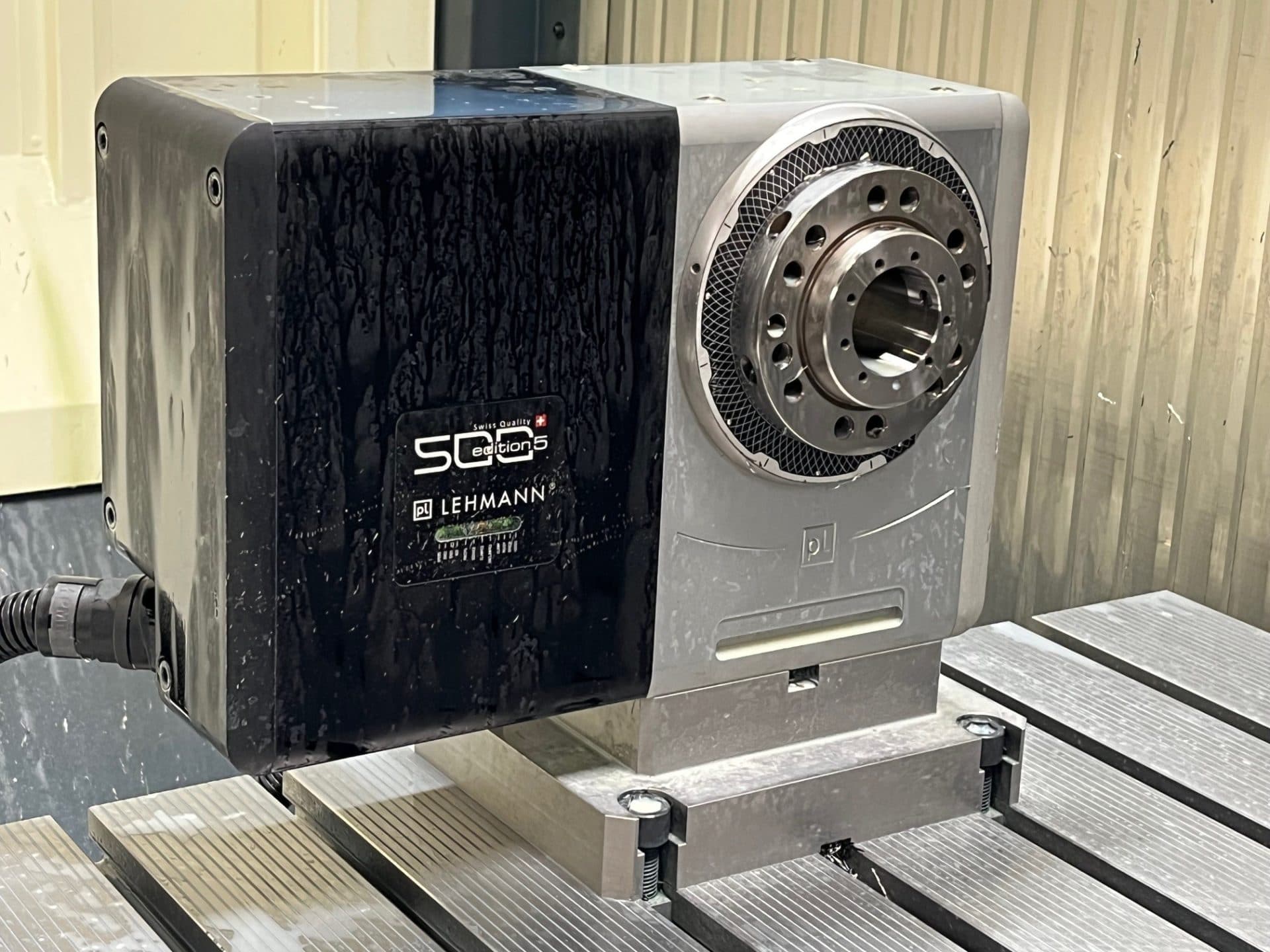

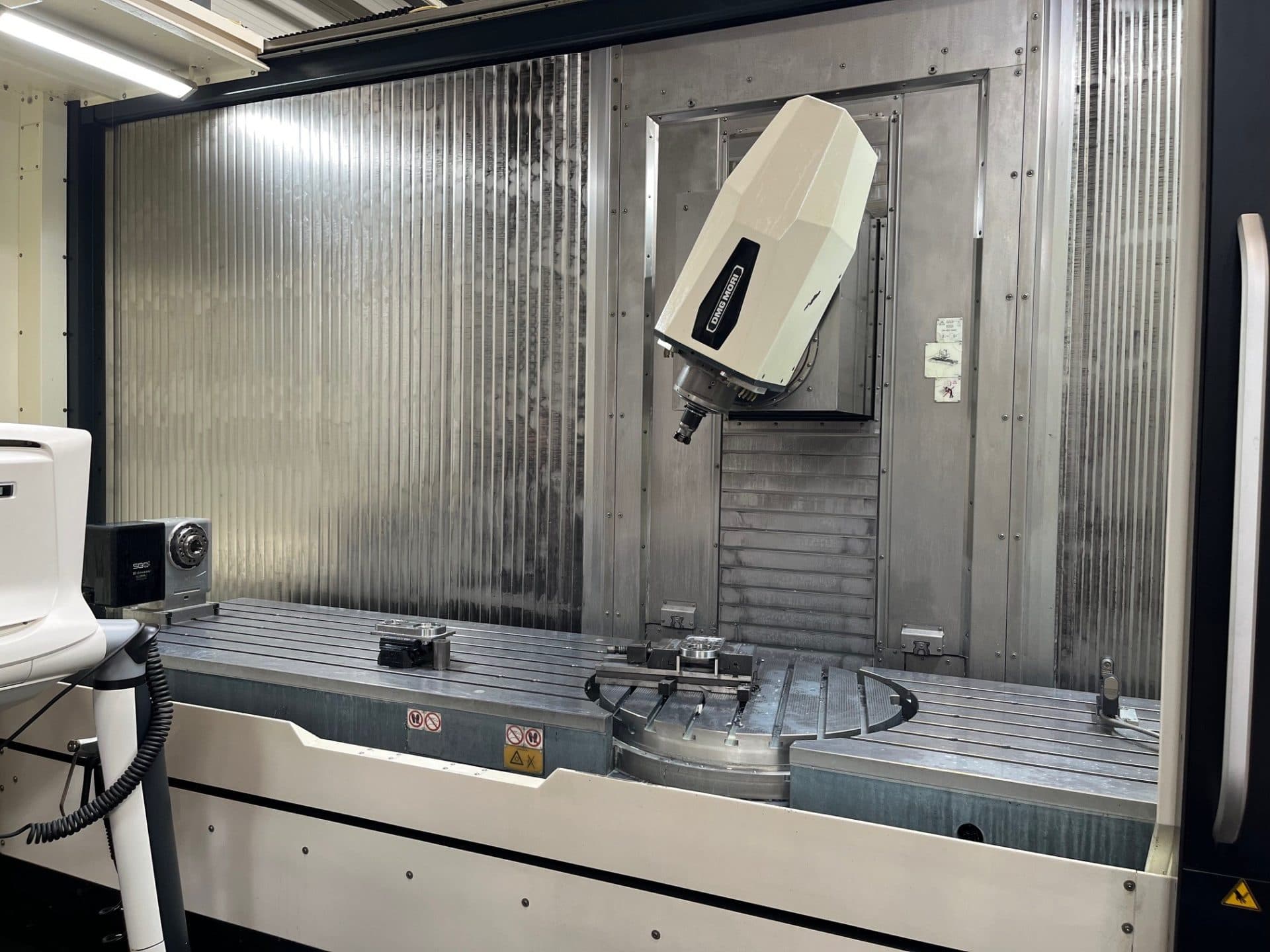

Weight 23 400 kg Equipped with : Integrated 800mm dia. / 800kg Rotary table Spindle 46/30 kW – 15.000 RPM 90 ATC LEHMAN EA520 CNC dividing head with tailstock BLUM LC50 LASER 40 bar thru spindle Coolant, 980 litre coolant tank with paper filter Swarf conveyor Automatic doors
Location : France
Seller : Axel Machine Tools
Manufacturer: MACH
