Options: CNC :

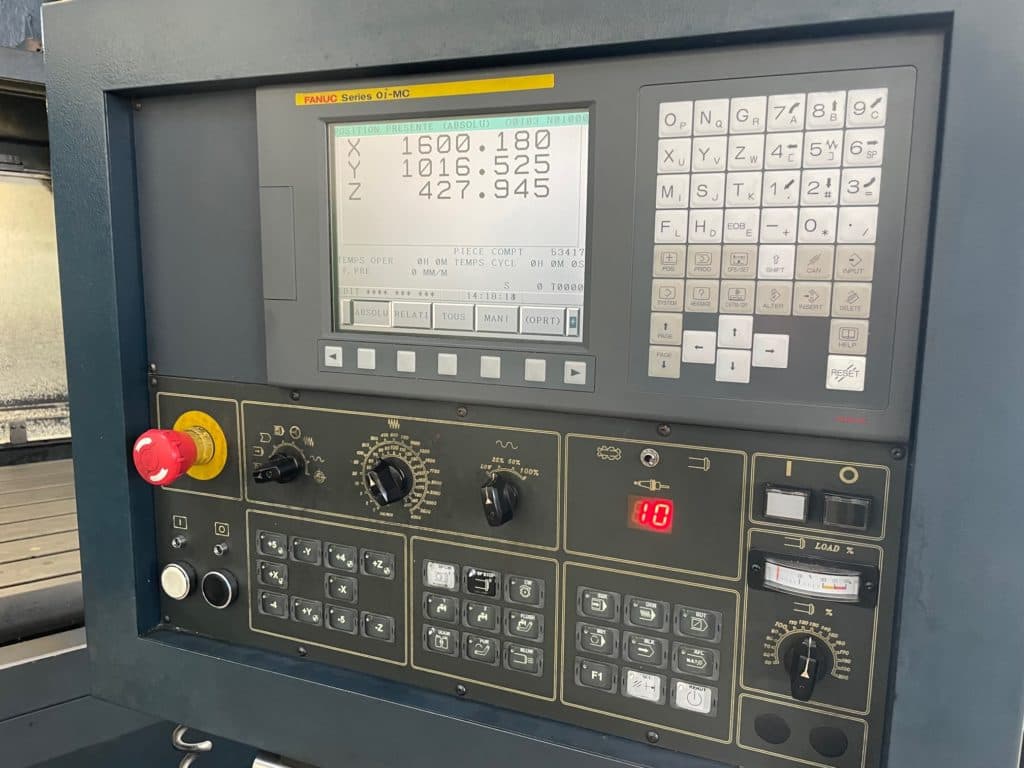

FANUC OiMC +
manual guide
+
8.4” LCD 24 ATC BT 50 Swarf Conveyor Handwheel Through spindle coolant 20 bar Specifications: Travel X/Y/Z : 4200 x 1300 x 800 mm Table size : 4000 x 1100 mm Distance between columns : 1300 mm Spindle to table min / max : 150 – 950 mm Max table load : 6 000 kg Rapid traverse X/Y/Z : 12 / 15/ 12 m/min Spindle speed : 6 000 RPM Spindle taper : BT 50 Spindle power : 18.5 kw Max tool Ø : 125 mm Opposite pockets empty : 200 mm Max tool length : 400 mm Max tool weight : 15 kg ATC : 24
Location : France
Seller : Axel Machine Tools
Manufacturer: DMG Mori
