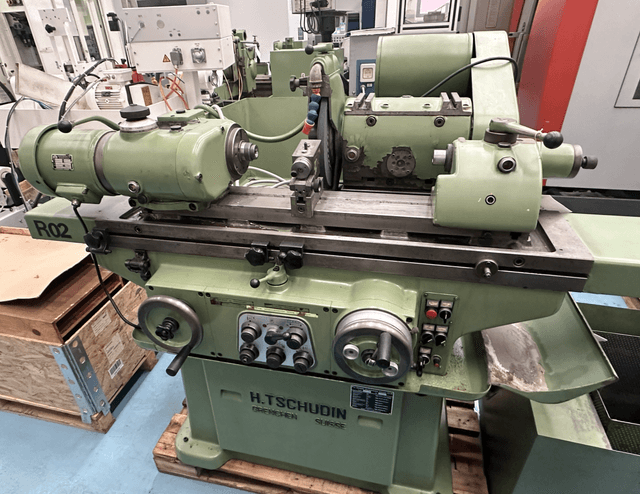

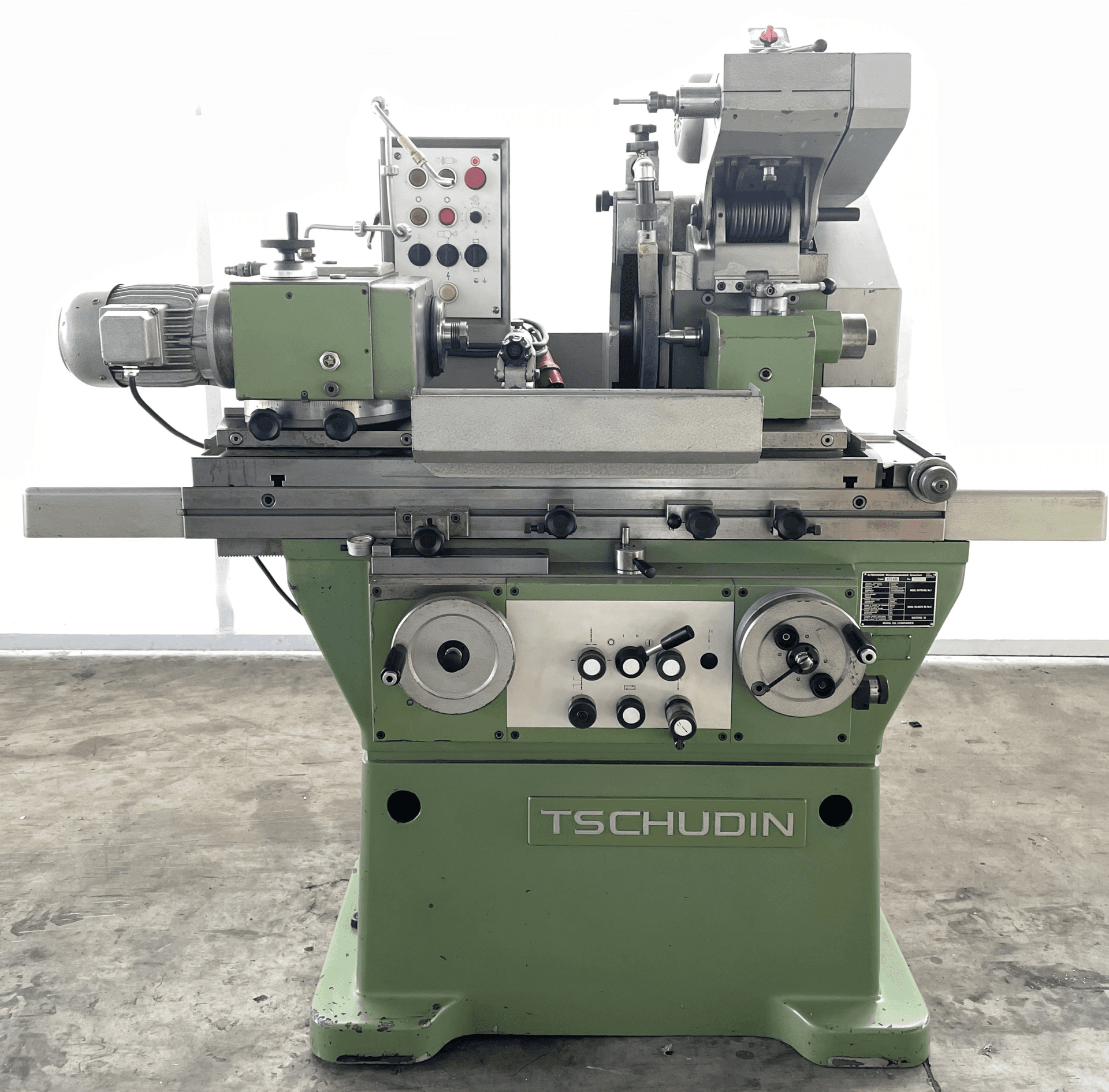

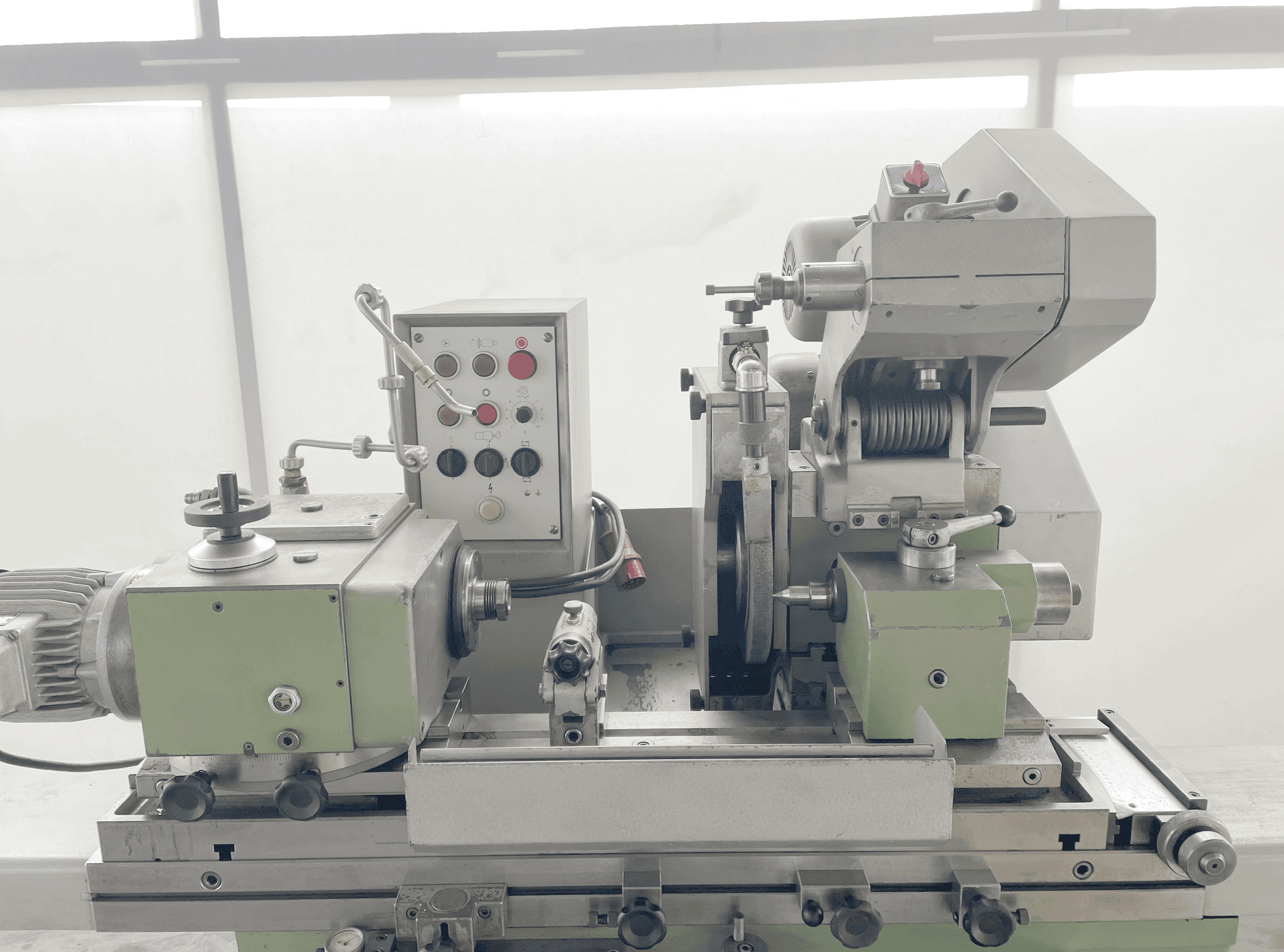

022931 - TSCHUDIN HTG 400

Description

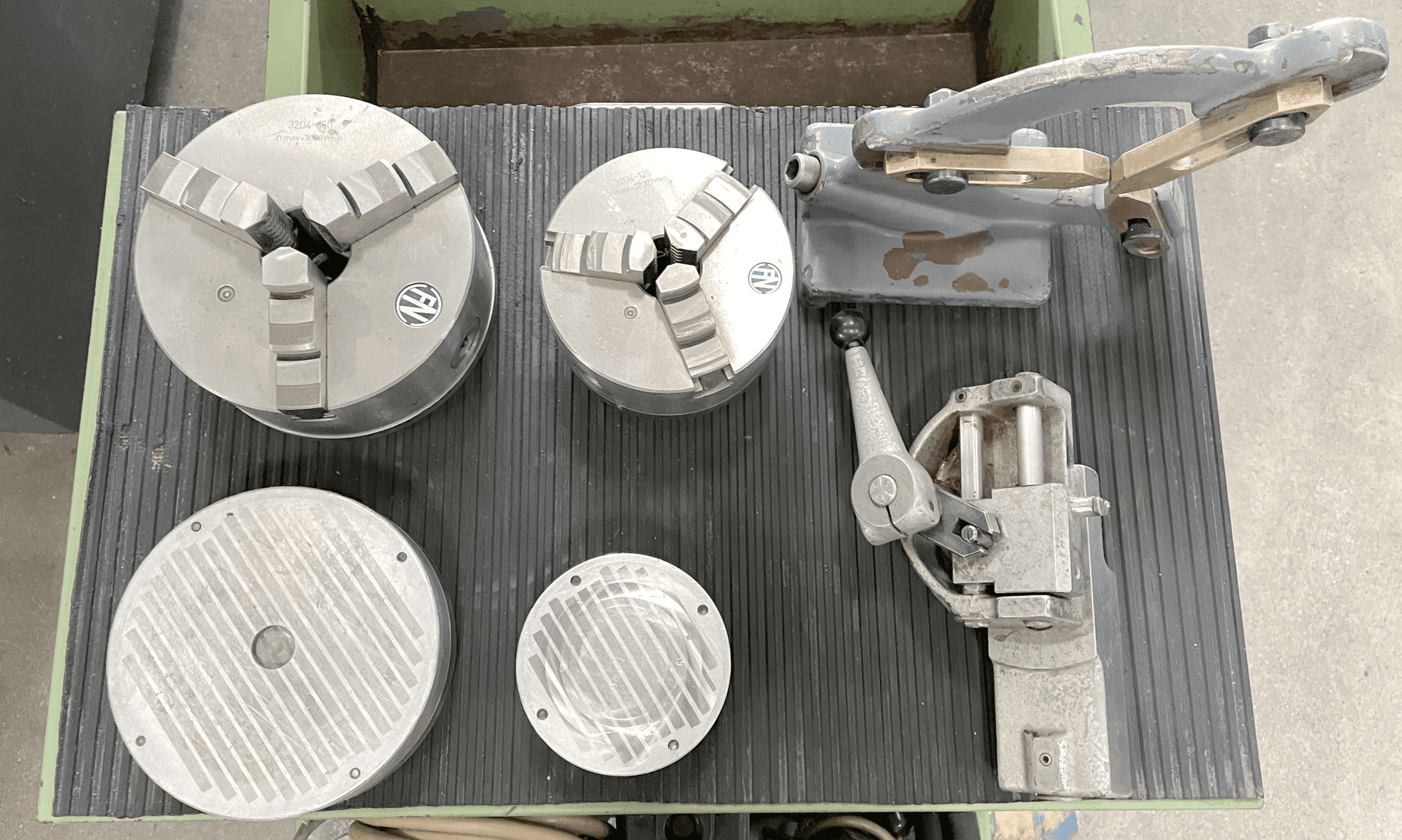

{"Centre height": "150 mm", "Distance between centres": "400 mm", "Grinding wheel right and left hand": "", "Grinding wheel:": "", "Diameter": "300 mm", "Width": "1200 mm", "Bore": "127 mm", "Grinding wheel speeds:": "", "number (steps)": "3", "from": "65 t/min", "up to": "5 m/min", "Work piece spindle head:": "", "speeds:": "", "stepless": "", "rotatable": "360 \u00b0", "Spindle hole": "23 mm", "Spindle taper": "4 CM", "Taper in tailstock:": "3 CM", "Table angular displacement": "9 \u00b0", "Table speed:": "", "Voltage 50 Hz 3x": "380 Volt", "External Grinding wheel motor": "2.5 CV", "Total power required": "4 CV", "Machine's weight about": "1600 kg", "Overall dimensions machine:": "", "Length": "1600 mm", "Height": "1550 mm", "Various accessories:": "", "Tailstock": "", "Internal grinding attachment swivellable:": "", "Reversible dressing device": "", "3-jaw chuck diameter": "160 mm", "Macnetic chuck diameter": "100 mm", "Coolant system": "", "Paper filtration system": "", "Steady": "", "Set of elevation plates": "50 mm"}
