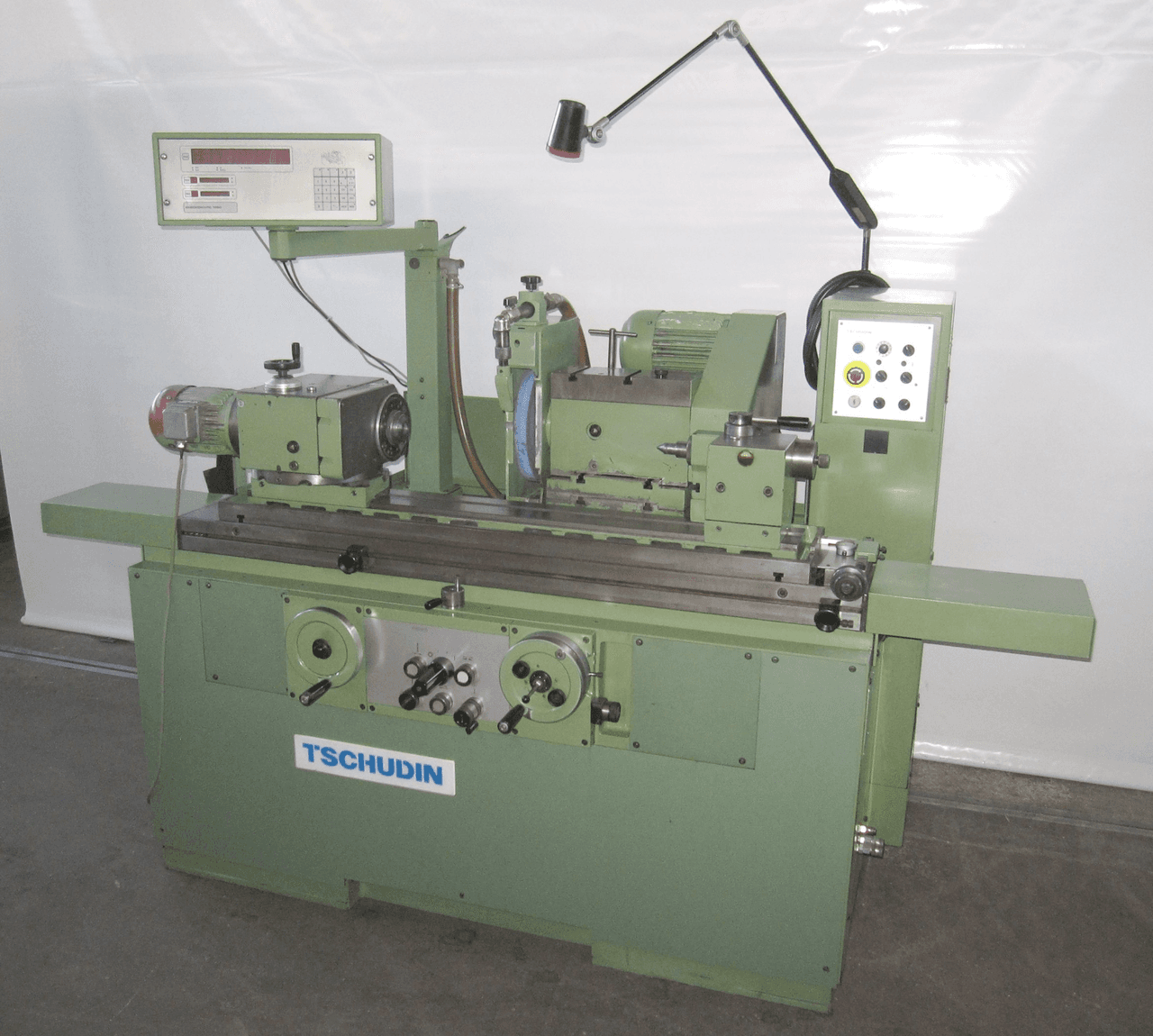

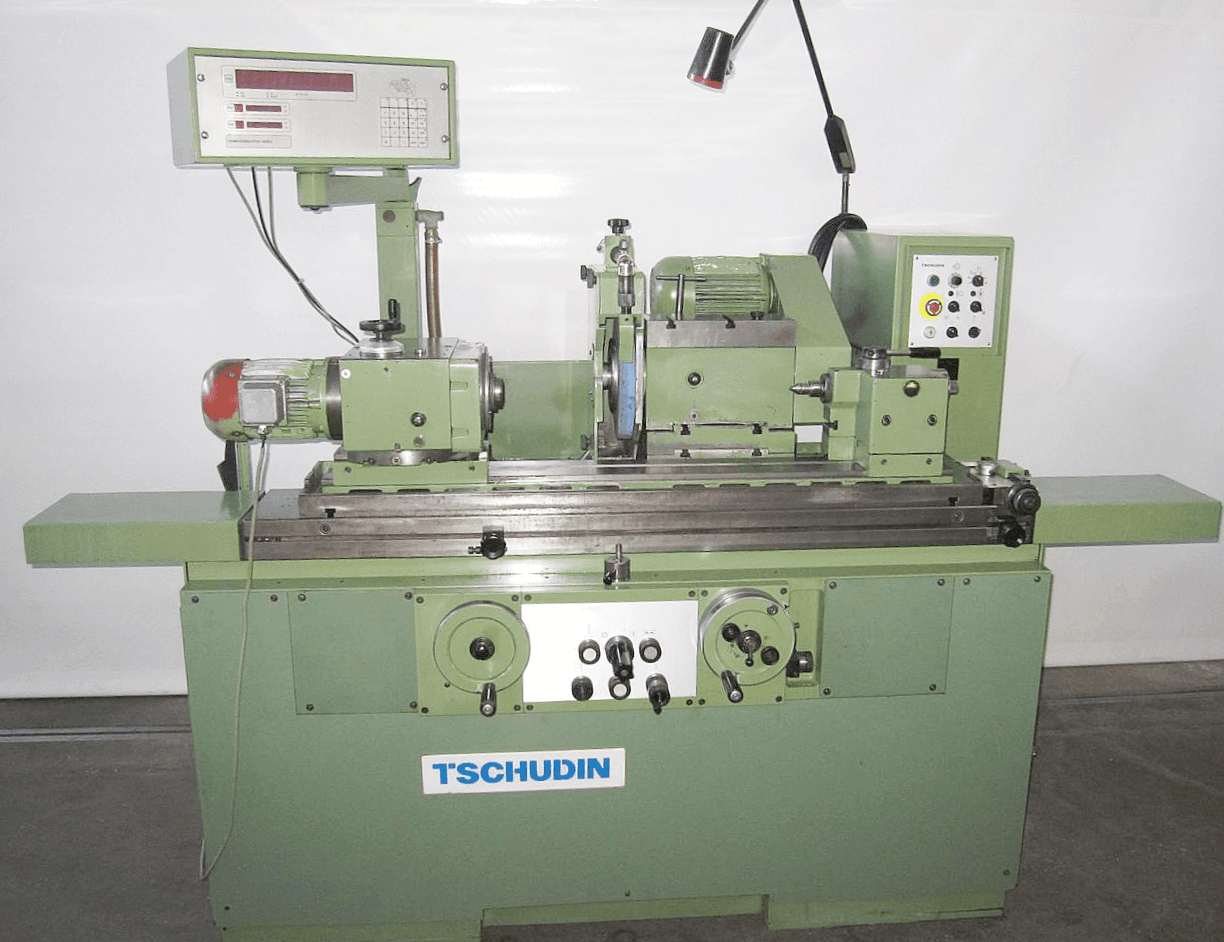

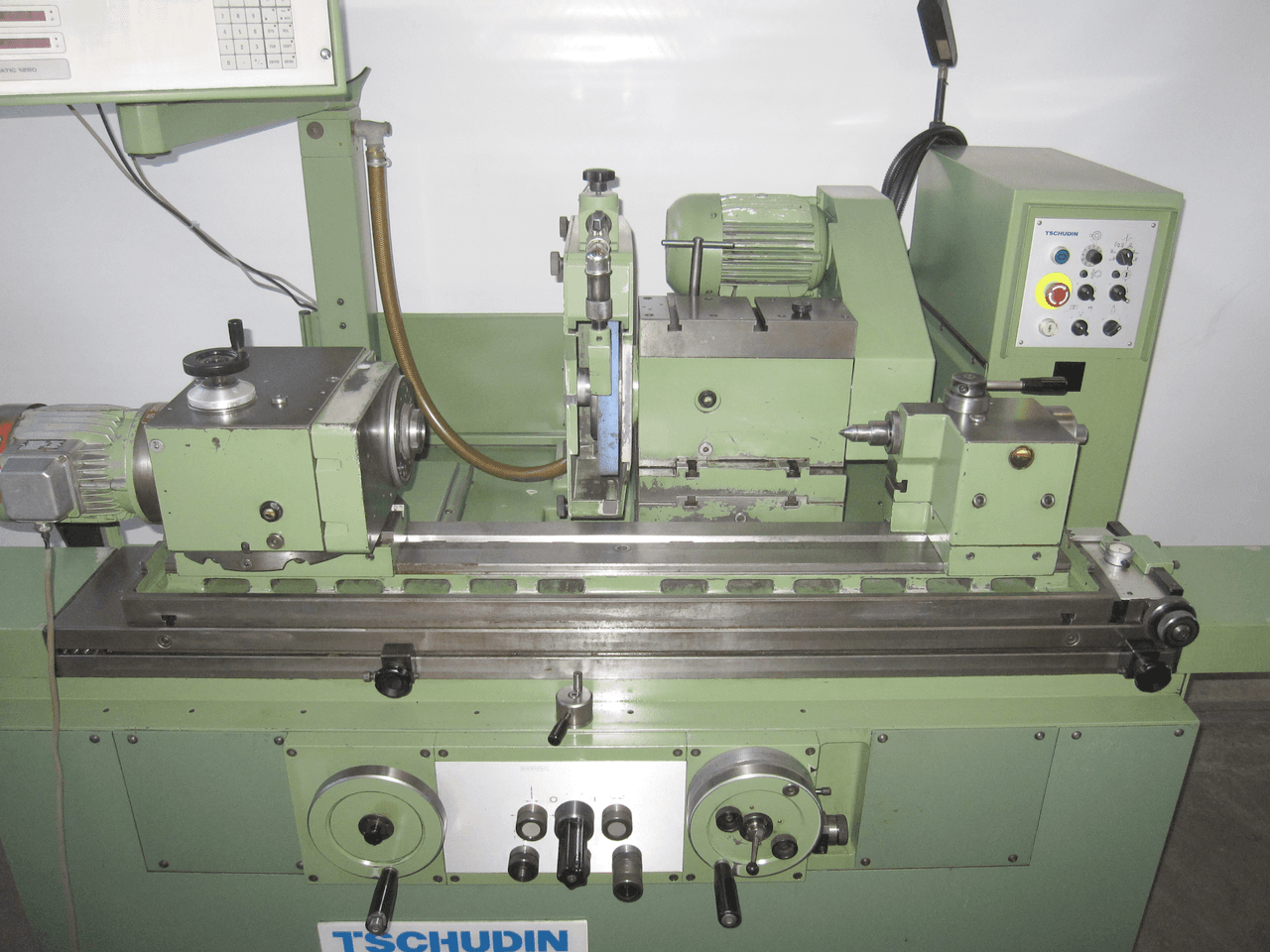

018293 - TSCHUDIN HTG 610.10

Description

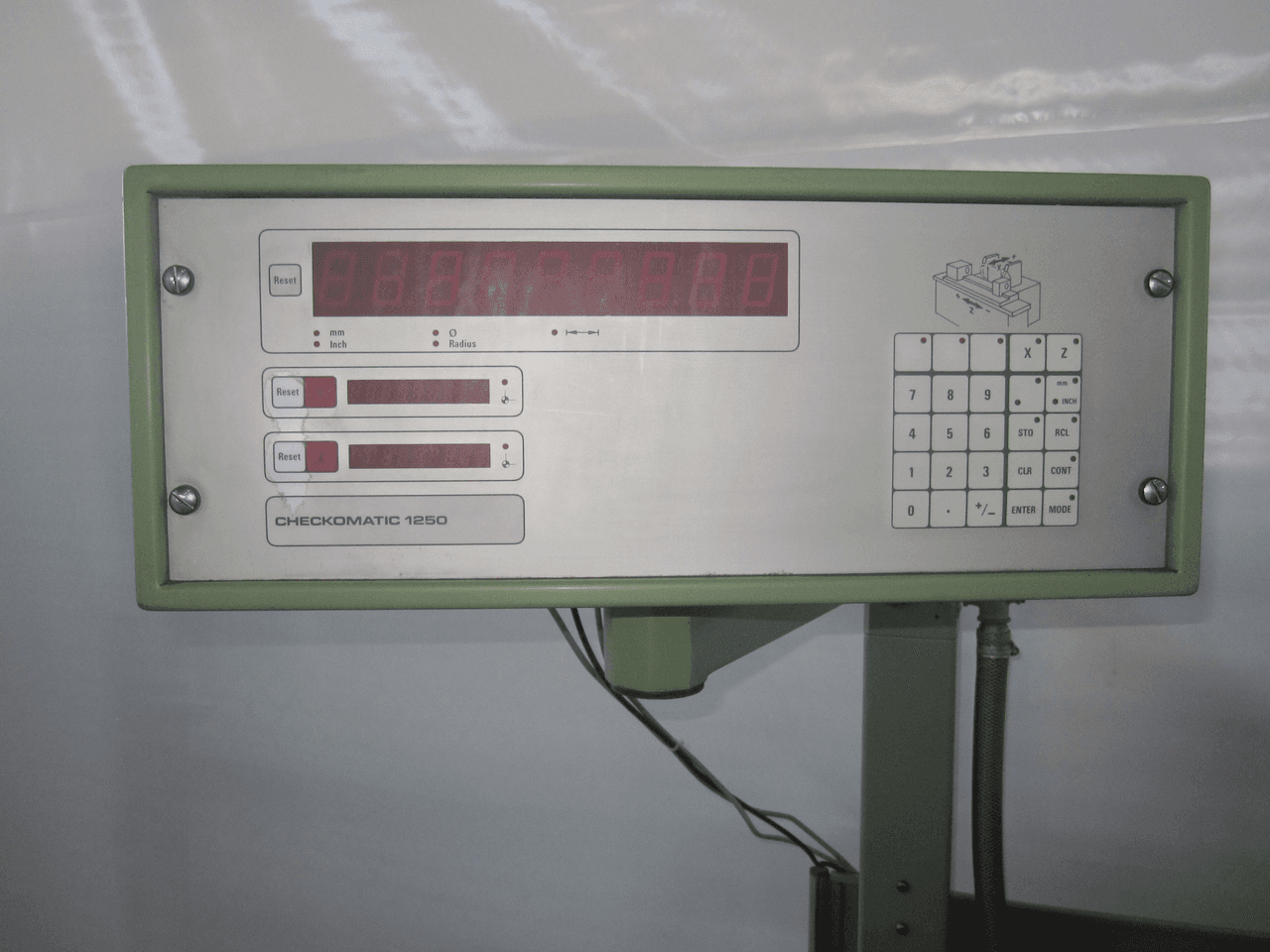

{"Centre height": "150 mm", "Distance between centres": "680 mm", "Max. Longitudinal travel": "620 mm", "Grinding wheel:": "", "Diameter": "350 mm", "Bore": "127 mm", "grinding wheel width": "50 mm", "Grinding wheel speeds:": "", "number (steps)": "3", "from": "65 t/min", "up to": "5 m/min", "Work piece spindle head:": "", "speeds:": "", "stepless": "", "rotatable": "360 \u00b0", "Spindle taper": "5 CM", "Taper in tailstock:": "3 CM", "Table angular displacement": "8 \u00b0", "Table speed:": "", "Voltage 50 Hz 3x": "380 Volt", "External Grinding wheel motor": "4.0 CV", "Total power required": "7 CV", "Machine's weight about": "2500 kg", "Overall dimensions machine:": "", "Length": "2700 mm", "Width": "1800 mm", "Height": "1900 mm", "Various accessories:": "", "Digital readout number of axis:": "2", "Manufacturer": "Tschudin Checkomatic", "Paper filtration system": "", "Sparking-out attachment": "", "Lamp": "", "Raising block for centers": "50 mm", "Full automatic working cycle": "", "Infeed grinding": "", "Intermittant grinding with left side infeed": "", "Intermittant grinding with right side infeed": "", "Intermittant grinding right and left side infeed": "", "Preselected spark out time for all cycles": ""}
