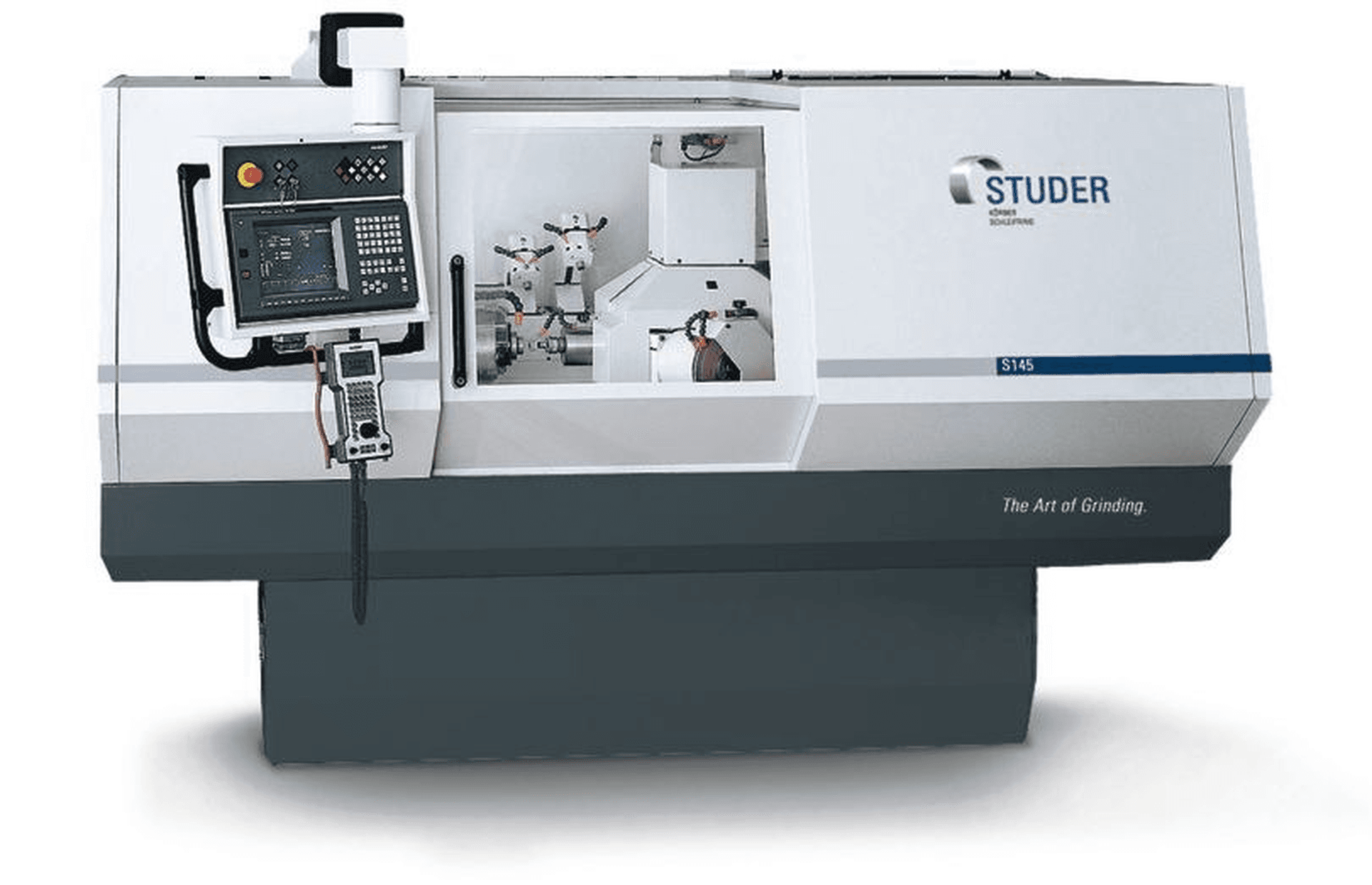

022918 - STUDER S 145 CNC

Description

{"Workpiece length max.": "850 mm", "Maximum workpiece weight": "150 kg", "Swing diameter:": "", "Above the workpiece table": "350 mm", "In front of the workpiece table": "440 mm", "Centre height": "175 mm", "Axial motion:": "", "Longitudinal travel (Z-axis)": "500 mm", "Cross travel (x-axis)": "120 mm", "Workpiece spindle stock (Q-axis)": "+ / -30\u00b0", "Feed range:": "", "Z axis (longitudinal travel)": "0.001-10000 mm/min", "X axis (transversal)": "0.001-10000 mm/min", "Diameter of grinding wheel": "250 mm", "C axis (spindle,resolution)": "\u00b0", "Grinding spindle head:": "", "Swivelling range": "0 - 270 \u00b0", "Number of positions": "4", "Work piece spindle head:": "", "speeds:": "", "stepless": "", "from": "1 t/min", "up to": "1000 t/min", "Typing speed": "1 - 50 t/min", "Spindle hole": "50 mm", "taper in spindle: ISO": "50", "Work piece spindle nose CAMLOCK": "6''", "Air connect": "5 bar", "Voltage 50 Hz 3x": "400 Volt", "Workpiece spindle motor": "3 kW", "Total power required": "22 kVA", "Machine's weight about": "5700 kg", "Overall dimensions machine:": "", "Length": "3000 mm", "Width": "2000 mm", "Height": "2200 mm", "Various accessories:": "", "Redressing device": "", "Dressing spindle": "HF 33", "Coolant system": "", "Paper filtration system": "", "3-jaw chuck diameter": "250 mm", "Foot pedal": "", "External grinding spindle": "", "numbers": "3", "max. speed": "90000 t/min", "Internal grinding spindle:": ""}
