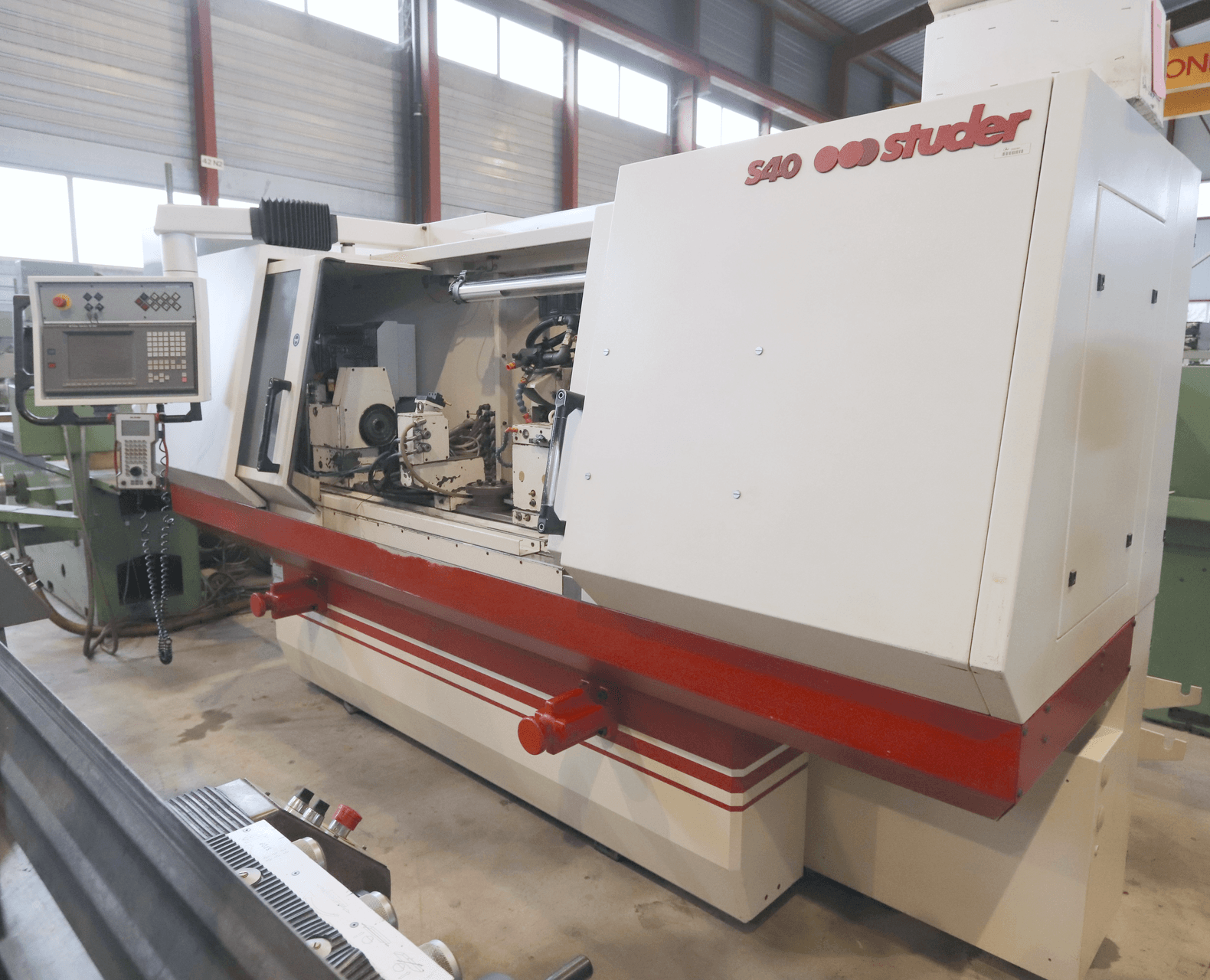

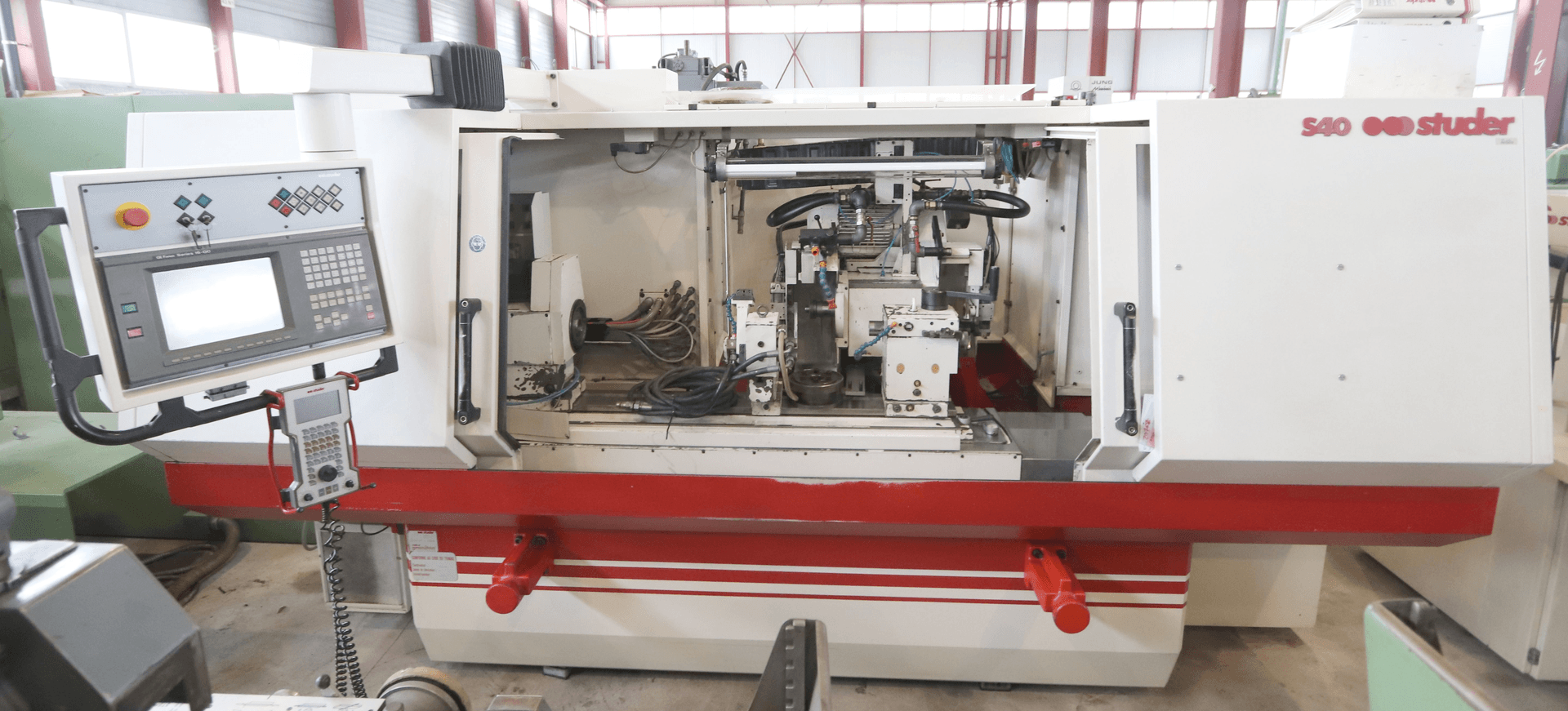

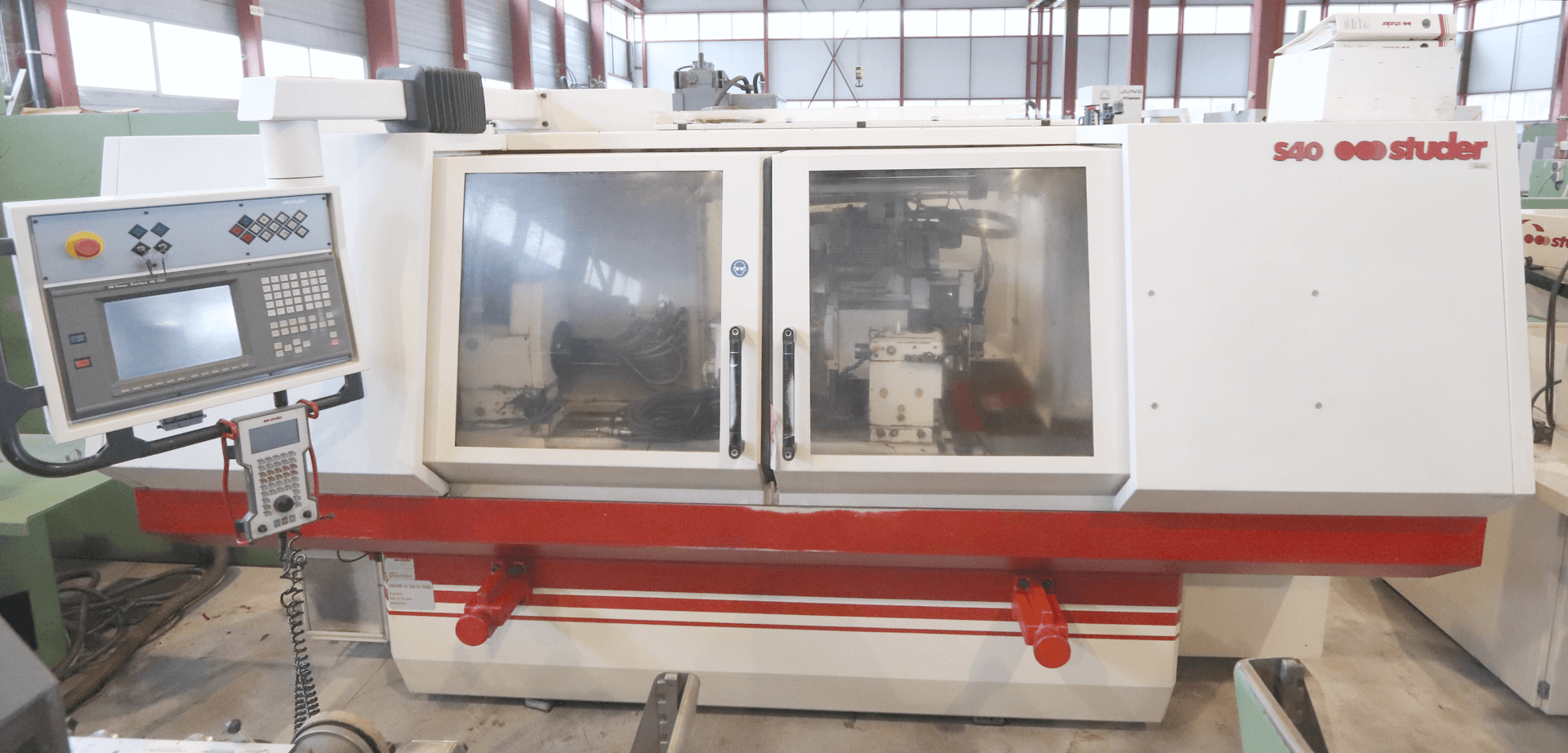

020762 - STUDER S 40 CNC

Description

{"Centre height": "175 mm", "Distance between centres": "1000 mm", "Workpiece weight on centres max.": "130 kg", "Workpiece dimensions:": "", "Grinding weehl left side:": "", "Diameter": "400 mm", "Width": "1200 mm", "Bore": "127 mm", "Grinding wheel right side:": "", "B axis resolution max.": "5 \u00b0", "B axis swivelling range (automatic)": "15\u00b0 + 205 \u00b0", "Grinding wheel speeds:": "", "number (steps)": "2", "up to": "60000 t/min", "Revolving unit with Hirth serration": "", "Rotatable grinding spindle head (b-axis)": "5 \u00b0", "Peripheral speed": "35 m/s", "Longitudinal slide:": "", "Max. travel": "275 mm", "Resolution": "mm", "Feed speed up": "0.0001 - 10000 mm/min", "Transversal slide:": "", "Work piece spindle head:": "", "speeds:": "", "from": "30 t/min", "rotatable": "90 \u00b0", "taper in spindle: MT": "5", "Required power": "1 kW", "Tailstock:": "", "Hydraulic return": "", "Taper in tailstock:": "3 CM", "Tailstock travel of barrel": "35 mm", "Max. table angular displacement": "8.5 \u00b0", "Air connect": "5 bar", "Voltage 50 Hz 3x": "400 Volt", "Workpiece spindle motor": "8 kW", "Total power required": "30 kVA", "Machine's weight about": "5100 kg", "Overall dimensions machine:": "", "Length": "3750 mm", "Height": "2300 mm", "Various accessories:": "", "Internal grinding attachment:": "", "Number of spindles": "1", "Lamp": "", "Tailstock with fine adjustement": "", "Electronic hand held control": ""}
