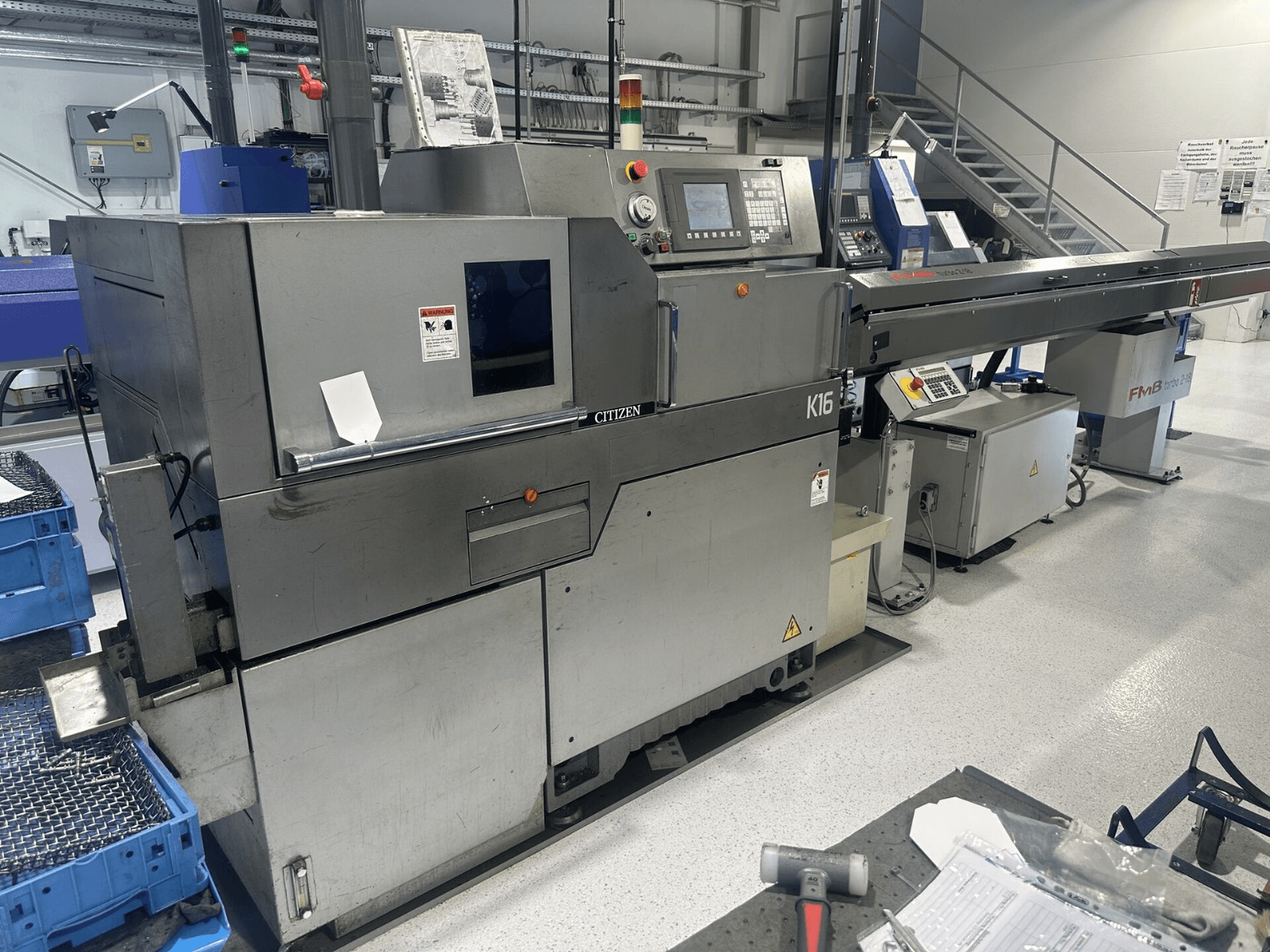

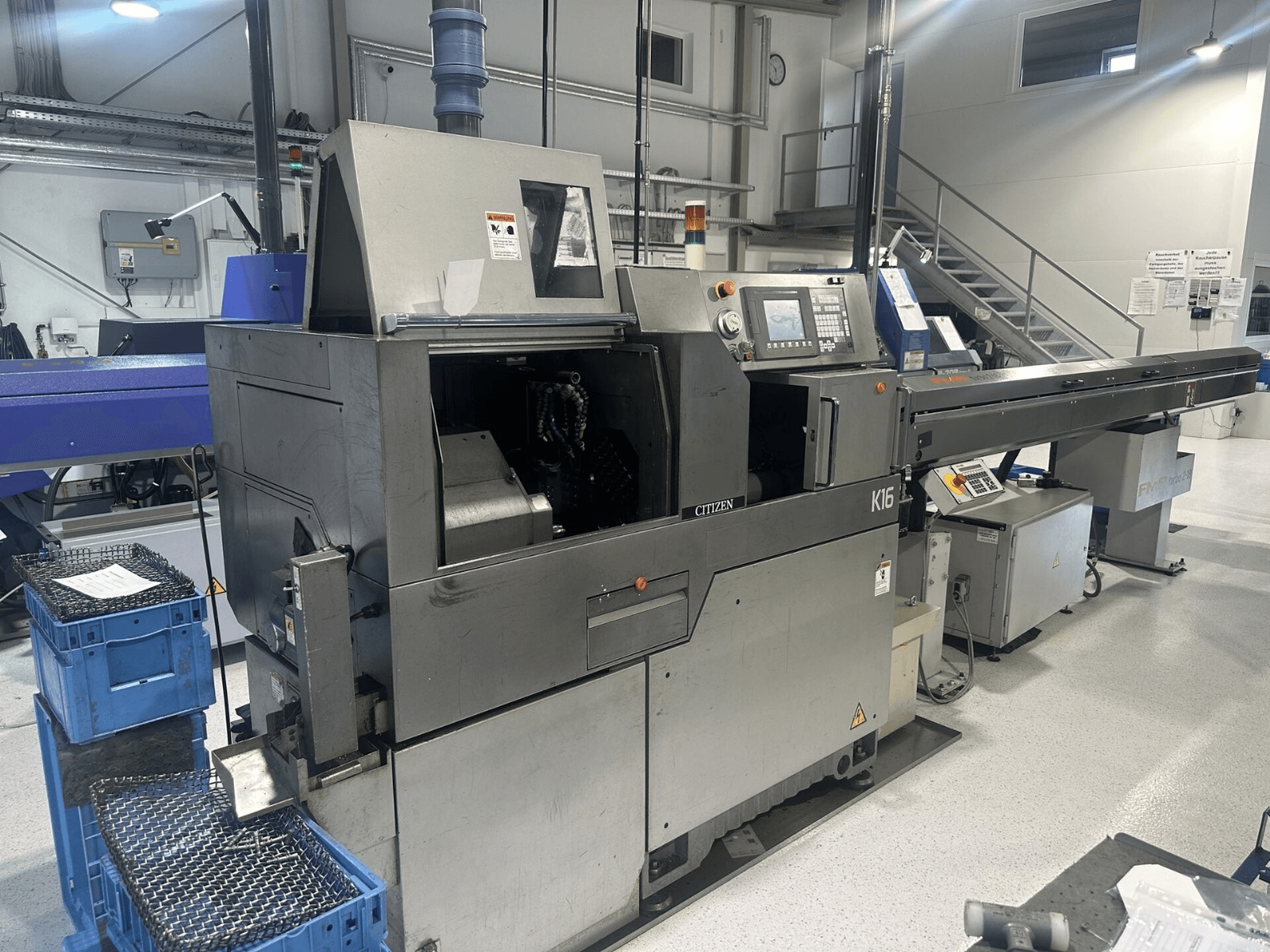

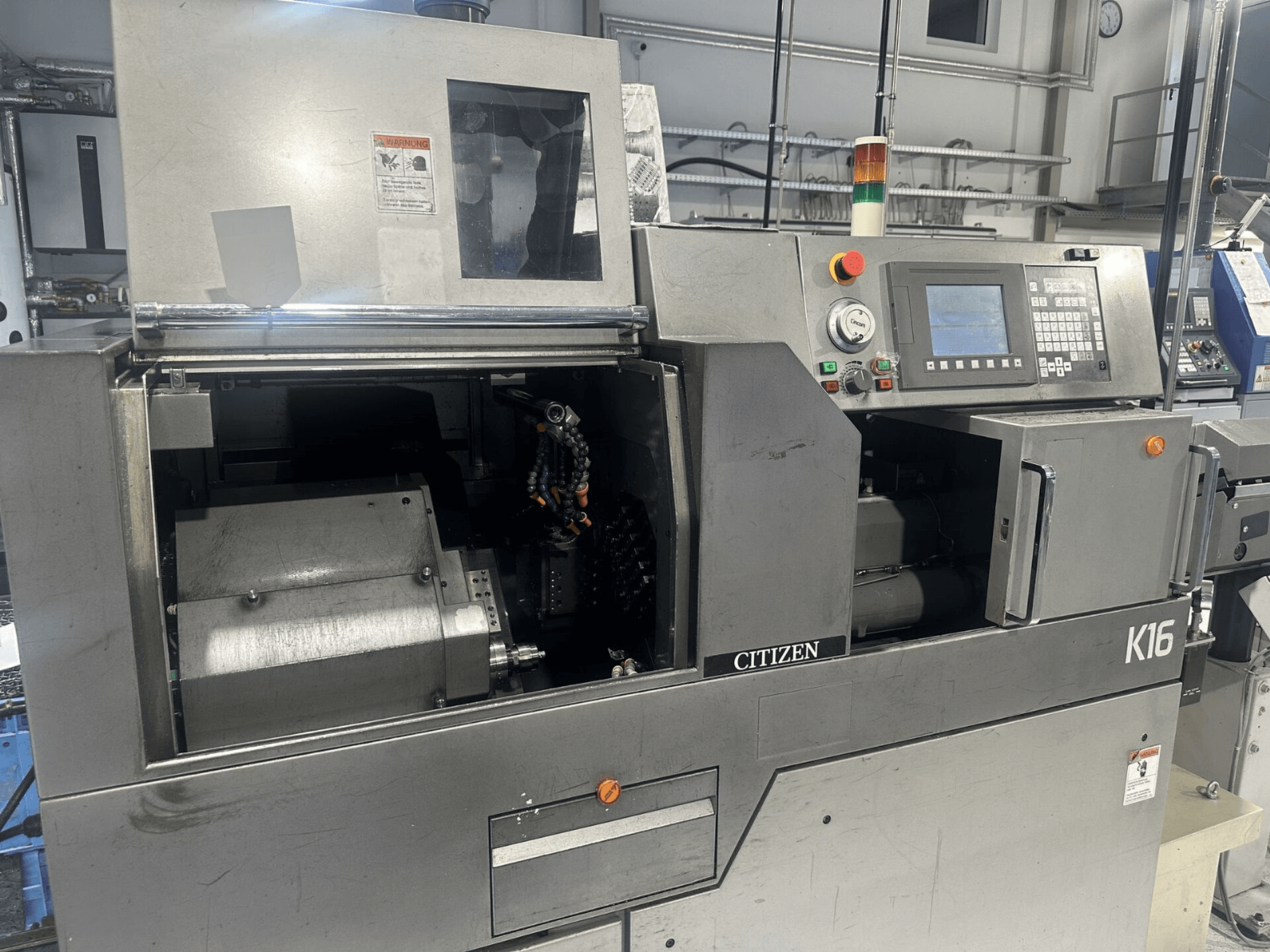

022866 - CITIZEN CINCOM K16 VII P

Description

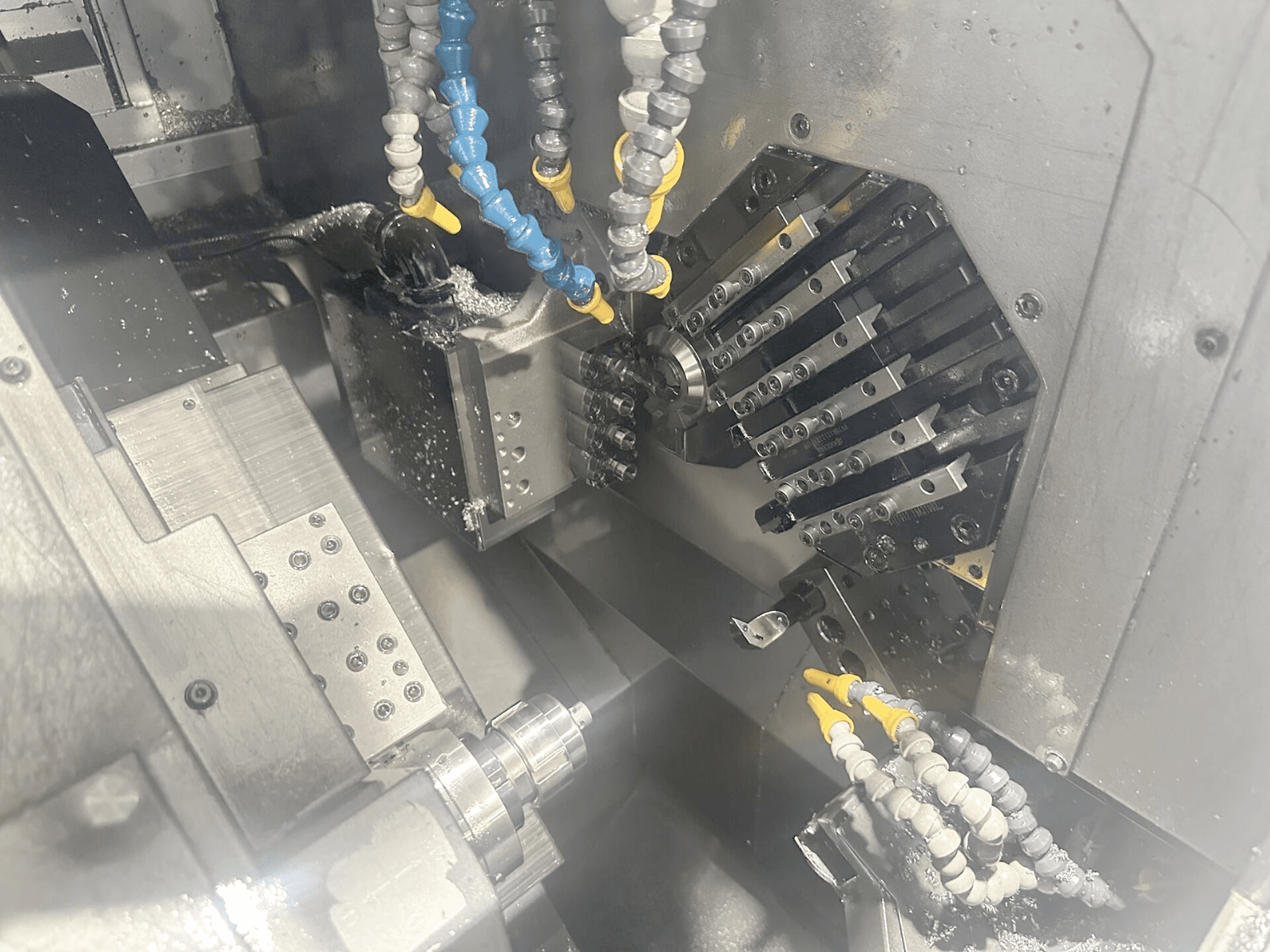

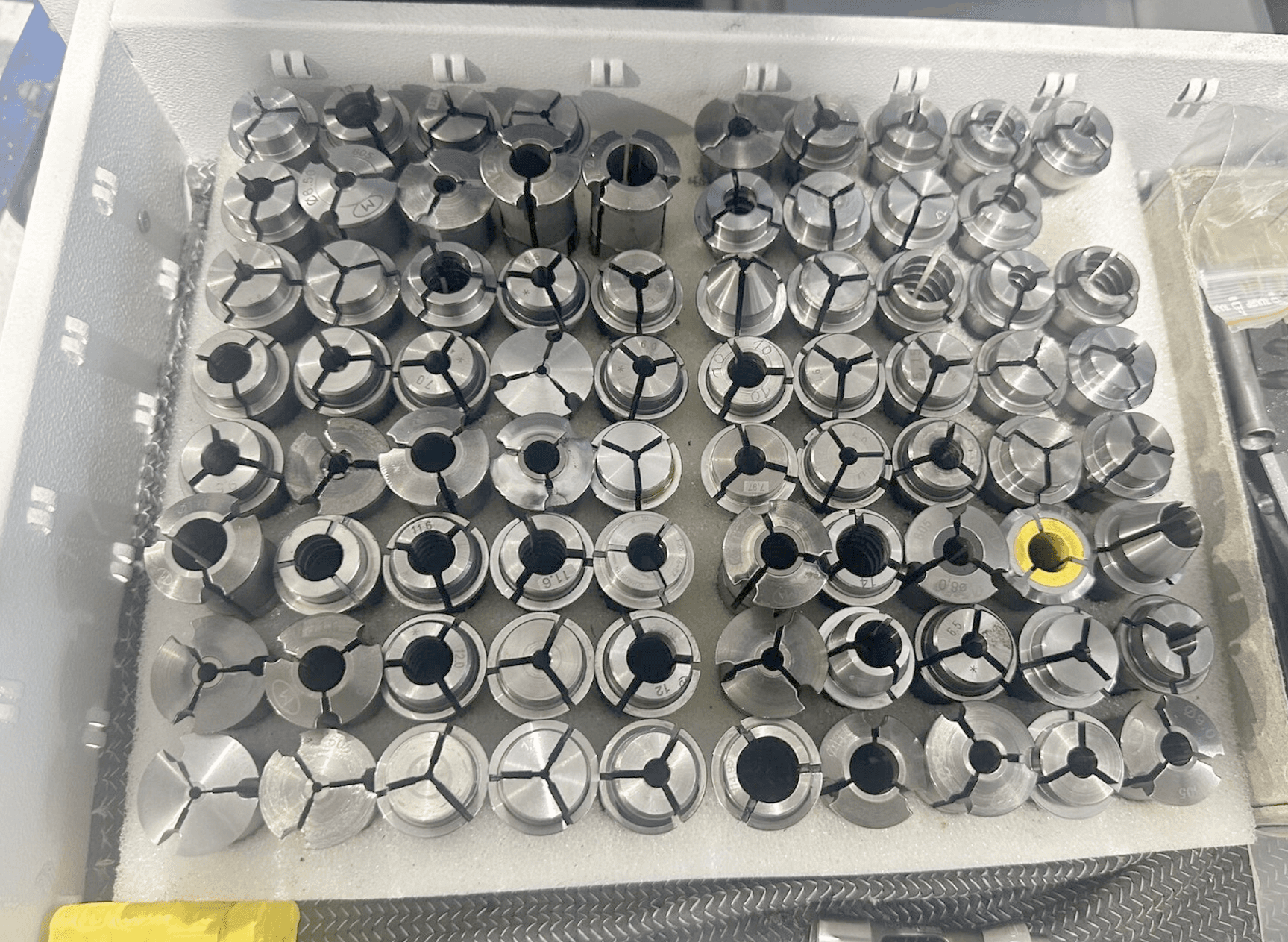

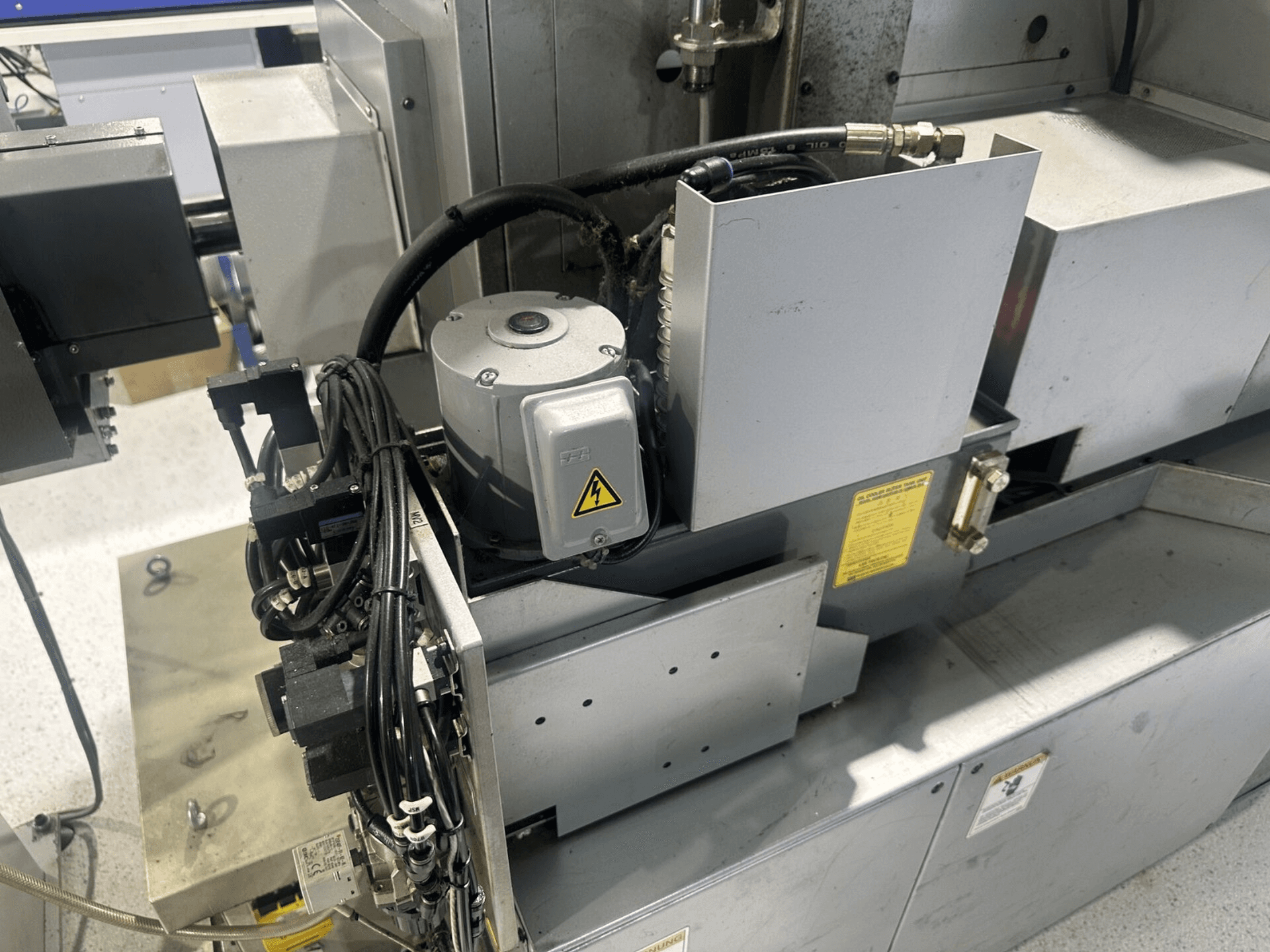

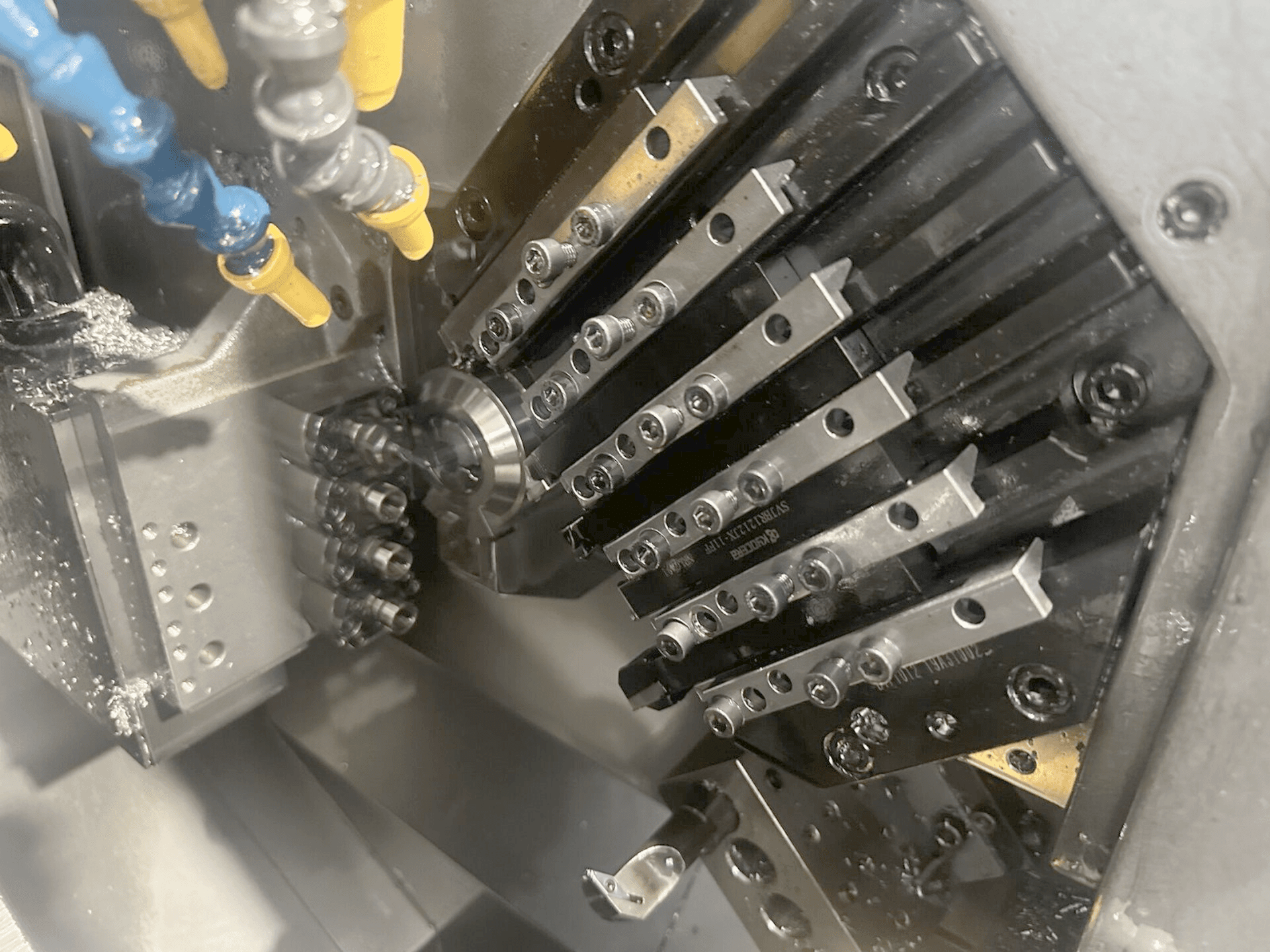

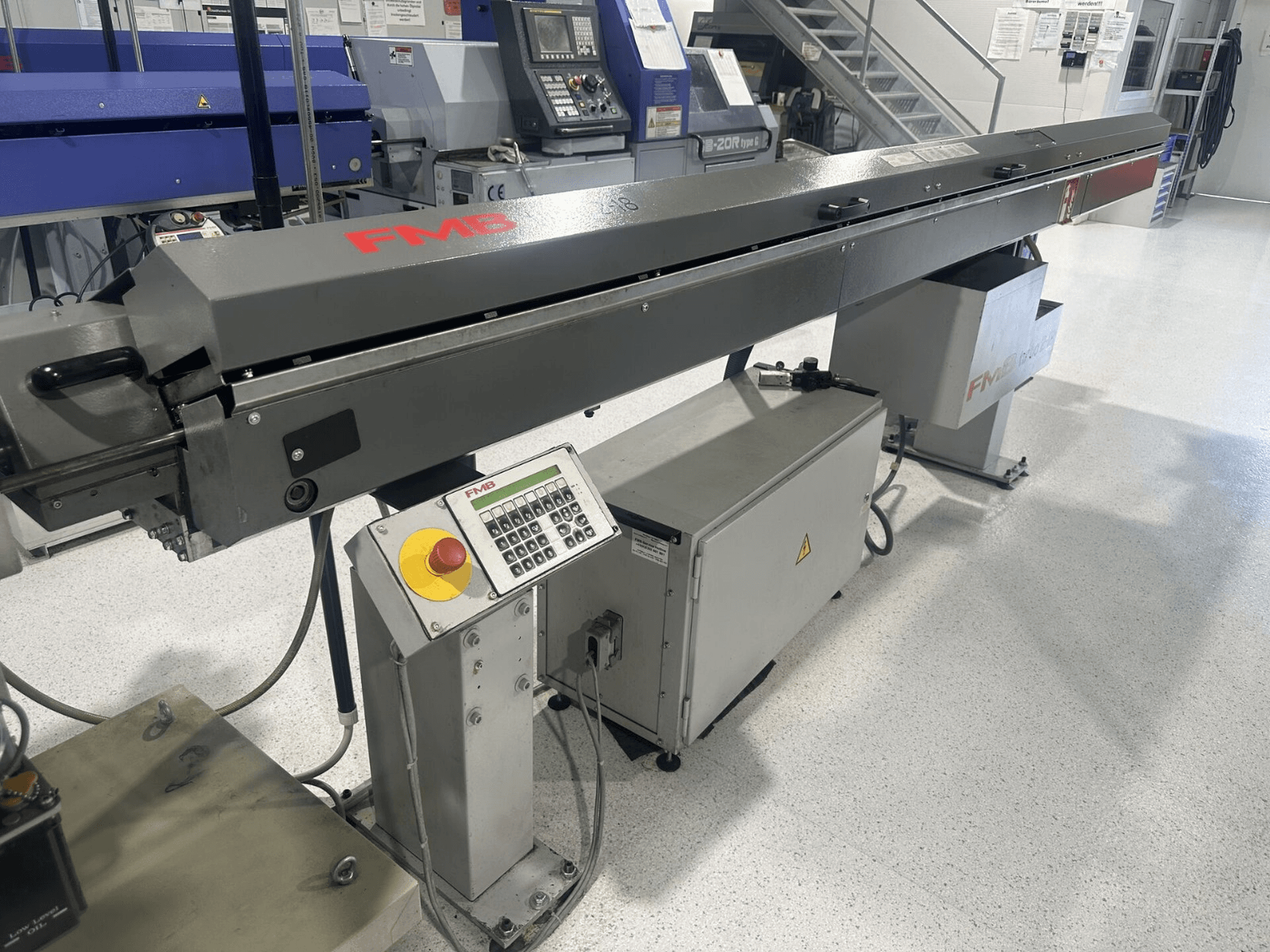

{"Number of axis total": "5 + 2", "Number of spindles": "2", "Max. turning diameter": "16 mm", "Maximum turning length": "200 mm", "Max. drilling diameter": "10 mm", "Max. threading diameter": "8 M", "Internal spindle diameter": "20 mm", "Spindle speeds:": "", "stepless": "", "from": "200 t/min", "up to": "10000 t/min", "Back spindle:": "", "speeds:": "", "Thread drill diameter": "5 M", "Tool-holder:": "", "Turning tools": "6 pce", "Drilling tools": "4 pce", "Transverse processing tools": "4 pce", "Spindle speeds (turning tools)": "6000 t/min", "Counter-operation:": "", "Voltage 50 Hz 3x": "200 Volt", "Total power required": "8 kVA", "Machine's weight about": "2050 kg", "Overall dimensions machine:": "", "Length": "2020 mm", "Width": "1070 mm", "Height": "1680 mm", "Various accessories:": "", "Bar feeder": "", "Manufacturer": "FMB", "Type": "TURBO 2-18", "Bar diameter": "2 - 18 mm", "Set of collets": "", "Status light": ""}
