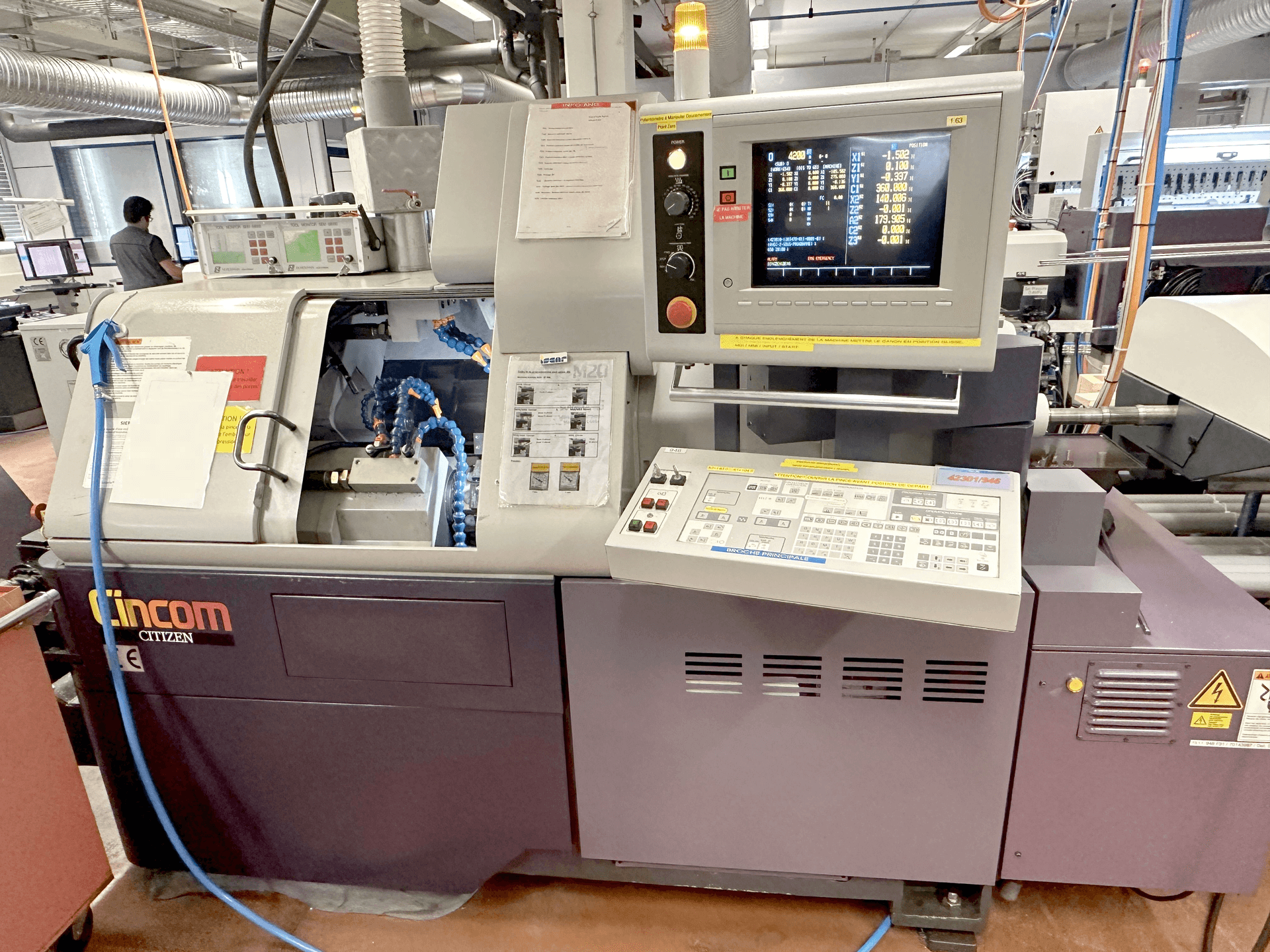

022807 - CITIZEN CINCOM M 20

Description

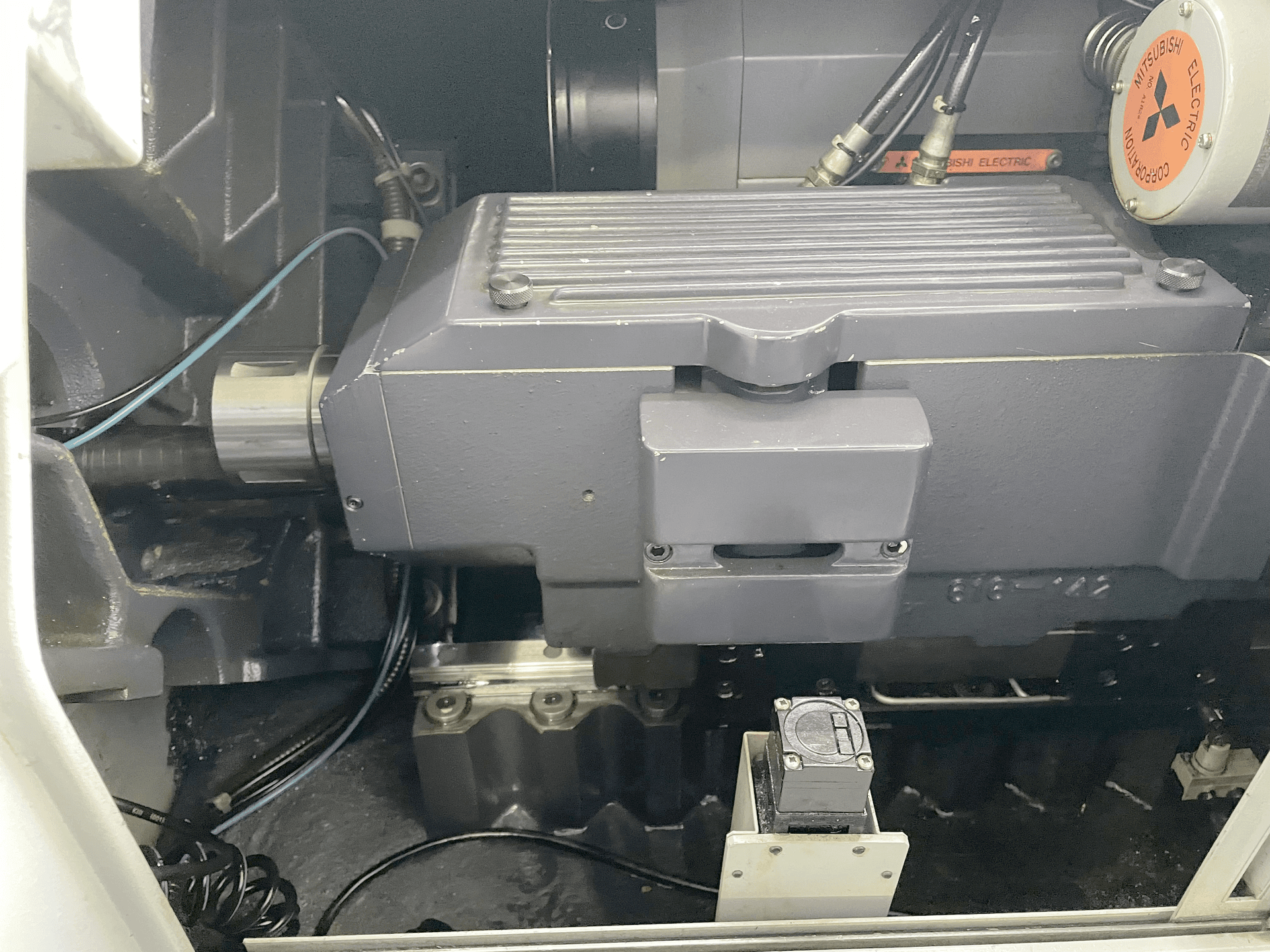

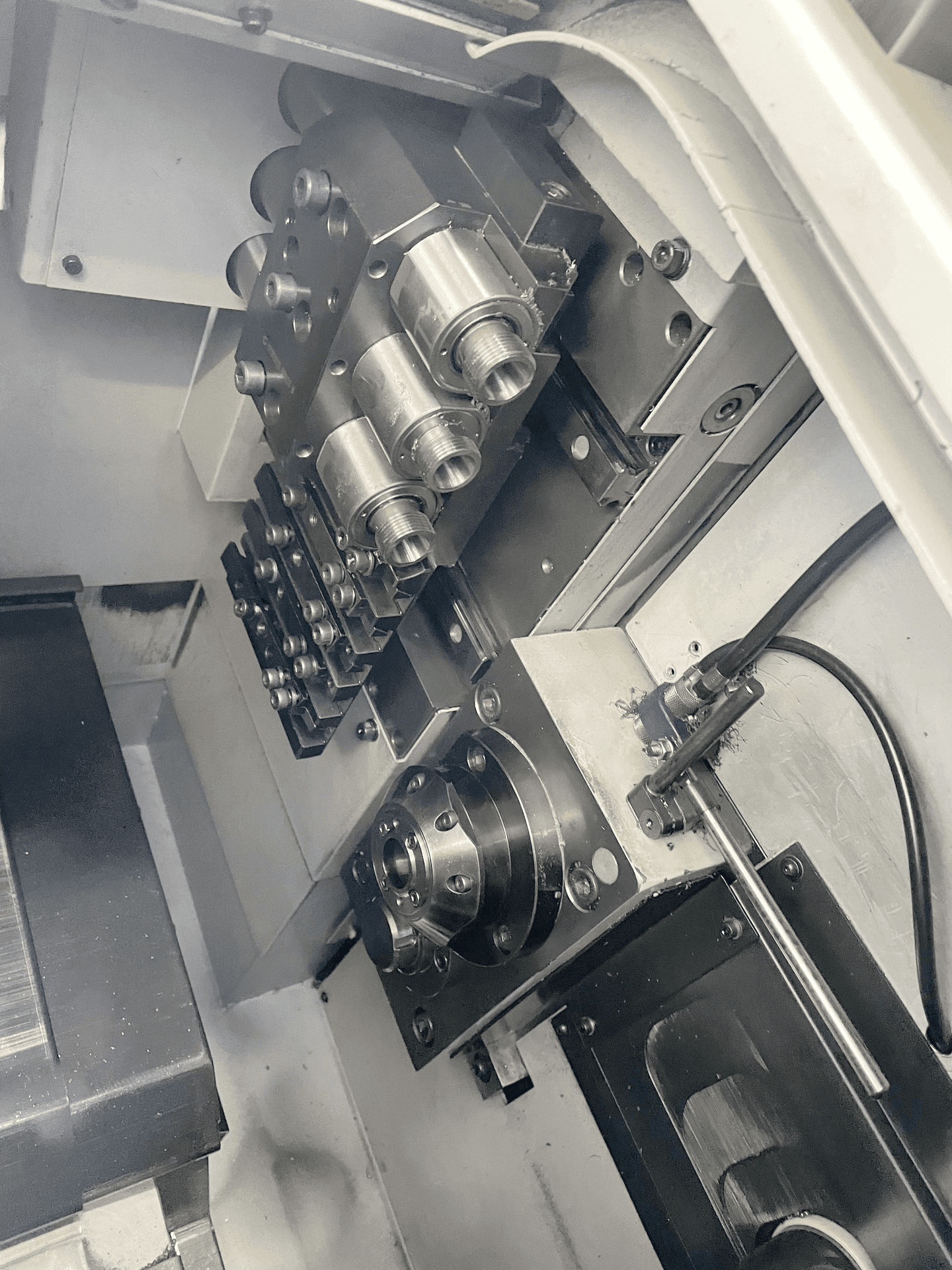

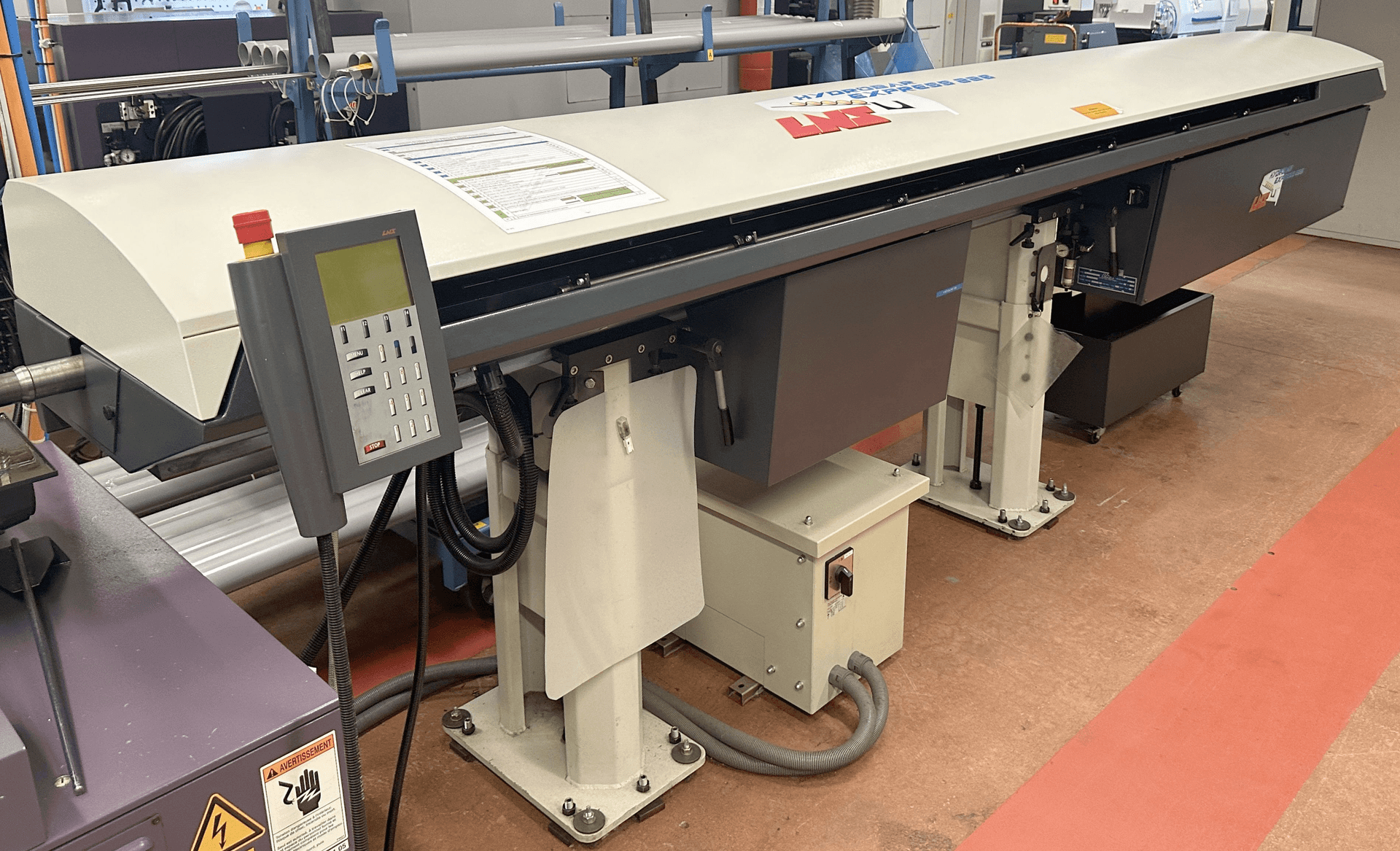

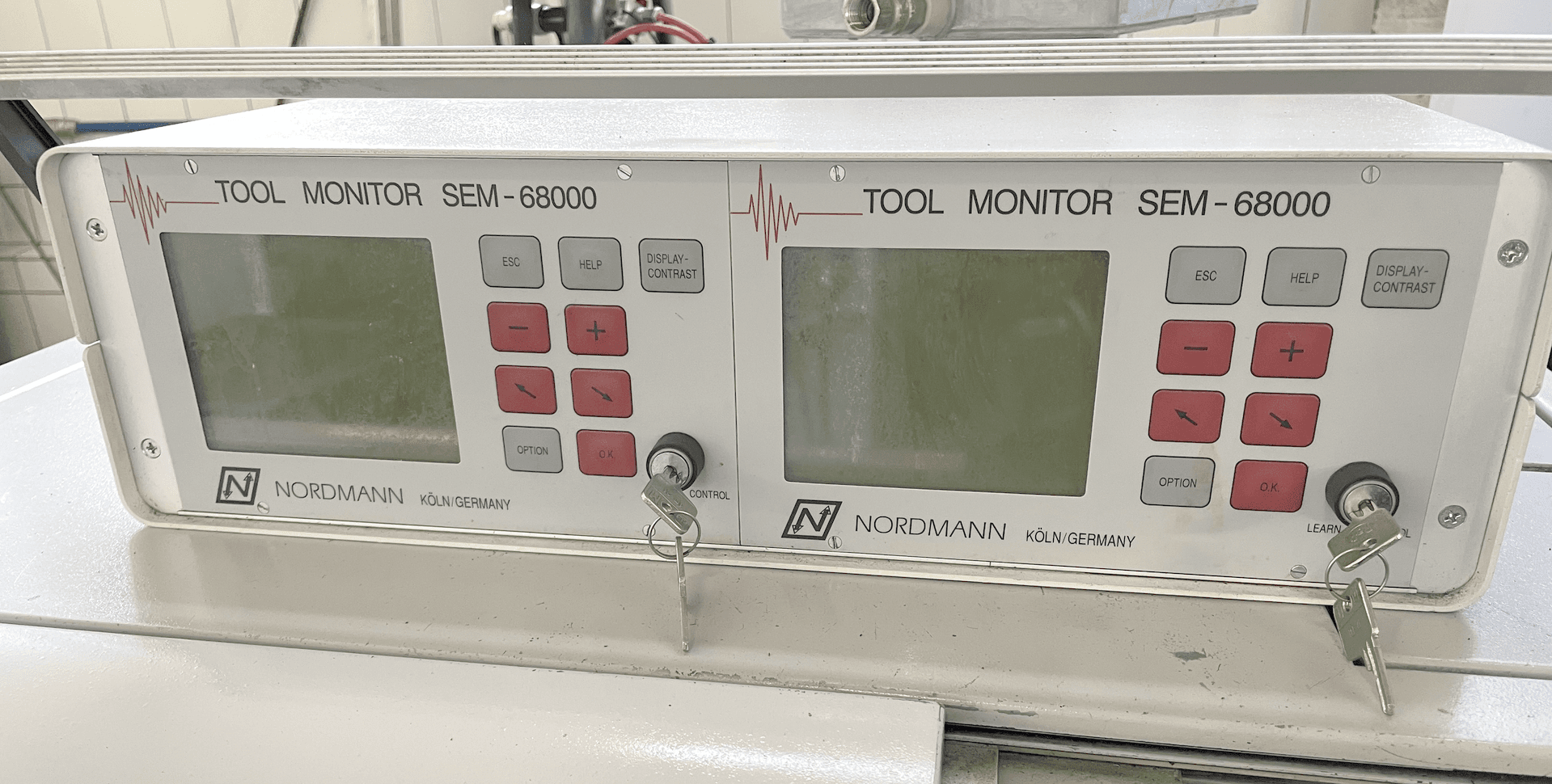

{"Max. turning diameter": "20 mm", "Turning length": "320 mm", "Max. drilling diameter": "10 mm", "Max. threading diameter": "8 M", "Internal spindle diameter": "24 mm", "Spindle speeds:": "", "stepless": "", "from": "200 t/min", "up to": "5000 t/min", "Turret slide:": "", "Number of positions": "10", "Back spindle:": "", "speeds:": "", "Tool-holder:": "", "numbers": "2", "number of driven tools": "3", "Turning tools": "5 pce", "Rapid traverse X": "20 m/min", "Rapid traverse Y": "20 m/min", "Voltage 50 Hz 3x": "400 Volt", "Spindle motor": "3.7 / 7.5 kW", "Power of back spindle": "1.5 / 3.7 kW", "Power of driven tools": "1.5 / 2.2 kW", "Total power required": "8 kVA", "Machine's weight about": "2500 kg", "Overall dimensions machine:": "", "Length": "2800 mm", "Width": "1370 mm", "Height": "1800 mm", "Various accessories:": "", "Process controling device": "NORDMANN", "Driven tool holder radial (nbr.)": "3", "Bar feeder": "", "Manufacturer": "LNS", "Type": "Hydrobar Express 226", "year of manufacture": "1999", "Length of bars max.": "3200 mm", "Bar diameter": "2 - 26 mm", "Lamp": "", "Chip conveyor": "", "Fire extinguishing system": "", "Status light": ""}
