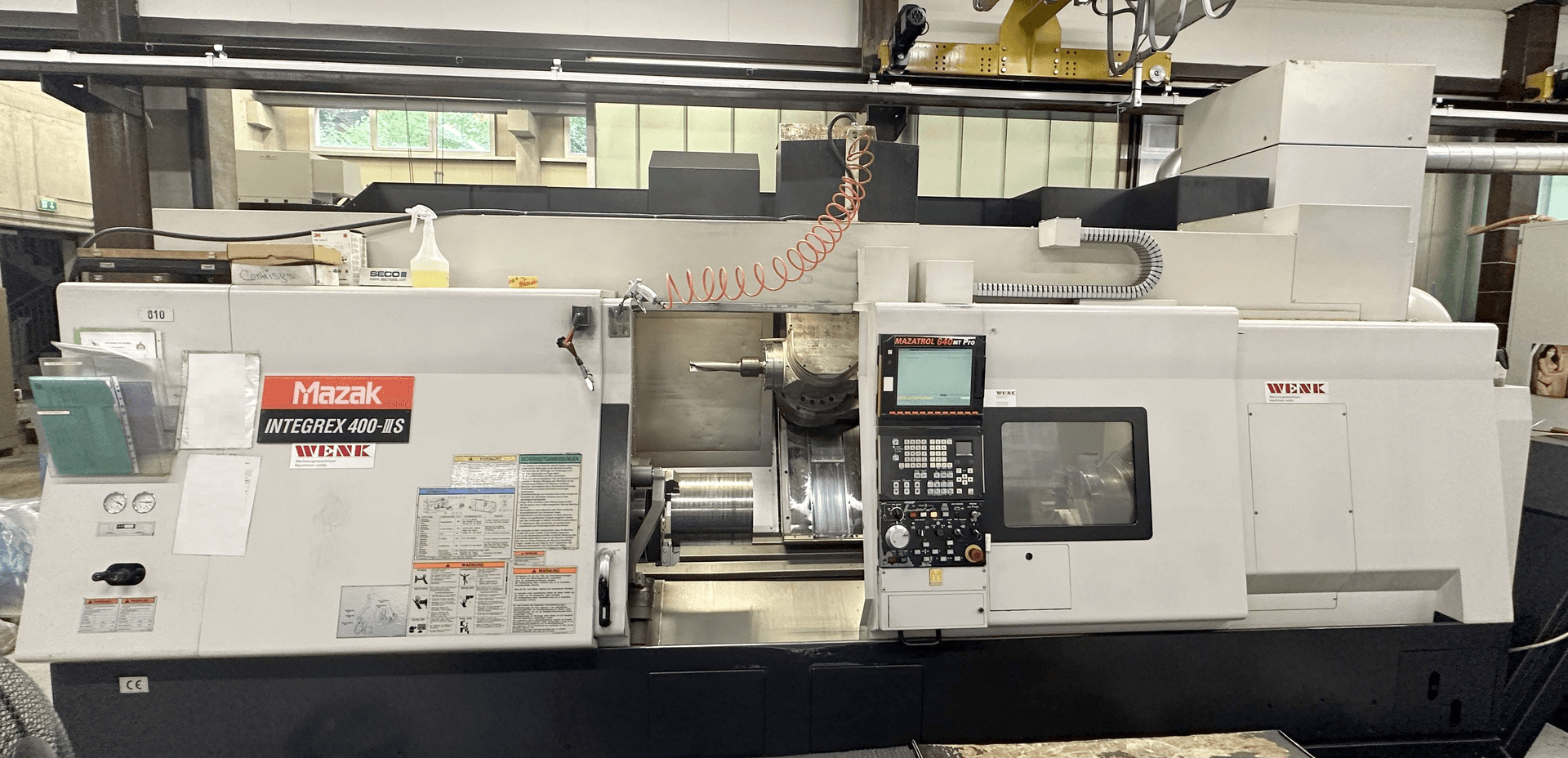

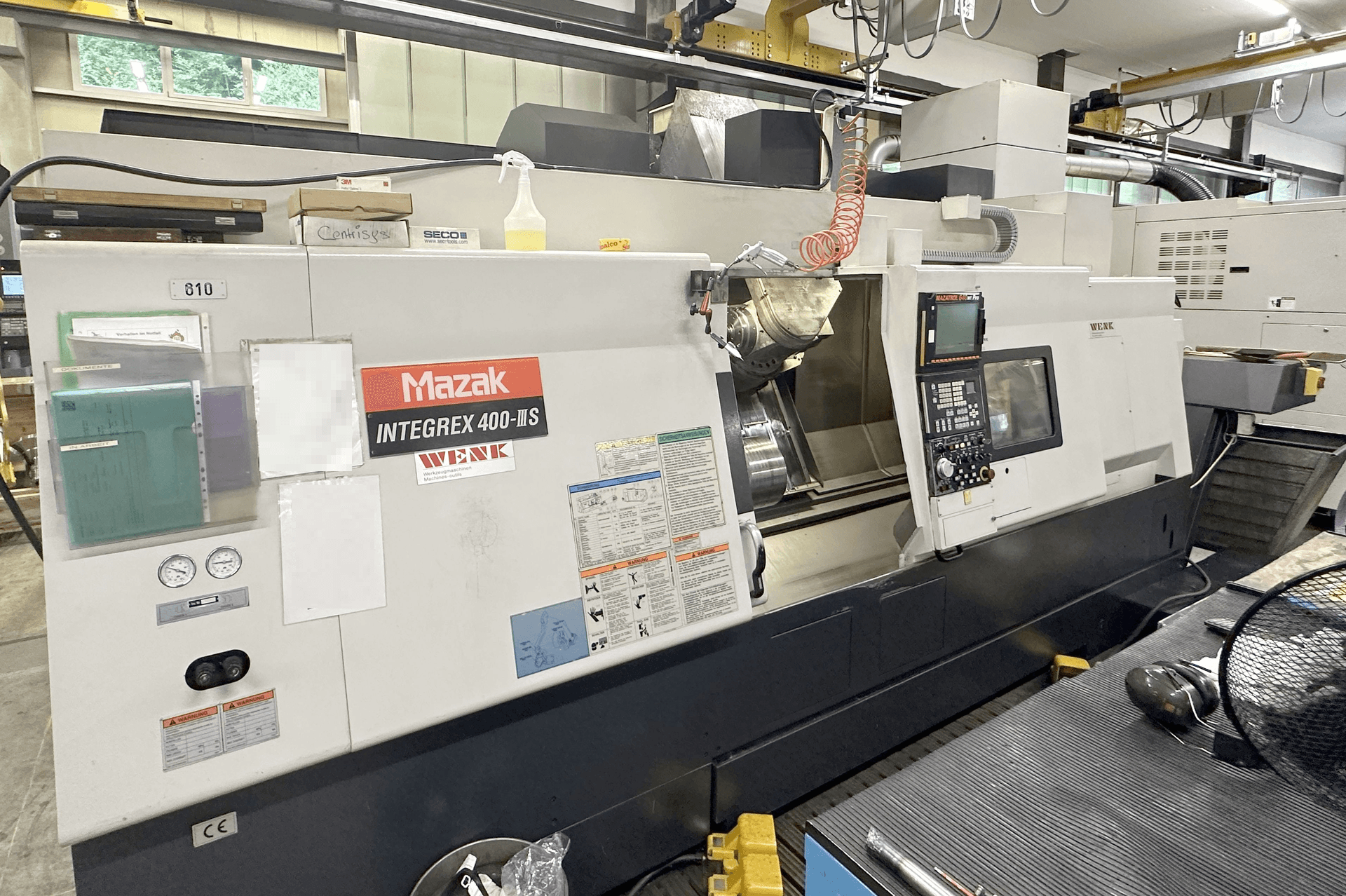

022586 - MAZAK INTEGREX 400-3S

Description

{"Number of axis total": "6", "Number of spindles": "2", "Number of milling heads": "1", "Distance between centres": "1500 mm", "Swing diameter": "760 mm", "Maximum turning length": "1524 mm", "Max. turning diameter": "760 mm", "Max. bar diameter": "102 / 77 mm", "Tool magazine number of tool places": "40", "Tool diameter max.": "90 mm", "Diameter with free adjacent pockets": "125 mm", "Tool lenght": "400 mm", "Main spindle:": "", "Spindle nose": "A2-8", "Internal spindle diameter": "112 mm", "C axis (spindle,resolution)": "\u00b0", "Spindle speeds:": "", "stepless": "", "from": "35 t/min", "up to": "3300 t/min", "Spindle power": "30 kW", "Torque max.": "500 Nm", "Back spindle:": "", "Spindle hole": "88 mm", "max. speed": "35 - 4000 t/min", "Power of back spindle": "26 / 22 kW", "Milling spindle:": "", "Milling spindle receptacle": "CAPTO C6", "Milling cutter speeds": "15 - 12000 t/min", "Spindle torque": "120 Nm", "Drive milling spindle": "18.5 kW", "B axis swivelling range": "-30 / +195 \u00b0", "B axis resolution max.": "\u00b0", "Travels:": "", "X axis": "630 mm", "Y axis": "+ / - 115 mm", "Z axis": "1585 mm", "Feeds": "0 - 8000 mm/min", "Rapid traverse X": "38 m/min", "Rapid traverse Z": "38 m/min", "Rapid traverse Y": "26 m/min", "Time under power": "35000 Heures", "Machine's weight about": "13300 kg", "Required floor space": "5110 x 2196 mm", "Overall dimensions machine:": "", "Height": "2798 mm", "Various accessories:": "", "Linear scale system for X-axis": "", "3-jaw chuck diameter": "Forkhardt 400 mm", "3-jaw chuck diameter (back spindle)": "Forkhardt 315 mm", "Hydraulic chuck": "", "Lamp": "", "Spindle blow out (backspindle)": "", "Air blast through milling spindle": "", "Coolant system": "444 l", "Coolant through the milling head": "15 bar", "Main and back spindle synchronization": "", "Interface serial port RS 232": "", "Interface PCMCIA card": "", "Synchronized tapping": "", "Chip conveyor": "", "Foot pedal": ""}
