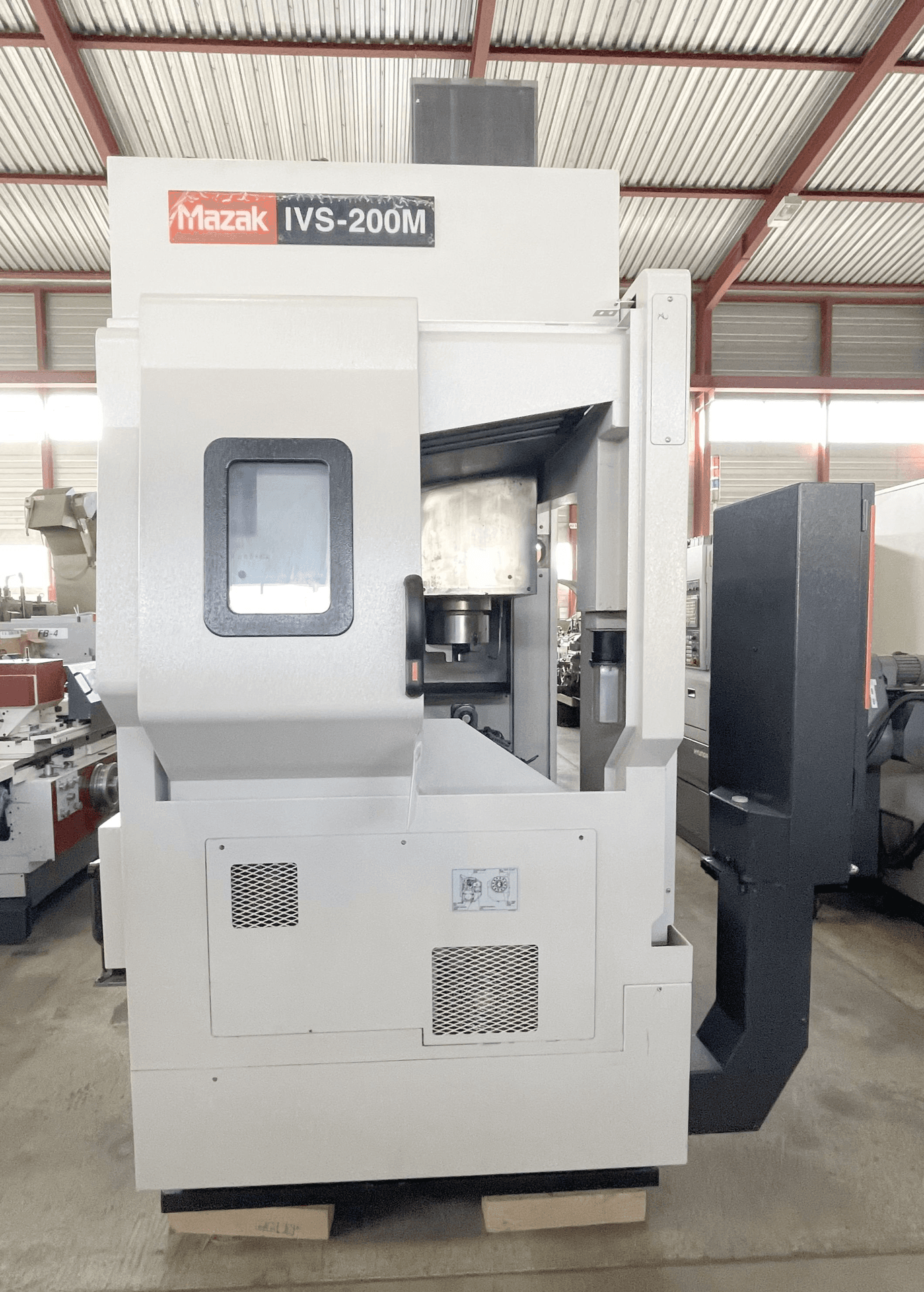

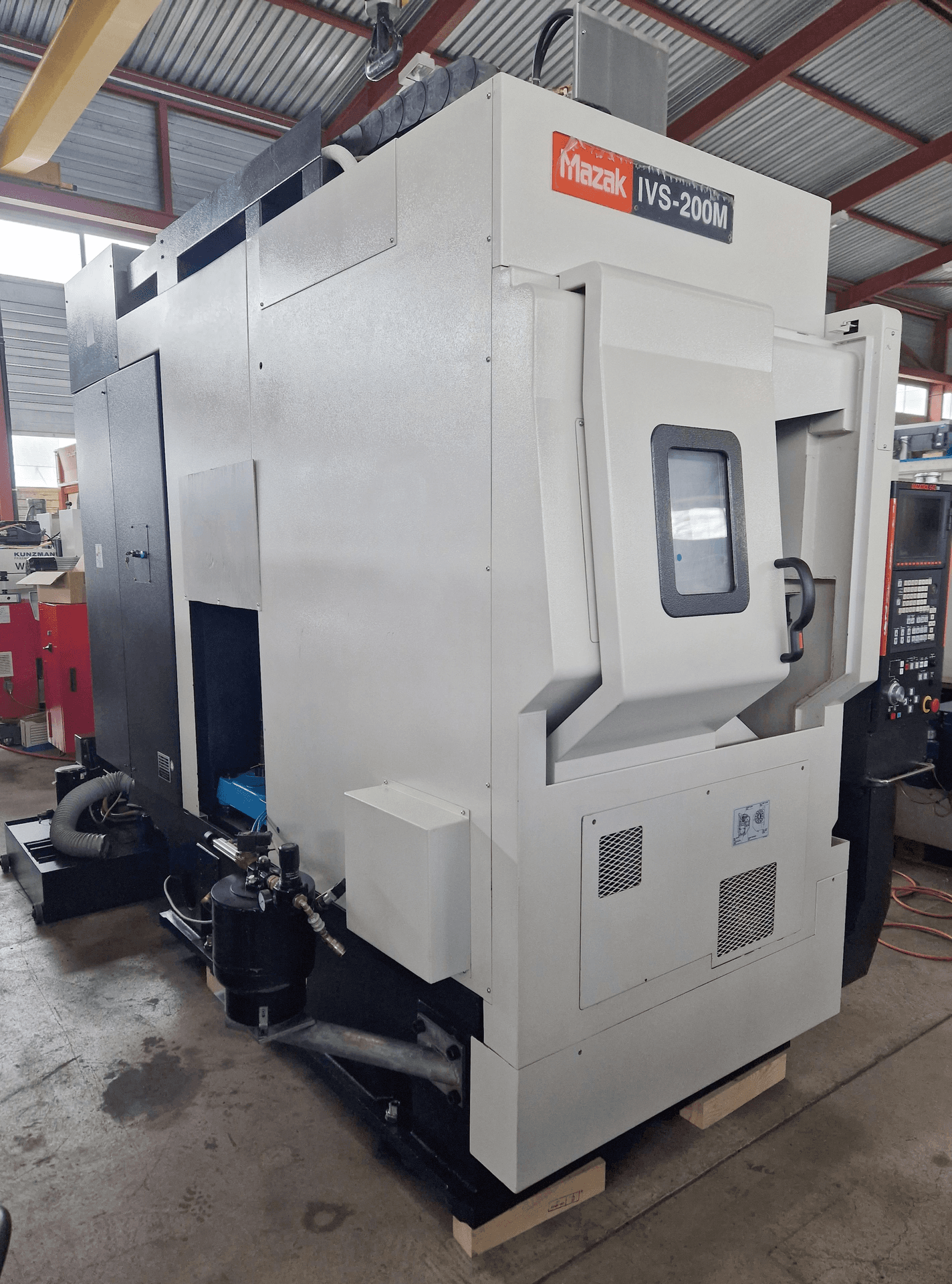

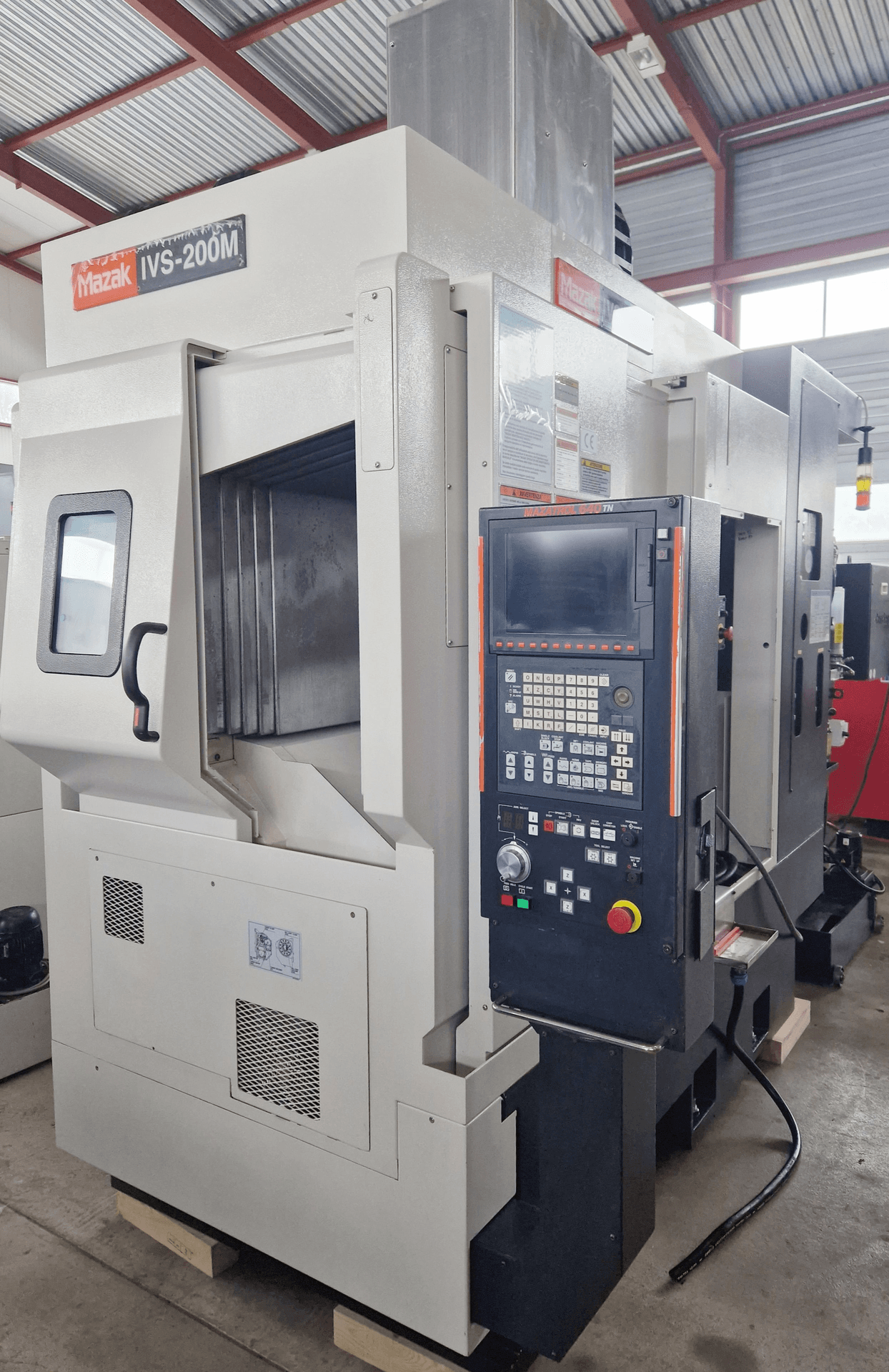

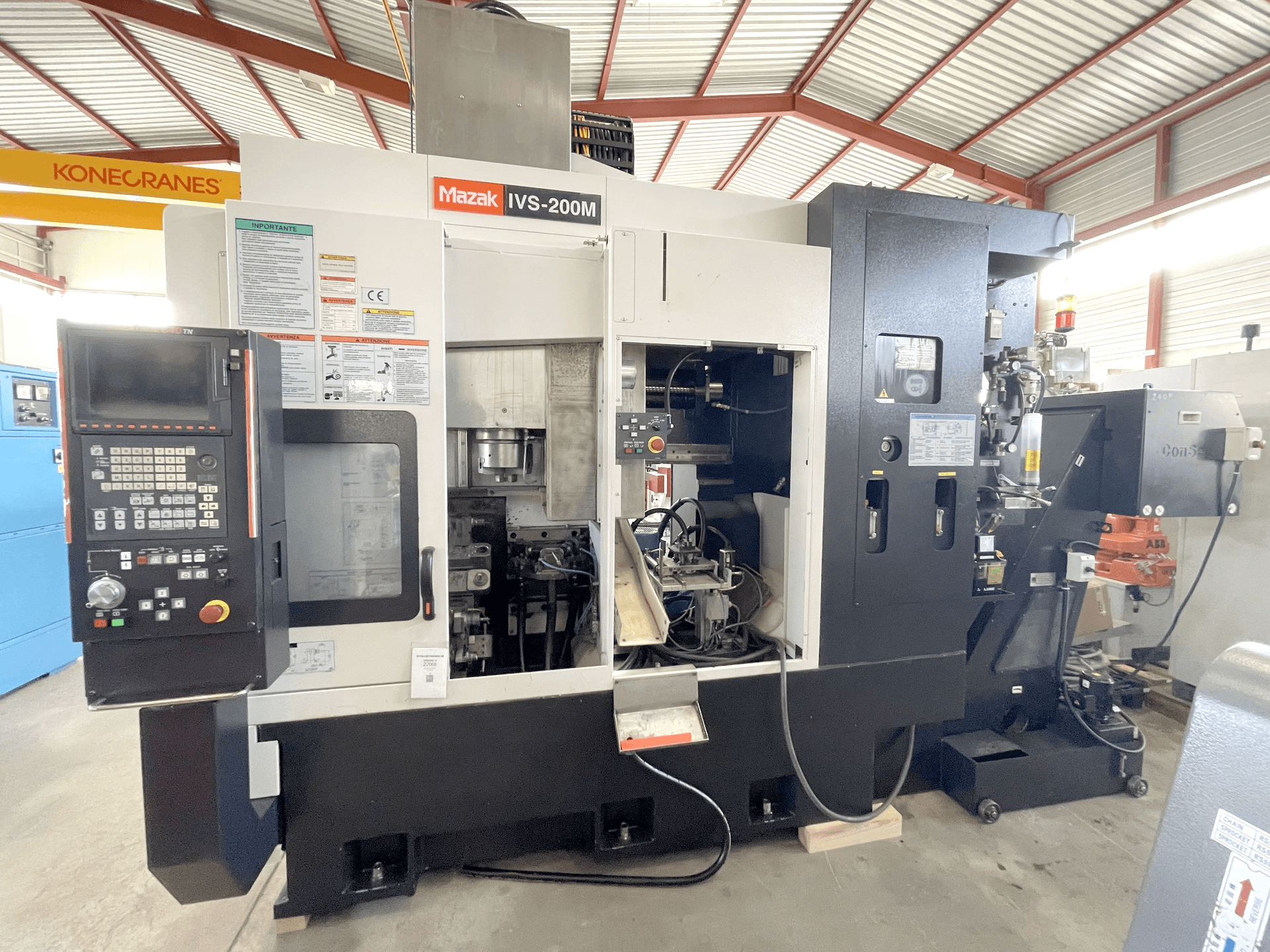

022068 - MAZAK IVS 200 M

Description

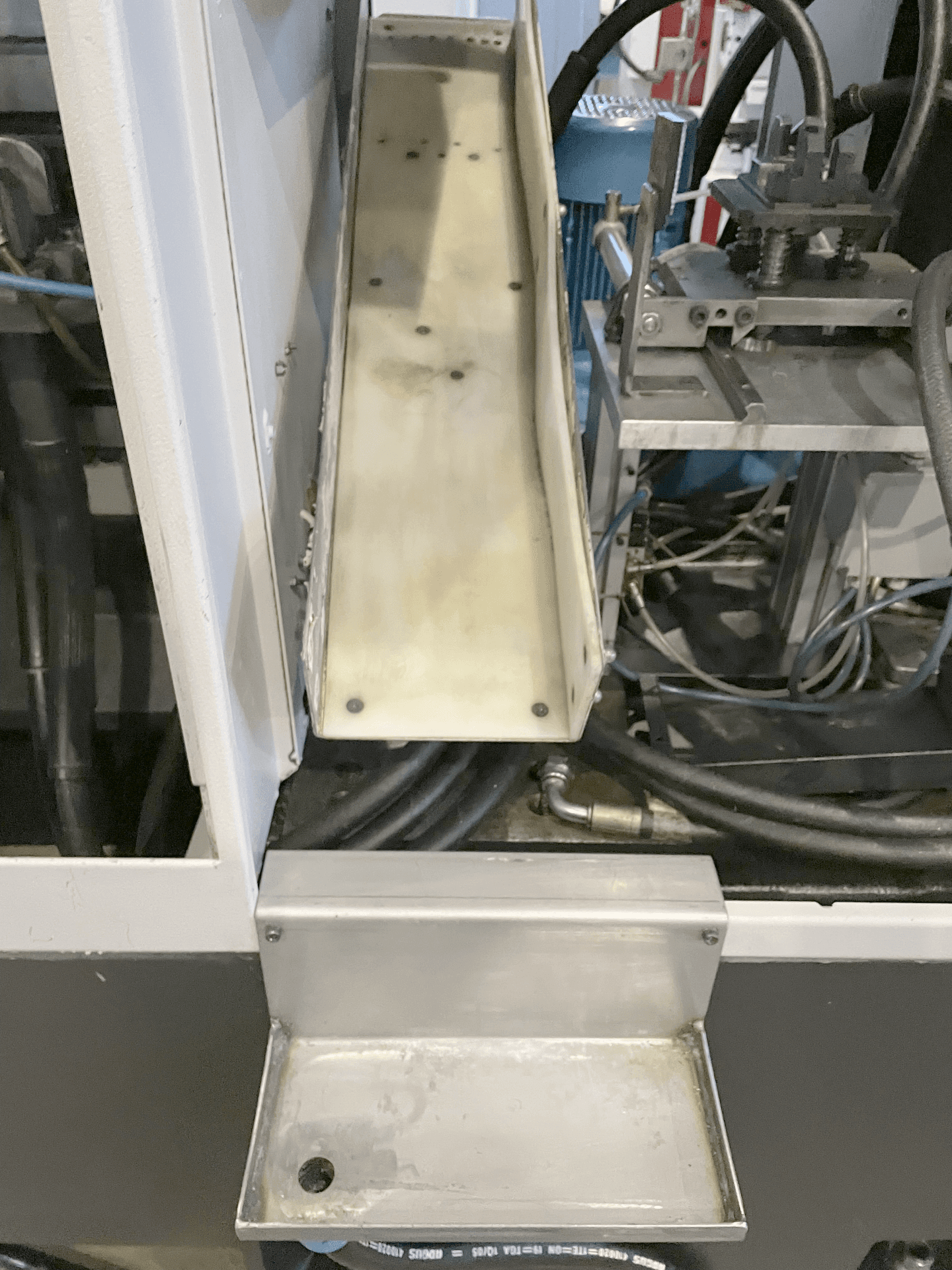

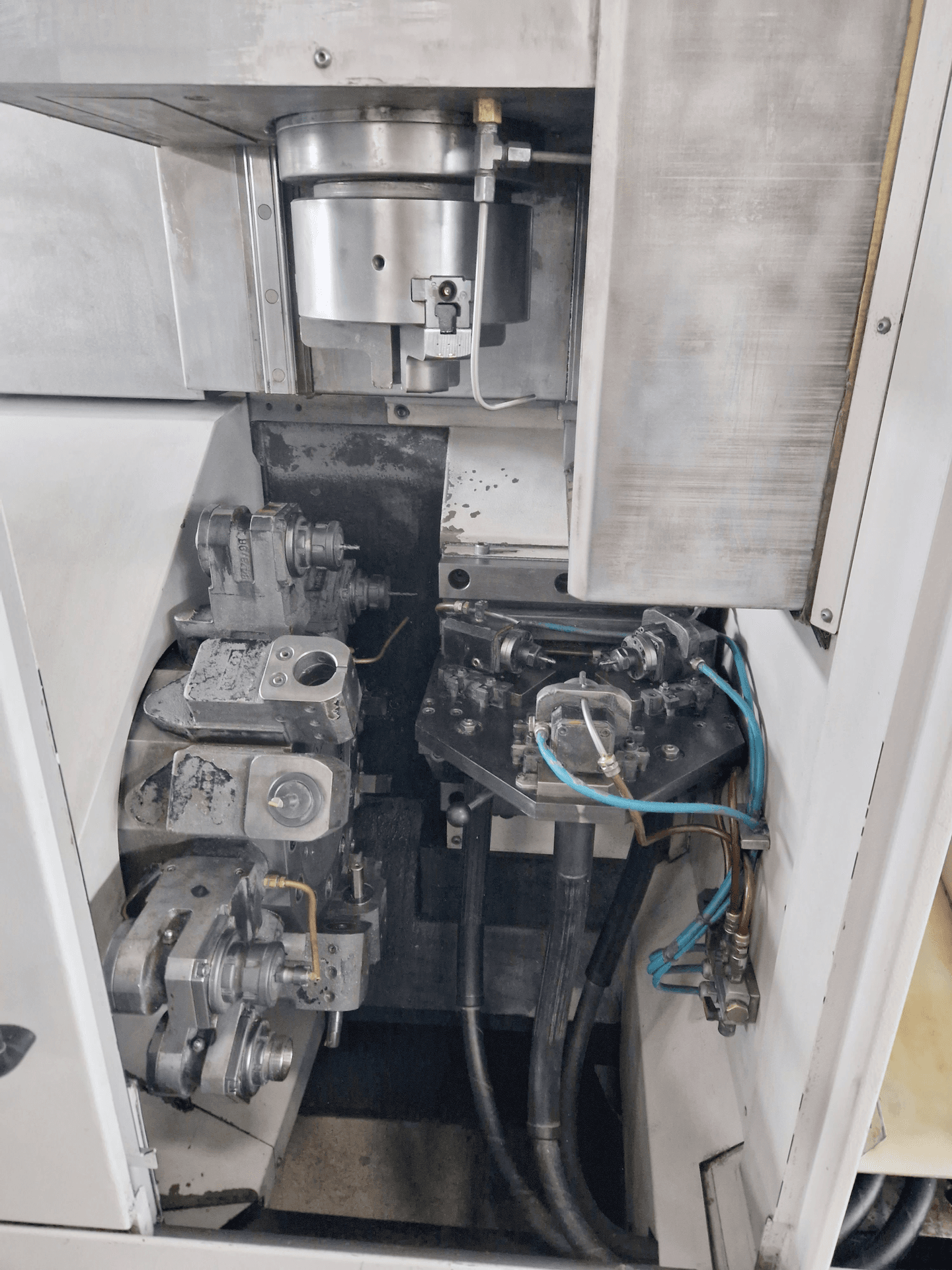

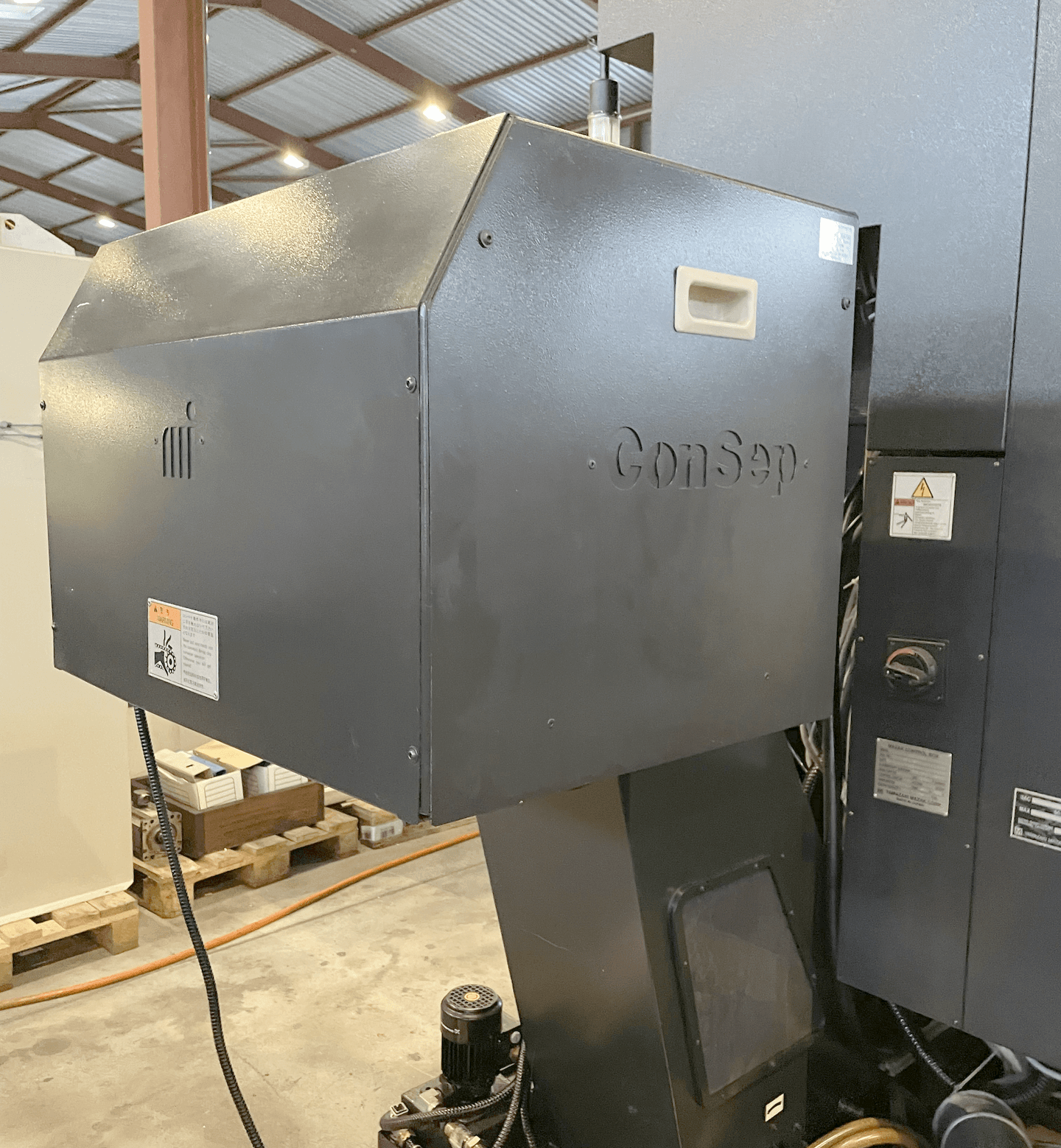

{"Swing diameter": "280 mm", "Spindle hole": "52 mm", "Maximum turning length": "100 mm", "Max. turning diameter": "180 mm", "Travels:": "", "Longitudinal travel (X-axis)": "880 mm", "Transversal strocke (Z axis)": "280 mm", "Turret carriage:": "", "Turret slide: number": "1", "Number of positions turret 1": "12", "Fixed tools turret 1": "6", "Driven tools turret 1": "6", "Spindle speeds": "25 - 4500 t/min", "Tool shank cross section": "25 mm", "Power of driven tools": "5.5 kW", "Max. drill capacity": "20 mm", "Max. taping diameter M": "12", "Indexing time": "0.6 s", "Tool lenght": "65 mm", "Max. tool-weight": "11 kg", "Main spindle:": "", "Spindle speeds:": "", "stepless": "", "from": "0 t/min", "up to": "7000 t/min", "Torque max.": "200 Nm", "Spindle motor": "26 / 22 kW", "Total power required": "35.8 kVA", "Machine's weight about": "7000 kg", "Overall dimensions machine:": "", "Length": "3288 mm", "Width": "1235 mm", "Height": "2807 mm", "Various accessories:": "", "3-jaw chuck diameter": "200 mm", "Parts catcher": "", "Chip conveyor": "", "Loading roboter": "ABB IRB 1600", "Set of toolholders": ""}
