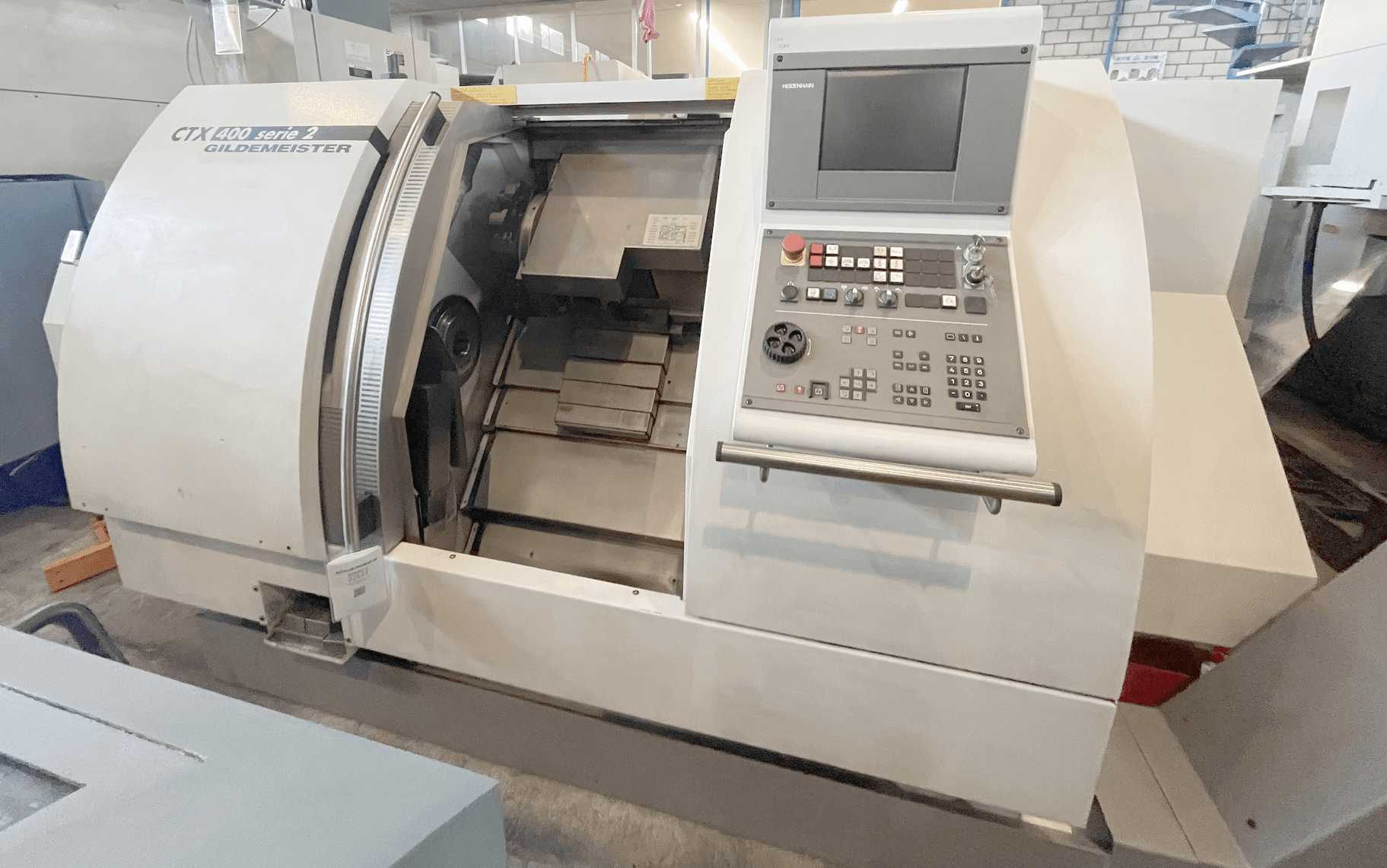

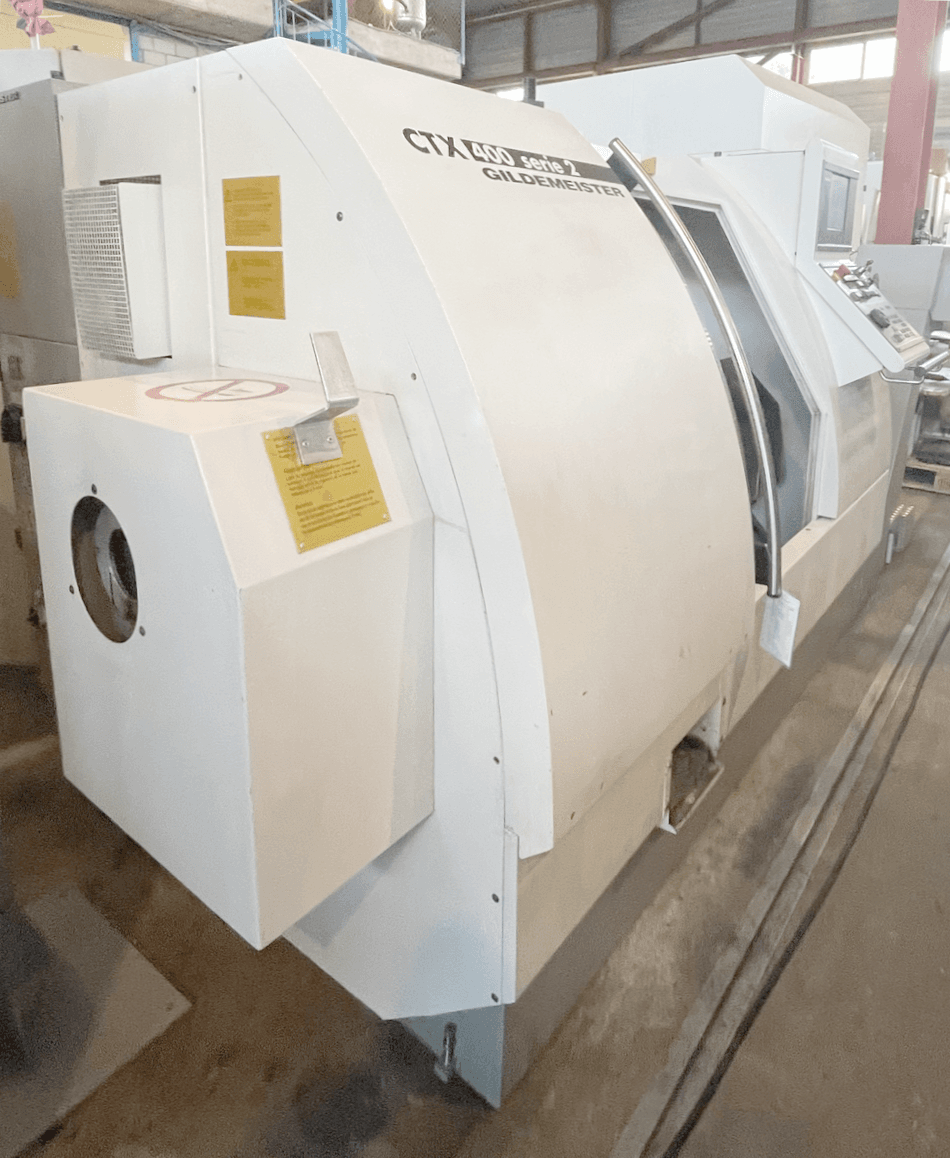

022533 - GILDEMEISTER CTX 400

Description

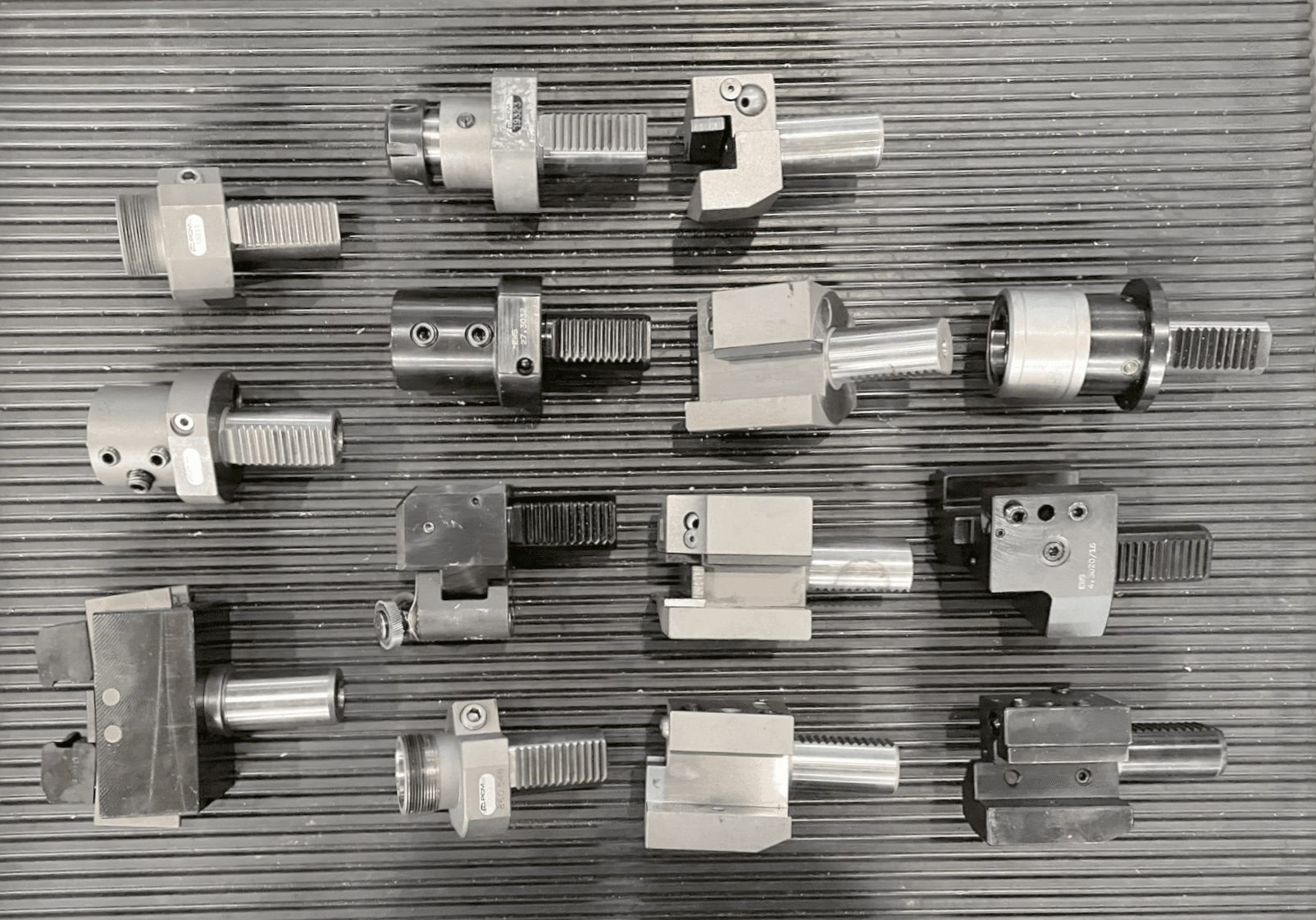

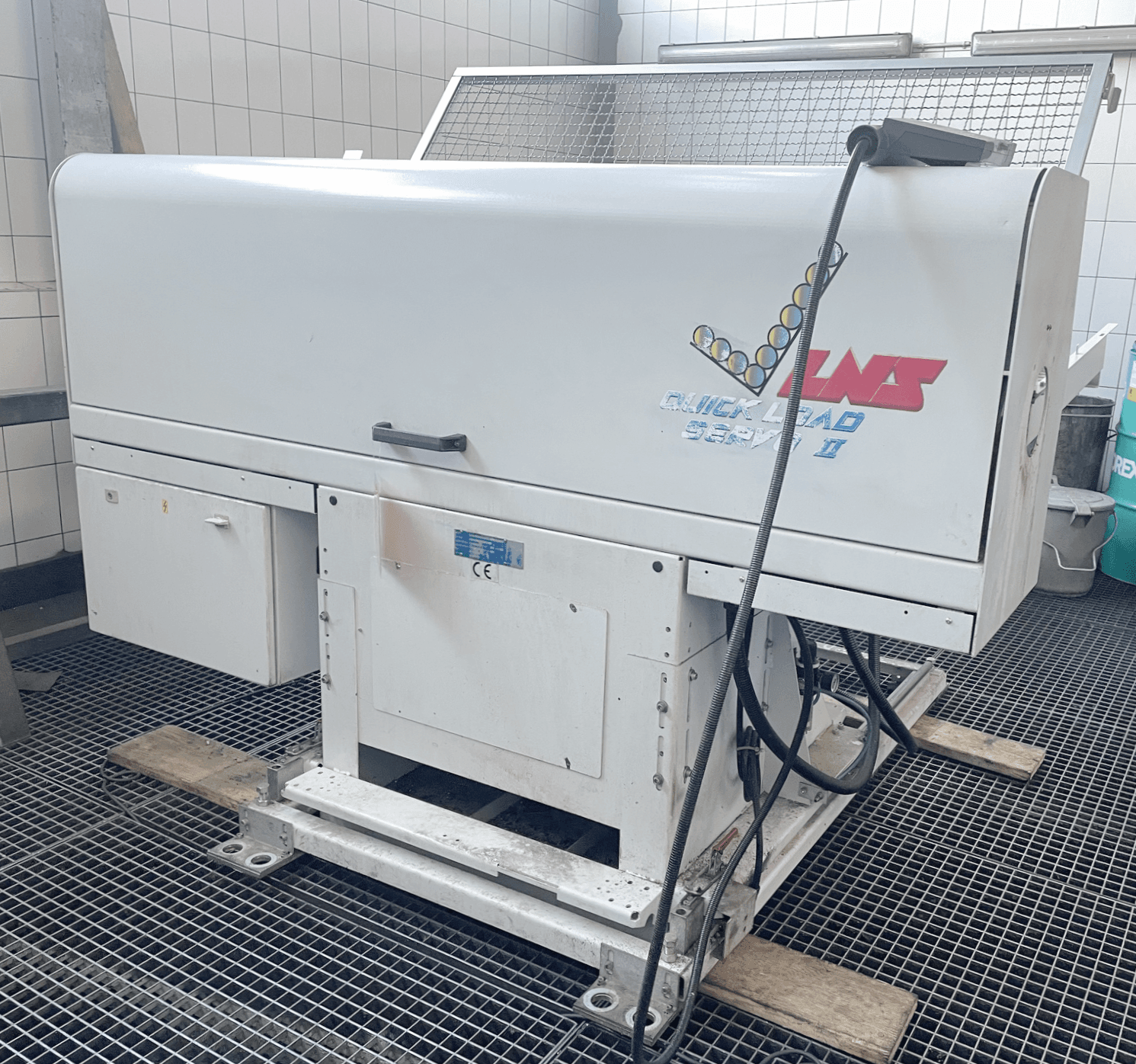

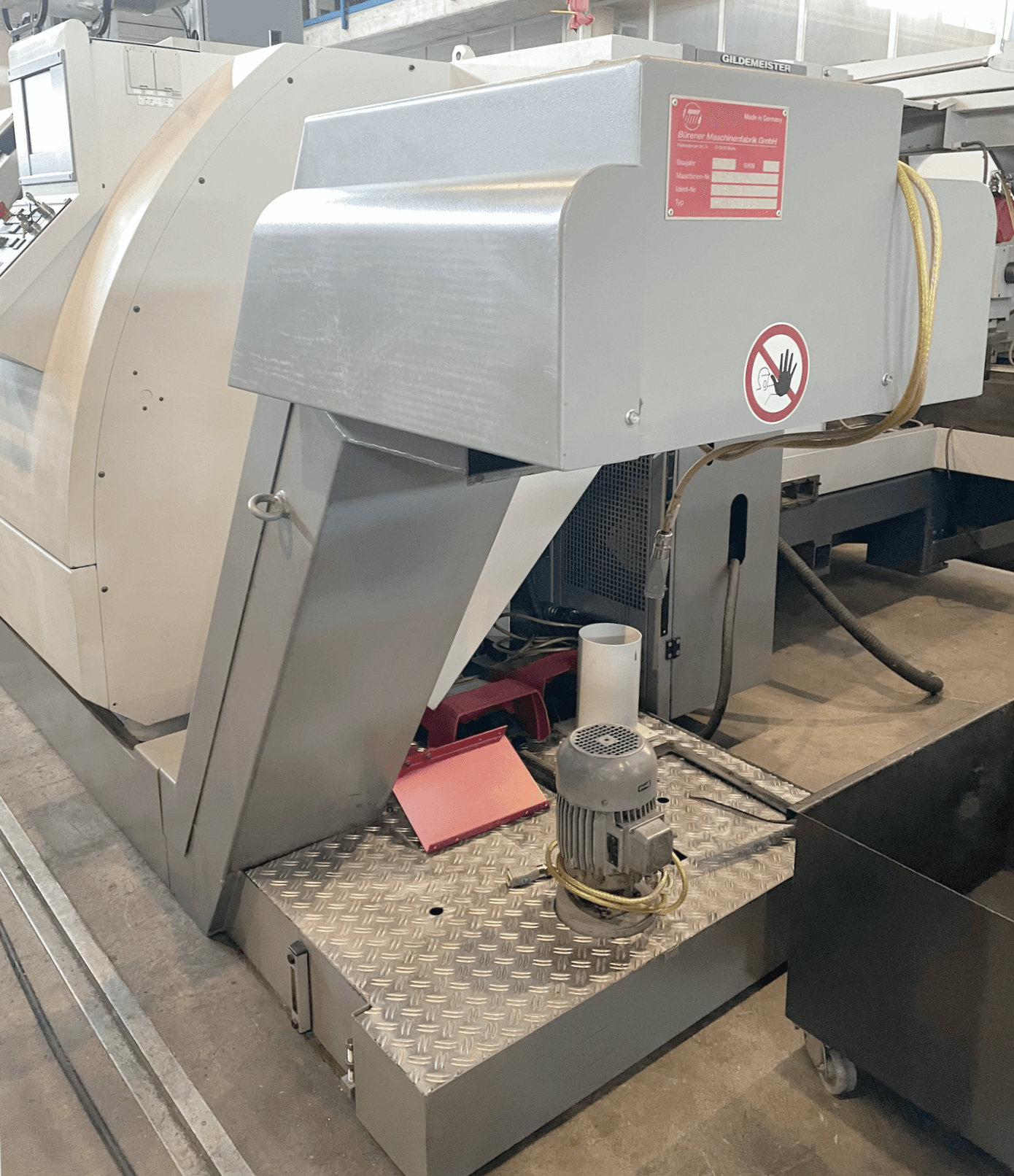

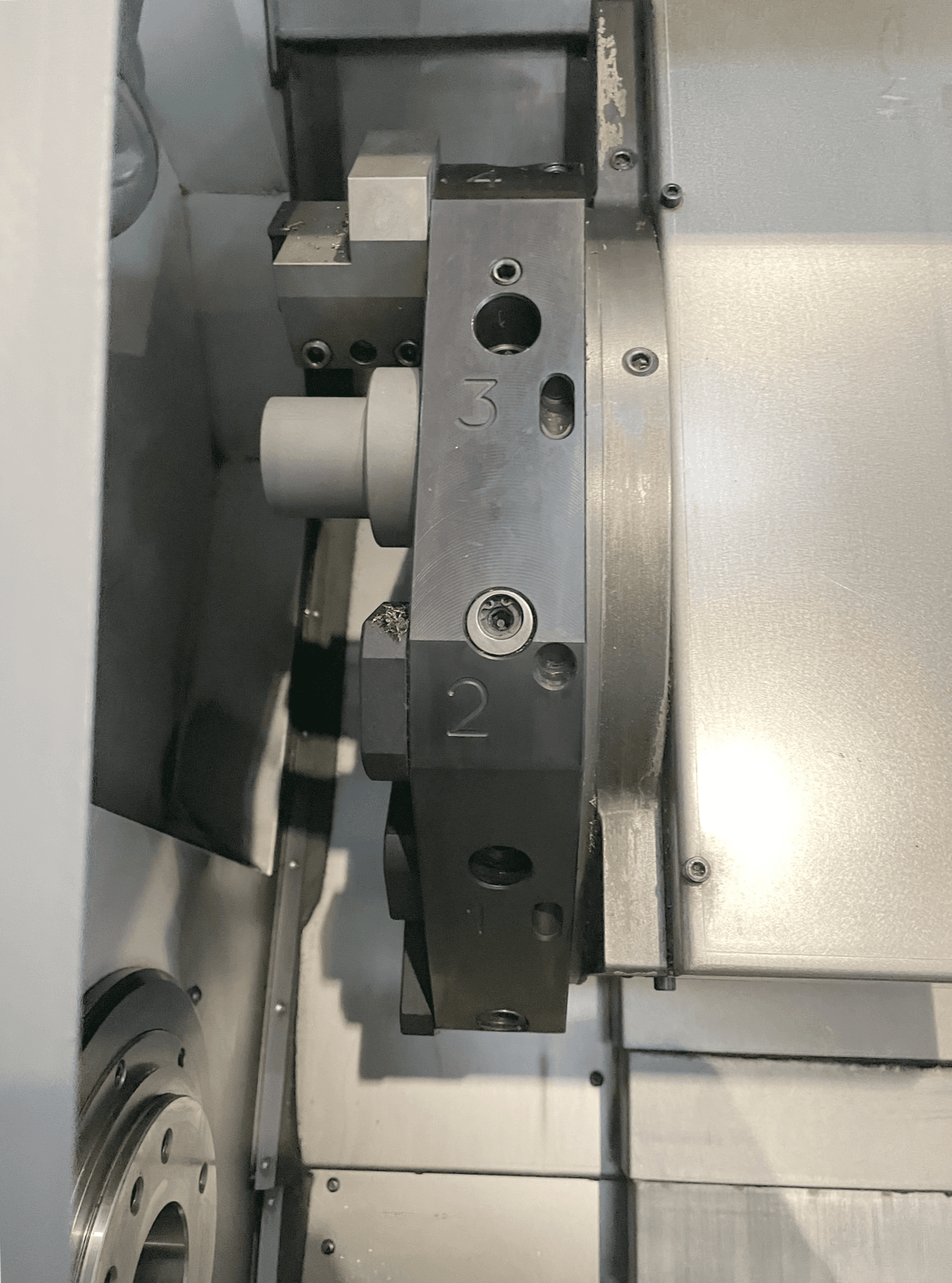

{"Swing over bed": "500 mm", "Maximum turning length": "640 mm", "Turning diameter": "290 mm", "Turret carriage:": "", "Longitudinal travel (Z-axis)": "640 mm", "Transversal strocke (X axis)": "212 mm", "Turret slide:": "", "Fixed tools turret": "12", "Inner cone diameter": "30 mm", "Inner cone DIN": "69880", "Indexing time": "0.8 s", "Main spindle:": "", "Spindle hole": "66 mm", "Inner taper type": "HAINBUCH SK65 BZI", "Spindle speeds:": "", "stepless": "", "from": "25 t/min", "up to": "4000 mm/min", "Spindle power": "22 kW", "Torque max.": "420 Nm", "Morse taper": "4 CM", "Spindle stroke": "100 mm", "Spindle diameter": "80 mm", "Pressure": "8 kN", "Feeds:": "", "longitudinal from": "mm/min", "transversal from": "mm/min", "Rapid traverse X": "10 m/min", "Rapid traverse Z": "15 m/min", "Spindle motor": "22 kW", "Voltage 50 Hz 3x": "400 Volt", "Total power required": "50 kVA", "Machine's weight about": "5100 kg", "Overall dimensions machine:": "", "Length": "3400 mm", "Width": "1940 mm", "Height": "1700 mm", "Various accessories:": "", "Lamp": "", "Coolant system": "", "Bar feeder": "LNS", "Type": "Quick Load Servo 2", "Chip conveyor": "", "Set of toolholders": ""}
