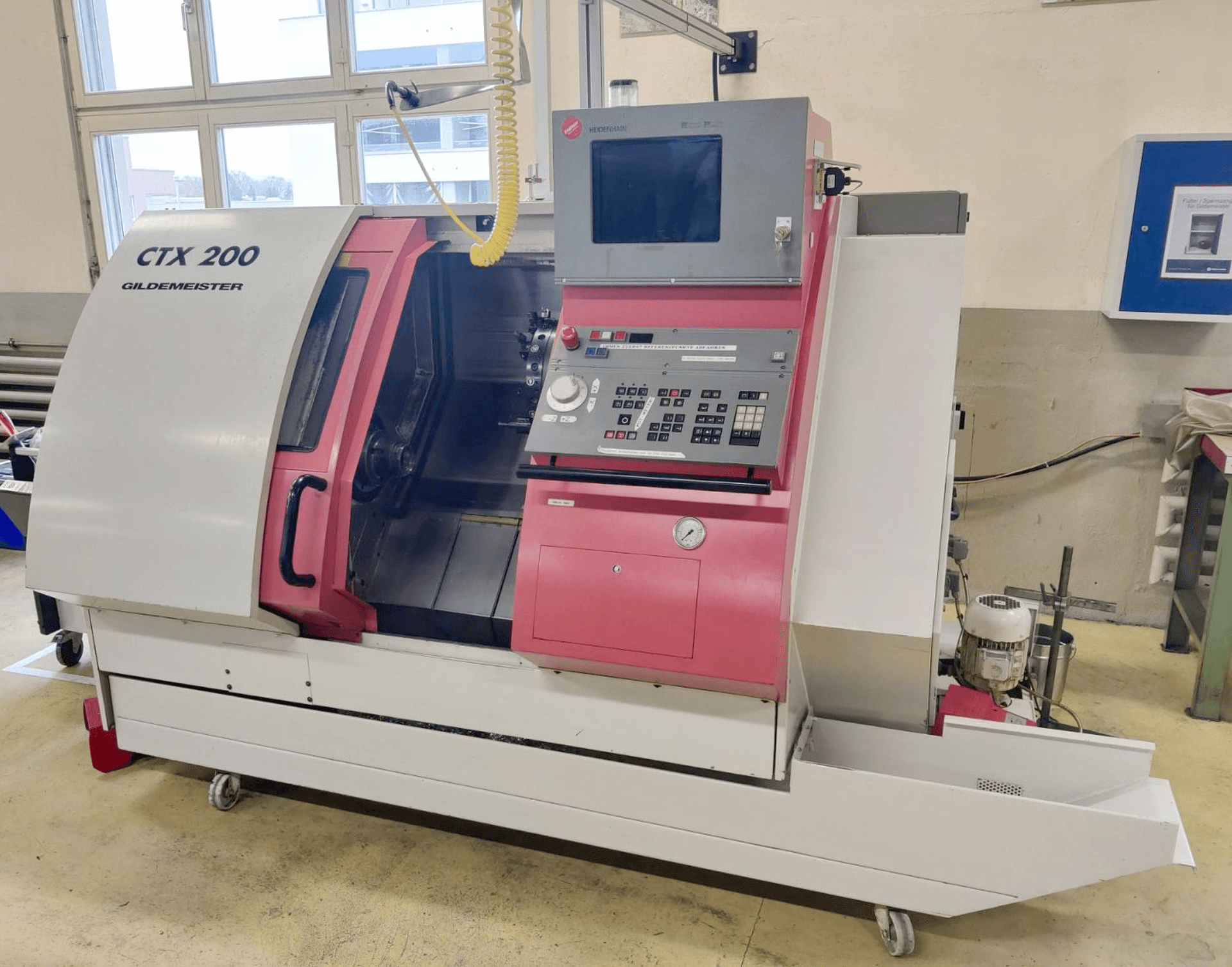

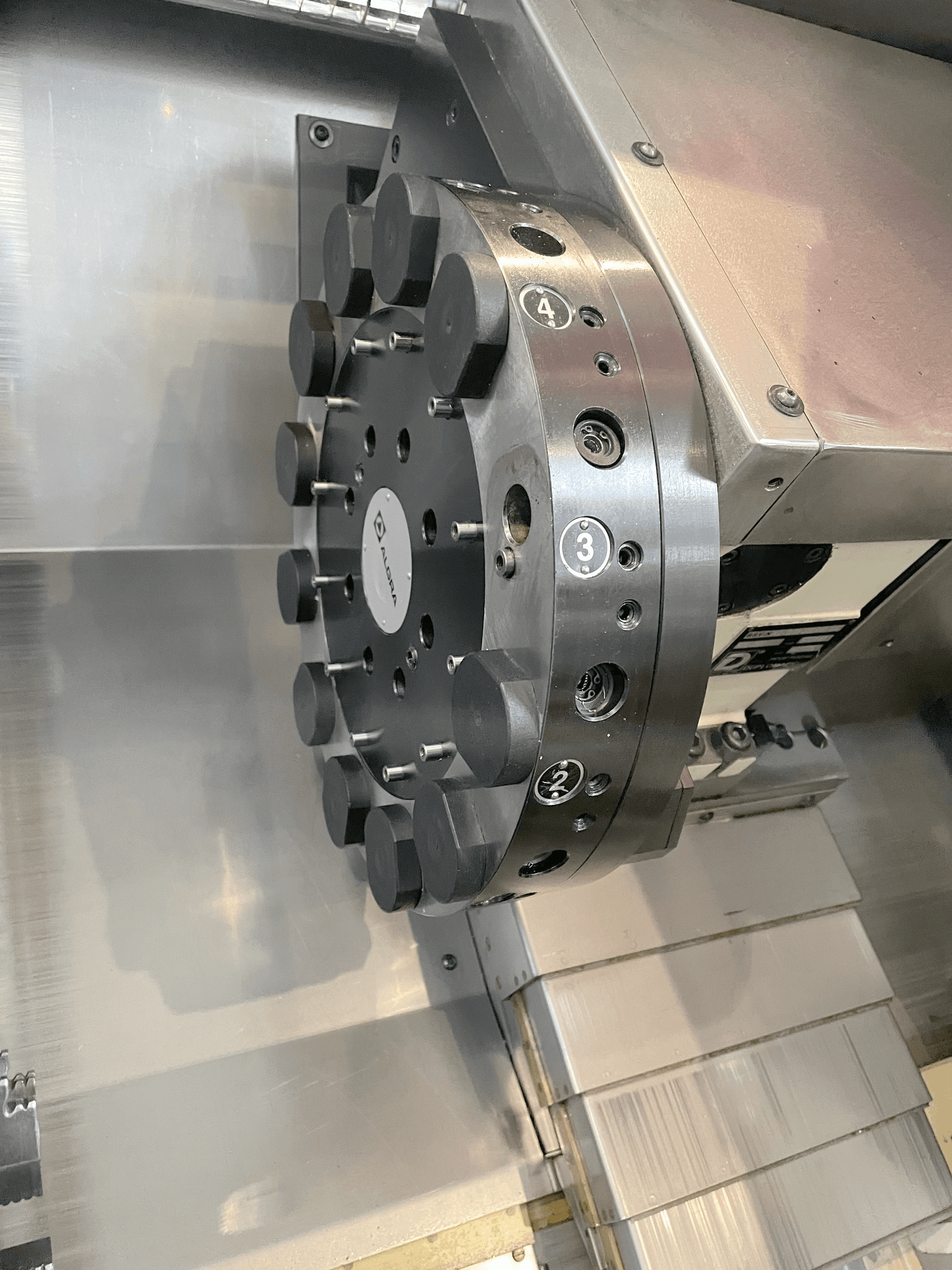

022382 - GILDEMEISTER CTX 200

Description

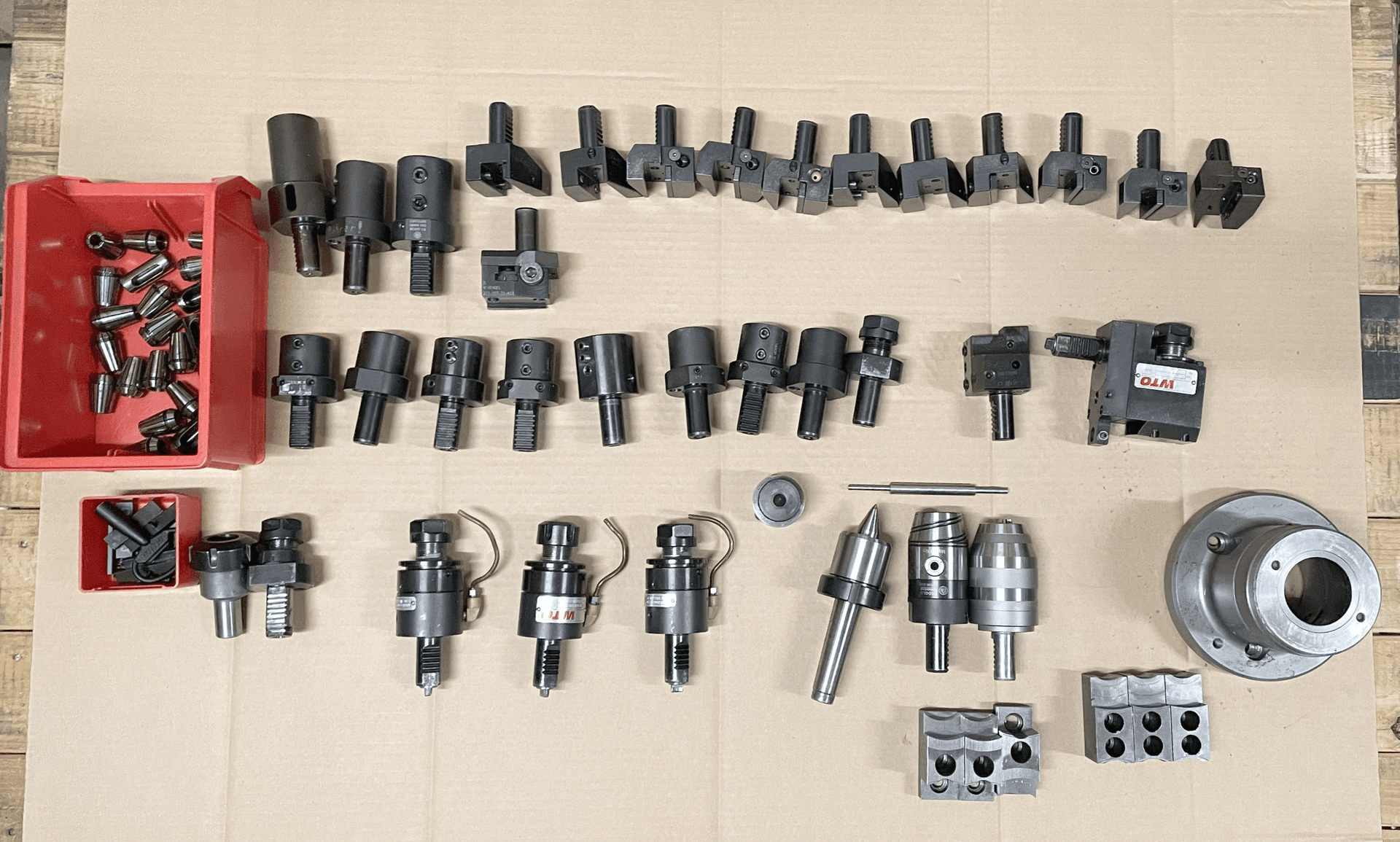

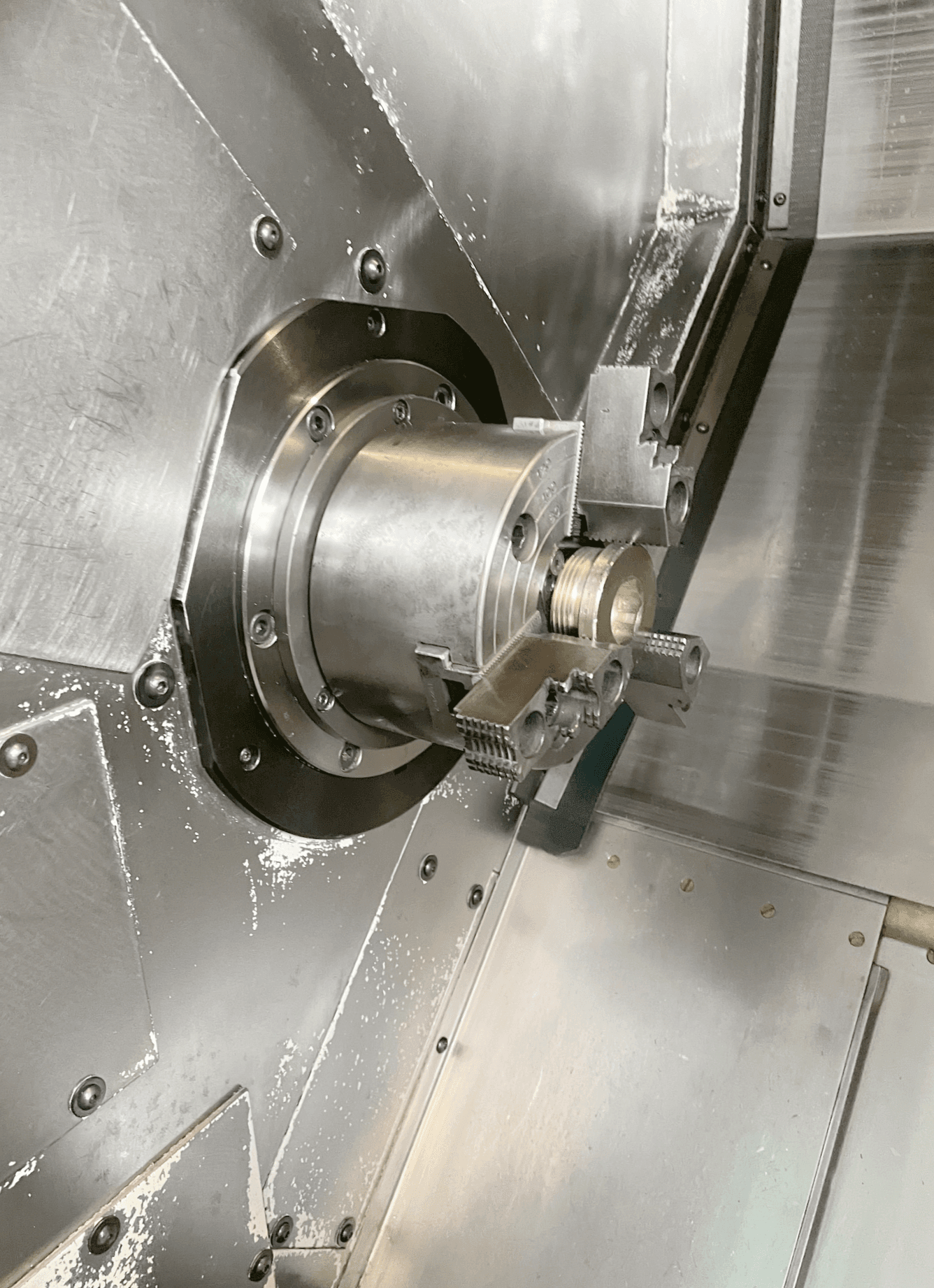

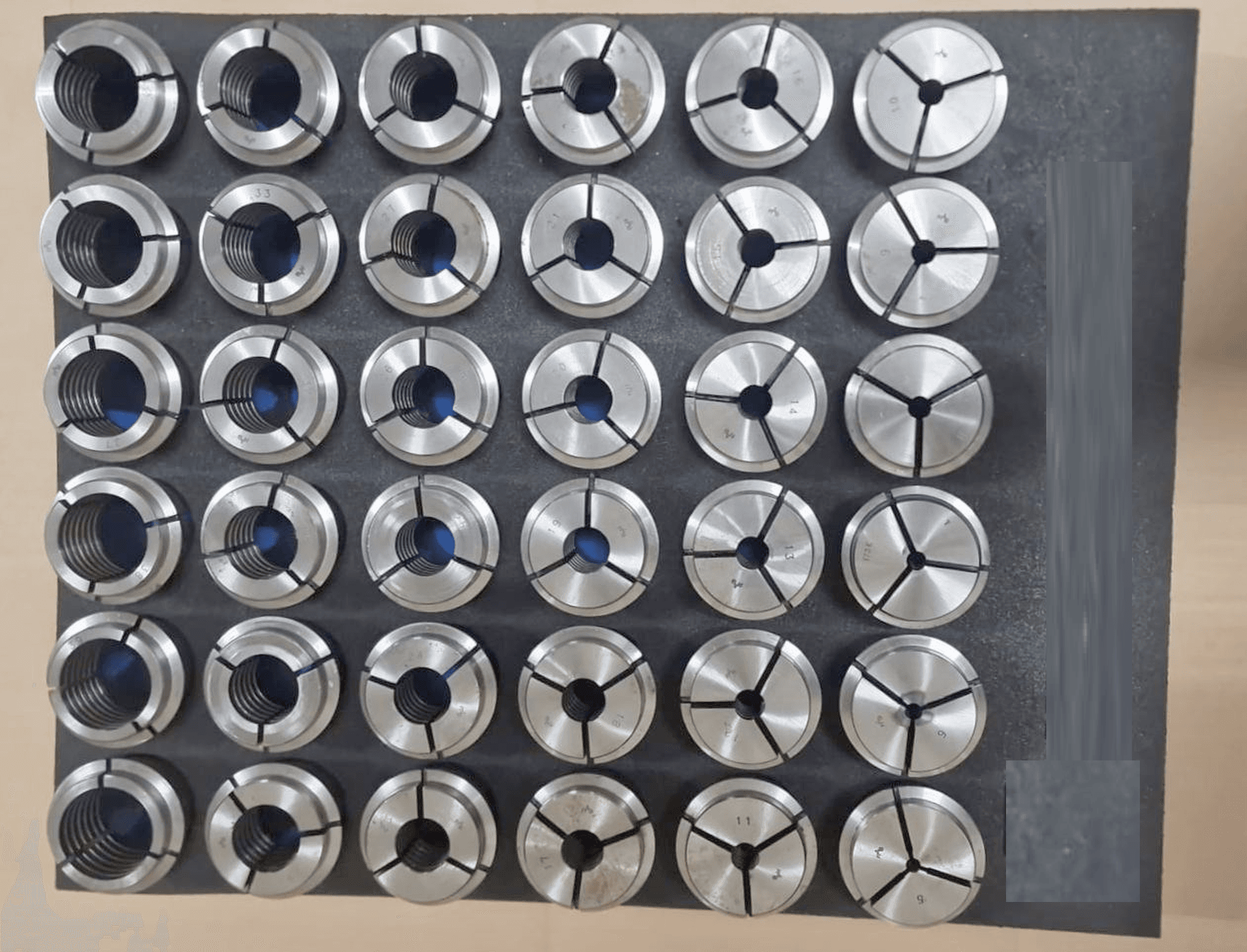

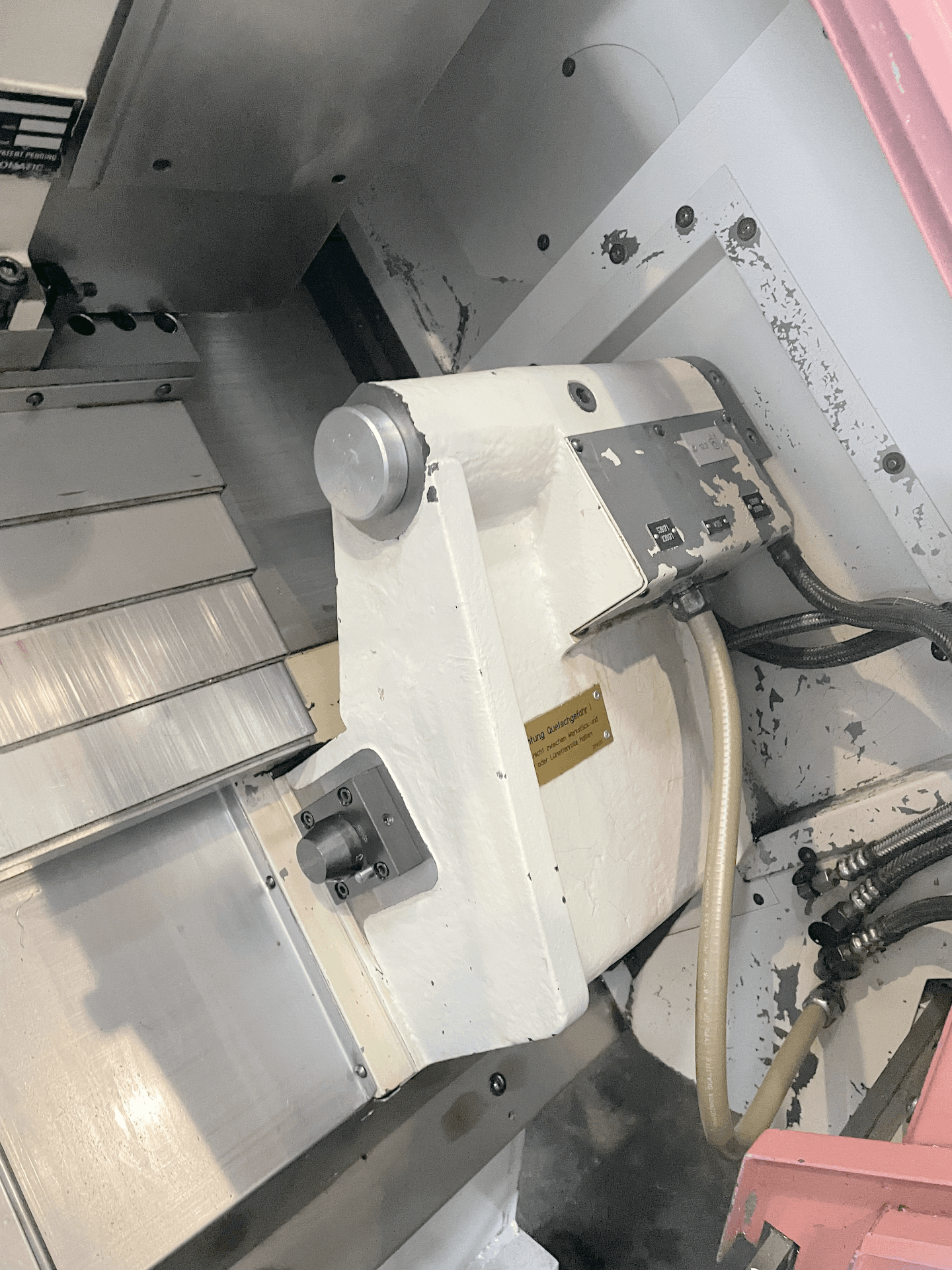

{"Centre height": "298 mm", "Swing diameter": "440 mm", "Swing over cross-slide": "210 mm", "Spindle hole": "56 mm", "Maximum turning length": "305 mm", "Turret carriage:": "", "Travels:": "", "Longitudinal travel (Z-axis)": "350 mm", "Transversal strocke (X axis)": "160 mm", "Turret slide:": "", "Number of positions": "12", "Driven tools turret": "12", "Spindle speeds": "0 - 5000 t/min", "Power of driven tools": "3 kW", "Torque max.": "58 / 84 Nm", "Inner cone diameter": "20 mm", "Spindle speeds:": "", "stepless": "", "from": "25 t/min", "up to": "5000 t/min", "Spindle power": "7.5 / 11 kW", "Tailstock:": "", "Morse taper": "3 CM", "Spindle stroke": "120 mm", "Spindle diameter": "50 mm", "Pressure": "3 kN", "Rapid traverse X": "12 m/min", "Rapid traverse Z": "16 m/min", "Voltage 50 Hz 3x": "380 Volt", "Noise level": "77 dB (A)", "Total power required": "34 kVA", "Machine's weight about": "3200 kg", "Overall dimensions machine:": "", "Length": "2600 mm", "Width": "1700 mm", "Height": "1700 mm", "Various accessories:": "", "3-jaw chuck diameter": "140 mm", "Set of soft jaws": "", "Collet device": "", "Set of collets": "", "Hydraulic tailstock": "", "Central lubrification": "", "Rotary centre": "", "Interface serial port RS 232": "", "Drill chuck": "", "Foot pedal": "", "Set of steel holders": "", "Set of toolholders": ""}
