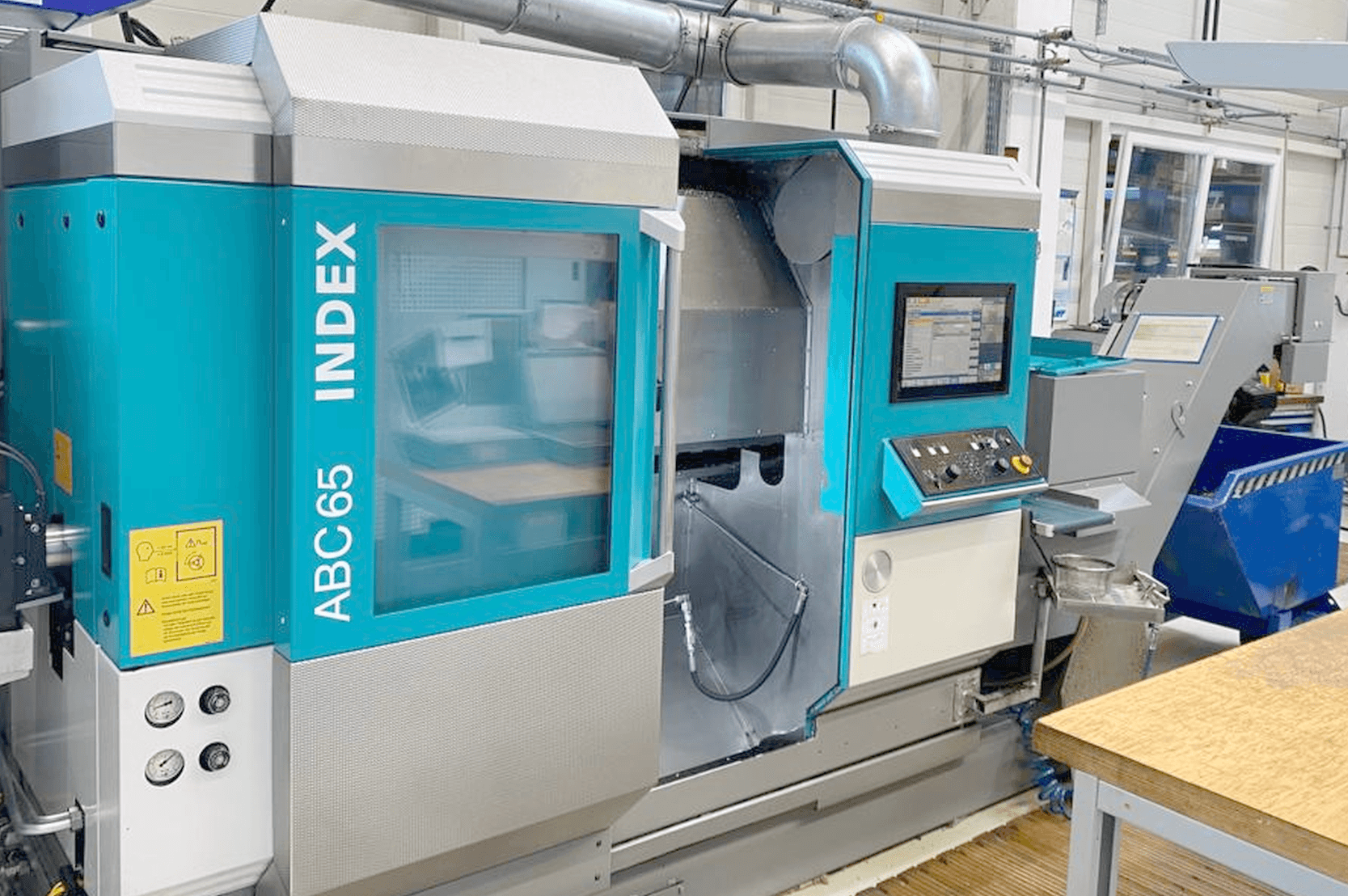

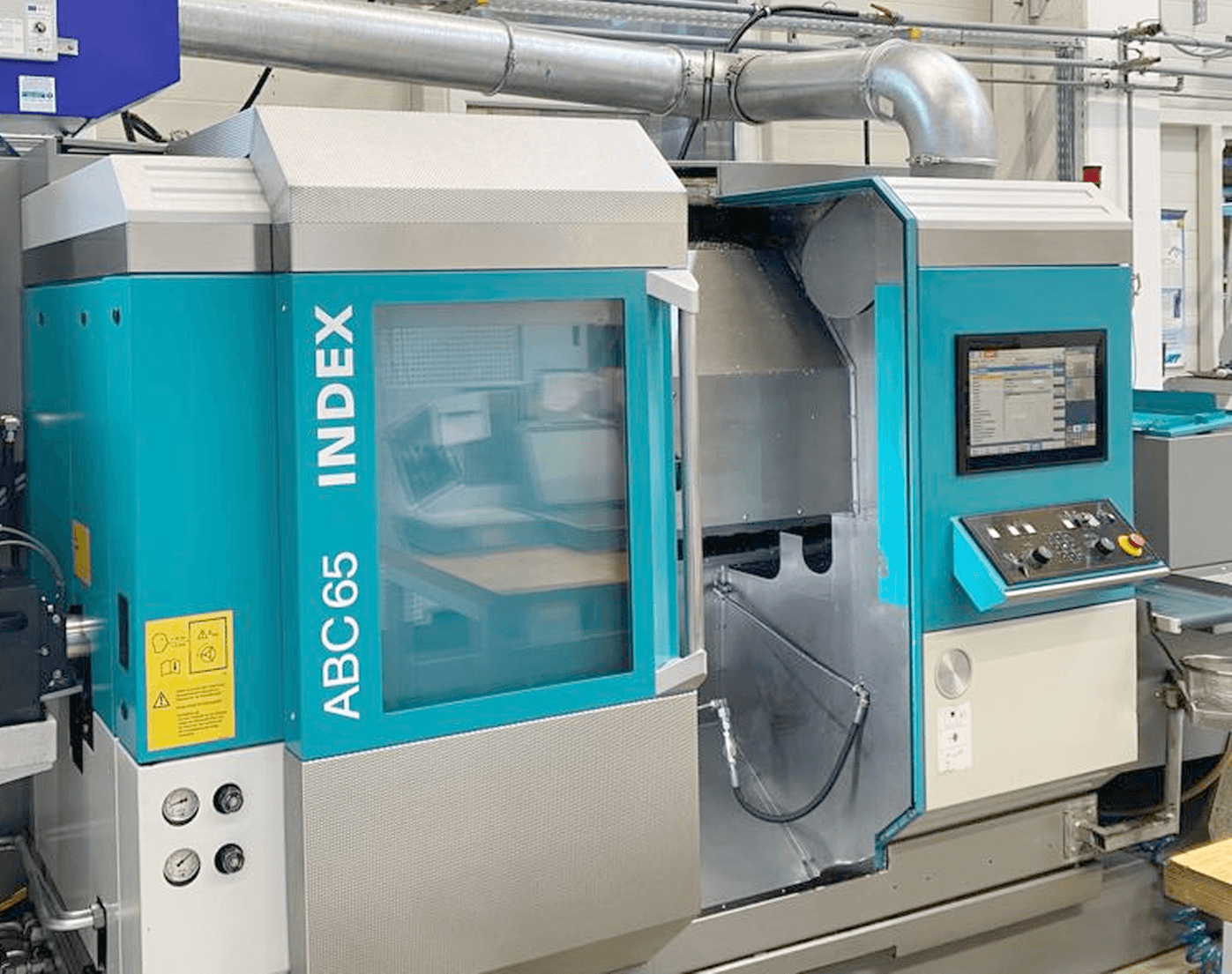

022496 - INDEX ABC 65

Description

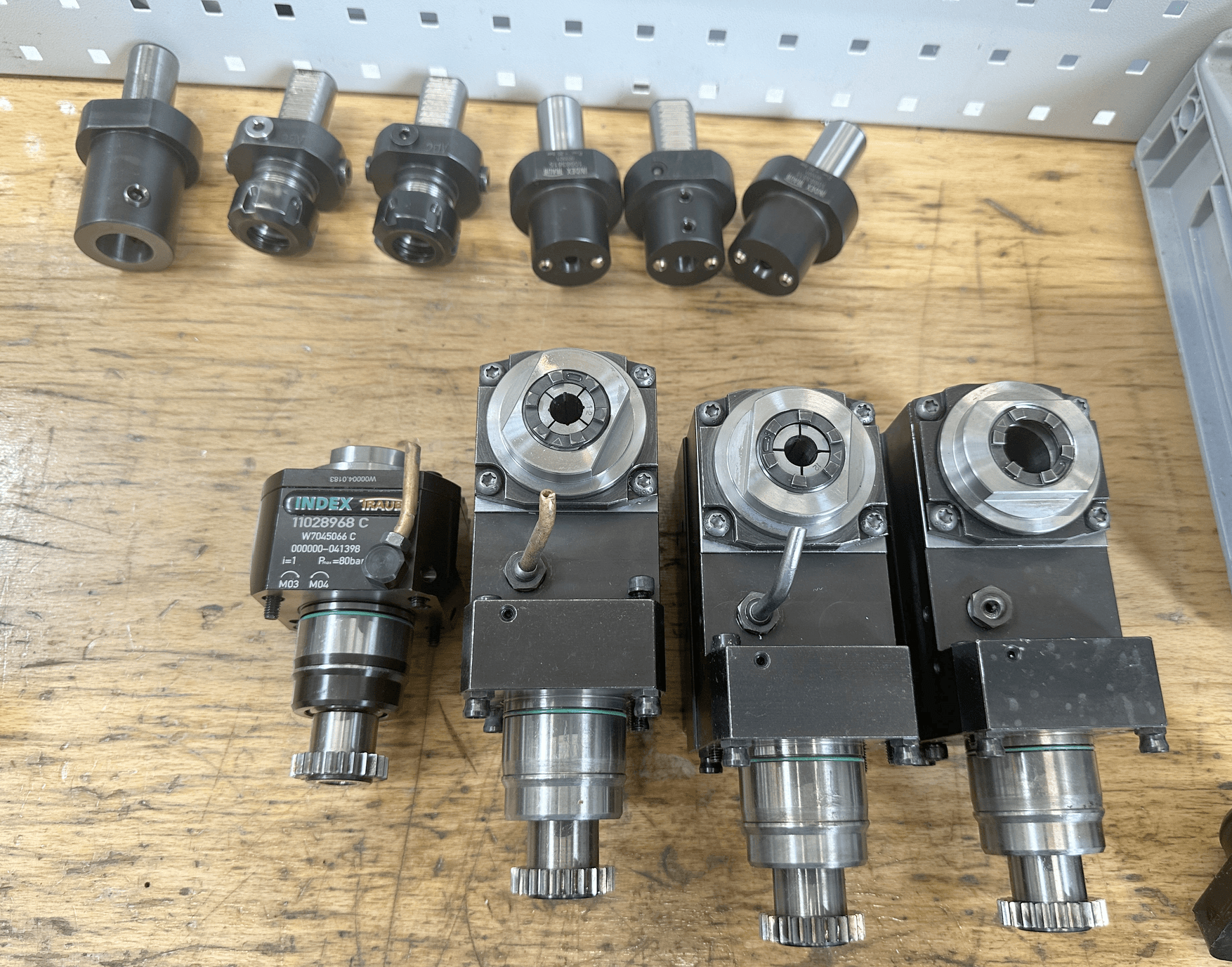

{"Number of turning spindles": "2", "Number of revolvers": "2", "Spindle head": "ISO 702/1", "Spindle hole": "65 mm", "Spindle diameter": "110 mm", "Turret carriage:": "", "Carriage 1:": "", "Longitudinal travel (Z-axis)": "300 mm", "Transversal strocke (X axis)": "140 mm", "Transversal travel (y-axis)": "100 mm", "Carriage 2:": "", "Turret slide: number": "2", "Number of positions turret 1": "10", "Number of positions turret 2": "9", "Number of positions turret back side": "8", "Driven tools turret 1": "10", "Driven tools turret 2": "9", "Driven tools back side": "5", "Spindle speeds": "12000 t/min", "Tool shank cross section": "45 mm", "Power of driven tools": "7.5 / 9 kW", "Indexing time": "0.4 s", "Main spindle:": "", "C axis (spindle,resolution)": "\u00b0", "Spindle speeds:": "", "stepless": "", "from": "0 t/min", "up to": "6000 t/min", "Spindle power": "25 / 35 kW", "Torque max.": "10.5 / 20 Nm", "Back spindle mobile:": "", "max. speed": "6000 t/min", "Internal spindle diameter": "65 mm", "Power of back spindle": "5 / 9 kW", "Rapid traverse X": "30 m/min", "Rapid traverse Z": "50 m/min", "Voltage 50 Hz 3x": "400 Volt", "Total power required": "41 kW", "Machine's weight about": "6500 kg", "Overall dimensions machine:": "", "Length": "3600 mm", "Width": "1280 mm", "Height": "1950 mm", "Various accessories:": "", "Collet device": "", "Lamp": "", "Water cooler": "", "Coolant system": "300 l", "High pression colant device": "80 bar", "Paper filtration system": "", "Interface USB": "", "Automatic parts removal": "", "Workpiece conveyor": "", "Chip conveyor": "", "Set of toolholders": "", "Notes:": "", "Z-axis revised": "2023"}
