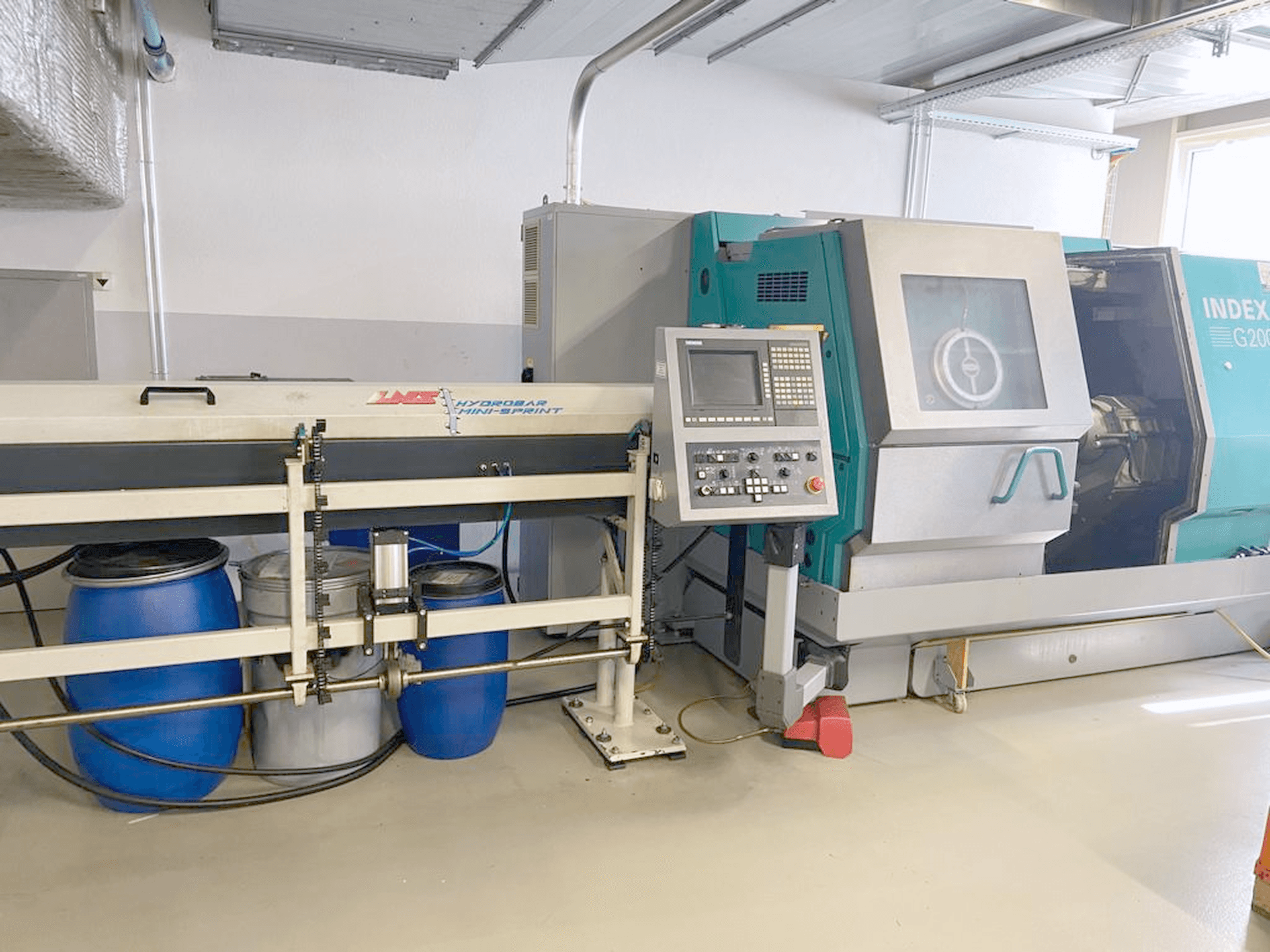

021595 - INDEX G 200

Description

{"Number of spindles": "2", "Number of revolvers": "2", "Spindle hole": "42 mm", "Turning diameter": "200 mm", "Turning length": "400 mm", "Turret slide:": "", "Number of positions turret 1": "14", "Number of positions turret 2": "14", "Driven tools turret 1": "14", "Driven tools turret 2": "14", "Spindle speeds": "6000 t/min", "Power of driven tools": "5.5 kW", "Inner cone DIN": "69 880", "Indexing time": "0.4 s", "Upper turret head:": "", "X axis": "105 mm", "Y axis": "+/- 60 mm", "Z axis": "400 mm", "Lower turret head:": "", "Main spindle:": "", "Internal spindle diameter": "42 mm", "C axis (spindle,resolution)": "\u00b0", "Spindle speeds:": "", "stepless": "", "from": "0 t/min", "up to": "6300 t/min", "Spindle power": "20 / 29 kW", "Torque max.": "95 / 140 Nm", "Back spindle:": "", "max. speed": "6300 t/min", "Spindle diameter": "160 mm", "Back spindle stroke": "445 mm", "Power of back spindle": "13 / 22 kW", "Rapid traverse X": "23 m/min", "Rapid traverse Z": "45 m/min", "Rapid traverse Y": "8 m/min", "Spindle motor": "39 kW", "Voltage 50 Hz 3x": "400 Volt", "Machine's weight about": "4800 kg", "Overall dimensions machine:": "", "Length": "2500 mm", "Width": "2400 mm", "Height": "2700 mm", "Various accessories:": "", "3-jaw chuck": "", "Collet chuck (number)": "2", "Set of collets": "", "Lamp": "", "Bar feeder": "LNS", "Type": "MINI-SPRINT S2-42", "Length of bars max.": "4000 mm", "Tool cabinet": "", "Interface serial port RS 232": "", "Part separating device": "", "Workpiece conveyor": "", "Chip conveyor": "", "Foot pedal": "", "Set of steel holders": "", "Set of toolholders": "", "Driven tools (number)": "", "Rotating viewing window": ""}
