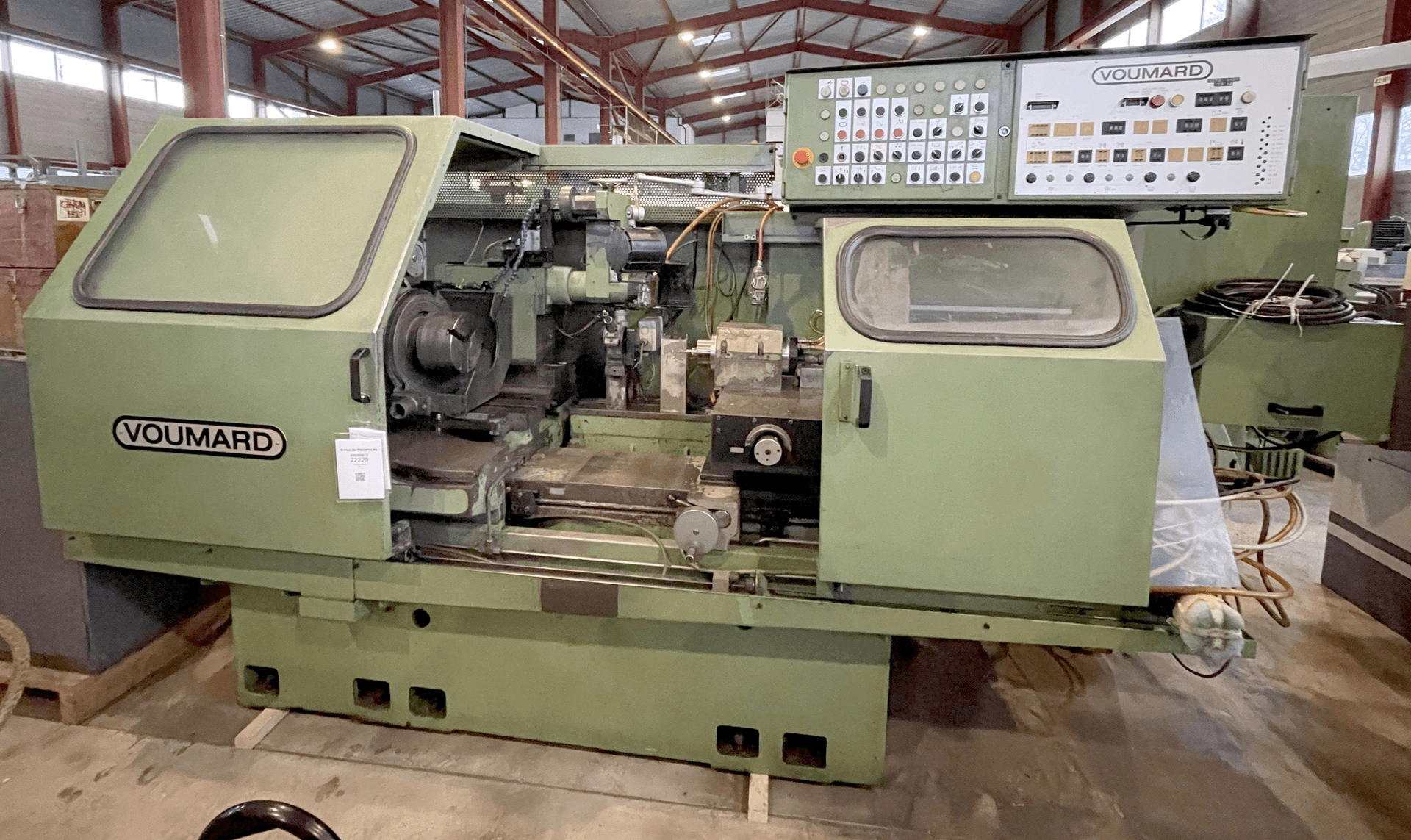

022229 - VOUMARD 203 L6

Description

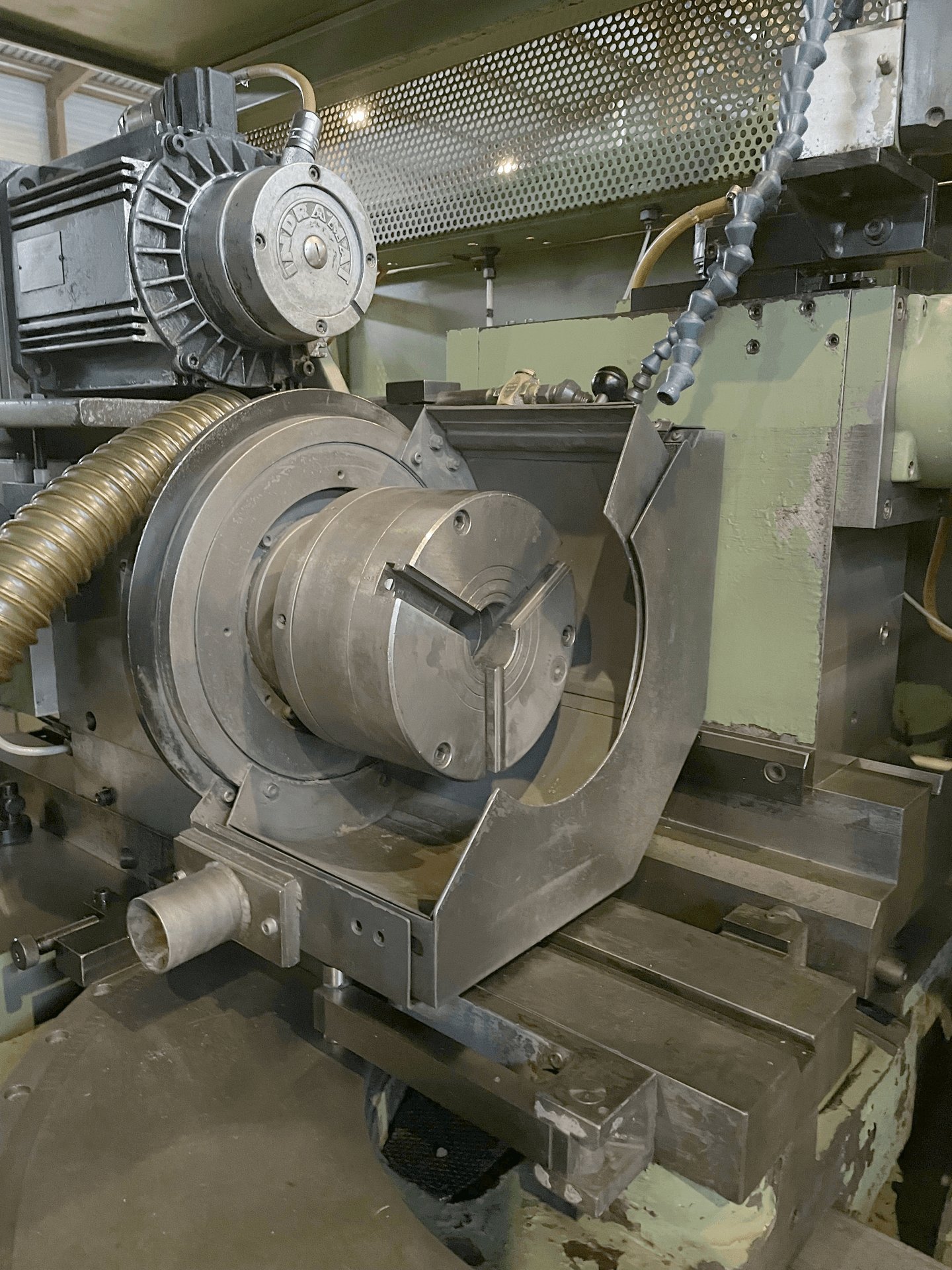

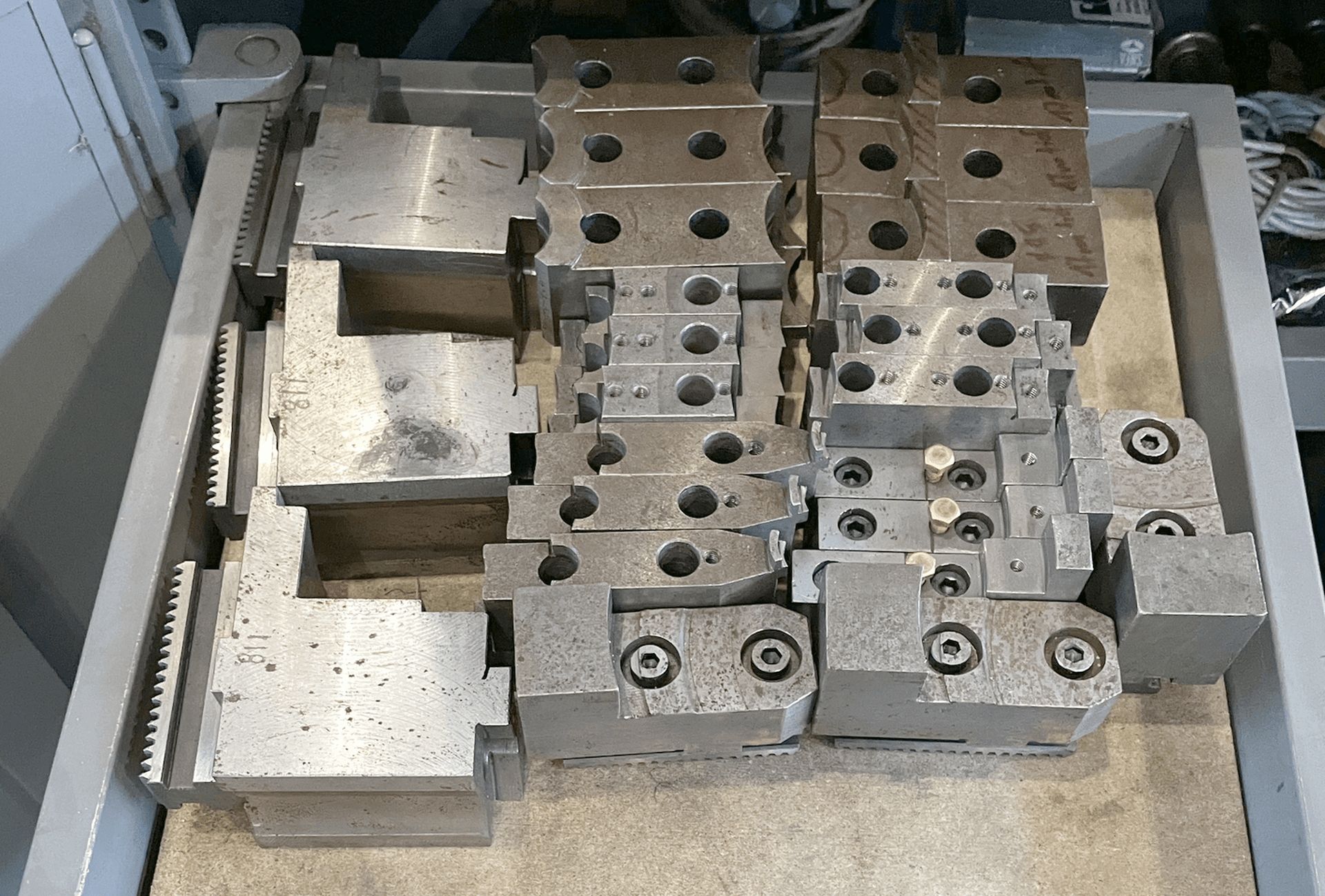

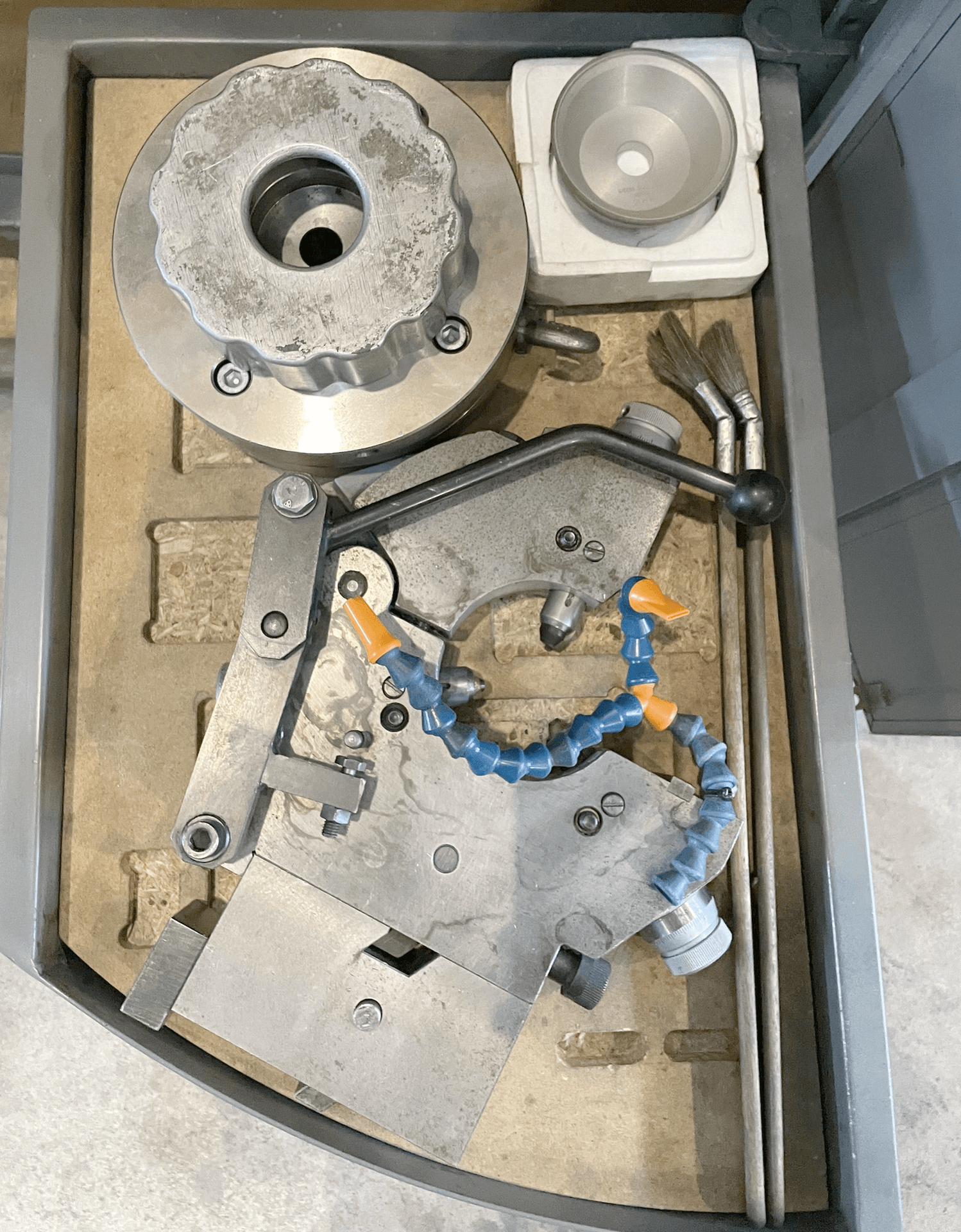

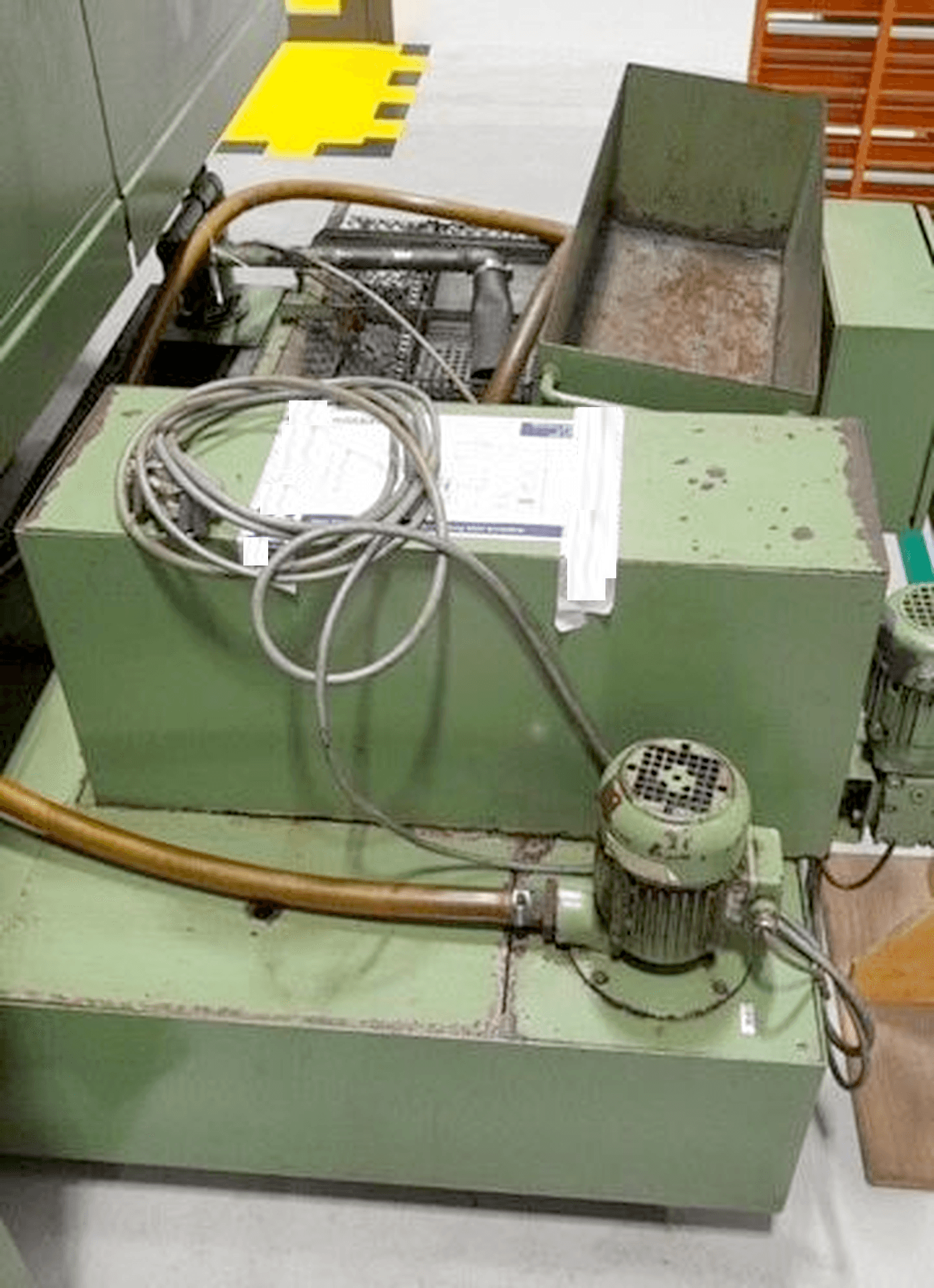

{"Min. internal grinding diameter": "5 mm", "Max. internal grinding diameter": "120 mm", "Grinding depth": "160 mm", "Centre height": "130 mm", "Workpiece spindle speeds:": "", "number (steps)": "6", "from": "m/min", "up to": "20 m/min", "Max. angle": "0 - 45 \u00b0", "Spindle hole": "30 mm", "Grinding table travel:": "", "min.": "2 mm", "max": "550 mm", "Table speeds:": "", "stepless": "", "Voltage 50 Hz 3x": "380 Volt", "Drive for internal grinding spindle": "9 kW", "Machine's weight about": "1500 kg", "Overall dimensions machine:": "", "Length": "2200 mm", "Width": "1700 mm", "Height": "1800 mm", "Various accessories:": "", "Face grinder": "", "Redressing device": "", "Front grinding device redresser": "", "3-jaw chuck": "", "Set of hard jaws": "", "Coolant system": "", "Paper filtration system": "", "Internal grinding spindle:": "", "numbers": "2", "max. speed": "60000 t/min", "Set of grinding arbor": "", "Three-jaw bezel folds open": "", "Lamp": "", "Tool cabinet": "", "Lathe chuck protection": "", "Swivelling protection device": ""}
