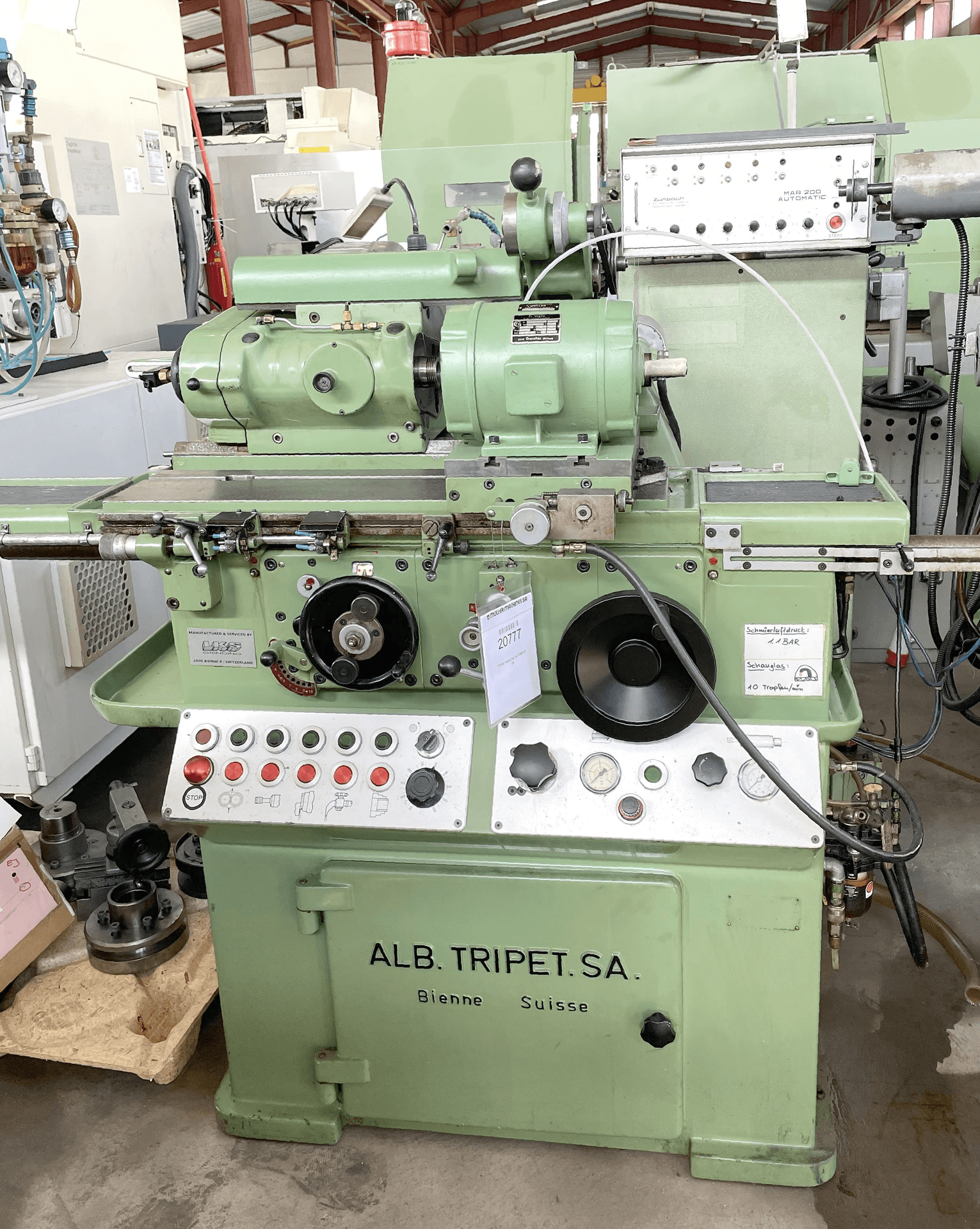

020777 - TRIPET MAR 200 AUTOMATIC

Description

{"Min. internal grinding diameter": "1 mm", "Max. internal grinding diameter": "50 mm", "Grinding depth": "200 mm", "Centre height": "132 mm", "Workpiece spindle speeds:": "", "from": "16500 t/min", "up to": "10 m/min", "Max. angle": "90 \u00b0", "Possible grinding-spindle speeds:": "", "Table speeds:": "", "stepless": "", "Voltage 50 Hz 3x": "380 Volt", "Workpiece spindle motor": "0.8 kW", "Drive for internal grinding spindle": "3 kW", "Machine's weight about": "2000 kg", "Overall dimensions machine:": "", "Length": "1800 mm", "Width": "1000 mm", "Height": "1800 mm", "Various accessories:": "", "Grinding wheel dressing device": "", "Grinding spindle unit for internal grinding": "", "Special base for grinding wheel holders": "", "Internal grinding spindle:": "", "numbers": "1", "max. speed": "33000 t/min", "Steady": ""}
