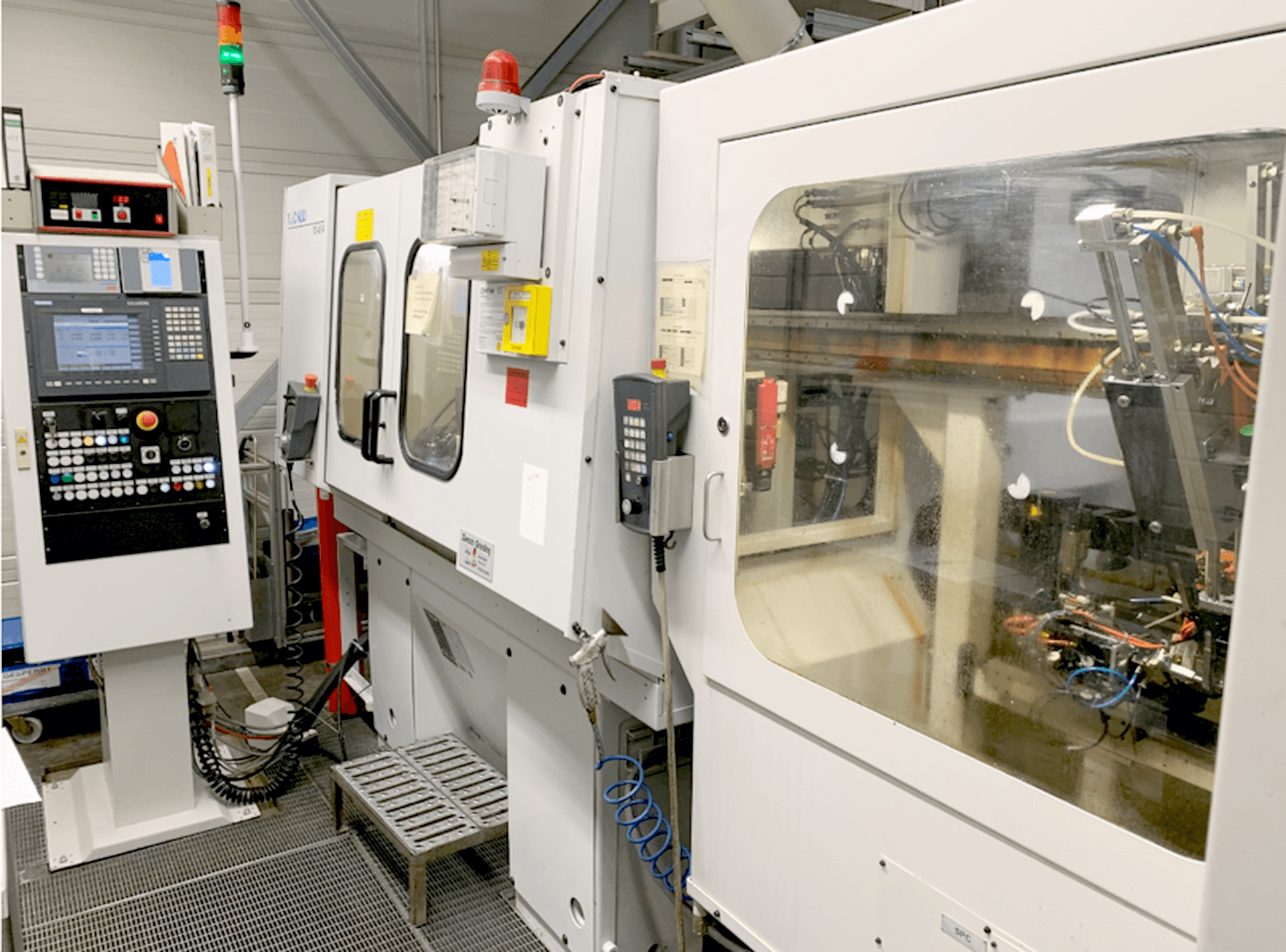

022202 - TSCHUDIN TS 45 A

Description

{"Centre height": "100 mm", "Distance between centres": "430 mm", "Max. grinding diameter": "198 mm", "Grinding length": "400 mm", "Max. work piece diameter": "198 mm", "Min. work-piece diameter": "1 mm", "Travels:": "", "Z axis": "480 mm", "X axis": "340 mm", "Workpiece weight on centres max.": "100 kg", "Grinding wheel:": "", "Diameter": "500 mm", "Width": "3300 mm", "Peripheral speed": "45 m/s", "Work piece spindle head:": "", "speeds:": "", "stepless": "", "from": "20 t/min", "up to": "1000 t/min", "Holding taper:": "5 CM", "rotatable": "+30 / 45 \u00b0", "Tailstock:": "", "Taper in tailstock:": "3 CM", "Tailstock travel of barrel": "20 mm", "Oscillation speed": "8000 mm/min", "Air connect": "6 bar", "Voltage 50 Hz 3x": "400 Volt", "Grinding spindle motor": "7.5 kW", "Workpiece spindle motor": "3 kW", "Total power required": "16 kVA", "Machine's weight about": "4500 kg", "Overall dimensions machine:": "", "Length": "3700 mm", "Height": "2500 mm", "Various accessories:": "", "Touch probe MARPOSS": "", "Measuring control": "", "Profile wheel trueing attachment": "", "Lamp": "", "Status light": "", "Oil mist extractor": "", "Automatic Loader with Rail": ""}
