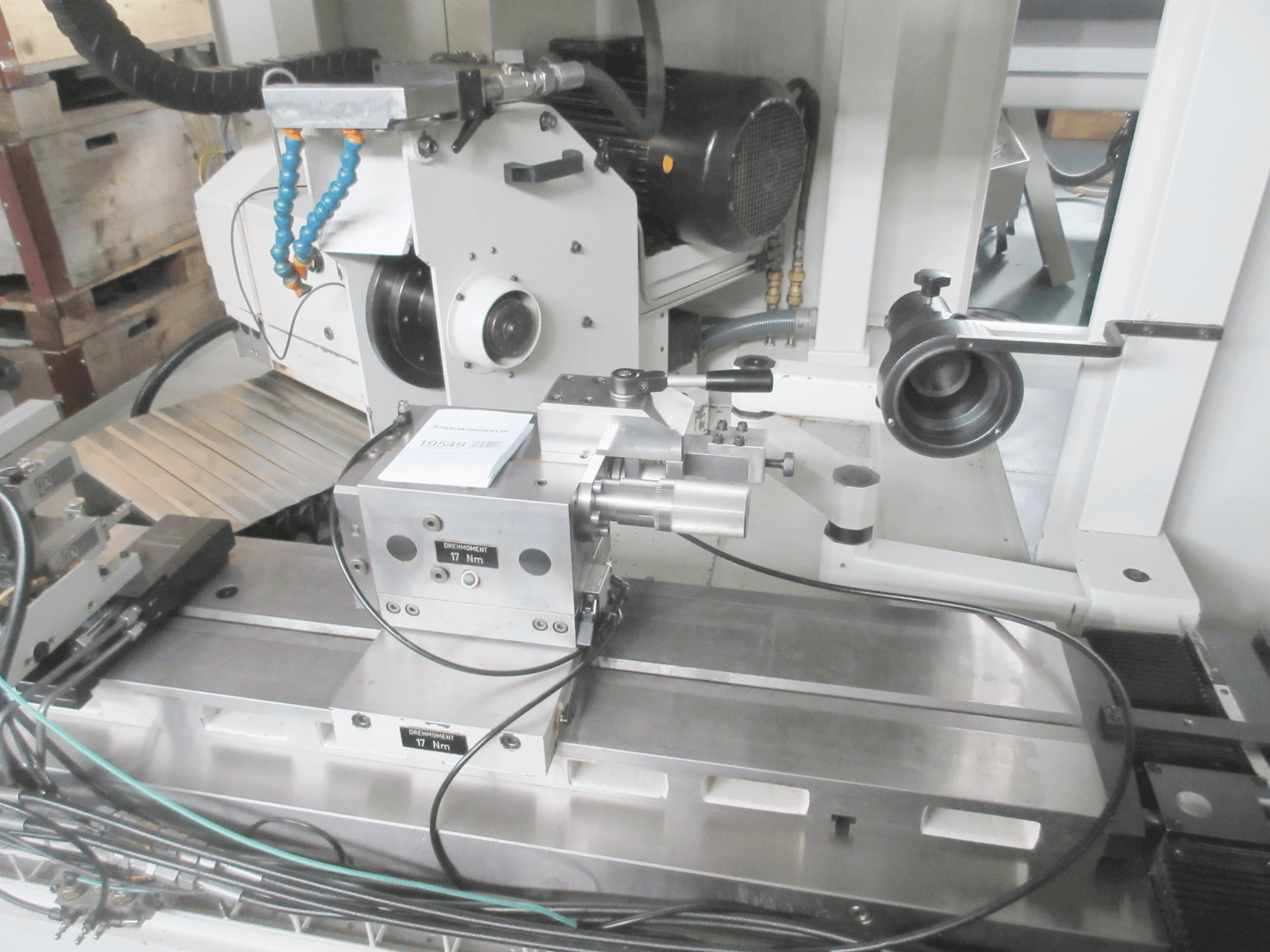

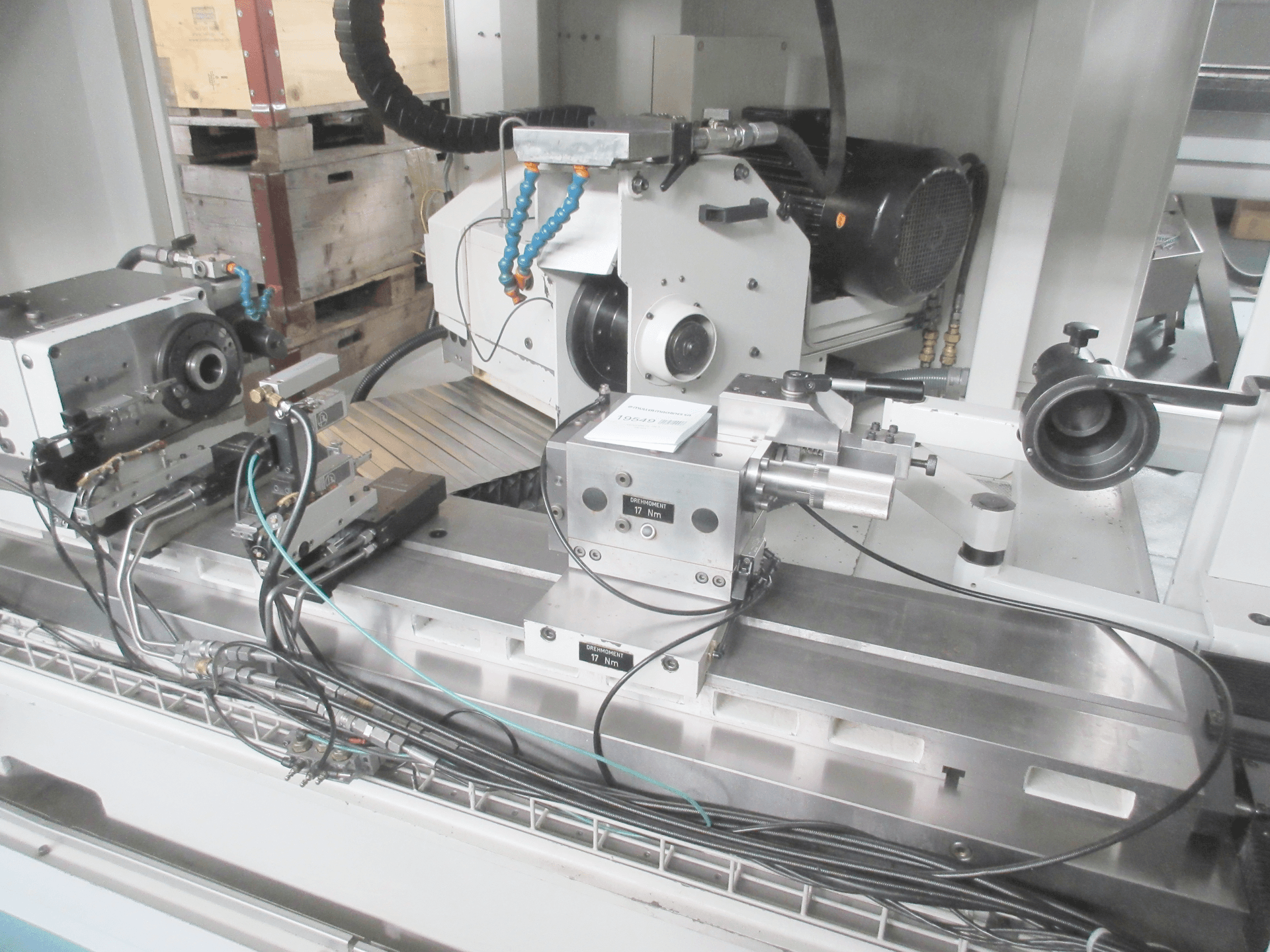

019549 - TSCHUDIN PL 105 A

Description

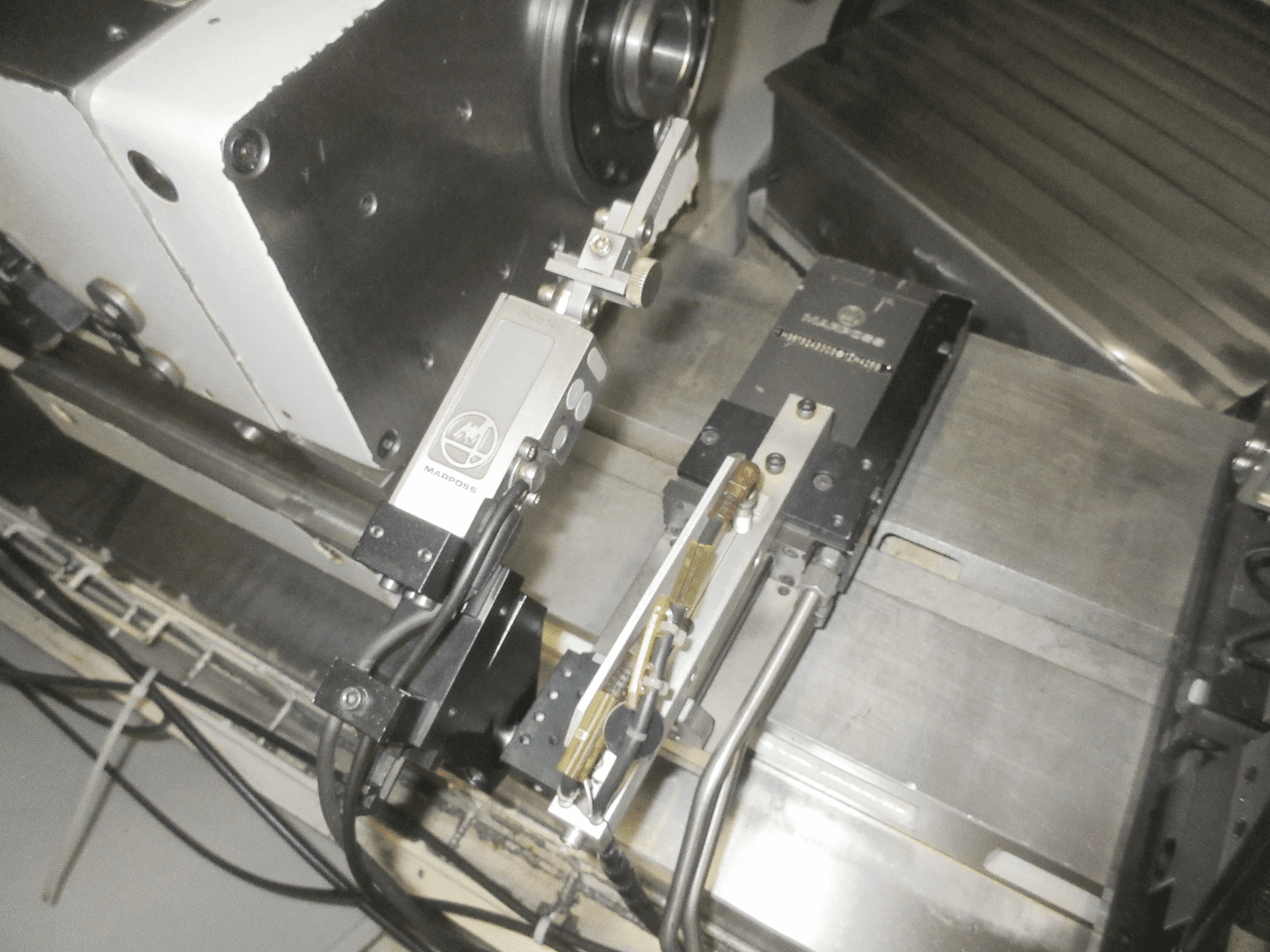

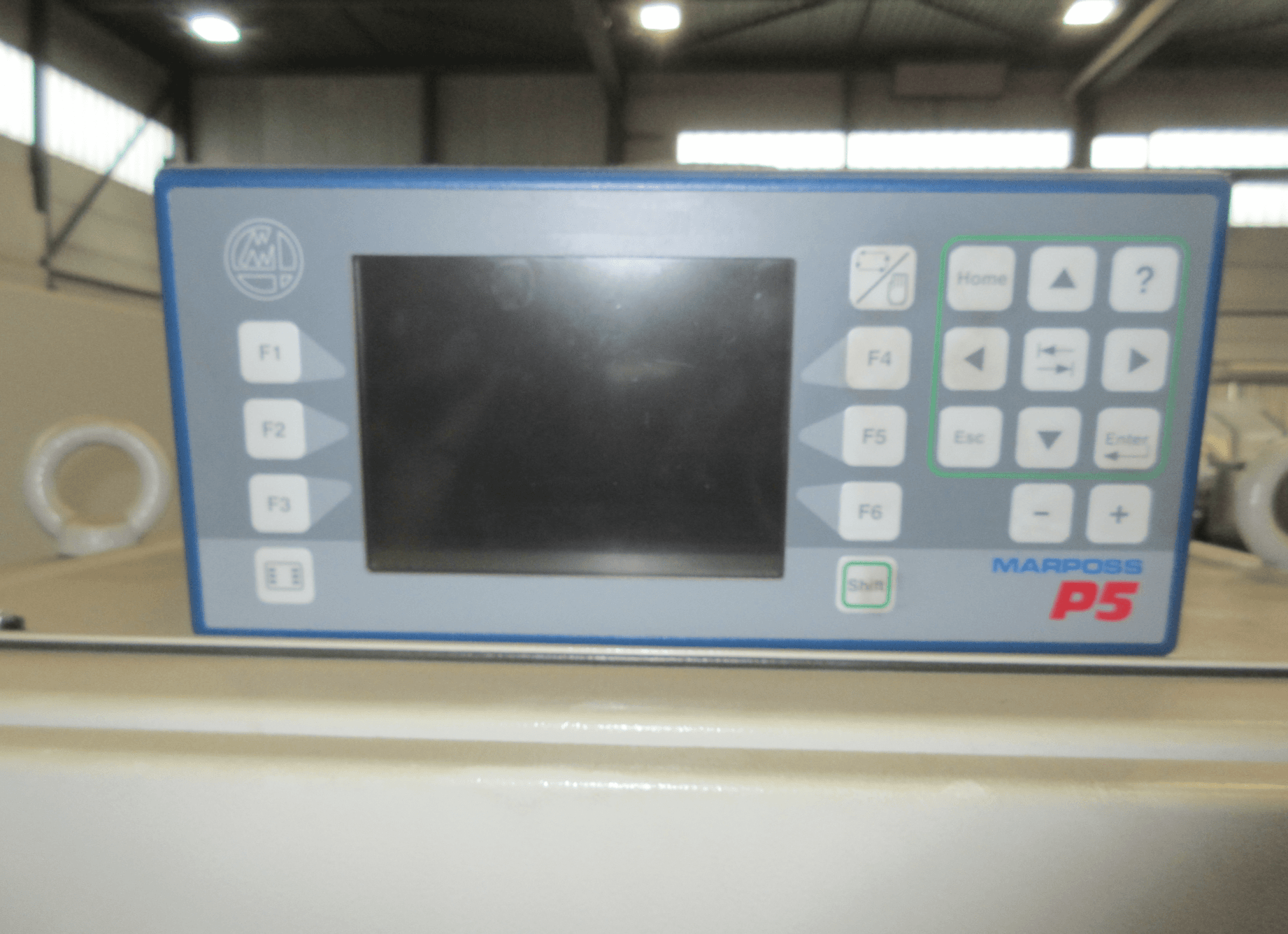

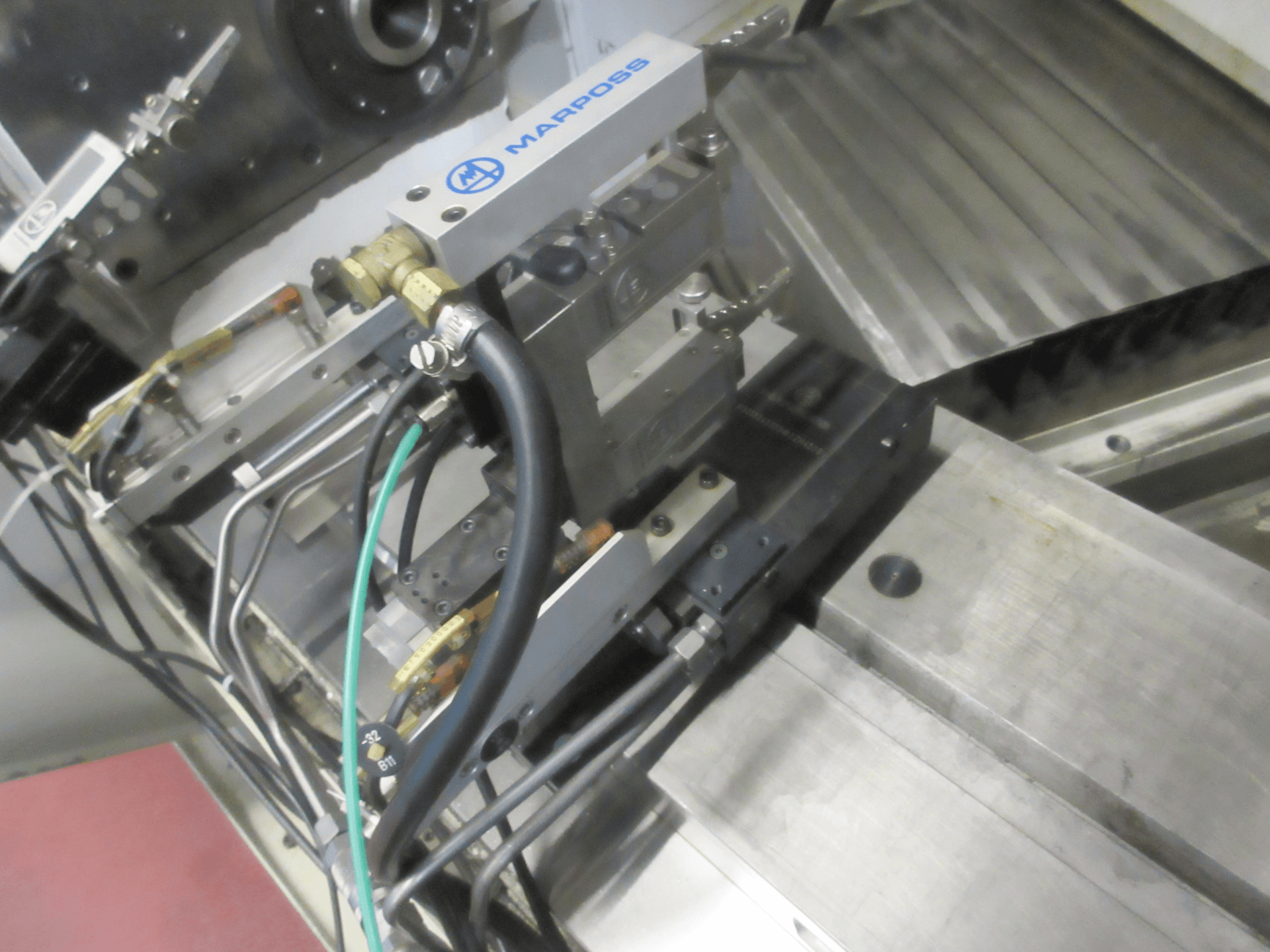

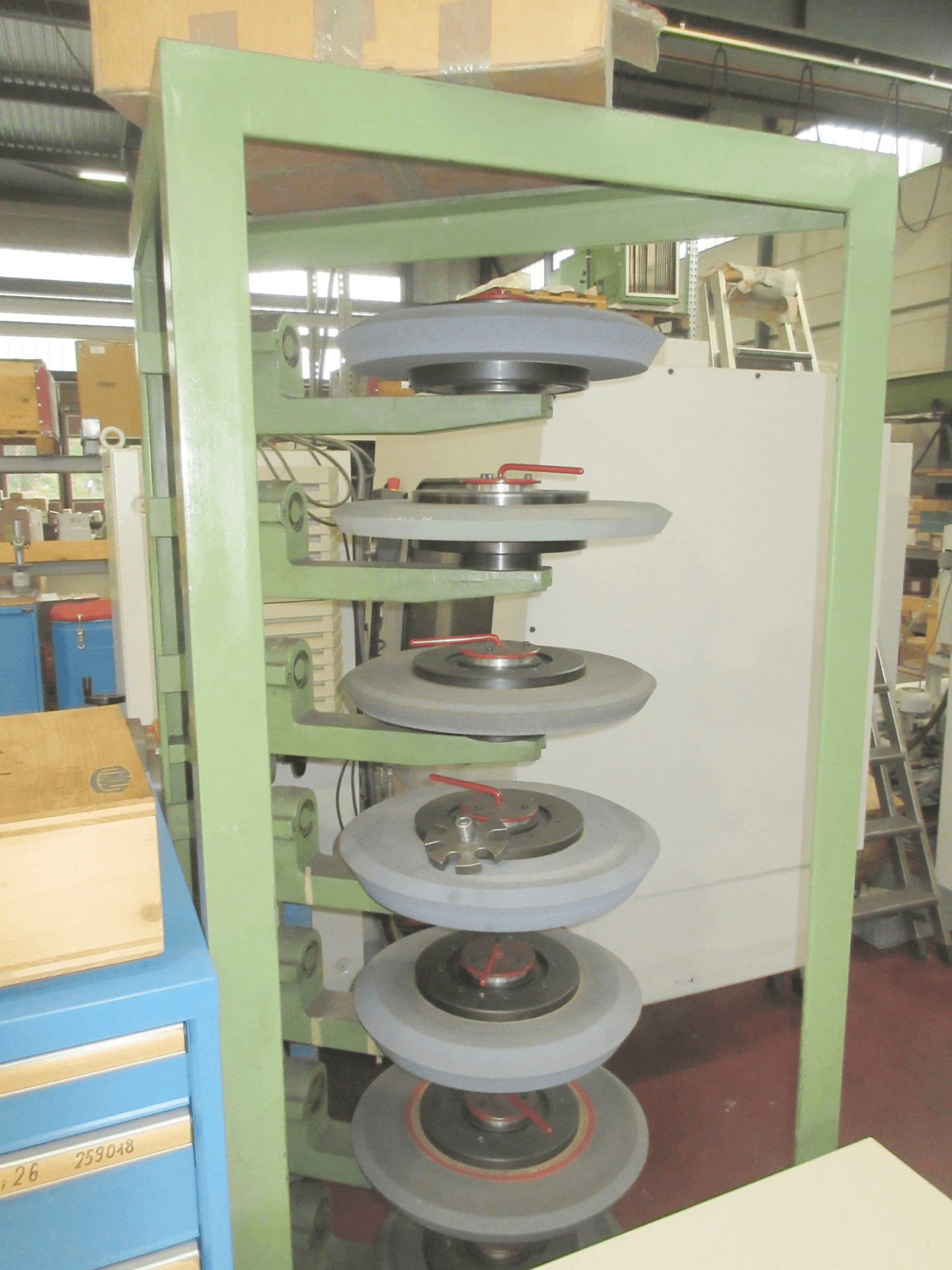

{"Centre height": "175 mm", "Distance between centres": "1000 mm", "Max. grinding diameter": "348 mm", "Grinding length": "1000 mm", "Workpiece weight on centres max.": "250 kg", "Grinding wheel:": "", "Diameter": "500 mm", "Width": "3550 mm", "Peripheral speed": "45 m/s", "Longitudinal slide:": "", "Max. travel": "340 mm", "Resolution": "mm", "Feed speed up": "8000 mm/min", "Transversal slide:": "", "Swivelling range": "+9/-9 \u00b0", "Work piece spindle head:": "", "speeds:": "", "from": "20 t/min", "up to": "1000 t/min", "rotatable": "+30/-45 \u00b0", "Pr\u00e9cision d'usinage": "mm", "taper in spindle: MT": "6", "Tailstock:": "", "Taper in tailstock:": "4 CM", "Tailstock travel of barrel": "50 mm", "Voltage 50 Hz 3x": "400 Volt", "Grinding spindle motor": "15 kW", "Total power required": "16 kVA", "Machine's weight about": "5100 kg", "Overall dimensions machine:": "", "Length": "4410 mm", "Height": "1900 mm", "Various accessories:": "", "Angular infeed": "", "Measuring head MARPOSS": "", "Set of grinding wheels": ""}
