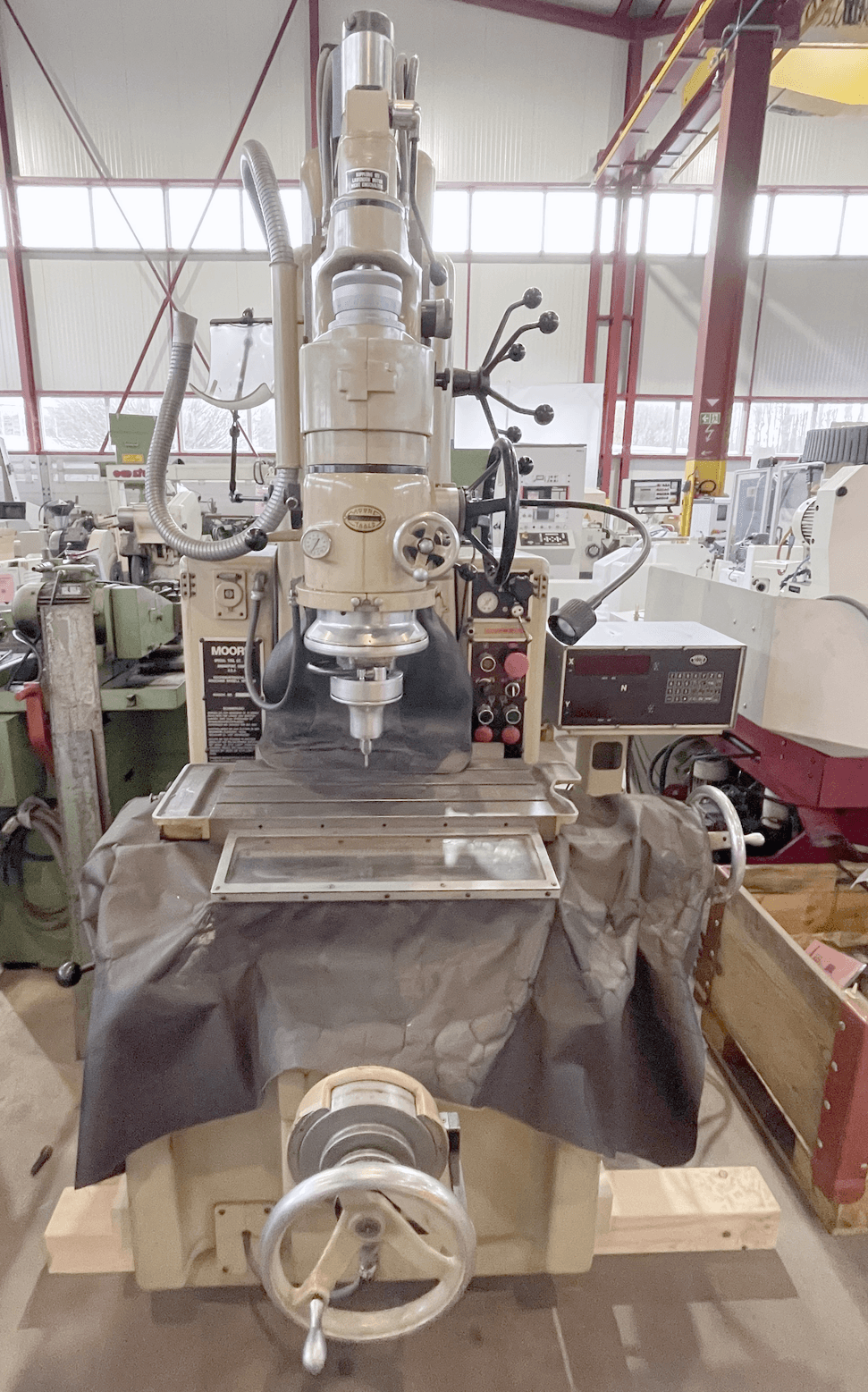

021822 - MOORE G 18

Description

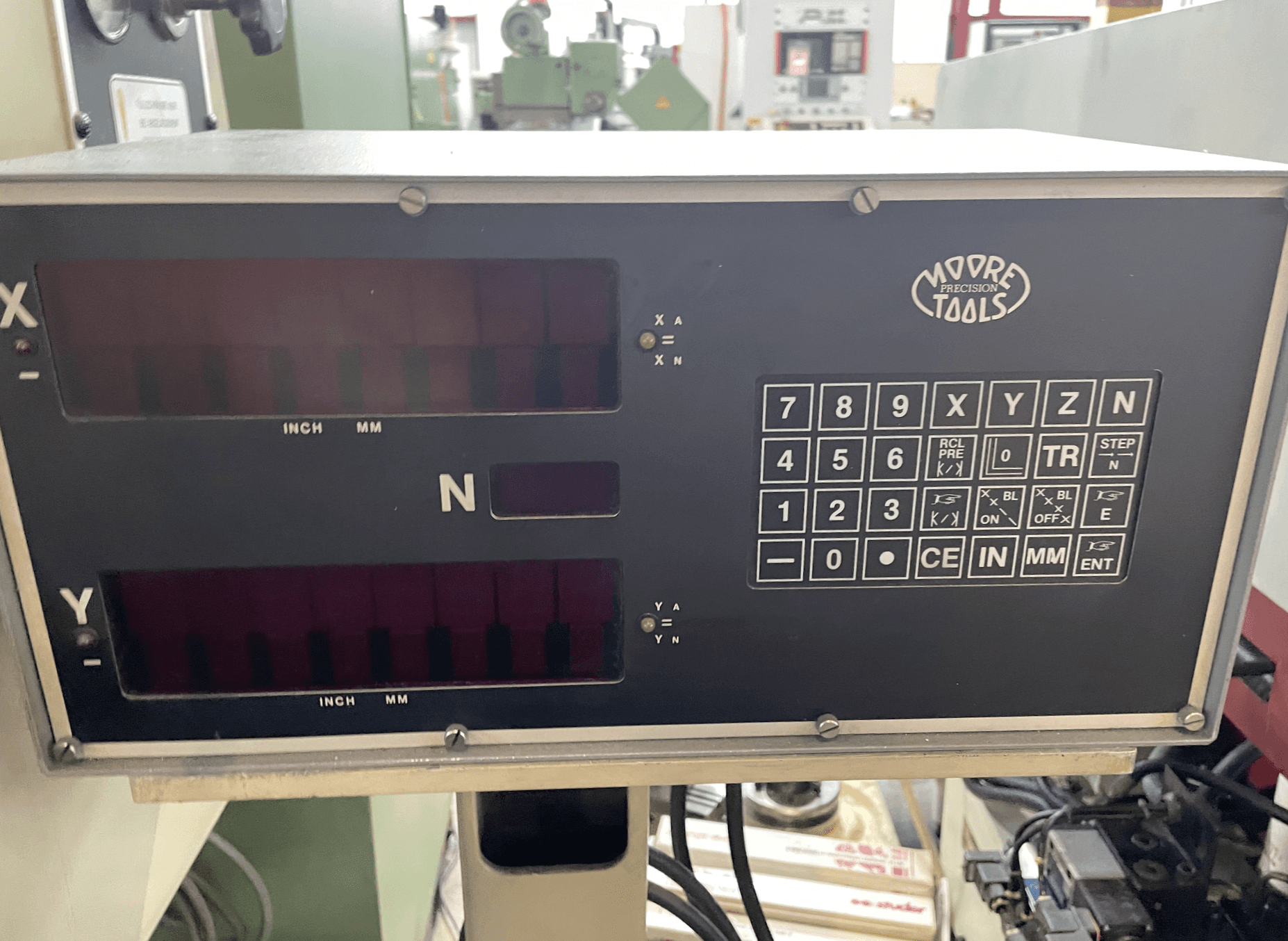

{"1 column execution": "", "Table:": "", "Table length": "610 mm", "Table width": "280 mm", "Travels:": "", "Longitudinal travel (X-axis)": "450 mm", "Transversal travel (y-axis)": "280 mm", "Vertical travel (z axis)": "320 mm", "Spindle stroke": "92 mm", "Regolazione angolare del cannotto": "2 \u00b0", "Distance from spindle-center to vertical slide": "250 mm", "Max. grinding diameter": "127 mm", "with display-plate": "304 mm", "Stroke of spindle-nose": "340 mm", "Main spindle:": "", "Spindle speeds": "25 - 225 t/min", "grinding spindle:": "", "speeds:": "", "from": "6000 t/min", "up to": "175000 t/min", "Grinding range": "0.4 - 90 mm", "Air connect": "7 bar", "Voltage 50 Hz 3x": "380 Volt", "Machine's weight about": "1900 kg", "Overall dimensions machine:": "", "Length": "2200 mm", "Width": "1800 mm", "Height": "2600 mm", "Various accessories:": "", "Digital readout number of axis:": "2", "Lamp": ""}
