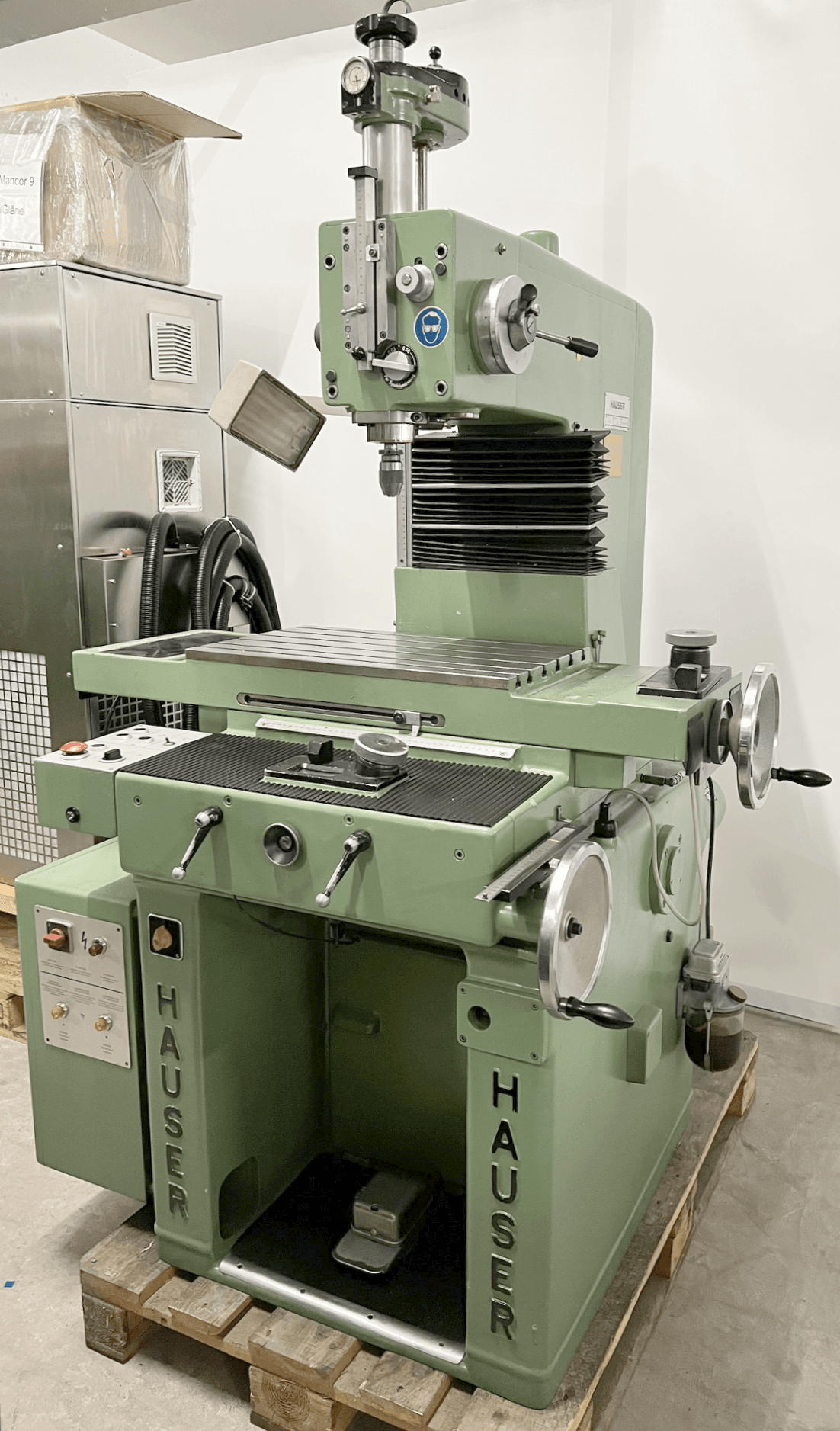

021942 - HAUSER 3 BA

Description

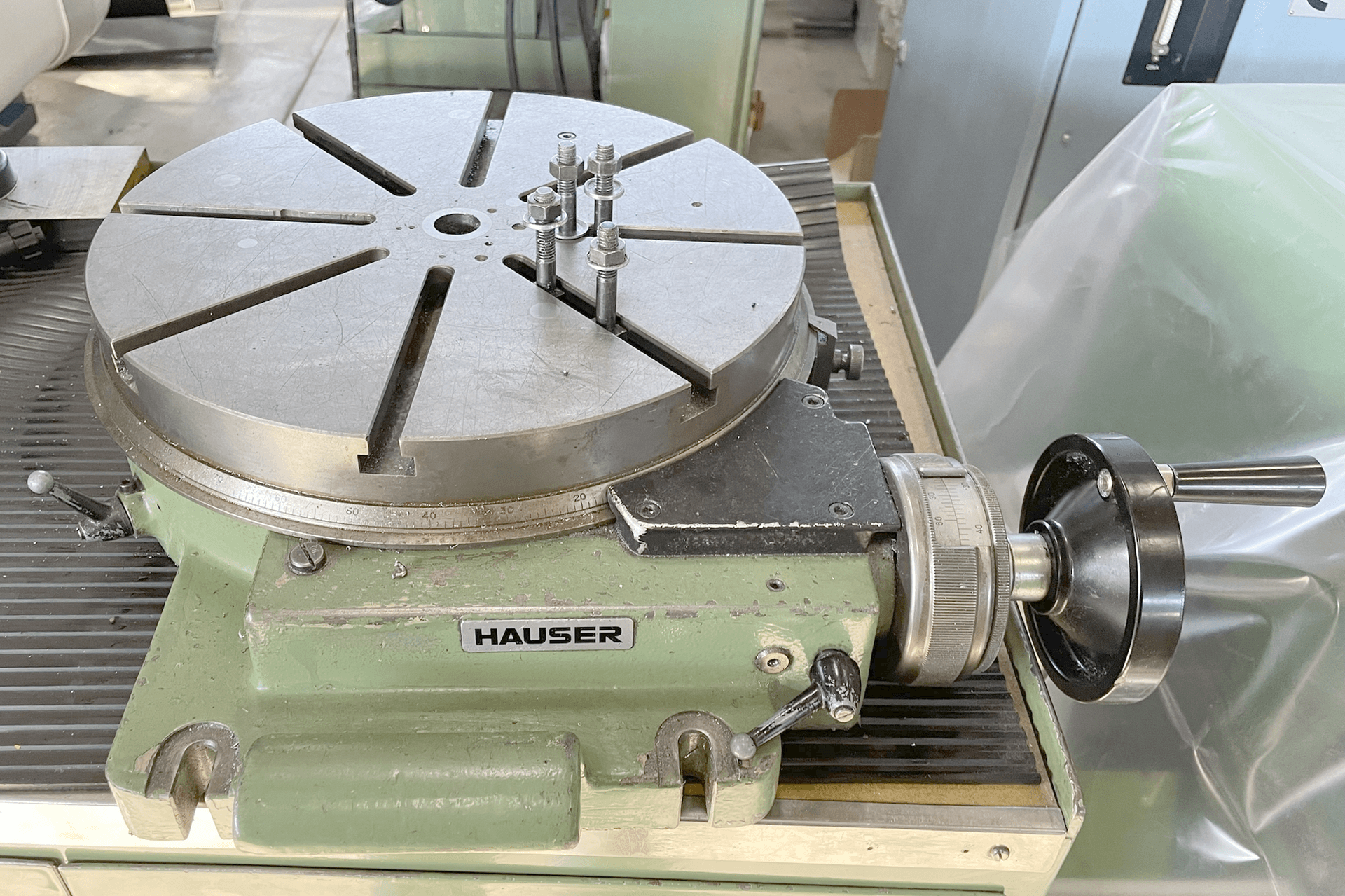

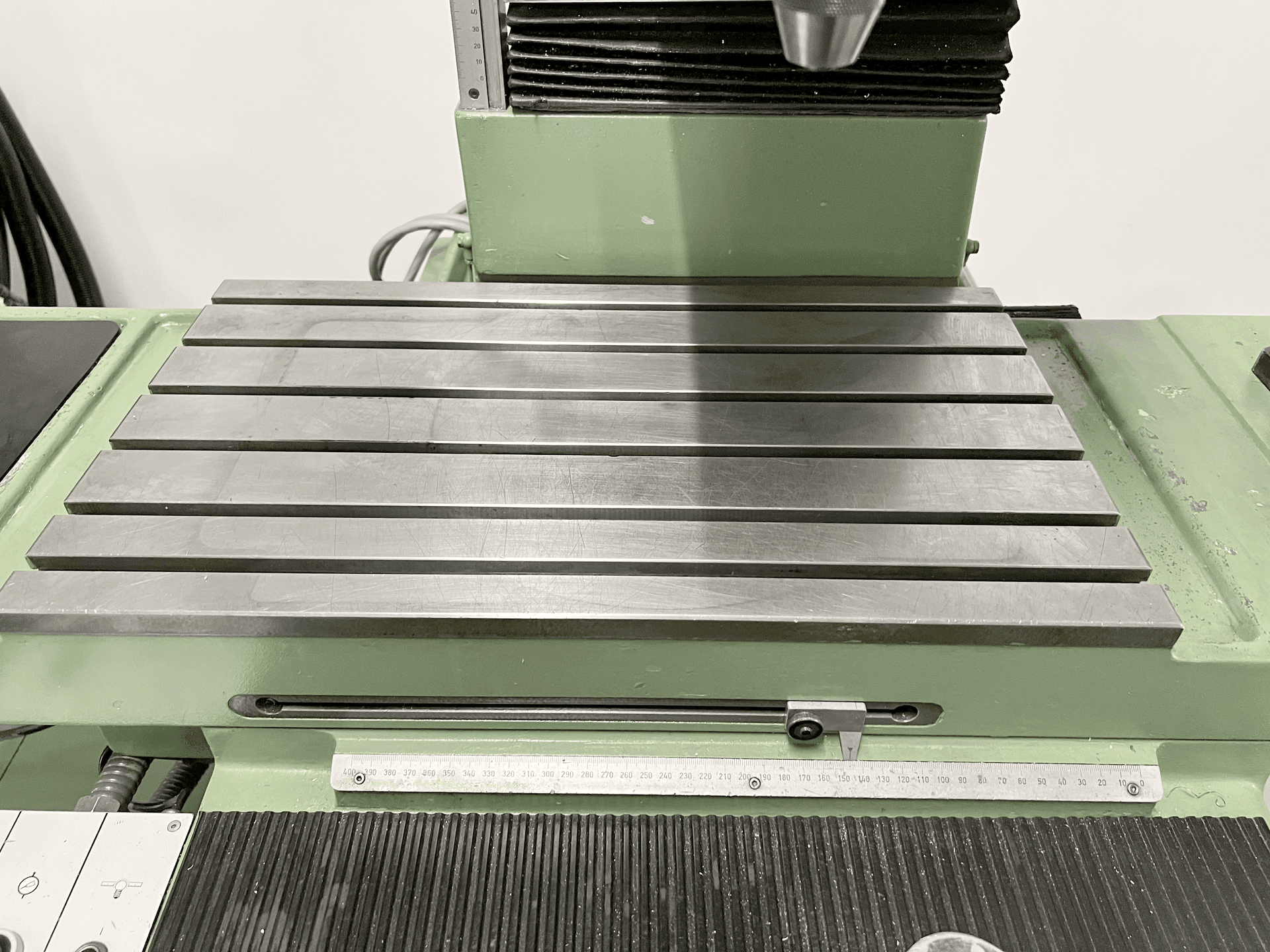

{"Table length": "550 mm", "Table width": "320 mm", "Number of T-channels": "6", "T-channel width": "10 mm", "Distance of the T-slots": "40 mm", "Table load max.": "400 kg", "Longitudinal travel (X-axis)": "400 mm", "Transversal travel (y-axis)": "250 mm", "Vertical travel (z axis)": "400 mm", "Drill capacity in steel": "20 mm", "Taper in spindle: MT": "2", "Stroke of drilling spindle (Z-axis)": "130 mm", "Bore diameter max.": "75 mm", "Distance table to spindle": "590 mm", "Spindle speeds:": "", "stepless": "", "from": "mm/t", "up to": "mm/t", "Feeds:": "", "Drill spindle slide:": "", "number (steps)": "2", "Voltage 50 Hz 3x": "380 Volt", "Spindle motor": "1 CV", "Machine's weight about": "1100 kg", "Overall dimensions machine:": "", "Length": "1200 mm", "Width": "1150 mm", "Height": "1750 mm", "Various accessories:": "", "Rotary table diameter": "300 mm", "Drill chuck": "", "Set of drill chucks": "", "Centering microscop": "", "Lamp": "", "3-jaw chuck diameter": "mm"}
