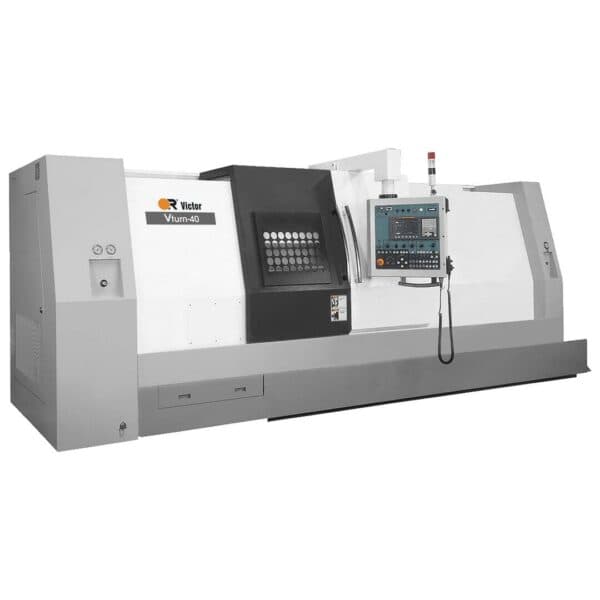

Heavy cutting lathe with spindle nose A2-11 for turning length from 1250mm to 4250mm. Bar capacity 91mm, Spindle speed 2500rpm. Single piece cast slant bed (45-degree) for minimum distance from ball screw to the tool tip Spindle bore A2-11 with hydraulic chuck 15” (opt. 12”) Genuine 45∘one piece slant bed for maximal structure rigidity Large ballscrew diameter in Z-axis: 50mm Vturn-40/125 & Vturn-40/220, 63mm for Vturn-40/325, 70mm for Vturn-40/425 Y-axis & C-axis applications available with built-in spindle for contour milling. Special LSB with optional bar capacity 105mm available. Vturn 40 / 220
Location : United Kingdom
Seller : GM Machinery Ltd
Manufacturer: Horizon
Location : United Kingdom
Seller : GM Machinery Ltd
Manufacturer: Horizon
